Evaporators: single effect, multiple effect, MVR#
This notebook walks through Evaporator, MultiEffectEvaporator and
MechanicalVaporRecompression, and ends with a gradient-based study of the
optimal number of effects.
What this notebook is and is not. The balances close and the gradients are
checked (tests/test_evaporator.py), but no textbook worked example is claimed
to be reproduced, the NaOH/NaCl/sucrose Duhring data built into the library are
unverified recollections, and the prices in section 6 are illustrative
placeholders, not market data. The system studied uses the ideal (Raoult)
boiling-point-rise model, which carries no tabulated data.
import warnings
import jax
import jax.numpy as jnp
import numpy as np
import matplotlib.pyplot as plt
from scipy.optimize import minimize
from difflow import (
make_stream, Evaporator, EvaporatorParams,
MultiEffectEvaporator, MultiEffectEvaporatorParams,
MechanicalVaporRecompression, MVRParams,
)
from difflow.economics.capital import heat_exchanger_cost
# 2 kg/s of 10 wt % NaOH in water, 330 K. The solute is an ordinary species
# whose vapor flow is zero: the vapor outlet carries F_NaOH = 0.
F, xF = 2.0, 0.10
feed = make_stream({"water": F * (1 - xF) * 1000 / 18.015,
"NaOH": F * xF * 1000 / 40.0}, T=330.0, P=2e5)
NAOH = dict(solute_species=["NaOH"], solute_MW=[40.0],
bpr_model="ideal", vant_hoff_i=2.0) # Raoult, NaOH -> 2 particles
1. Single effect: design and rating#
Design: give the product concentration, get steam, duty and area. Rating: give the area, get the product concentration back.
params = EvaporatorParams(**NAOH, U=1500.0, x_product=0.30,
P_vapor_space=30e3, steam_P=300e3)
conc, vap, info = Evaporator(params)(feed)
for k in ["steam", "steam_economy", "Q", "A", "T_soln", "BPR", "driving_force"]:
print(f"{k:15s} {float(info[k]):12.4g}")
print("vapor carries NaOH:", float(vap["F_NaOH"]), "mol/s")
print("closure: energy", float(info["energy_balance_error"]), "W, mass",
float(info["mass_balance_error"]), "kg/s")
rating = EvaporatorParams(**NAOH, U=1500.0, A=float(info["A"]),
P_vapor_space=30e3, steam_P=300e3)
_, _, back = Evaporator(rating)(feed)
print("rating the designed area gives x_P =", round(float(back["x_product"]), 6))
steam 1.502
steam_economy 0.8876
Q 3.248e+06
A 38.17
T_soln 349.9
BPR 7.696
driving_force 56.73
vapor carries NaOH: 0.0 mol/s
closure: energy 0.0 W, mass 0.0 kg/s
rating the designed area gives x_P = 0.3
2. What the boiling-point rise costs#
The same duty with and without the BPR: the vapor leaves superheated, and the
driving force T_steam - T_soln shrinks, so the area grows.
for model in ["none", "ideal"]:
p = EvaporatorParams(**{**NAOH, "bpr_model": model}, U=1500.0, x_product=0.30,
P_vapor_space=30e3, steam_P=300e3)
i = Evaporator(p)(feed)[2]
print(f"bpr_model={model:6s} BPR={float(i['BPR']):5.1f} K dT={float(i['driving_force']):5.1f} K"
f" area={float(i['A']):6.1f} m2 steam={float(i['steam']):.3f} kg/s")
bpr_model=none BPR= 0.0 K dT= 64.4 K area= 33.2 m2 steam=1.485 kg/s
bpr_model=ideal BPR= 7.7 K dT= 56.7 K area= 38.2 m2 steam=1.502 kg/s
3. Triple effect, three feed arrangements, equal areas#
Design mode solves the effect temperatures, vapor flows, steam rate and one common area together (one Newton solve).
def mee(N, arrangement="forward", **kw):
base = dict(NAOH, n_effects=N, feed=arrangement, U=[2500.0, 2000.0, 1500.0, 1200.0, 1000.0, 900.0][:N],
x_product=0.30, P_vapor_space=30e3, steam_P=300e3)
base.update(kw)
return MultiEffectEvaporator(MultiEffectEvaporatorParams(**base))
for arrangement in ["forward", "backward", "parallel"]:
c, v, i = mee(3, arrangement)(feed)
print(f"{arrangement:9s} converged={bool(i['converged'])} steam={float(i['steam']):.3f} kg/s "
f"economy={float(i['steam_economy']):.2f} A each={float(i['A'][0]):6.1f} m2 "
f"T=[{', '.join(f'{float(t):.1f}' for t in i['T'])}] K")
forward converged=True steam=0.636 kg/s economy=2.10 A each= 34.8 m2 T=[390.9, 374.2, 349.9] K
backward converged=True steam=0.572 kg/s economy=2.33 A each= 36.9 m2 T=[393.3, 367.8, 345.0] K
parallel converged=True steam=0.584 kg/s economy=2.28 A each= 45.6 m2 T=[395.6, 373.5, 349.9] K

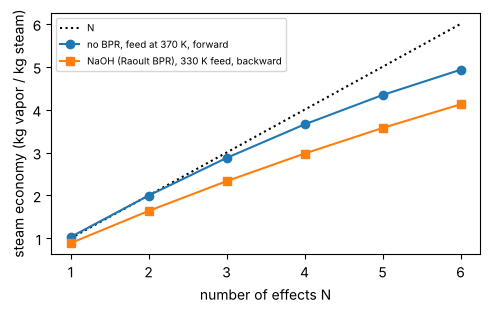

4. Steam economy versus number of effects#
For a water-like solution with a preheated feed the economy is close to N
and sags as N grows; with a real BPR and a cold feed it is lower.
Ns = range(1, 7)
cold = [float(mee(N, "backward")(feed)[2]["steam_economy"]) for N in Ns]
hot_feed = make_stream({k[2:]: v for k, v in feed.items() if k.startswith("F_")}, T=370.0, P=2e5)
water_like = [float(mee(N, "forward", bpr_model="none", x_product=0.2, U=[2500.0],
P_vapor_space=20e3, steam_P=400e3)(hot_feed)[2]["steam_economy"]) for N in Ns]
fig, ax = plt.subplots(figsize=(5, 3.2))
ax.plot(list(Ns), list(Ns), "k:", label="N")
ax.plot(list(Ns), water_like, "o-", label="no BPR, feed at 370 K, forward")
ax.plot(list(Ns), cold, "s-", label="NaOH (Raoult BPR), 330 K feed, backward")
ax.set_xlabel("number of effects N"); ax.set_ylabel("steam economy (kg vapor / kg steam)")
ax.legend(fontsize=7); plt.tight_layout(); plt.show()
print("economy/N, no BPR:", [round(e / n, 2) for n, e in zip(Ns, water_like)])
economy/N, no BPR: [1.03, 1.0, 0.96, 0.91, 0.87, 0.82]
5. Gradients through the solve#
The multi-effect solve is a Newton root find differentiated by the implicit
function theorem, so jax.grad works through the whole design.
def design(U1, xF_, Ps):
m = mee(3, "forward", U=[U1, 0.8 * U1, 0.6 * U1], steam_P=Ps)
fd = make_stream({"water": F * (1 - xF_) * 1000 / 18.015, "NaOH": F * xF_ * 1000 / 40.0}, T=330.0, P=2e5)
i = m(fd)[2]
return jnp.stack([i["steam"], i["A"][0]])
x0 = (2500.0, 0.10, 300e3)
J = jax.jacrev(design, argnums=(0, 1, 2))(*x0)
names = ["U1 (W/m2/K)", "feed x_solute", "steam P (Pa)"]
for n, g in zip(names, J):
print(f"d[steam, area]/d {n:14s} = {np.asarray(g)}")
print("(more U or more steam pressure lowers the area; a more concentrated feed needs less steam and area)")
d[steam, area]/d U1 (W/m2/K) = [-2.57286258e-20 -1.39304401e-02]
d[steam, area]/d feed x_solute = [ -2.54181316 -122.51654561]
d[steam, area]/d steam P (Pa) = [ 2.60387881e-07 -8.06024157e-05]
(more U or more steam pressure lowers the area; a more concentrated feed needs less steam and area)

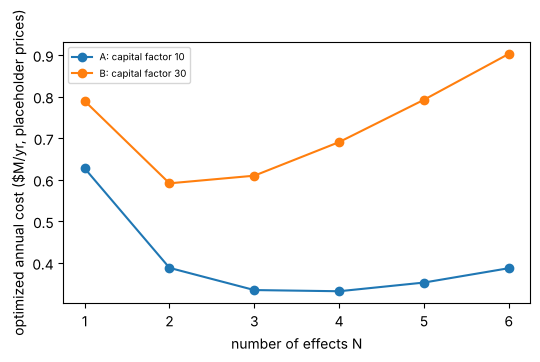

6. Optimal number of effects#
Trade capital against steam. Every price below is an illustrative
placeholder, not market data: the steam price ($/tonne) is a made-up linear
function of pressure, installed cost is capital_factor times the library’s
shell-and-tube heat_exchanger_cost per effect (a stand-in for a real
evaporator cost curve, which is not in difflow), the annualization is 20 %/yr
and the plant runs 8000 h/yr.
For each N = 1..6 the continuous steam pressure is optimized with L-BFGS-B
using jax.value_and_grad through the multi-effect solve (bounds 150-600 kPa).
N itself is discrete, so it is scanned rather than relaxed. The optimum N moves
with the placeholders, which is the point of the second scenario. In both
scenarios the 150 kPa lower bound on the steam pressure is active for most N
(a bound-active optimum: the gradient points to lower pressure all the way
down), so the real optimization content is the scan over N.
HOURS, ANNUAL = 8000.0, 0.20
def annual_cost(N, Ps_kPa, capital_factor, steam_base):
m = mee(N, "backward", U=[2000.0], steam_P=Ps_kPa * 1e3)
i = m(feed)[2]
capital = capital_factor * N * heat_exchanger_cost(i["A"][0]) # $ (placeholder factor)
price = steam_base + 0.04 * Ps_kPa # $/tonne (placeholder)
steam = i["steam"] * 3600.0 * HOURS / 1000.0 * price # $/yr
return ANNUAL * capital + steam, (capital, steam, i["A"][0])
def scan(capital_factor, steam_base):
rows = []
for N in range(1, 7):
vg = jax.jit(jax.value_and_grad(lambda u: annual_cost(N, u[0], capital_factor, steam_base)[0]))
fun = lambda u: (lambda v: (float(v[0]), np.asarray(v[1])))(vg(jnp.asarray(u)))
r = minimize(fun, [300.0], jac=True, method="L-BFGS-B", bounds=[(150.0, 600.0)])
cost, (cap, st, A) = annual_cost(N, r.x[0], capital_factor, steam_base)
rows.append((N, float(r.x[0]), float(cost), float(cap), float(st), float(A)))
return rows
results = {}
for label, (cf, sb) in {"A: capital factor 10, steam $8/t + 0.04/kPa": (10.0, 8.0),
"B: capital factor 30, steam $10/t + 0.04/kPa": (30.0, 10.0)}.items():
rows = scan(cf, sb)
results[label] = rows
best = min(rows, key=lambda r: r[2])
print(label)
print(" N Ps_opt(kPa) annual cost ($M/yr) capital ($M) steam ($M/yr) area each (m2)")
for N, P, c, cap, st, A in rows:
print(f" {N} {P:9.1f} {c/1e6:14.3f} {cap/1e6:14.3f} {st/1e6:12.3f} {A:10.1f}" + (" <- best" if N == best[0] else ""))
A: capital factor 10, steam $8/t + 0.04/kPa
N Ps_opt(kPa) annual cost ($M/yr) capital ($M) steam ($M/yr) area each (m2)
1 150.0 0.627 0.195 0.588 47.0
2 150.0 0.388 0.398 0.308 54.7
3 150.0 0.335 0.612 0.212 63.8
4 150.0 0.332 0.840 0.164 75.8 <- best
5 150.0 0.353 1.091 0.134 93.0
6 173.5 0.387 1.308 0.126 92.7
B: capital factor 30, steam $10/t + 0.04/kPa
N Ps_opt(kPa) annual cost ($M/yr) capital ($M) steam ($M/yr) area each (m2)
1 150.0 0.789 0.584 0.672 47.0
2 150.0 0.591 1.195 0.352 54.7 <- best
3 150.0 0.610 1.836 0.242 63.8
4 161.1 0.690 2.483 0.194 69.5
5 203.4 0.792 3.052 0.182 62.8
6 248.9 0.903 3.623 0.178 58.7
fig, ax = plt.subplots(figsize=(5.5, 3.4))
for label, rows in results.items():
ax.plot([r[0] for r in rows], [r[2] / 1e6 for r in rows], "o-", label=label[:2] + label[2:].split(",")[0])
ax.set_xlabel("number of effects N"); ax.set_ylabel("optimized annual cost ($M/yr, placeholder prices)")
ax.legend(fontsize=7); plt.tight_layout(); plt.show()
7. Mechanical vapor recompression#
The vapor is compressed (ideal-gas isentropic steam, efficiency 75 %) until it condenses 10 K above the boiling solution and heats the same surface. The report puts the compressor work against the steam a plain single effect would need.
mvr = MechanicalVaporRecompression(MVRParams(**NAOH, U=1500.0, x_product=0.30, P_vapor_space=101325.0,
dT_drive=10.0, eta=0.75, steam_P=300e3))
_, cond, m = mvr(feed)
print(f"vapor evaporated {float(m['V']):.3f} kg/s")
print(f"compression ratio {float(m['compression_ratio']):.2f}")
print(f"compressor work {float(m['W_compressor'])/1e3:.0f} kW (electric, ideal-gas steam model)")
print(f"duty {float(m['Q'])/1e3:.0f} kW")
print(f"steam without MVR {float(m['steam_without_mvr']):.3f} kg/s")
print(f"make-up steam with MVR {float(m['steam_makeup']):.3f} kg/s (negative = surplus heat)")
print(f"area {float(m['A']):.1f} m2")
vapor evaporated 1.333 kg/s
compression ratio 1.92
compressor work 208 kW (electric, ideal-gas steam model)
duty 3393 kW
steam without MVR 1.569 kg/s
make-up steam with MVR 0.121 kg/s (negative = surplus heat)
area 226.2 m2
Verification status#
Mass and energy balances close; an independent NumPy/SciPy coding of the same equations agrees; a one-effect
MultiEffectEvaporatorequalsEvaporator;check_gradspasses for steam rate and area with respect to U, feed concentration and steam pressure.Steam
Psat/Tsatare IAPWS-IF97;h_f/h_fgare fits to recalled steam table points (about 0.1 %).Not verified: agreement with any textbook worked example; the built-in NaOH/NaCl/sucrose BPR tables (use
duhring=orbpr_fnwith data you can cite); all prices above.
