Uncertainty Propagation in Differentiable Flowsheets#
This notebook demonstrates how to propagate parameter uncertainties through process simulations using difflow’s automatic differentiation capabilities.
What You’ll Learn#
Linear Propagation - First-order Taylor expansion using Jacobians
Monte Carlo Sampling - Parallel sampling with
vmapSensitivity Analysis - Identifying dominant uncertainty sources
Confidence Intervals - Quantifying output uncertainty
Correlated Inputs - Handling non-independent uncertainties
Why This Matters#
Real process parameters have uncertainties:
Kinetic parameters (A, Ea) from experimental fitting
Thermodynamic properties from databases
Operating conditions (T, P, flow rates) from measurement
Propagating these uncertainties to outputs (conversion, selectivity, cost) is essential for robust design.
import jax
import jax.numpy as jnp
from jax import Array, vmap
import matplotlib.pyplot as plt
jax.config.update("jax_enable_x64", True)
from difflow import (
CSTR, CSTRParams,
IdealThermo, SpeciesData,
make_stream, get_flows,
linear_propagation,
monte_carlo_propagation,
sensitivity_analysis,
)
print("Setup complete ✓")
WARNING:2026-03-01 07:50:45,229:jax._src.xla_bridge:905: Platform 'METAL' is experimental and not all JAX functionality may be correctly supported!
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
W0000 00:00:1772369445.229810 12638342 mps_client.cc:510] WARNING: JAX Apple GPU support is experimental and not all JAX functionality is correctly supported!
I0000 00:00:1772369445.241810 12638342 service.cc:145] XLA service 0xa53348700 initialized for platform METAL (this does not guarantee that XLA will be used). Devices:
I0000 00:00:1772369445.241819 12638342 service.cc:153] StreamExecutor device (0): Metal, <undefined>
I0000 00:00:1772369445.242885 12638342 mps_client.cc:406] Using Simple allocator.
I0000 00:00:1772369445.242891 12638342 mps_client.cc:384] XLA backend will use up to 55662313472 bytes on device 0 for SimpleAllocator.
WARNING:2026-03-01 07:50:45,243:jax._src.xla_bridge:905: Platform 'mps' is experimental and not all JAX functionality may be correctly supported!
Metal device set to: Apple M4 Pro
Setup complete ✓
Setup: CSTR Model with Uncertain Parameters#
Consider a CSTR with reaction A → B:
Rate: \(r = k \cdot C_A\) where \(k = A \cdot \exp(-E_a/RT)\)
Uncertain parameters:
Pre-exponential factor: \(A = 10^6 \pm 20\%\)
Activation energy: \(E_a = 50 \pm 2\) kJ/mol
Reactor temperature: \(T = 350 ± 5\) K
# Species and thermodynamics
species_data = {
"A": SpeciesData(
name="A", MW=100.0, Cp_coeffs=(75.0, 0.0, 0.0, 0.0),
Hvap_coeffs=(35000.0, 0.38, 500.0), antoine_coeffs=(10.0, 3000.0, -50.0),
),
"B": SpeciesData(
name="B", MW=100.0, Cp_coeffs=(75.0, 0.0, 0.0, 0.0),
Hvap_coeffs=(30000.0, 0.38, 450.0), antoine_coeffs=(10.0, 2800.0, -40.0),
),
}
thermo = IdealThermo(species_data)
stoich = jnp.array([[-1.0], [+1.0]])
def rate_function(C, T, params):
k = params["A"] * jnp.exp(-params["Ea"] / (8.314 * T))
return jnp.array([k * C["A"]])
print("Model defined ✓")
Model defined ✓
def cstr_conversion(params):
"""Compute CSTR conversion given uncertain parameters.
Args:
params: dict with 'A', 'Ea', 'T_reactor'
Returns:
Conversion of A (scalar)
"""
cstr_params = CSTRParams(
V=jnp.array(1.0),
rate_fn=rate_function,
stoich=stoich,
rate_params={"A": params["A"], "Ea": params["Ea"]},
species_order=["A", "B"],
)
cstr = CSTR(cstr_params, thermo=thermo, mode="isothermal")
inlet = make_stream({"A": 10.0, "B": 0.0}, T=300.0, P=101325.0)
outlet, info = cstr(inlet, T_spec=params["T_reactor"])
return info["conversion"]["A"]
# Nominal values
nominal = {
"A": jnp.array(1e6), # 1/s
"Ea": jnp.array(50000.0), # J/mol (50 kJ/mol)
"T_reactor": jnp.array(350.0), # K
}
# 1-sigma uncertainties
uncertainties = {
"A": 0.2e6, # ±20% of nominal
"Ea": 2000.0, # ±2 kJ/mol
"T_reactor": 5.0, # ±5 K
}
# Compute nominal conversion
X_nominal = cstr_conversion(nominal)
print(f"Nominal conversion: {float(X_nominal)*100:.2f}%")
Nominal conversion: 99.48%
1. Linear Uncertainty Propagation#
For small uncertainties, use first-order Taylor expansion:
\[\sigma_y \approx \sqrt{\sum_i \left(\frac{\partial y}{\partial x_i}\right)^2 \sigma_{x_i}^2}\]
This uses the Jacobian computed via automatic differentiation.
# Linear uncertainty propagation
X_mean, X_std, info = linear_propagation(
cstr_conversion,
nominal,
uncertainties
)
print("=== Linear Propagation Results ===")
print(f"\nConversion: {X_mean*100:.2f}% ± {X_std*100:.2f}% (1σ)")
print(f"95% CI: [{(X_mean - 1.96*X_std)*100:.2f}%, {(X_mean + 1.96*X_std)*100:.2f}%]")
=== Linear Propagation Results ===
Conversion: 99.48% ± 0.39% (1σ)
95% CI: [98.71%, 100.25%]
# Analyze variance contributions
print("\n=== Variance Contributions ===")
print("(Which parameters contribute most to output uncertainty?)\n")
for param, sens in info["sensitivities"].items():
contrib = float(jnp.atleast_1d(sens["variance_contribution"])[0]) * 100
grad = float(jnp.atleast_1d(sens["gradient"])[0])
print(f"{param:12s}: {contrib:5.1f}% of variance (gradient = {grad:.2e})")
=== Variance Contributions ===
(Which parameters contribute most to output uncertainty?)
A : 7.0% of variance (gradient = 5.17e-09)
Ea : 82.5% of variance (gradient = -1.78e-06)
T_reactor : 10.5% of variance (gradient = 2.54e-04)
2. Monte Carlo Propagation#
For nonlinear systems or large uncertainties, Monte Carlo sampling is more accurate.
JAX’s vmap enables efficient parallel evaluation of thousands of samples.
# Monte Carlo propagation
X_mc_mean, X_mc_std, mc_info = monte_carlo_propagation(
cstr_conversion,
nominal,
uncertainties,
n_samples=5000,
return_samples=True,
)
print("=== Monte Carlo Results (5000 samples) ===")
print(f"\nConversion: {X_mc_mean*100:.2f}% ± {X_mc_std*100:.2f}% (1σ)")
print(f"95% CI: [{float(jnp.atleast_1d(mc_info['p2.5'])[0])*100:.2f}%, {float(jnp.atleast_1d(mc_info['p97.5'])[0])*100:.2f}%]")
print(f"Median: {float(jnp.atleast_1d(mc_info['p50'])[0])*100:.2f}%")
=== Monte Carlo Results (5000 samples) ===
Conversion: 99.30% ± 0.64% (1σ)
95% CI: [97.64%, 99.88%]
Median: 99.48%
# Compare linear vs Monte Carlo
print("\n=== Comparison ===")
print(f"{'Method':<15} {'Mean':>10} {'Std':>10} {'95% CI':>20}")
print("-" * 55)
print(f"{'Linear':<15} {X_mean*100:>9.2f}% {X_std*100:>9.2f}% "
f"[{(X_mean-1.96*X_std)*100:.2f}, {(X_mean+1.96*X_std)*100:.2f}]%")
print(f"{'Monte Carlo':<15} {X_mc_mean*100:>9.2f}% {X_mc_std*100:>9.2f}% "
f"[{float(jnp.atleast_1d(mc_info['p2.5'])[0])*100:.2f}, {float(jnp.atleast_1d(mc_info['p97.5'])[0])*100:.2f}]%")
=== Comparison ===
Method Mean Std 95% CI
-------------------------------------------------------
Linear 99.48% 0.39% [98.71, 100.25]%
Monte Carlo 99.30% 0.64% [97.64, 99.88]%

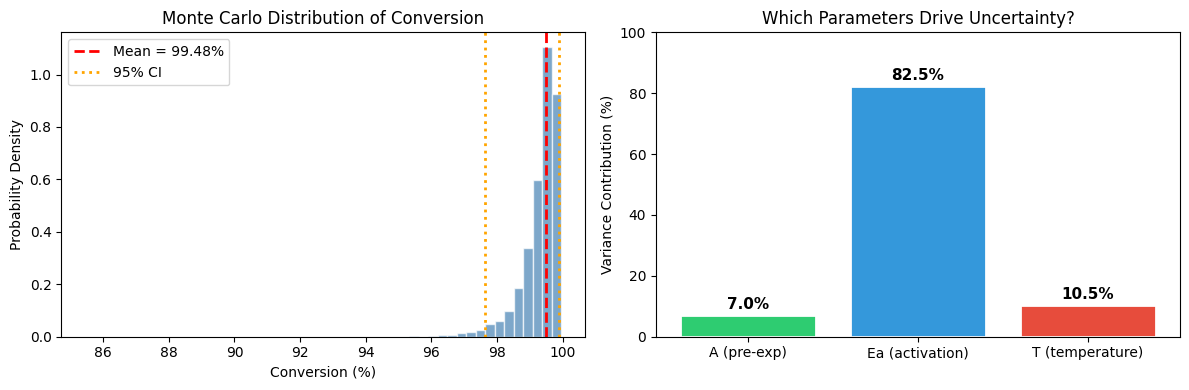

# Visualize the distribution
samples = mc_info["samples"] * 100 # Convert to percent
fig, axes = plt.subplots(1, 2, figsize=(12, 4))
# Histogram
ax = axes[0]
ax.hist(samples, bins=50, density=True, alpha=0.7, color='steelblue', edgecolor='white')
ax.axvline(X_mean*100, color='red', linestyle='--', linewidth=2, label=f'Mean = {X_mean*100:.2f}%')
ax.axvline(float(jnp.atleast_1d(mc_info['p2.5'])[0])*100, color='orange', linestyle=':', linewidth=2, label='95% CI')
ax.axvline(float(jnp.atleast_1d(mc_info['p97.5'])[0])*100, color='orange', linestyle=':', linewidth=2)
ax.set_xlabel('Conversion (%)')
ax.set_ylabel('Probability Density')
ax.set_title('Monte Carlo Distribution of Conversion')
ax.legend()
# Box plot comparing parameters' effects
ax = axes[1]
variance_contrib = [float(jnp.atleast_1d(info["sensitivities"][p]["variance_contribution"])[0]) * 100
for p in ["A", "Ea", "T_reactor"]]
colors = ['#2ecc71', '#3498db', '#e74c3c']
bars = ax.bar(["A (pre-exp)", "Ea (activation)", "T (temperature)"],
variance_contrib, color=colors, edgecolor='white', linewidth=2)
ax.set_ylabel('Variance Contribution (%)')
ax.set_title('Which Parameters Drive Uncertainty?')
ax.set_ylim(0, 100)
# Add value labels on bars
for bar, val in zip(bars, variance_contrib):
ax.text(bar.get_x() + bar.get_width()/2, bar.get_height() + 2,
f'{val:.1f}%', ha='center', fontsize=11, fontweight='bold')
plt.tight_layout()
plt.show()
3. Sensitivity Analysis#
Identify which parameters have the largest influence on the output.
Elasticity = (% change in output) / (% change in input)
# Perform sensitivity analysis
sens_results = sensitivity_analysis(
cstr_conversion,
nominal,
param_ranges={
"A": (0.5e6, 1.5e6),
"Ea": (45000, 55000),
"T_reactor": (330, 370),
},
n_points=20,
)
print("=== Local Sensitivity Analysis ===")
print(f"\n{'Parameter':<12} {'Gradient':>12} {'Elasticity':>12}")
print("-" * 40)
for param, data in sens_results.items():
print(f"{param:<12} {data['gradient']:>12.4e} {data['elasticity']:>12.2f}")
=== Local Sensitivity Analysis ===
Parameter Gradient Elasticity
----------------------------------------
A 5.1706e-09 0.01
Ea -1.7769e-06 -0.09
T_reactor 2.5384e-04 0.09

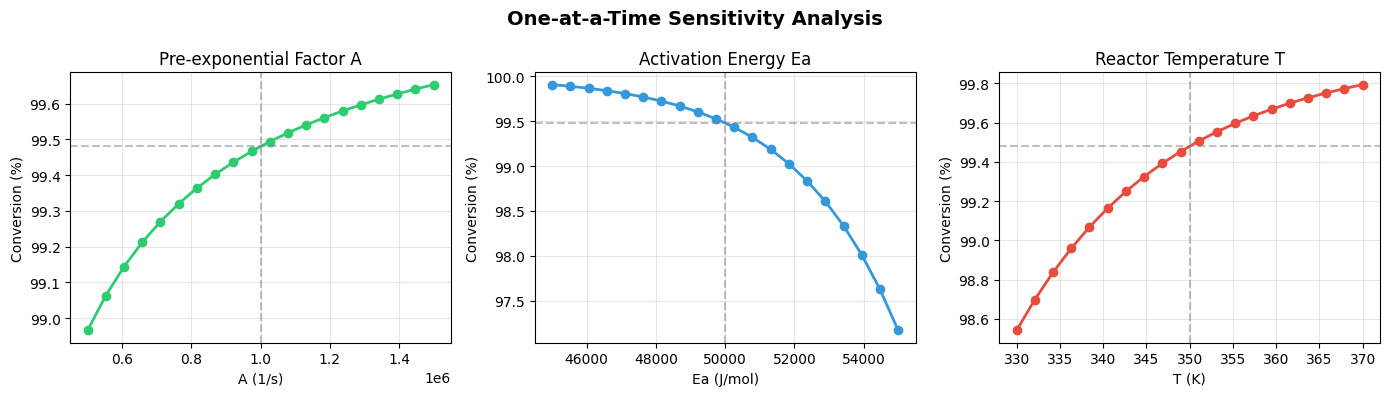

# One-at-a-time sensitivity plots
fig, axes = plt.subplots(1, 3, figsize=(14, 4))
titles = ['Pre-exponential Factor A', 'Activation Energy Ea', 'Reactor Temperature T']
xlabels = ['A (1/s)', 'Ea (J/mol)', 'T (K)']
colors = ['#2ecc71', '#3498db', '#e74c3c']
for i, (param, data) in enumerate(sens_results.items()):
ax = axes[i]
x = data['oat_x']
y = data['oat_y'] * 100 # Convert to %
ax.plot(x, y, 'o-', color=colors[i], linewidth=2, markersize=6)
ax.axhline(X_nominal*100, color='gray', linestyle='--', alpha=0.5)
ax.axvline(data['nominal'], color='gray', linestyle='--', alpha=0.5)
ax.set_xlabel(xlabels[i])
ax.set_ylabel('Conversion (%)')
ax.set_title(titles[i])
ax.grid(True, alpha=0.3)
plt.suptitle('One-at-a-Time Sensitivity Analysis', fontsize=14, fontweight='bold')
plt.tight_layout()
plt.show()
4. Multi-Output Uncertainty Propagation#
Often we care about multiple outputs (conversion, selectivity, production rate).
The Jacobian approach handles this naturally.
def cstr_outputs(params):
"""Compute multiple CSTR outputs.
Returns:
Array of [conversion, production_rate_B, outlet_T]
"""
cstr_params = CSTRParams(
V=jnp.array(1.0),
rate_fn=rate_function,
stoich=stoich,
rate_params={"A": params["A"], "Ea": params["Ea"]},
species_order=["A", "B"],
)
cstr = CSTR(cstr_params, thermo=thermo, mode="isothermal")
inlet = make_stream({"A": 10.0, "B": 0.0}, T=300.0, P=101325.0)
outlet, info = cstr(inlet, T_spec=params["T_reactor"])
conversion = info["conversion"]["A"]
production_B = outlet["F_B"]
outlet_T = outlet["T"]
return jnp.array([conversion, production_B, outlet_T])
# Multi-output Monte Carlo
output_mean, output_std, mc_info = monte_carlo_propagation(
cstr_outputs,
nominal,
uncertainties,
n_samples=5000,
)
print("=== Multi-Output Uncertainty ===")
print(f"\n{'Output':<20} {'Mean':>12} {'±1σ':>12} {'Units':>10}")
print("-" * 56)
print(f"{'Conversion':<20} {output_mean[0]*100:>11.2f}% {output_std[0]*100:>11.2f}% {'':>10}")
print(f"{'Production rate B':<20} {output_mean[1]:>12.3f} {output_std[1]:>12.3f} {'mol/s':>10}")
print(f"{'Outlet temperature':<20} {output_mean[2]:>12.1f} {output_std[2]:>12.1f} {'K':>10}")
=== Multi-Output Uncertainty ===
Output Mean ±1σ Units
--------------------------------------------------------
Conversion 99.30% 0.64%
Production rate B 9.930 0.064 mol/s
Outlet temperature 350.0 5.0 K
6. Practical Example: Flash Separator#
Let’s apply uncertainty propagation to a flash separator with uncertain thermodynamic properties.
from difflow import Flash, FlashParams
def flash_vapor_fraction(params):
"""Compute vapor fraction from flash at given T and P."""
# Create species with uncertain Antoine coefficients
species_data = {
"A": SpeciesData(
name="A", MW=78.0, Cp_coeffs=(136.0, 0.0, 0.0, 0.0),
Hvap_coeffs=(30720.0, 0.38, 562.0),
antoine_coeffs=(params["antoine_A_A"], params["antoine_A_B"], -52.36),
),
"B": SpeciesData(
name="B", MW=92.0, Cp_coeffs=(157.0, 0.0, 0.0, 0.0),
Hvap_coeffs=(33180.0, 0.38, 591.8),
antoine_coeffs=(9.08, 1342.31, -53.67),
),
}
thermo = IdealThermo(species_data)
flash = Flash(FlashParams(species_order=["A", "B"]), thermo)
feed = make_stream({"A": 50.0, "B": 50.0}, T=300.0, P=101325.0)
liquid, vapor, info = flash(feed, T=params["T_flash"], P=params["P_flash"])
return info["V_frac"]
# Nominal values (benzene-toluene like system)
flash_nominal = {
"antoine_A_A": jnp.array(9.11),
"antoine_A_B": jnp.array(1211.03),
"T_flash": jnp.array(370.0),
"P_flash": jnp.array(101325.0),
}
flash_uncertainties = {
"antoine_A_A": 0.05, # ±0.05 in Antoine A
"antoine_A_B": 10.0, # ±10 in Antoine B
"T_flash": 2.0, # ±2 K
"P_flash": 500.0, # ±500 Pa
}
print("Flash separator defined ✓")
Flash separator defined ✓
# Propagate uncertainties
V_mean, V_std, flash_info = monte_carlo_propagation(
flash_vapor_fraction,
flash_nominal,
flash_uncertainties,
n_samples=3000,
)
print("=== Flash Separator Uncertainty ===")
print(f"\nVapor fraction: {V_mean:.3f} ± {V_std:.3f}")
print(f"95% CI: [{float(jnp.atleast_1d(flash_info['p2.5'])[0]):.3f}, {float(jnp.atleast_1d(flash_info['p97.5'])[0]):.3f}]")
print(f"\nRelative uncertainty: {V_std/V_mean*100:.1f}%")
=== Flash Separator Uncertainty ===
Vapor fraction: 0.878 ± 0.203
95% CI: [0.268, 1.000]
Relative uncertainty: 23.1%
Summary#
Method |
When to Use |
Pros |
Cons |
|---|---|---|---|
Linear |
Small uncertainties, quick estimates |
Fast, analytical |
Assumes linearity |
Monte Carlo |
Large uncertainties, nonlinear systems |
Accurate, gives full distribution |
Slower (but fast with JAX vmap) |
Sensitivity Analysis |
Identify important parameters |
Ranks parameter importance |
Local (at nominal point) |
Key Functions#
from difflow import (
linear_propagation, # First-order Taylor expansion
monte_carlo_propagation, # Parallel sampling with vmap
sensitivity_analysis, # Gradient-based sensitivity
propagate_covariance, # Full covariance matrix
sobol_indices, # Global sensitivity (Sobol)
)
Key Takeaways#
JAX enables efficient uncertainty propagation - autodiff for Jacobians, vmap for parallel MC
Variance contributions identify dominant sources - focus uncertainty reduction efforts
Correlations matter - can increase or decrease output uncertainty
Confidence intervals inform robust design - design for the uncertainty range, not just nominal
