AC Optimal Power Flow with difflow_power#
Every number a grid study produces is really a question about a derivative.
What does another megawatt at this bus cost? is d(cost)/d(load).
Which line rating is worth raising? is a shadow price.
What does re-tapping this transformer do to the voltage profile? is d(V)/d(tap).
Classical power-system tools answer these with hand-derived sensitivity factors — generation shift factors, loss factors, the reduced Jacobian — each derived, coded and validated separately from the model they came from, and each able to drift out of step with it.
This notebook works through the alternative: a differentiable model, where those factors are the derivatives, taken through the implicit function theorem at the converged solution. We will
solve a power flow and check it against MATPOWER,
solve the AC optimal power flow and read its prices,
verify that the prices really are prices, two independent ways,
watch congestion separate the prices on the PJM 5-bus case,
screen every single-line contingency with one matrix product,

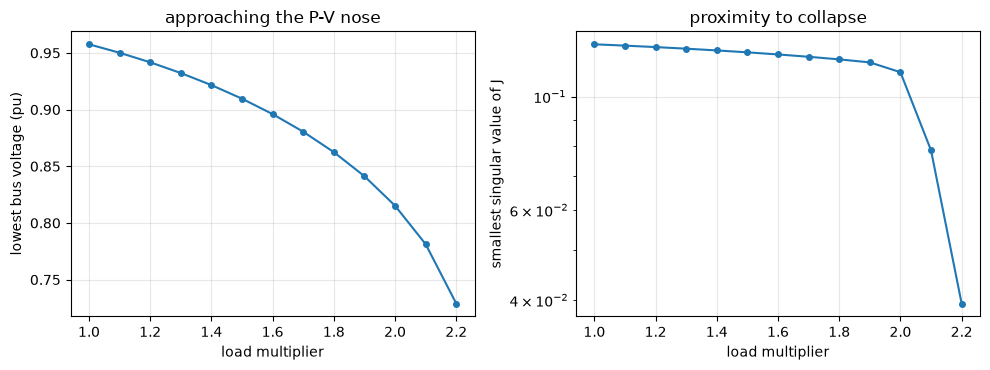

approach the loadability limit and watch the Jacobian go singular,

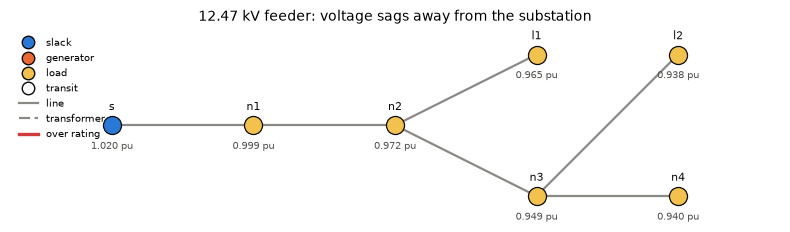

and solve a distribution feeder sequentially, as a flowsheet.
import jax
jax.config.update("jax_enable_x64", True)
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import difflow_power as dp
print(dp.cases.case9().summary())
case9 (WSCC 9-bus): 9 buses (1 slack, 2 PV, 6 PQ), 9 branches (0 transformers, 9 rated), 3 generators (820 MW capacity), 3 loads (315.0 MW + 115.0 MVAr), 1 loops, base 100 MVA
1. A power flow, and why it is checked against MATPOWER#
The WSCC 9-bus case is the field’s standard benchmark: three machines, each tied to the network by a single branch (the step-up transformers of the original case, modelled in the case file as plain lines at unit tap, hence “0 transformers” above), three loads, one loop.
A self-consistent power flow implementation with the phase-shift sign backwards,
or the line charging halved twice, converges beautifully to the wrong numbers.
So the only check worth anything is against a published answer for the same case
file. MATPOWER’s runpf case9 gives Pg = (71.955, 163, 85) MW,
Va2 = 9.6687°, and 4.9547 MW of losses.
net = dp.cases.case9()
pf = dp.solve_power_flow(net)
print(pf.summary())
print("\n Pg (MW): ", {k: round(v, 3) for k, v in pf.pg_mw.items()})
print(" Qg (MVAr): ", {k: round(v, 3) for k, v in pf.qg_mvar.items()})
print(" Va2 (deg): ", round(pf.va_degrees["2"], 4))
print(" losses (MW):", round(pf.losses_mw, 4))
case9 (WSCC 9-bus): converged in 5 Newton steps, max mismatch 1.05e-12 MW/MVAr; 320.0 MW generated for 315.0 MW load (4.95 MW loss); voltages 0.958 (9) to 1.003 (6); 0 limit violations
Pg (MW): {'g1': 71.955, 'g2': 163.0, 'g3': 85.0}
Qg (MVAr): {'g1': 24.069, 'g2': 14.46, 'g3': -3.649}
Va2 (deg): 9.6687
losses (MW): 4.9547
Newton-Raphson via optimistix, so the gradient of anything here with respect to
anything the residual depends on comes from the implicit function theorem at the
converged point. A gradient costs one linear solve however many Newton steps the
forward pass took, and it does not depend on the initial guess.
A converged power flow is not a feasible operating point. It solves the equations and enforces no limit whatsoever. Load the case up and it will happily return generators past their var capability and lines over their rating:
stressed = net.scaled_load(1.8)
res = dp.solve_power_flow(stressed)
print(res.summary())
for what, why in res.violations().items():
print(f" {what:12s} {why}")
case9 (WSCC 9-bus): converged in 6 Newton steps, max mismatch 7.36e-13 MW/MVAr; 580.3 MW generated for 567.0 MW load (13.26 MW loss); voltages 0.863 (9) to 1.000 (1); 4 limit violations
vm_5 0.8942 pu below vm_min 0.9000
vm_9 0.8625 pu below vm_min 0.9000
pg_g1 332.26 MW above p_max 250.00
rate_br1 146.5% of rating
That gap between “the equations hold” and “the limits hold” is exactly what an
optimal power flow exists to close. verify.operating_report reports the two
separately, so one is never mistaken for the other:
report = dp.operating_report(res.x, stressed)
print("solves the equations:", report.solved)
print("respects the limits: ", report.feasible)
print(report.summary())
solves the equations: True
respects the limits: False
mismatch 1.33e-13 MW / 7.36e-13 MVAr; 2 voltage; 1 generator; 1 thermal (worst 147%)
2. The AC optimal power flow#
subject to the same power flow equations, plus voltage limits, generator boxes and thermal ratings — the constraints the power flow ignored.
This is a nonconvex NLP. The field solves it with a primal-dual interior-point
method (IPOPT, MATPOWER’s MIPS, KNITRO); none of those is a JAX program, and
calling out to one would end the differentiability that is the point. So
difflow_power.ipm implements one in JAX.
MATPOWER’s runopf case9 optimum is $5296.69/h.
opf = dp.solve_acopf(net)
print(opf.summary())
print("\n cost: $%.4f/h (MATPOWER: 5296.69)" % opf.cost)
print(" dispatch (MW):", {k: round(v, 2) for k, v in opf.pg_mw.items()})
print(" power flow :", {k: round(v, 2) for k, v in pf.pg_mw.items()})
case9 (WSCC 9-bus): converged in 19 interior-point iterations, cost $5296.69/h for 315.0 MW load (3.31 MW loss); LMP 24.03 to 25.00 $/MWh; 3 binding constraints (vm_1_max, vm_6_max, vm_8_max)
cost: $5296.6862/h (MATPOWER: 5296.69)
dispatch (MW): {'g1': 89.8, 'g2': 134.32, 'g3': 94.19}
power flow : {'g1': 71.95, 'g2': 163.0, 'g3': 85.0}
The optimiser has moved every unit. It costs less than the scheduled operating point, and it is feasible by construction — every limit it carried holds at the answer. The scheduled point happens to be feasible too, but nothing in the power flow guaranteed that, as the stressed case above showed.
layout = dp.power_state_layout(net)
scheduled = float(dp.opf.generation_cost(pf.x, net, layout))
print(f"scheduled dispatch: ${scheduled:.2f}/h")
print(f"optimal dispatch: ${opf.cost:.2f}/h")
print(f"saving: ${scheduled - opf.cost:.2f}/h")
print("\nfeasible:", dp.operating_report(opf.x, net, opf.layout).feasible)
print("binding: ", {k: round(v, 1) for k, v in opf.binding().items()})
scheduled dispatch: $5438.32/h
optimal dispatch: $5296.69/h
saving: $141.64/h
feasible: True
binding: {'vm_1_max': 8.2, 'vm_6_max': 75.4, 'vm_8_max': 77.6}
How the interior-point method gets there#
Slacks turn the inequalities into \(h(x) + s = 0\) with a log barrier keeping \(s>0\), and each iteration is a Newton step on the perturbed KKT conditions. Three things make it converge on a real nonconvex case:
inertia correction on a Ruiz-equilibrated KKT matrix (inertia is invariant under diagonal congruence, and \(\Sigma = z/s\) otherwise spans twelve decades near the solution and swamps any tolerance);
fraction to boundary, capping the step so slacks stay interior;
an \(\ell_1\) merit line search, without which the full Newton step overshoots badly from a flat start.

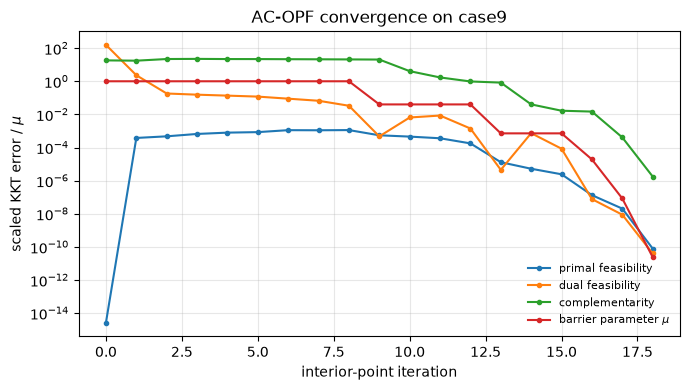

The iteration log shows feasibility, stationarity and complementarity all driven down, complementarity last, with \(\mu\) following IPOPT’s monotone schedule:
history = opf.ipm.history
fig, ax = plt.subplots(figsize=(7, 4))
for key, label in [
("feasibility", "primal feasibility"),
("stationarity", "dual feasibility"),
("complementarity", "complementarity"),
("mu", r"barrier parameter $\mu$"),
]:
ax.semilogy([h[key] + 1e-18 for h in history], marker="o", ms=3, label=label)
ax.set_xlabel("interior-point iteration")
ax.set_ylabel(r"scaled KKT error / $\mu$")
ax.set_title("AC-OPF convergence on case9")
ax.legend(frameon=False, fontsize=8)
ax.grid(alpha=0.3)
plt.tight_layout()
3. Prices, and whether they really are prices#
The multiplier on a bus’s real-power balance is its locational marginal price. With the balance written as \((P_g - P_d) - P_{inj}(V) = 0\), adding a MW at bus \(i\) perturbs row \(i\) by \(-1\), so
That is an assertion about what a number means, and it is exactly the kind of assertion that is easy to get wrong by a sign or a scale factor. So check it independently: differentiate the optimal cost with respect to demand through the KKT system, and compare. The envelope theorem says the two must agree.
prices = opf.lmp_mw
errors = opf.check_prices()
print(" bus LMP ($/MWh) |multiplier - autodiff|")
for bus in net.bus_ids:
print(f" {bus:3s} {prices[bus]:8.4f} {errors[bus]:.2e}")
print(f"\nlargest disagreement: {max(errors.values()):.2e} $/MWh")
bus LMP ($/MWh) |multiplier - autodiff|
1 24.7557 9.88e-13
2 24.0345 3.91e-13
3 24.0759 8.60e-13
4 24.7559 6.32e-13
5 24.9985 1.37e-12
6 24.0759 1.01e-12
7 24.2539 1.40e-12
8 24.0345 1.06e-12
9 24.9985 1.79e-12
largest disagreement: 1.79e-12 $/MWh
Agreement to ~1e-12 across every bus. Two completely different computations — reading a Lagrange multiplier, and implicitly differentiating a converged KKT system — landing on the same number.
Nothing is thermally congested here, but three upper voltage limits bind
(vm_1_max, vm_6_max, vm_8_max), and the prices spread by about 4%. How much
of that is losses? Relax the voltage limits and see:
relaxed = dp.solve_acopf(net, enforce_voltage=False)
def spread(lmp):
return (max(lmp.values()) - min(lmp.values())) / min(lmp.values()) * 100
print(f"LMP spread, voltage limits enforced: {spread(opf.lmp_mw):.2f}%")
print(f"LMP spread, voltage limits relaxed: {spread(relaxed.lmp_mw):.2f}%")
print("relaxed LMPs ($/MWh):", {k: round(v, 2) for k, v in relaxed.lmp_mw.items()})
LMP spread, voltage limits enforced: 4.01%
LMP spread, voltage limits relaxed: 0.46%
relaxed LMPs ($/MWh): {'1': 24.05, '2': 23.97, '3': 23.98, '4': 24.06, '5': 24.08, '6': 23.99, '7': 24.02, '8': 23.99, '9': 24.08}
Only about half a percent of the spread is the loss component — the fact that a MW delivered far from the marginal unit costs more than a MW delivered next to it. The rest is the price of holding voltage down at buses 1, 6 and 8.
We can see the loss effect from the power-flow side, as marginal loss factors:
factors = dp.loss_sensitivity(net)
print(" bus d(loss)/d(load)")
for i, bus in enumerate(net.bus_ids):
print(f" {bus:3s} {float(factors[i]):+.5f}")
bus d(loss)/d(load)
1 +0.00000
2 -0.04822
3 -0.03927
4 +0.00009
5 +0.01069
6 -0.03919
7 -0.03414
8 -0.04786
9 +0.01009
The slack bus is exactly zero — load added there is served there, so nothing moves. The negative entries are not a sign error: buses 2, 3, 6 and 8 sit beside units holding a fixed schedule and exporting it across the network (and bus 7 sits between them), so load added there is consumed locally instead of being wheeled, and total transport (and loss) falls. These factors are taken at the scheduled power-flow point, not at the OPF dispatch.
4. Congestion: the PJM 5-bus case#
case9 has no binding thermal limit, so its prices separate only through losses
and voltage limits. The PJM 5-bus case is the standard teaching case for the
opposite: linear costs, so the merit order is unambiguous, and two rated lines,
one of which (4-5) is tight enough to bind. Expensive generation is forced
on behind the constraint, and the prices come apart.
pjm = dp.cases.case5()
congested = dp.solve_acopf(pjm)
uncongested = dp.solve_acopf(pjm, enforce_ratings=False)
print("with ratings: $%.2f/h (MATPOWER: 17551.89)" % congested.cost)
print("without ratings: $%.2f/h" % uncongested.cost)
print("congestion cost: $%.2f/h\n" % (congested.cost - uncongested.cost))
print(" bus congested uncongested offer of the local unit")
offers = {}
for g in pjm.generators.values():
offers.setdefault(g.bus, []).append(g.cost[-2])
for bus in pjm.bus_ids:
offer = "/".join(f"{c:.0f}" for c in offers.get(bus, [])) or "-"
print(f" {bus:3s} {congested.lmp_mw[bus]:8.2f} "
f"{uncongested.lmp_mw[bus]:8.2f} {offer:>6s}")
with ratings: $17551.89/h (MATPOWER: 17551.89)
without ratings: $14997.04/h
congestion cost: $2554.85/h
bus congested uncongested offer of the local unit
1 16.94 29.55 14/15
2 26.55 29.99 -
3 30.00 30.00 30
4 39.71 29.86 40
5 10.00 29.45 10

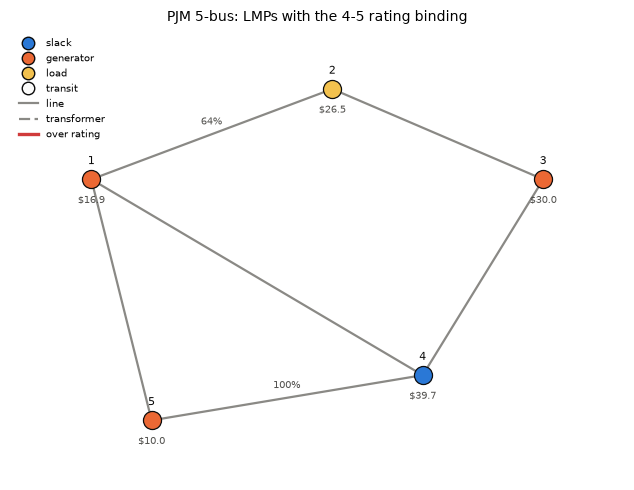

fig, ax = plt.subplots(figsize=(7.5, 5))
dp.draw_network(
pjm,
pos={"1": (0, 1), "2": (1.6, 1.6), "3": (3.0, 1.0),
"4": (2.2, -0.3), "5": (0.4, -0.6)},
prices=congested.lmp_mw,
loading={
a: congested.branch_mva[a] / br.rate_mva
for a, br in pjm.branches.items() if br.rate_mva is not None
},
ax=ax,
title="PJM 5-bus: LMPs with the 4-5 rating binding",
)
dp.draw_legend(ax)
plt.tight_layout()
Bus 5 hosts the $10/MWh unit and prices at its offer; bus 4, behind the binding tie, prices at nearly $40/MWh. The spread is the congestion rent, and it is the whole reason to run an optimal power flow rather than a merit-order dispatch.
binding() names each constraint and prices it — the shadow price is what the
objective would improve by per unit of relaxation, in \(/h per unit of the
constraint *as posed*. That is \)/h per pu (100 MW) for a generator bound, so
pg_g1_max is the unit’s rent over its offer, and \(/h per pu² of \)|S|^2\( for a
rating, because thermal limits are written on \)|S|^2\(. Raising the 4-5 rating by
one MVA is therefore worth about \)1277 \times 2 \times 2.4 / 100 \approx$ $61/h.
rate_to_5 means the to-end of branch index 5, i.e. br6 (4-5), not bus 5:
for name, price in sorted(
congested.binding().items(), key=lambda kv: -kv[1]
):
print(f" {name:20s} {price:10.2f}")
rate_to_5 1277.31
pg_g1_max 293.51
pg_g2_max 193.51
vm_3_max 156.90
qg_g1_max 35.70
qg_g2_max 35.70
pg_g4_min 28.79
qg_g3_max 10.51
5. Contingency screening with PTDF and LODF#
The DC approximation — negligible resistance, flat voltages, small angles — makes the model linear, so the map from injections to flows is a constant matrix. That is what makes screening every single-line outage a matrix product instead of \(n\) power flows.
LODF[l, k] is the fraction of branch \(k\)’s pre-outage flow that lands on branch
\(l\) when \(k\) trips.
base = dp.solve_dc_power_flow(pjm)
after = dp.contingency_flows(pjm, base.p_from)
rates = pjm.branch_rate_array_pu(default=jnp.inf)
print("outage -> resulting loading of each branch (% of rating)")
print(" " + "".join(f"{a:>9s}" for a in pjm.branch_ids))
for k, outaged in enumerate(pjm.branch_ids):
loadings = jnp.abs(after[:, k]) / rates * 100.0
cells = "".join(
" -" if not jnp.isfinite(rates[i])
else f"{float(loadings[i]):8.0f}%"
for i in range(pjm.n_branch)
)
print(f" {outaged:>8s} {cells}")
outage -> resulting loading of each branch (% of rating)
br1 br2 br3 br4 br5 br6
br1 0% - - - - 148%
br2 79% - - - - 151%
br3 45% - - - - 194%
br4 75% - - - - 90%
br5 69% - - - - 95%
br6 81% - - - - 0%
A branch whose outage would island the network has an undefined column,
returned as nan rather than as a large finite number — a screening loop must
never mistake a disconnection for a manageable overload. case9’s three generator
connections, each the only link from a machine bus, are exactly that case:
factors = dp.lodf(net)
islanding = [
net.branch_ids[i] for i in range(net.n_branch)
if bool(jnp.isnan(jnp.diag(factors)[i]))
]
print("outages that island case9:", islanding)
print("endpoints:", [(b, net.branches[b].from_bus, net.branches[b].to_bus)
for b in islanding])
outages that island case9: ['br1', 'br4', 'br7']
endpoints: [('br1', '1', '4'), ('br4', '3', '6'), ('br7', '8', '2')]
6. Approaching the loadability limit#
Load a network up and its power flow Jacobian approaches singularity. That is
what the nose of a P-V curve is: the point where the solution ceases to exist,
rather than merely becoming poor. The smallest singular value of the Jacobian is
the classical proximity-to-collapse index, and it is one jax.jacobian call here.
factors_tried, margins, voltages, converged = [], [], [], []
for factor in np.arange(1.0, 2.7, 0.1):
loaded = net.scaled_load(float(factor))
result = dp.solve_power_flow(loaded, max_steps=40)
factors_tried.append(float(factor))
converged.append(result.converged)
margins.append(dp.voltage_stability_margin(result.x, loaded))
voltages.append(min(result.vm.values()))
fig, (left, right) = plt.subplots(1, 2, figsize=(10, 3.8))
ok = np.array(converged)
left.plot(np.array(factors_tried)[ok], np.array(voltages)[ok], "o-", ms=4)
left.set_xlabel("load multiplier"); left.set_ylabel("lowest bus voltage (pu)")
left.set_title("approaching the P-V nose"); left.grid(alpha=0.3)
right.semilogy(np.array(factors_tried)[ok], np.array(margins)[ok], "o-", ms=4)
right.set_xlabel("load multiplier")
right.set_ylabel("smallest singular value of J")
right.set_title("proximity to collapse"); right.grid(alpha=0.3)
plt.tight_layout()
last = max(f for f, c in zip(factors_tried, converged) if c)
print(f"last multiplier at which Newton converged: {last:.1f}")
last multiplier at which Newton converged: 2.2
7. A distribution feeder, solved as a flowsheet#
Newton on the full system is the right method for a meshed transmission network and more than a distribution feeder needs: a feeder has a high R/X ratio, which breaks the P-θ / Q-V decoupling that fast-decoupled load flow relies on, and it is radial, which makes a far cheaper method than full Newton available.
That method is the backward/forward sweep, and it is genuinely a sequential-modular flowsheet solve — units in a topological schedule with one tear, iterated to a fixed point. The tear is the voltage profile.
Backward: at each bus, KCL gives the current into its parent branch as what its children and shunt did not take. One pass, no matrix.
Forward: the branch relation inverts for the child voltage given the parent’s. One pass from the fixed slack voltage.
Iterating the two converges linearly — about two and a half passes per decade of accuracy here, so many more iterations than Newton’s five. It is still much less work, because a pass is \(O(n)\) with no Jacobian formed, factorised or differentiated. And it is exact, not an approximation.
feeder = dp.cases.radial_feeder()
sweep = dp.RadialFeederFlowsheet(feeder)
streams = sweep.solve()
newton = dp.solve_power_flow(feeder)
passes = int(sweep.last_solve_stats["num_steps"])
print(f"sweep: {passes} passes to floating-point tolerance, "
"no Jacobian ever formed")
print(f"Newton: {newton.num_steps} steps, each factorising a Jacobian\n")
print(" bus sweep Newton difference")
for bus in feeder.bus_ids:
a = float(streams[f"bus_{bus}"]["P"])
b = newton.vm[bus]
print(f" {bus:4s} {a:.12f} {b:.12f} {abs(a - b):.1e}")
sweep: 28 passes to floating-point tolerance, no Jacobian ever formed
Newton: 5 steps, each factorising a Jacobian
bus sweep Newton difference
s 1.020000000000 1.020000000000 0.0e+00
n1 0.998791417100 0.998791417099 5.1e-13
n2 0.971598397835 0.971598397834 8.1e-13
n3 0.948817891653 0.948817891652 9.4e-13
n4 0.939592023122 0.939592023121 9.7e-13
l1 0.965276290472 0.965276290471 8.2e-13
l2 0.938357723589 0.938357723589 9.7e-13
Two entirely different algorithms — one walking a tree through unit-level admittance blocks, one factorising a Jacobian of the packed residual vector — agreeing to 1e-12 on every bus. That is a far stronger check than either could give on its own.
And because the fixed point is solved by optimistix, the sweep is
differentiable too. The gradient of the feeder-head infeed (the power the
substation sends into the feeder) with respect to load at the far end is greater
than one: a megawatt delivered to the end of the feeder
costs the substation more than a megawatt, and the excess is the loss it causes.
pd_pu, qd_pu = feeder.load_arrays_pu()
infeed = sweep.make_objective_fn(lambda s: jnp.asarray(s["bus_s"]["F_P"]))
gradient = jax.grad(lambda p: infeed((p, qd_pu)))(pd_pu)
print(" bus d(head infeed)/d(load) marginal loss")
for i, bus in enumerate(feeder.bus_ids):
if bus == feeder.slack_bus:
print(f" {bus:4s} {float(gradient[i]):.5f}"
" - (substation load is not carried by the feeder head)")
else:
print(f" {bus:4s} {float(gradient[i]):.5f}"
f" {float(gradient[i]) - 1.0:+.5f}")
bus d(head infeed)/d(load) marginal loss
s 0.00000 - (substation load is not carried by the feeder head)
n1 1.02962 +0.02962
n2 1.07087 +0.07087
n3 1.10891 +0.10891
n4 1.12495 +0.12495
l1 1.08155 +0.08155
l2 1.12779 +0.12779
fig, ax = plt.subplots(figsize=(8, 4))
dp.draw_network(
feeder,
voltages={b: float(streams[f"bus_{b}"]["P"]) for b in feeder.bus_ids},
ax=ax,
title="12.47 kV feeder: voltage sags away from the substation",
)
dp.draw_legend(ax)
plt.tight_layout()
What was differentiated, and what it bought#
question |
answer |
|---|---|
what does another MW here cost? |
|
…is that really the price? |
|
how does the dispatch move with load? |
|
what is raising this rating worth? |
|
what does a MW here cost in losses? |
|
what breaks if this line trips? |
|
how close is this to collapse? |
|
The LMPs, their check, the dispatch sensitivity, the shadow prices and the loss factors are derivatives of the same AC model, taken through the implicit function theorem at the converged point — exact by construction, and unable to drift out of step with the model they came from. LODF is the classical DC linearisation, exact for the DC model and computed from the same network data, and the stability margin is a property of the same power-flow Jacobian.
See docs/unit-operations-power.md for the full API, and
src/difflow_power/README.md for the design notes and the MATPOWER validation
table.
