Tutorial 24: Debugging Gradients#
This tutorial covers practical techniques for debugging gradient computations in JAX. We’ll explore:
Common gradient issues (NaN, zero, exploding)
Gradient checking with finite differences
Using
jax.debugutilitiesTracing and visualizing gradient flow
Numerical stability techniques
Debugging custom derivatives
Chemical engineering example: Debugging a complex flowsheet model
import jax
import jax.numpy as jnp
from jax import grad, jacobian, vmap, jit
import optax
import matplotlib.pyplot as plt
from functools import partial
import warnings
# Enable more detailed error messages
jax.config.update('jax_debug_nans', True)
jax.config.update('jax_enable_x64', True)
1. Common Gradient Issues#
NaN Gradients#
NaN (Not a Number) gradients typically arise from:
Division by zero
Log of zero or negative numbers
Square root of negative numbers
0/0 or inf/inf situations
# Example: NaN from division by zero
def problematic_division(x):
return x / (x - 1) # NaN gradient at x=1
# At x=1, we get 0/0 in the gradient
x = jnp.array(1.0)
try:
g = grad(problematic_division)(x)
print(f"Gradient at x=1: {g}")
except FloatingPointError as e:
print(f"FloatingPointError: {e}")
# The value is fine, but gradient is problematic
print(f"Value at x=1.001: {problematic_division(jnp.array(1.001))}")
print(f"Gradient at x=1.001: {grad(problematic_division)(jnp.array(1.001))}")
WARNING:2026-01-10 21:02:36,972:jax._src.xla_bridge:852: An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.
FloatingPointError: invalid value (nan) encountered in add
Value at x=1.001: 1001.0000000001102
Gradient at x=1.001: -1000000.0000002203
# Example: NaN from log of zero
def problematic_log(x):
return jnp.log(x) # grad is 1/x, NaN at x=0
# At x close to 0
for x_val in [1.0, 0.1, 0.01, 0.001, 0.0]:
x = jnp.array(x_val)
val = problematic_log(x)
g = grad(problematic_log)(x)
print(f"x={x_val:.4f}: value={val:>10.4f}, gradient={g:>15.4f}")
x=1.0000: value= 0.0000, gradient= 1.0000
x=0.1000: value= -2.3026, gradient= 10.0000
x=0.0100: value= -4.6052, gradient= 100.0000
x=0.0010: value= -6.9078, gradient= 1000.0000
x=0.0000: value= -inf, gradient= inf
# Fix: Use safe versions with small epsilon
def safe_log(x, eps=1e-10):
return jnp.log(jnp.maximum(x, eps))
def safe_division(x, y, eps=1e-10):
return x / (y + jnp.sign(y) * eps)
# Test safe versions
print("Safe log:")
for x_val in [0.001, 0.0]:
x = jnp.array(x_val)
print(f" x={x_val}: value={safe_log(x):.4f}, gradient={grad(safe_log)(x):.4f}")
Safe log:
x=0.001: value=-6.9078, gradient=1000.0000
x=0.0: value=-23.0259, gradient=0.0000
Zero Gradients#
Zero gradients can occur from:
Non-differentiable operations (floor, ceil, comparison)
Dead ReLU problem
Saturation in sigmoid/tanh
# Non-differentiable operations have zero gradient
def with_floor(x):
return jnp.floor(x) + x # floor has zero gradient
x = jnp.array(2.5)
print(f"floor contribution to gradient: {grad(lambda x: jnp.floor(x))(x)}")
print(f"Total gradient: {grad(with_floor)(x)}")
# Comparison operations
def with_comparison(x):
return jnp.where(x > 0, x, 0.0) # ReLU
print(f"\nReLU gradient at x=1: {grad(with_comparison)(jnp.array(1.0))}")
print(f"ReLU gradient at x=-1: {grad(with_comparison)(jnp.array(-1.0))}")
print(f"ReLU gradient at x=0: {grad(with_comparison)(jnp.array(0.0))}")
floor contribution to gradient: 0.0
Total gradient: 1.0
ReLU gradient at x=1: 1.0
ReLU gradient at x=-1: 0.0
ReLU gradient at x=0: 0.0
# Sigmoid saturation
def sigmoid(x):
return 1 / (1 + jnp.exp(-x))
print("Sigmoid saturation:")
for x_val in [-10, -5, 0, 5, 10, 20, 50]:
x = jnp.array(float(x_val))
g = grad(sigmoid)(x)
print(f" x={x_val:>3}: sigmoid={sigmoid(x):.6f}, gradient={g:.2e}")
Sigmoid saturation:
x=-10: sigmoid=0.000045, gradient=4.54e-05
x= -5: sigmoid=0.006693, gradient=6.65e-03
x= 0: sigmoid=0.500000, gradient=2.50e-01
x= 5: sigmoid=0.993307, gradient=6.65e-03
x= 10: sigmoid=0.999955, gradient=4.54e-05
x= 20: sigmoid=1.000000, gradient=2.06e-09
x= 50: sigmoid=1.000000, gradient=1.93e-22
Exploding Gradients#
Gradients can explode when:
Functions have steep regions
Deep networks without proper initialization
Iterative computations without normalization
# Exploding gradient example
def steep_function(x):
return jnp.exp(x ** 2)
print("Exponential gradient explosion:")
for x_val in [1, 2, 3, 4, 5]:
x = jnp.array(float(x_val))
g = grad(steep_function)(x)
print(f" x={x_val}: gradient={g:.2e}")
# Iterative computation
def iterative_function(x, n_iters=10):
y = x
for _ in range(n_iters):
y = 1.1 * y + 0.1 # Unstable iteration
return y
print("\nIterative gradient explosion:")
x = jnp.array(1.0)
for n in [5, 10, 20, 50]:
g = grad(lambda x: iterative_function(x, n))(x)
print(f" n_iters={n:>2}: gradient={g:.2e}")
Exponential gradient explosion:
x=1: gradient=5.44e+00
x=2: gradient=2.18e+02
x=3: gradient=4.86e+04
x=4: gradient=7.11e+07
x=5: gradient=7.20e+11
Iterative gradient explosion:
n_iters= 5: gradient=1.61e+00
n_iters=10: gradient=2.59e+00
n_iters=20: gradient=6.73e+00
n_iters=50: gradient=1.17e+02
2. Gradient Checking with Finite Differences#
Finite difference approximation can verify autodiff gradients:
\[\frac{\partial f}{\partial x} \approx \frac{f(x + h) - f(x - h)}{2h}\]
def finite_difference_check(f, x, eps=1e-5):
"""
Check gradient using central finite differences.
Returns autodiff gradient, finite diff gradient, and relative error.
"""
# Autodiff gradient
grad_auto = grad(f)(x)
# Finite difference gradient
grad_fd = jnp.zeros_like(x)
x_flat = x.flatten()
for i in range(len(x_flat)):
x_plus = x_flat.at[i].add(eps)
x_minus = x_flat.at[i].add(-eps)
grad_fd = grad_fd.at[i].set(
(f(x_plus.reshape(x.shape)) - f(x_minus.reshape(x.shape))) / (2 * eps)
)
grad_fd = grad_fd.reshape(grad_auto.shape)
# Relative error
rel_error = jnp.abs(grad_auto - grad_fd) / (jnp.abs(grad_auto) + jnp.abs(grad_fd) + 1e-10)
return grad_auto, grad_fd, rel_error
# Test on a known function
def test_function(x):
return jnp.sum(x ** 2) + jnp.prod(jnp.sin(x))
x = jnp.array([1.0, 2.0, 3.0])
grad_auto, grad_fd, rel_error = finite_difference_check(test_function, x)
print("Gradient Check:")
print(f"Autodiff: {grad_auto}")
print(f"Finite diff: {grad_fd}")
print(f"Rel. error: {rel_error}")
print(f"Max rel. error: {rel_error.max():.2e}")
Gradient Check:
Autodiff: [2.06933162 3.95058323 5.24250981]
Finite diff: [2.06933162 3.95058323 5.24250981]
Rel. error: [3.06751227e-11 2.96281805e-12 1.10647256e-12]
Max rel. error: 3.07e-11
# JAX's built-in gradient checker
from jax.test_util import check_grads
def my_function(x):
return jnp.sum(jnp.tanh(x) ** 2)
x = jnp.array([0.5, 1.0, -0.5])
# This will raise an error if gradients don't match
try:
check_grads(my_function, (x,), order=1, modes=['rev'])
print("Gradient check passed!")
except Exception as e:
print(f"Gradient check failed: {e}")
Gradient check passed!
# Checking Jacobians
def vector_function(x):
return jnp.array([
jnp.sum(x ** 2),
jnp.prod(x),
jnp.mean(jnp.sin(x))
])
def jacobian_check(f, x, eps=1e-5):
"""Check Jacobian using finite differences."""
J_auto = jacobian(f)(x)
n_out = f(x).shape[0]
n_in = x.shape[0]
J_fd = jnp.zeros((n_out, n_in))
for i in range(n_in):
x_plus = x.at[i].add(eps)
x_minus = x.at[i].add(-eps)
col = (f(x_plus) - f(x_minus)) / (2 * eps)
J_fd = J_fd.at[:, i].set(col)
rel_error = jnp.abs(J_auto - J_fd) / (jnp.abs(J_auto) + jnp.abs(J_fd) + 1e-10)
return J_auto, J_fd, rel_error
x = jnp.array([1.0, 2.0, 3.0])
J_auto, J_fd, rel_error = jacobian_check(vector_function, x)
print("Jacobian Check:")
print(f"Max relative error: {rel_error.max():.2e}")
print(f"\nAutodiff Jacobian:\n{J_auto}")
print(f"\nFinite diff Jacobian:\n{J_fd}")
Jacobian Check:
Max relative error: 2.55e-11
Autodiff Jacobian:
[[ 2. 4. 6. ]
[ 6. 3. 2. ]
[ 0.18010077 -0.13871561 -0.3299975 ]]
Finite diff Jacobian:
[[ 2. 4. 6. ]
[ 6. 3. 2. ]
[ 0.18010077 -0.13871561 -0.3299975 ]]
3. Using jax.debug Utilities#
JAX provides debugging utilities that work with JIT compilation.
# jax.debug.print - works inside JIT
@jit
def function_with_debug(x):
y = x ** 2
jax.debug.print("After square: y = {y}", y=y)
z = jnp.sin(y)
jax.debug.print("After sin: z = {z}", z=z)
return z.sum()
x = jnp.array([1.0, 2.0, 3.0])
result = function_with_debug(x)
print(f"Final result: {result}")
After square: y = [1. 4. 9.]
After sin: z = [ 0.84147098 -0.7568025 0.41211849]
Final result: 0.4967869747417249
# Debug printing during gradient computation
def function_debug_grad(x):
y = x ** 2
jax.debug.print("Forward: x={x}, y={y}", x=x, y=y)
return y.sum()
# The debug prints will show during forward pass
grad_fn = grad(function_debug_grad)
g = grad_fn(jnp.array([1.0, 2.0]))
print(f"Gradient: {g}")
Forward: x=[1. 2.], y=[1. 4.]
Gradient: [2. 4.]
# Using callbacks for debugging (non-JIT version for compatibility)
def inspect_tensor(x, tag):
"""Inspect tensor statistics."""
print(f"[{tag}] Shape: {x.shape}, Min: {float(x.min()):.4f}, "
f"Max: {float(x.max()):.4f}, Mean: {float(x.mean()):.4f}")
def function_with_inspection(x):
inspect_tensor(x, "input")
y = jnp.exp(x)
inspect_tensor(y, "after exp")
z = y / y.sum()
inspect_tensor(z, "after normalize")
return z
x = jnp.array([1.0, 2.0, 3.0, 4.0])
result = function_with_inspection(x)
print(f"Result: {result}")
[input] Shape: (4,), Min: 1.0000, Max: 4.0000, Mean: 2.5000
[after exp] Shape: (4,), Min: 2.7183, Max: 54.5982, Mean: 21.1978
[after normalize] Shape: (4,), Min: 0.0321, Max: 0.6439, Mean: 0.2500
Result: [0.0320586 0.08714432 0.23688282 0.64391426]
# Checking for NaN during computation
# Note: Disable jax_debug_nans for this demonstration since we intentionally create NaN values
jax.config.update('jax_debug_nans', False)
def check_nan(x, name):
"""Callback to check for NaN values."""
has_nan = bool(jnp.any(jnp.isnan(x)))
if has_nan:
print(f"WARNING: NaN detected in {name}!")
print(f" Shape: {x.shape}")
print(f" NaN count: {int(jnp.sum(jnp.isnan(x)))}")
# Non-JIT version to avoid XLA callback issues
def risky_function(x):
check_nan(x, "input")
y = jnp.log(x) # Risky if x <= 0
check_nan(y, "after log")
z = y / x # Risky if x = 0
check_nan(z, "after division")
return z.sum()
# Test with problematic input
x = jnp.array([1.0, 0.5, 0.0, -0.5]) # Contains zero and negative
result = risky_function(x)
print(f"Result: {result}")
WARNING: NaN detected in after log!
Shape: (4,)
NaN count: 1
WARNING: NaN detected in after division!
Shape: (4,)
NaN count: 1
Result: nan

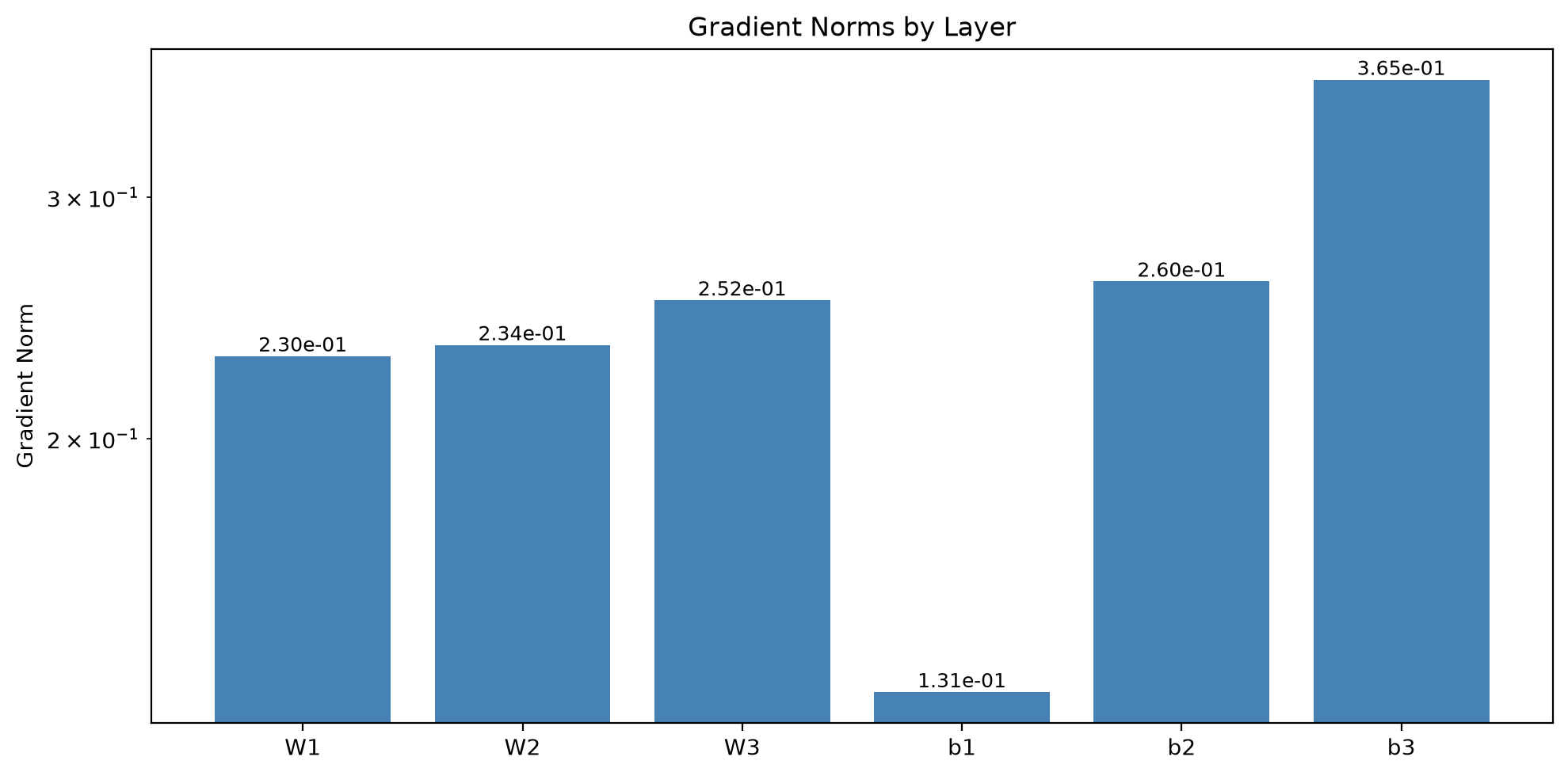

4. Tracing and Visualizing Gradient Flow#
# Track gradient magnitudes through layers
class GradientTracker:
"""Track gradient statistics during backprop."""
def __init__(self):
self.stats = []
def track(self, name, tensor):
"""Record tensor statistics."""
self.stats.append({
'name': name,
'shape': tensor.shape,
'min': float(tensor.min()),
'max': float(tensor.max()),
'mean': float(tensor.mean()),
'std': float(tensor.std()),
'norm': float(jnp.linalg.norm(tensor))
})
def report(self):
"""Print summary."""
print(f"{'Layer':<20} {'Norm':<12} {'Mean':<12} {'Std':<12}")
print("-" * 60)
for s in self.stats:
print(f"{s['name']:<20} {s['norm']:<12.4e} {s['mean']:<12.4e} {s['std']:<12.4e}")
# Create a multi-layer function and track values (non-JIT for reliability)
def network_forward(params, x):
"""Network with intermediate value tracking."""
# Layer 1
h1 = x @ params['W1'] + params['b1']
a1 = jnp.tanh(h1)
# Layer 2
h2 = a1 @ params['W2'] + params['b2']
a2 = jnp.tanh(h2)
# Output
out = a2 @ params['W3'] + params['b3']
return out, {'L1_pre': h1, 'L1_post': a1, 'L2_pre': h2, 'L2_post': a2, 'out': out}
# Initialize network
key = jax.random.PRNGKey(0)
params = {
'W1': jax.random.normal(key, (10, 32)) * 0.1,
'b1': jnp.zeros(32),
'W2': jax.random.normal(jax.random.PRNGKey(1), (32, 32)) * 0.1,
'b2': jnp.zeros(32),
'W3': jax.random.normal(jax.random.PRNGKey(2), (32, 5)) * 0.1,
'b3': jnp.zeros(5)
}
x = jax.random.normal(jax.random.PRNGKey(3), (8, 10))
y = jax.random.normal(jax.random.PRNGKey(4), (8, 5))
# Forward pass with tracking
print("Forward Pass Activation Statistics:")
out, intermediates = network_forward(params, x)
tracker = GradientTracker()
for name, tensor in intermediates.items():
tracker.track(name, tensor)
tracker.report()
Forward Pass Activation Statistics:
Layer Norm Mean Std
------------------------------------------------------------
L1_pre 5.3065e+00 -3.5659e-02 3.2974e-01
L1_post 4.8563e+00 -3.2447e-02 3.0178e-01
L2_pre 2.6192e+00 3.5059e-03 1.6366e-01
L2_post 2.5415e+00 3.4476e-03 1.5881e-01
out 5.6768e-01 7.2690e-03 8.9464e-02
# Visualize gradient flow through the network
def compute_layer_gradients(params, x, y):
"""Compute gradient norms for each layer."""
def loss_fn(params):
h1 = jnp.tanh(x @ params['W1'] + params['b1'])
h2 = jnp.tanh(h1 @ params['W2'] + params['b2'])
out = h2 @ params['W3'] + params['b3']
return jnp.mean((out - y) ** 2)
grads = grad(loss_fn)(params)
grad_norms = {}
for name, g in grads.items():
grad_norms[name] = float(jnp.linalg.norm(g))
return grad_norms
grad_norms = compute_layer_gradients(params, x, y)
# Plot
fig, ax = plt.subplots(figsize=(10, 5))
names = list(grad_norms.keys())
values = list(grad_norms.values())
bars = ax.bar(names, values, color='steelblue')
ax.set_ylabel('Gradient Norm')
ax.set_title('Gradient Norms by Layer')
ax.set_yscale('log')
# Add value labels
for bar, val in zip(bars, values):
ax.text(bar.get_x() + bar.get_width()/2, bar.get_height(), f'{val:.2e}',
ha='center', va='bottom', fontsize=9)
plt.tight_layout()
plt.show()
5. Numerical Stability Techniques#
# Log-sum-exp trick for numerical stability
def naive_logsumexp(x):
"""Naive implementation - can overflow."""
return jnp.log(jnp.sum(jnp.exp(x)))
def stable_logsumexp(x):
"""Stable implementation using max subtraction."""
max_x = jnp.max(x)
return max_x + jnp.log(jnp.sum(jnp.exp(x - max_x)))
# Test with large values
x_large = jnp.array([1000.0, 1001.0, 1002.0])
print("LogSumExp stability:")
print(f"Naive: {naive_logsumexp(x_large)} (likely inf)")
print(f"Stable: {stable_logsumexp(x_large)}")
print(f"JAX built-in: {jax.scipy.special.logsumexp(x_large)}")
# Check gradients
print(f"\nNaive gradient: {grad(naive_logsumexp)(x_large)}")
print(f"Stable gradient: {grad(stable_logsumexp)(x_large)}")
LogSumExp stability:
Naive: inf (likely inf)
Stable: 1002.4076059644444
JAX built-in: 1002.4076059644444
Naive gradient: [nan nan nan]
Stable gradient: [0.09003057 0.24472847 0.66524096]
# Softmax stability
# Note: jax_debug_nans is disabled from cell 19 to allow NaN demonstrations
def naive_softmax(x):
exp_x = jnp.exp(x)
return exp_x / jnp.sum(exp_x)
def stable_softmax(x):
x_shifted = x - jnp.max(x)
exp_x = jnp.exp(x_shifted)
return exp_x / jnp.sum(exp_x)
# Test
x = jnp.array([1.0, 2.0, 1000.0]) # Large value
print("Softmax stability:")
print(f"Naive: {naive_softmax(x)}")
print(f"Stable: {stable_softmax(x)}")
print(f"JAX built-in: {jax.nn.softmax(x)}")
Softmax stability:
Naive: [ 0. 0. nan]
Stable: [0. 0. 1.]
JAX built-in: [0. 0. 1.]
# Gradient clipping for stability
def clip_gradients(grads, max_norm=1.0):
"""Clip gradients by global norm."""
total_norm = jnp.sqrt(
sum(jnp.sum(g ** 2) for g in jax.tree.leaves(grads))
)
clip_coef = jnp.minimum(max_norm / (total_norm + 1e-6), 1.0)
return jax.tree.map(lambda g: g * clip_coef, grads)
# Example with optax
optimizer = optax.chain(
optax.clip_by_global_norm(1.0),
optax.adam(0.001)
)
# Simulate large gradients
large_grads = {
'W1': jnp.ones((10, 10)) * 100,
'W2': jnp.ones((10, 5)) * 50
}
clipped = clip_gradients(large_grads, max_norm=1.0)
print("Gradient Clipping:")
print(f"Original W1 norm: {jnp.linalg.norm(large_grads['W1']):.2f}")
print(f"Clipped W1 norm: {jnp.linalg.norm(clipped['W1']):.4f}")
Gradient Clipping:
Original W1 norm: 1000.00
Clipped W1 norm: 0.9428
6. Debugging Custom Derivatives#
from jax import custom_vjp
# Custom derivative with debugging
@custom_vjp
def my_relu(x):
return jnp.maximum(x, 0)
def my_relu_fwd(x):
return my_relu(x), x # Return primal output and residuals
def my_relu_bwd(res, g):
x = res
# Debug print in backward pass
jax.debug.print("Backward pass: x={x}, g={g}", x=x, g=g)
return (jnp.where(x > 0, g, 0.0),)
my_relu.defvjp(my_relu_fwd, my_relu_bwd)
# Test
x = jnp.array([-1.0, 0.0, 1.0, 2.0])
print("Forward pass:")
y = my_relu(x)
print(f"y = {y}")
print("\nBackward pass:")
g = grad(lambda x: my_relu(x).sum())(x)
print(f"Gradient: {g}")
Forward pass:
y = [0. 0. 1. 2.]
Backward pass:
Backward pass: x=[-1. 0. 1. 2.], g=[1. 1. 1. 1.]
Gradient: [0. 0. 1. 1.]
# Verify custom derivative correctness
from jax.test_util import check_grads
# A more complex custom function
@custom_vjp
def safe_sqrt(x):
"""Square root with safe gradient at x=0."""
return jnp.sqrt(jnp.maximum(x, 0))
def safe_sqrt_fwd(x):
y = safe_sqrt(x)
return y, (x, y)
def safe_sqrt_bwd(res, g):
x, y = res
# Gradient is 1/(2*sqrt(x)), but we cap it for small x
grad_x = jnp.where(
x > 1e-10,
g / (2 * y + 1e-10),
0.0 # Zero gradient for x <= 0
)
return (grad_x,)
safe_sqrt.defvjp(safe_sqrt_fwd, safe_sqrt_bwd)
# Test at various points
print("Safe sqrt gradient check:")
for x_val in [0.0, 0.0001, 0.01, 1.0, 4.0]:
x = jnp.array(x_val)
g = grad(safe_sqrt)(x)
print(f"x={x_val:>6}: sqrt={safe_sqrt(x):.4f}, grad={g:.4f}")
Safe sqrt gradient check:
x= 0.0: sqrt=0.0000, grad=0.0000
x=0.0001: sqrt=0.0100, grad=50.0000
x= 0.01: sqrt=0.1000, grad=5.0000
x= 1.0: sqrt=1.0000, grad=0.5000
x= 4.0: sqrt=2.0000, grad=0.2500
7. Chemical Engineering Example: Debugging a Complex Flowsheet Model#
class FlowsheetDebugger:
"""
Debugging utilities for flowsheet simulations.
"""
def __init__(self):
self.forward_stats = []
self.issues = []
def check_stream(self, stream, name):
"""Check stream for physical validity."""
issues = []
if jnp.any(stream['flow'] < 0):
issues.append(f"Negative flow in {name}")
if jnp.any(stream['concentration'] < 0):
issues.append(f"Negative concentration in {name}")
if stream['temperature'] < 0 or stream['temperature'] > 1000:
issues.append(f"Invalid temperature in {name}: {stream['temperature']}")
if jnp.any(jnp.isnan(jax.tree.leaves(stream))):
issues.append(f"NaN values in {name}")
self.issues.extend(issues)
return len(issues) == 0
def log_unit(self, name, inputs, outputs):
"""Log unit operation statistics."""
self.forward_stats.append({
'unit': name,
'input_flow': float(sum(s['flow'].sum() for s in inputs)),
'output_flow': float(sum(s['flow'].sum() for s in outputs)),
})
def report(self):
"""Print debugging report."""
if self.issues:
print("ISSUES DETECTED:")
for issue in self.issues:
print(f" - {issue}")
else:
print("No issues detected.")
print("\nUnit Mass Balances:")
for stat in self.forward_stats:
balance_error = abs(stat['input_flow'] - stat['output_flow'])
status = "OK" if balance_error < 1e-6 else f"ERROR: {balance_error:.2e}"
print(f" {stat['unit']}: In={stat['input_flow']:.4f}, "
f"Out={stat['output_flow']:.4f} [{status}]")
# Flowsheet with potential gradient issues
def cstr_with_issues(params, inlet):
"""
CSTR model with common issues that cause gradient problems.
"""
k0, E_over_R, V = params
F, C_in, T = inlet['flow'], inlet['concentration'], inlet['temperature']
# Issue 1: Temperature very close to 0 can cause E/T overflow
k = k0 * jnp.exp(-E_over_R / T)
# Issue 2: Division by potentially small denominator
tau = V / F # tau -> inf if F -> 0
# Issue 3: Conversion can approach 1, causing 1-X -> 0
X = k * tau / (1 + k * tau)
C_out = C_in * (1 - X)
return {
'flow': F,
'concentration': C_out,
'temperature': T,
'conversion': X
}
def safe_cstr(params, inlet, eps=1e-8):
"""
CSTR model with numerical safeguards.
"""
k0, E_over_R, V = params
F, C_in, T = inlet['flow'], inlet['concentration'], inlet['temperature']
# Safeguard 1: Clamp temperature to physical range
T_safe = jnp.clip(T, 200.0, 800.0)
k = k0 * jnp.exp(-E_over_R / T_safe)
# Safeguard 2: Prevent division by zero
tau = V / jnp.maximum(F, eps)
# Safeguard 3: Clip conversion to prevent numerical issues
X = k * tau / (1 + k * tau)
X = jnp.clip(X, 0.0, 1.0 - eps)
C_out = jnp.maximum(C_in * (1 - X), 0.0)
return {
'flow': F,
'concentration': C_out,
'temperature': T,
'conversion': X
}
# Test gradient behavior
params = jnp.array([1e6, 5000.0, 10.0]) # k0, E/R, V
def test_gradient_stability(cstr_fn, name):
"""Test gradient stability across parameter ranges."""
print(f"\n{name}:")
print("-" * 50)
test_cases = [
{'flow': 1.0, 'concentration': 1.0, 'temperature': 350.0}, # Normal
{'flow': 0.01, 'concentration': 1.0, 'temperature': 350.0}, # Low flow
{'flow': 1.0, 'concentration': 1.0, 'temperature': 250.0}, # Low T
{'flow': 1.0, 'concentration': 1.0, 'temperature': 500.0}, # High T
]
def objective(params, inlet):
out = cstr_fn(params, inlet)
return out['conversion']
for inlet in test_cases:
inlet_jax = {k: jnp.array(v) for k, v in inlet.items()}
try:
val = objective(params, inlet_jax)
g = grad(objective)(params, inlet_jax)
g_norm = jnp.linalg.norm(g)
has_nan = jnp.any(jnp.isnan(g))
status = "NaN!" if has_nan else ("Large" if g_norm > 1e6 else "OK")
print(f" T={inlet['temperature']:>5}, F={inlet['flow']:>4}: "
f"X={val:.4f}, |grad|={g_norm:.2e} [{status}]")
except Exception as e:
print(f" T={inlet['temperature']:>5}, F={inlet['flow']:>4}: ERROR - {e}")
test_gradient_stability(cstr_with_issues, "CSTR with issues")
test_gradient_stability(safe_cstr, "Safe CSTR")
CSTR with issues:
--------------------------------------------------
T=350.0, F= 1.0: X=0.8620, |grad|=1.19e-02 [OK]
T=350.0, F=0.01: X=0.9984, |grad|=1.60e-04 [OK]
T=250.0, F= 1.0: X=0.0202, |grad|=1.98e-03 [OK]
T=500.0, F= 1.0: X=0.9978, |grad|=2.19e-04 [OK]
Safe CSTR:
--------------------------------------------------
T=350.0, F= 1.0: X=0.8620, |grad|=1.19e-02 [OK]
T=350.0, F=0.01: X=0.9984, |grad|=1.60e-04 [OK]
T=250.0, F= 1.0: X=0.0202, |grad|=1.98e-03 [OK]
T=500.0, F= 1.0: X=0.9978, |grad|=2.19e-04 [OK]
# Complete flowsheet debugging example
def create_flowsheet(params, feed, debug=False):
"""
Multi-unit flowsheet with debugging.
Units: Feed -> Heater -> CSTR -> Flash -> Products
"""
k0, E_R, V_cstr, T_heater, flash_split = params
# Unit 1: Heater
heated = {
'flow': feed['flow'],
'concentration': feed['concentration'],
'temperature': T_heater
}
if debug:
jax.debug.print("Heater output T: {T}", T=heated['temperature'])
# Unit 2: CSTR
cstr_out = safe_cstr(
jnp.array([k0, E_R, V_cstr]),
heated
)
if debug:
jax.debug.print("CSTR conversion: {X}", X=cstr_out['conversion'])
# Unit 3: Flash separator
vapor = {
'flow': cstr_out['flow'] * flash_split,
'concentration': cstr_out['concentration'] * 0.1, # Light component
'temperature': cstr_out['temperature']
}
liquid = {
'flow': cstr_out['flow'] * (1 - flash_split),
'concentration': cstr_out['concentration'] * 0.9 / (1 - flash_split + 1e-10),
'temperature': cstr_out['temperature']
}
# Overall metrics
product_value = liquid['flow'] * liquid['concentration']
energy_cost = 0.1 * (T_heater - 300) ** 2
return {
'profit': product_value - energy_cost,
'conversion': cstr_out['conversion'],
'product_flow': liquid['flow']
}
# Optimization with gradient debugging
params_init = jnp.array([1e6, 5000.0, 10.0, 350.0, 0.3])
feed = {'flow': jnp.array(1.0), 'concentration': jnp.array(1.0), 'temperature': jnp.array(300.0)}
def objective(params):
result = create_flowsheet(params, feed, debug=False)
return -result['profit'] # Minimize negative profit
# Check gradient at initial point
print("Initial gradient check:")
g = grad(objective)(params_init)
param_names = ['k0', 'E/R', 'V', 'T_heat', 'split']
for name, gi in zip(param_names, g):
print(f" d(obj)/d({name}): {gi:.2e}")
# Optimization loop with gradient monitoring
optimizer = optax.adam(0.1)
opt_state = optimizer.init(params_init)
params = params_init
print("\nOptimization with gradient monitoring:")
for i in range(20):
g = grad(objective)(params)
g_norm = jnp.linalg.norm(g)
if jnp.any(jnp.isnan(g)):
print(f"Step {i}: NaN gradient detected! Stopping.")
break
updates, opt_state = optimizer.update(g, opt_state)
params = optax.apply_updates(params, updates)
if i % 5 == 0:
obj_val = objective(params)
print(f"Step {i:>2}: Obj={obj_val:>8.4f}, |grad|={g_norm:.2e}")
print(f"\nFinal parameters:")
for name, p in zip(param_names, params):
print(f" {name}: {p:.4f}")
Initial gradient check:
d(obj)/d(k0): 1.07e-07
d(obj)/d(E/R): -3.06e-04
d(obj)/d(V): 1.07e-02
d(obj)/d(T_heat): 1.00e+01
d(obj)/d(split): 2.53e-11
Optimization with gradient monitoring:
Step 0: Obj=248.8753, |grad|=1.00e+01
Step 5: Obj=243.9036, |grad|=9.90e+00
Step 10: Obj=238.9864, |grad|=9.81e+00
Step 15: Obj=234.1275, |grad|=9.71e+00
Final parameters:
k0: 999998.1409
E/R: 5002.0246
V: 7.9539
T_heat: 348.0048
split: 0.2946
# Summary: Gradient debugging checklist
debugging_checklist = """
GRADIENT DEBUGGING CHECKLIST
============================
1. CHECK FOR NaN GRADIENTS
- Enable: jax.config.update('jax_debug_nans', True)
- Look for: log(0), sqrt(negative), 0/0, exp(large)
- Fix: Add epsilon, clip inputs, use safe functions
2. CHECK FOR ZERO GRADIENTS
- Symptoms: Loss not decreasing, parameters not updating
- Look for: floor/ceil, hard comparisons, saturated activations
- Fix: Use soft approximations, check activation ranges
3. CHECK FOR EXPLODING GRADIENTS
- Symptoms: Loss going to inf/NaN, parameters diverging
- Look for: Deep iteration, large exponentials, small denominators
- Fix: Gradient clipping, better initialization, normalization
4. VERIFY WITH FINITE DIFFERENCES
- Use: jax.test_util.check_grads(f, (x,), order=1)
- Or: manual finite difference check
- Typical tolerance: 1e-4 to 1e-6 relative error
5. DEBUG INSIDE JIT
- Use: jax.debug.print("msg {x}", x=value)
- Use: jax.debug.callback(fn, arg1, arg2)
- Track: intermediate values, shapes, statistics
6. PHYSICAL CONSTRAINTS
- Concentrations >= 0
- Temperatures in physical range
- Mass/energy balances close
- Add: jnp.clip, jnp.maximum, soft constraints
"""
print(debugging_checklist)
GRADIENT DEBUGGING CHECKLIST
============================
1. CHECK FOR NaN GRADIENTS
- Enable: jax.config.update('jax_debug_nans', True)
- Look for: log(0), sqrt(negative), 0/0, exp(large)
- Fix: Add epsilon, clip inputs, use safe functions
2. CHECK FOR ZERO GRADIENTS
- Symptoms: Loss not decreasing, parameters not updating
- Look for: floor/ceil, hard comparisons, saturated activations
- Fix: Use soft approximations, check activation ranges
3. CHECK FOR EXPLODING GRADIENTS
- Symptoms: Loss going to inf/NaN, parameters diverging
- Look for: Deep iteration, large exponentials, small denominators
- Fix: Gradient clipping, better initialization, normalization
4. VERIFY WITH FINITE DIFFERENCES
- Use: jax.test_util.check_grads(f, (x,), order=1)
- Or: manual finite difference check
- Typical tolerance: 1e-4 to 1e-6 relative error
5. DEBUG INSIDE JIT
- Use: jax.debug.print("msg {x}", x=value)
- Use: jax.debug.callback(fn, arg1, arg2)
- Track: intermediate values, shapes, statistics
6. PHYSICAL CONSTRAINTS
- Concentrations >= 0
- Temperatures in physical range
- Mass/energy balances close
- Add: jnp.clip, jnp.maximum, soft constraints
Summary#
This tutorial covered practical gradient debugging techniques:
Issue |
Detection |
Solution |
|---|---|---|
NaN gradients |
|
Add epsilon, clip values, safe functions |
Zero gradients |
Monitor gradient norms |
Soft approximations, check activations |
Exploding gradients |
Norm monitoring |
Gradient clipping, normalization |
Wrong gradients |
Finite difference check |
Fix custom_vjp, check math |
Key Tools#
jax.debug.print()- Print inside JITjax.debug.callback()- Custom callbacks inside JITjax.test_util.check_grads()- Verify gradient correctnessjax.config.update('jax_debug_nans', True)- NaN detection
Best Practices#
Always check gradients during development
Use safe functions (log1p, expm1, stable softmax)
Monitor gradient norms during training
Add physical constraints for engineering models
Test edge cases (zero flow, extreme temperatures)
