Parallel and Bypass Configurations#
Prerequisites: 00h_connecting_units_in_series
Learning Objectives:
Use splitters to divide streams
Use mixers to combine streams
Design parallel processing paths
Implement bypass for temperature control
Why Parallel and Bypass?#
Real processes often need:
Parallel paths: Process large flows in multiple smaller units
Bypass: Blend hot and cold streams for temperature control
Split processing: Different treatment for different fractions
These require splitters (divide one stream into many) and mixers (combine many into one).
# Setup
import jax.numpy as jnp
import jax
jax.config.update("jax_enable_x64", True)
import matplotlib.pyplot as plt
import matplotlib.patches as patches
from difflow import (Heater, HeaterParams, make_stream, get_flows, combine_streams,
scale_stream, IdealThermo, SpeciesData)
WARNING:2026-01-10 21:09:11,427:jax._src.xla_bridge:852: An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.
# Define species
species_data = {
'A': SpeciesData(name='A', MW=50.0, Cp_coeffs=(50.0, 0, 0, 0),
Hvap_coeffs=(30000.0, 0.38, 400.0),
antoine_coeffs=(10.0, 2000.0, -40.0)),
}
thermo = IdealThermo(species_data)
Splitters and Mixers#
Splitter#
Divides a stream based on a split fraction \(\alpha\):
\[F_{out,1} = \alpha \cdot F_{in}\]
\[F_{out,2} = (1-\alpha) \cdot F_{in}\]
Mixer#
Combines streams by adding flows:
\[F_{out} = F_{in,1} + F_{in,2}\]
# Implement splitter
def splitter(inlet, alpha):
"""
Split a stream into two.
Args:
inlet: Input stream
alpha: Fraction going to stream 1 (0 to 1)
Returns:
stream1, stream2: Two outlet streams
"""
stream1 = scale_stream(inlet, alpha)
stream2 = scale_stream(inlet, 1.0 - alpha)
return stream1, stream2
# Test splitter
feed = make_stream({'A': 100.0}, T=300.0, P=101325.0)
stream1, stream2 = splitter(feed, alpha=0.7)
print("Splitter Test (α = 0.7)")
print("=" * 40)
print(f"Feed: F_A = {float(get_flows(feed)['A']):.1f} mol/s")
print(f"Stream 1: F_A = {float(get_flows(stream1)['A']):.1f} mol/s (70%)")
print(f"Stream 2: F_A = {float(get_flows(stream2)['A']):.1f} mol/s (30%)")
Splitter Test (α = 0.7)
========================================
Feed: F_A = 100.0 mol/s
Stream 1: F_A = 70.0 mol/s (70%)
Stream 2: F_A = 30.0 mol/s (30%)
# Implement mixer with energy balance
def mixer(stream1, stream2):
"""
Mix two streams.
Temperature is flow-weighted average (assuming same Cp).
"""
flows1 = get_flows(stream1)
flows2 = get_flows(stream2)
F1_total = sum(flows1.values())
F2_total = sum(flows2.values())
F_total = F1_total + F2_total
# Combined flows
combined_flows = {k: flows1[k] + flows2[k] for k in flows1}
# Flow-weighted temperature
T_mix = (F1_total * stream1['T'] + F2_total * stream2['T']) / F_total
# Take lower pressure
P_mix = jnp.minimum(stream1['P'], stream2['P'])
return make_stream(combined_flows, T=T_mix, P=P_mix)
# Test mixer
hot_stream = make_stream({'A': 70.0}, T=400.0, P=101325.0)
cold_stream = make_stream({'A': 30.0}, T=300.0, P=101325.0)
mixed = mixer(hot_stream, cold_stream)
print("\nMixer Test")
print("=" * 40)
print(f"Hot stream: F_A = {float(get_flows(hot_stream)['A']):.0f} mol/s, T = {float(hot_stream['T']):.0f} K")
print(f"Cold stream: F_A = {float(get_flows(cold_stream)['A']):.0f} mol/s, T = {float(cold_stream['T']):.0f} K")
print(f"Mixed: F_A = {float(get_flows(mixed)['A']):.0f} mol/s, T = {float(mixed['T']):.0f} K")
Mixer Test
========================================
Hot stream: F_A = 70 mol/s, T = 400 K
Cold stream: F_A = 30 mol/s, T = 300 K
Mixed: F_A = 100 mol/s, T = 370 K
Bypass Configuration#
A bypass sends part of a stream around a unit (typically a heater/cooler) for temperature control:
┌──────────────────────────────────┐
│ Bypass (1-α) │
│ ▼
Feed ───►Splitter Mixer───► Product
│ ▲
└──► Heater ──► Heated (α) ────────┘
By adjusting \(\alpha\), we can achieve any temperature between inlet and heater outlet.
# Implement bypass configuration
heater = Heater(HeaterParams(Cp=50.0))
def heater_with_bypass(inlet, T_heater_out, alpha):
"""
Heater with bypass for temperature control.
The heater raises its portion to T_heater_out.
Bypass stream remains at inlet temperature.
Mixed outlet temperature depends on bypass fraction.
Args:
inlet: Feed stream
T_heater_out: Target temperature for heated portion (K)
alpha: Fraction going through heater (0 to 1)
Returns:
outlet: Mixed outlet stream
info: dict with intermediate streams
"""
# Split
to_heater, bypass = splitter(inlet, alpha)
# Heat to target temperature
heated, heater_info = heater(to_heater, T_out=T_heater_out)
# Mix heated + bypass
outlet = mixer(heated, bypass)
return outlet, {
'to_heater': to_heater,
'bypass': bypass,
'heated': heated,
'heater_Q': heater_info['Q'],
}
# Example: Heat a stream with bypass control
feed = make_stream({'A': 100.0}, T=300.0, P=101325.0)
T_heater_target = 400.0 # Heater heats its portion to 400 K
# Try different bypass fractions
print("Heater with Bypass - Temperature Control")
print("=" * 55)
print(f"Feed: {float(get_flows(feed)['A']):.0f} mol/s at {float(feed['T']):.0f} K")
print(f"Heater outlet target: {T_heater_target:.0f} K")
print(f"")
print(f"{'Bypass %':<12} {'To heater':<12} {'Heated T':<12} {'Mixed T':<12} {'Q (kW)':<12}")
print("-" * 60)
for bypass_frac in [0.0, 0.2, 0.4, 0.6, 0.8]:
alpha = 1.0 - bypass_frac
outlet, info = heater_with_bypass(feed, T_heater_target, alpha)
Q_kW = float(info['heater_Q']) / 1000
print(f"{bypass_frac*100:<12.0f} {float(get_flows(info['to_heater'])['A']):<12.0f} "
f"{float(info['heated']['T']):<12.0f} {float(outlet['T']):<12.0f} {Q_kW:<12.0f}")
Heater with Bypass - Temperature Control
=======================================================
Feed: 100 mol/s at 300 K
Heater outlet target: 400 K
Bypass % To heater Heated T Mixed T Q (kW)
------------------------------------------------------------
0 100 400 400 500
20 80 400 380 400
40 60 400 360 300
60 40 400 340 200
80 20 400 320 100

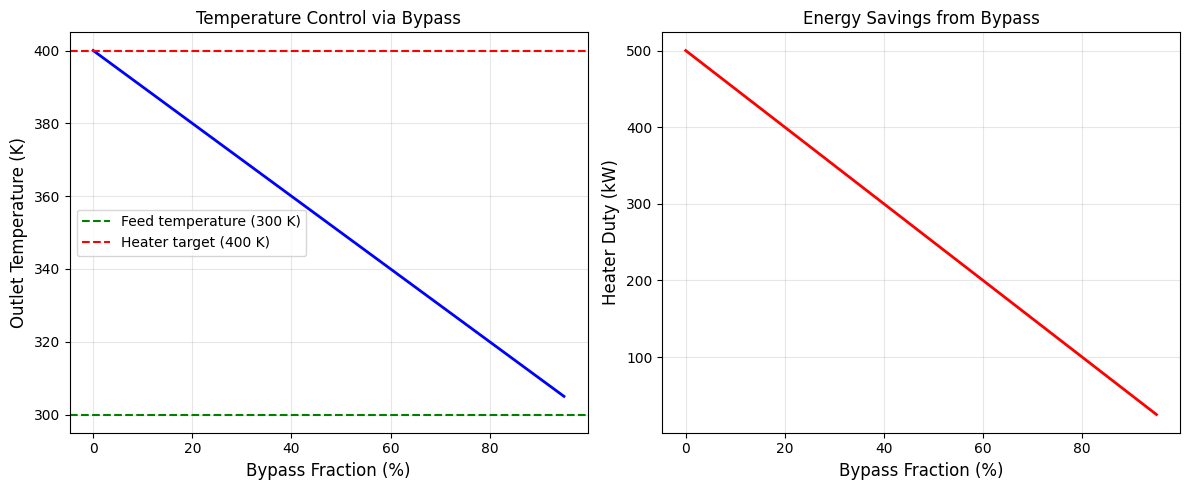

# Visualize bypass effect
bypass_fractions = [i/20 for i in range(20)] # 0 to 95%
outlet_temps = []
heater_duties = []
for bypass_frac in bypass_fractions:
alpha = 1.0 - bypass_frac
if alpha > 0.01: # Avoid division issues
outlet, info = heater_with_bypass(feed, T_heater_target, alpha)
outlet_temps.append(float(outlet['T']))
heater_duties.append(float(info['heater_Q']) / 1000) # kW
else:
outlet_temps.append(float(feed['T'])) # 100% bypass = feed temp
heater_duties.append(0.0)
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))
# Left: Temperature vs bypass
ax1.plot([f*100 for f in bypass_fractions], outlet_temps, 'b-', linewidth=2)
ax1.axhline(y=float(feed['T']), color='g', linestyle='--', label='Feed temperature (300 K)')
ax1.axhline(y=T_heater_target, color='r', linestyle='--', label='Heater target (400 K)')
ax1.set_xlabel('Bypass Fraction (%)', fontsize=12)
ax1.set_ylabel('Outlet Temperature (K)', fontsize=12)
ax1.set_title('Temperature Control via Bypass', fontsize=12)
ax1.legend()
ax1.grid(True, alpha=0.3)
# Right: Heat duty vs bypass
ax2.plot([f*100 for f in bypass_fractions], heater_duties, 'r-', linewidth=2)
ax2.set_xlabel('Bypass Fraction (%)', fontsize=12)
ax2.set_ylabel('Heater Duty (kW)', fontsize=12)
ax2.set_title('Energy Savings from Bypass', fontsize=12)
ax2.grid(True, alpha=0.3)
plt.tight_layout()
Parallel Processing#
For large flows or redundancy, we can use parallel units:
┌──► Reactor 1 ──┐
│ │
Feed ───►Splitter Mixer───► Product
│ │
└──► Reactor 2 ──┘
from difflow import CSTR, CSTRParams
# Two parallel reactors with different conditions
def rate_fn(C, T, params):
return jnp.array([params['k'] * C['A']])
stoich = jnp.array([[-1.0]]) # A consumed (simplified, no product B)
# Reactor 1: Smaller, lower k
cstr1_params = CSTRParams(
V=jnp.array(1.0),
rate_fn=rate_fn,
stoich=stoich,
rate_params={'k': jnp.array(0.3)},
species_order=['A'],
)
reactor1 = CSTR(cstr1_params, thermo=thermo, mode='isothermal')
# Reactor 2: Larger, higher k
cstr2_params = CSTRParams(
V=jnp.array(2.0),
rate_fn=rate_fn,
stoich=stoich,
rate_params={'k': jnp.array(0.5)},
species_order=['A'],
)
reactor2 = CSTR(cstr2_params, thermo=thermo, mode='isothermal')
def parallel_reactors(feed, alpha, Q_vol):
"""
Process feed through two parallel reactors.
Args:
feed: Feed stream
alpha: Fraction to reactor 1
Q_vol: Total volumetric flow rate
"""
# Split feed
feed1, feed2 = splitter(feed, alpha)
# Process in parallel
out1, info1 = reactor1(feed1, T_spec=350.0, volumetric_flow=alpha*Q_vol)
out2, info2 = reactor2(feed2, T_spec=350.0, volumetric_flow=(1-alpha)*Q_vol)
# Combine outputs
combined = mixer(out1, out2)
return combined, info1, info2
# Test
feed = make_stream({'A': 100.0}, T=300.0, P=101325.0)
Q_vol = 0.1 # m³/s total
print("Parallel Reactors")
print("=" * 50)
for alpha in [0.0, 0.25, 0.5, 0.75, 1.0]:
if 0.01 < alpha < 0.99:
combined, info1, info2 = parallel_reactors(feed, alpha, Q_vol)
X1 = float(info1['conversion']['A'])
X2 = float(info2['conversion']['A'])
F_out = float(get_flows(combined)['A'])
X_overall = (100.0 - F_out) / 100.0
print(f"Split {alpha*100:.0f}%/{(1-alpha)*100:.0f}%: X1={X1*100:.1f}%, X2={X2*100:.1f}%, Overall X={X_overall*100:.1f}%")
Parallel Reactors
==================================================
Split 25%/75%: X1=92.3%, X2=93.0%, Overall X=92.8%
Split 50%/50%: X1=85.7%, X2=95.2%, Overall X=90.5%
Split 75%/25%: X1=80.0%, X2=97.6%, Overall X=84.4%
Try It Yourself!#
Exercise 1: Optimal Bypass#
Find the bypass fraction that achieves exactly T = 350 K outlet temperature (use the heater example).
Exercise 2: Parallel with Different T#
Modify the parallel reactor example so reactor 1 operates at 330 K and reactor 2 at 380 K. What split ratio maximizes overall conversion?
Exercise 3: Three-Way Split#
Implement a 3-way splitter and design a system with three parallel heaters.
Key Takeaways#
Splitter: \(F_{out} = \alpha \cdot F_{in}\) (compositions unchanged)
Mixer: \(F_{out} = \sum F_{in}\) with flow-weighted temperature
Bypass: Provides continuous temperature control
Parallel paths: Enable redundancy and flexibility
Next Steps#
In the next notebook (00j: Recycle Streams), we’ll tackle:
Why recycles create circular dependencies
Fixed-point iteration for recycles
Convergence and tear streams
