Tutorial 23: Multi-Objective Optimization#
This tutorial covers gradient-based multi-objective optimization (MOO) for chemical engineering applications. We’ll explore:
Scalarization methods (weighted sum, Chebyshev)
Gradient-based Pareto optimization
Multi-gradient descent algorithm (MGDA)
Hypervolume maximization

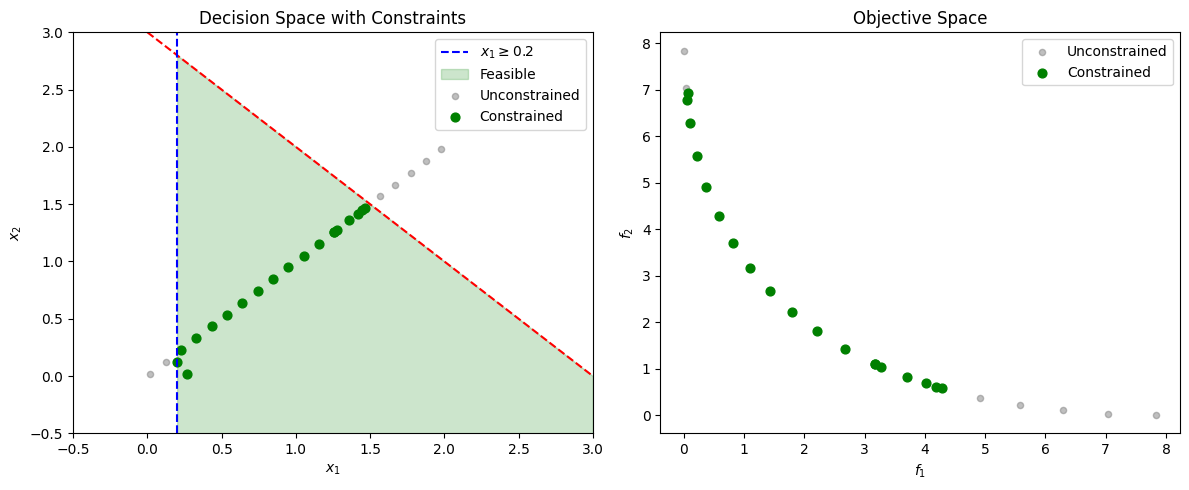

Constraint handling in MOO

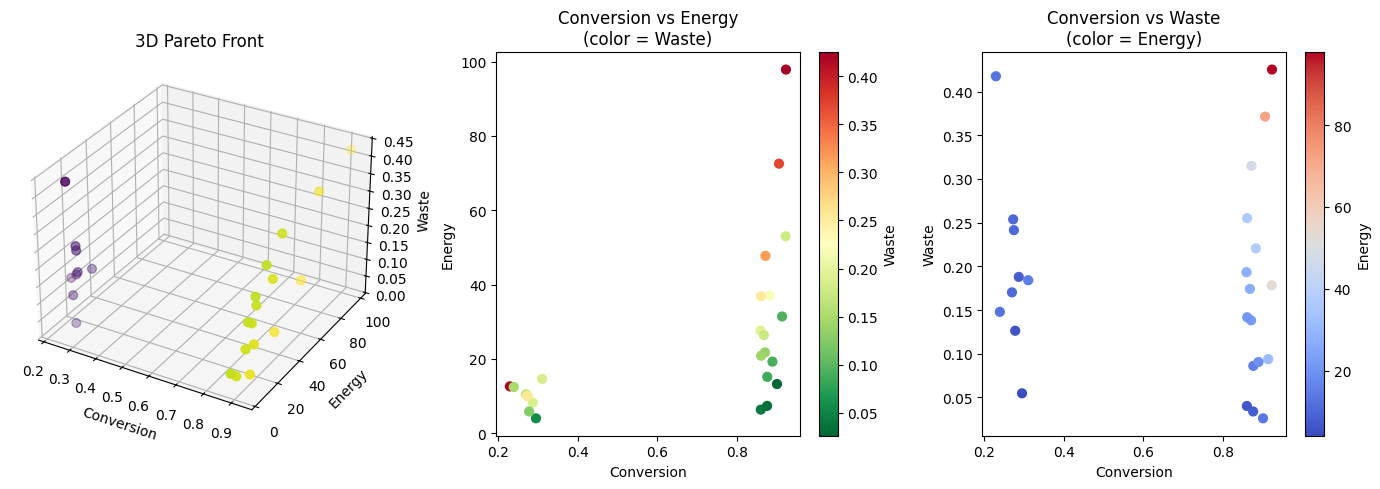

Chemical engineering example: Process optimization (cost, efficiency, environmental impact)
import jax
import jax.numpy as jnp
from jax import grad, jacobian, vmap, jit
import optax
import matplotlib.pyplot as plt
from functools import partial
jax.config.update('jax_enable_x64', True)
1. Scalarization Methods#
The simplest approach to MOO is scalarization: combining multiple objectives into a single scalar.
Weighted Sum Method#
\[\min_x \sum_{i=1}^{m} w_i f_i(x)\]
where \(w_i \geq 0\) and \(\sum w_i = 1\).
# Example: Two conflicting objectives
def objective_1(x):
"""Minimize squared distance from origin."""
return jnp.sum(x ** 2)
def objective_2(x):
"""Minimize squared distance from (2, 2)."""
return jnp.sum((x - 2) ** 2)
def weighted_sum(x, weights):
"""Weighted sum scalarization."""
f1 = objective_1(x)
f2 = objective_2(x)
return weights[0] * f1 + weights[1] * f2
# Optimize for different weight combinations
def optimize_weighted(weights, n_steps=100):
x = jnp.array([1.0, 1.0])
learning_rate = 0.1
for _ in range(n_steps):
g = grad(weighted_sum)(x, weights)
x = x - learning_rate * g
return x, objective_1(x), objective_2(x)
# Trace Pareto front by varying weights
n_points = 20
weight_range = jnp.linspace(0.01, 0.99, n_points)
pareto_points = []
for w1 in weight_range:
weights = jnp.array([w1, 1 - w1])
x_opt, f1, f2 = optimize_weighted(weights)
pareto_points.append((f1, f2, x_opt))
f1_values = jnp.array([p[0] for p in pareto_points])
f2_values = jnp.array([p[1] for p in pareto_points])
print("Weighted Sum Pareto Front:")
print(f"f1 range: [{f1_values.min():.3f}, {f1_values.max():.3f}]")
print(f"f2 range: [{f2_values.min():.3f}, {f2_values.max():.3f}]")
WARNING:2026-01-10 21:00:46,533:jax._src.xla_bridge:852: An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.
Weighted Sum Pareto Front:
f1 range: [0.001, 7.841]
f2 range: [0.001, 7.841]

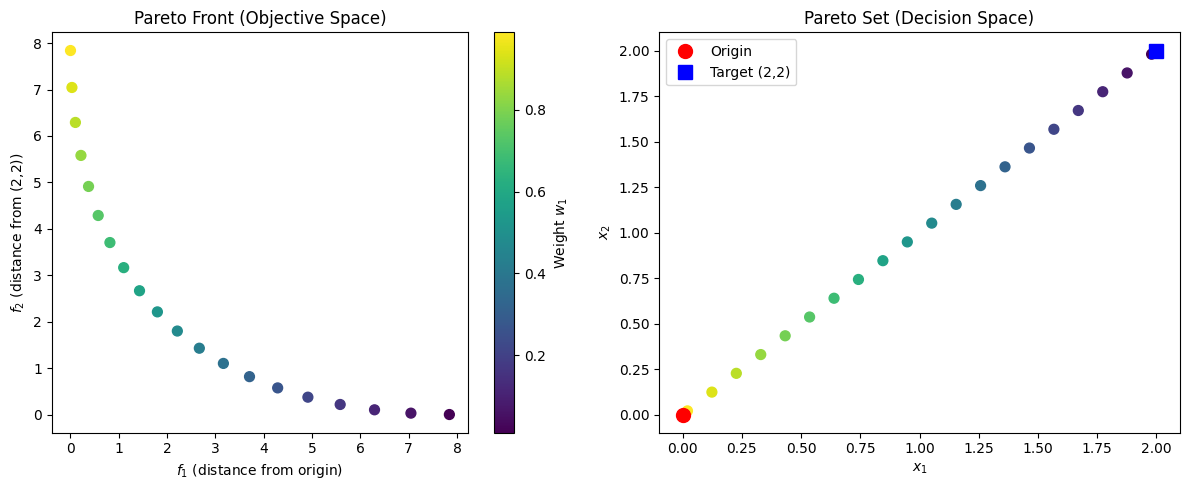

# Visualize Pareto front
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))
# Objective space
ax1.scatter(f1_values, f2_values, c=weight_range, cmap='viridis', s=50)
ax1.set_xlabel('$f_1$ (distance from origin)')
ax1.set_ylabel('$f_2$ (distance from (2,2))')
ax1.set_title('Pareto Front (Objective Space)')
cbar = plt.colorbar(ax1.collections[0], ax=ax1)
cbar.set_label('Weight $w_1$')
# Decision space
x_opts = jnp.array([p[2] for p in pareto_points])
ax2.scatter(x_opts[:, 0], x_opts[:, 1], c=weight_range, cmap='viridis', s=50)
ax2.plot([0], [0], 'ro', markersize=10, label='Origin')
ax2.plot([2], [2], 'bs', markersize=10, label='Target (2,2)')
ax2.set_xlabel('$x_1$')
ax2.set_ylabel('$x_2$')
ax2.set_title('Pareto Set (Decision Space)')
ax2.legend()
plt.tight_layout()
plt.show()
Chebyshev Scalarization#
Overcomes the limitation of weighted sum (can find non-convex Pareto fronts):
\[\min_x \max_{i=1}^{m} w_i |f_i(x) - z_i^*|\]
where \(z^*\) is the ideal point (best achievable for each objective).
def chebyshev_scalarization(x, weights, ideal_point):
"""
Chebyshev scalarization with smooth max.
Uses softmax approximation for differentiability.
"""
f1 = objective_1(x)
f2 = objective_2(x)
objectives = jnp.array([f1, f2])
# Weighted deviations from ideal
deviations = weights * jnp.abs(objectives - ideal_point)
# Smooth max (differentiable)
temperature = 10.0
smooth_max = jnp.log(jnp.sum(jnp.exp(temperature * deviations))) / temperature
return smooth_max
# Find ideal point (optimize each objective separately)
def find_ideal_point():
# Optimize f1
x1 = jnp.array([0.5, 0.5])
for _ in range(100):
x1 = x1 - 0.1 * grad(objective_1)(x1)
# Optimize f2
x2 = jnp.array([0.5, 0.5])
for _ in range(100):
x2 = x2 - 0.1 * grad(objective_2)(x2)
return jnp.array([objective_1(x1), objective_2(x2)])
ideal = find_ideal_point()
print(f"Ideal point: ({ideal[0]:.4f}, {ideal[1]:.4f})")
# Optimize with Chebyshev
def optimize_chebyshev(weights, ideal, n_steps=200):
x = jnp.array([1.0, 1.0])
learning_rate = 0.05
for _ in range(n_steps):
g = grad(chebyshev_scalarization)(x, weights, ideal)
x = x - learning_rate * g
return x, objective_1(x), objective_2(x)
# Trace Pareto front
chebyshev_points = []
for w1 in weight_range:
weights = jnp.array([w1, 1 - w1])
x_opt, f1, f2 = optimize_chebyshev(weights, ideal)
chebyshev_points.append((f1, f2))
f1_cheb = jnp.array([p[0] for p in chebyshev_points])
f2_cheb = jnp.array([p[1] for p in chebyshev_points])
print(f"\nChebyshev Pareto Front:")
print(f"f1 range: [{f1_cheb.min():.3f}, {f1_cheb.max():.3f}]")
print(f"f2 range: [{f2_cheb.min():.3f}, {f2_cheb.max():.3f}]")
Ideal point: (0.0000, 0.0000)
Chebyshev Pareto Front:
f1 range: [0.003, 7.673]
f2 range: [0.003, 7.673]
2. Gradient-Based Pareto Optimization#
Instead of scalarization, we can directly find Pareto-optimal solutions by analyzing the gradients of all objectives.
def compute_all_gradients(x, objectives):
"""Compute gradients of all objectives."""
return jnp.array([grad(obj)(x) for obj in objectives])
def is_pareto_stationary(gradients, tol=1e-6):
"""
Check if point is Pareto stationary.
A point is Pareto stationary if there exists weights w >= 0
such that sum(w_i * grad_i) = 0.
"""
# For 2 objectives, check if gradients point in opposite directions
g1, g2 = gradients[0], gradients[1]
# Normalize gradients
g1_norm = g1 / (jnp.linalg.norm(g1) + 1e-10)
g2_norm = g2 / (jnp.linalg.norm(g2) + 1e-10)
# Check if they're (approximately) opposite
dot_product = jnp.dot(g1_norm, g2_norm)
return dot_product < -0.99 # Approximately opposite
# Demonstrate on our example
objectives = [objective_1, objective_2]
# Check various points
test_points = [
jnp.array([0.0, 0.0]),
jnp.array([1.0, 1.0]),
jnp.array([2.0, 2.0]),
jnp.array([0.5, 0.5]),
]
print("Pareto Stationarity Check:")
print("=" * 50)
for x in test_points:
grads = compute_all_gradients(x, objectives)
is_ps = is_pareto_stationary(grads)
g1_norm = jnp.linalg.norm(grads[0])
g2_norm = jnp.linalg.norm(grads[1])
print(f"x={x}: |grad1|={g1_norm:.3f}, |grad2|={g2_norm:.3f}, Pareto stationary: {is_ps}")
Pareto Stationarity Check:
==================================================
x=[0. 0.]: |grad1|=0.000, |grad2|=5.657, Pareto stationary: False
x=[1. 1.]: |grad1|=2.828, |grad2|=2.828, Pareto stationary: True
x=[2. 2.]: |grad1|=5.657, |grad2|=0.000, Pareto stationary: False
x=[0.5 0.5]: |grad1|=1.414, |grad2|=4.243, Pareto stationary: True
3. Multi-Gradient Descent Algorithm (MGDA)#
MGDA finds a common descent direction for all objectives by solving:
\[\min_{d} \|d\|^2 \quad \text{s.t.} \quad d \in \text{conv}\{\nabla f_1, \ldots, \nabla f_m\}\]
This finds the minimum-norm element in the convex hull of gradients.
def mgda_direction(gradients):
"""
Find MGDA common descent direction.
For 2 objectives, this has a closed-form solution.
"""
g1, g2 = gradients[0], gradients[1]
# Solve: min ||alpha * g1 + (1-alpha) * g2||^2
# d/dalpha = 2 * (g1 - g2) @ (alpha * g1 + (1-alpha) * g2) = 0
# alpha * ||g1||^2 - alpha * g1@g2 + (1-alpha) * g1@g2 - (1-alpha) * ||g2||^2 = 0
# alpha * (||g1||^2 - 2*g1@g2 + ||g2||^2) = ||g2||^2 - g1@g2
g1_g1 = jnp.dot(g1, g1)
g2_g2 = jnp.dot(g2, g2)
g1_g2 = jnp.dot(g1, g2)
denom = g1_g1 - 2 * g1_g2 + g2_g2
# Handle edge cases
alpha = jnp.where(
jnp.abs(denom) < 1e-10,
0.5, # Gradients are parallel
jnp.clip((g2_g2 - g1_g2) / denom, 0.0, 1.0)
)
# Common descent direction
direction = alpha * g1 + (1 - alpha) * g2
return direction, alpha
def mgda_update(x, objectives, learning_rate=0.1):
"""Perform one MGDA update step."""
gradients = compute_all_gradients(x, objectives)
direction, alpha = mgda_direction(gradients)
# Check if we're at Pareto stationary point
if jnp.linalg.norm(direction) < 1e-6:
return x, True, alpha
x_new = x - learning_rate * direction
return x_new, False, alpha
# Run MGDA optimization
x = jnp.array([0.3, 0.7])
trajectory = [(x, objective_1(x), objective_2(x))]
for i in range(100):
x, converged, alpha = mgda_update(x, objectives)
trajectory.append((x, objective_1(x), objective_2(x)))
if converged:
print(f"Converged at iteration {i}")
break
print(f"\nMGDA Result:")
print(f"Final x: {x}")
print(f"f1: {objective_1(x):.4f}")
print(f"f2: {objective_2(x):.4f}")
Converged at iteration 60
MGDA Result:
Final x: [0.49999969 0.50000031]
f1: 0.5000
f2: 4.5000

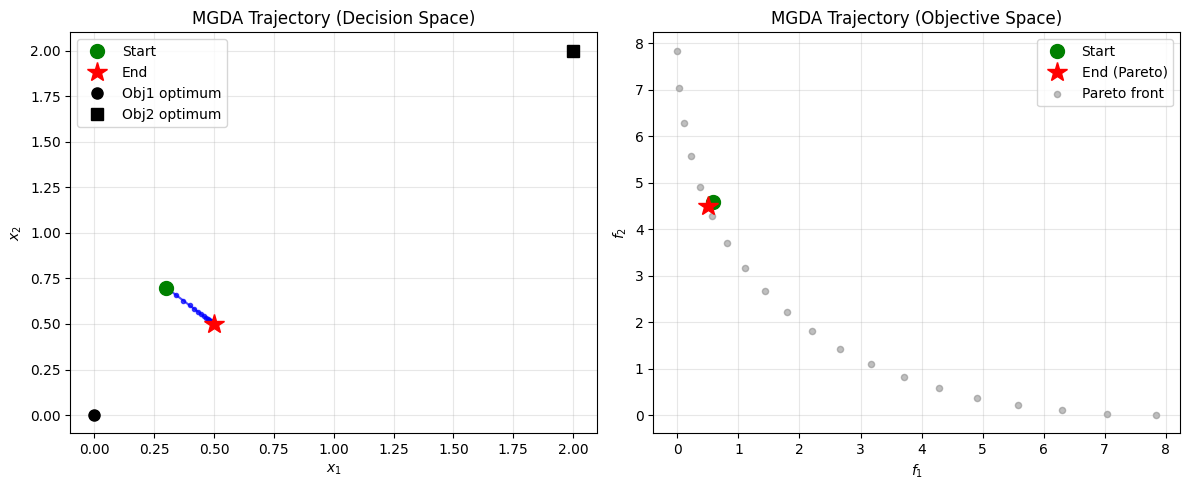

# Visualize MGDA trajectory
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))
# Decision space trajectory
x_traj = jnp.array([t[0] for t in trajectory])
ax1.plot(x_traj[:, 0], x_traj[:, 1], 'b-o', markersize=3, alpha=0.7)
ax1.plot(x_traj[0, 0], x_traj[0, 1], 'go', markersize=10, label='Start')
ax1.plot(x_traj[-1, 0], x_traj[-1, 1], 'r*', markersize=15, label='End')
ax1.plot([0], [0], 'ko', markersize=8, label='Obj1 optimum')
ax1.plot([2], [2], 'ks', markersize=8, label='Obj2 optimum')
ax1.set_xlabel('$x_1$')
ax1.set_ylabel('$x_2$')
ax1.set_title('MGDA Trajectory (Decision Space)')
ax1.legend()
ax1.grid(True, alpha=0.3)
# Objective space trajectory
f1_traj = jnp.array([t[1] for t in trajectory])
f2_traj = jnp.array([t[2] for t in trajectory])
ax2.plot(f1_traj, f2_traj, 'b-o', markersize=3, alpha=0.7)
ax2.plot(f1_traj[0], f2_traj[0], 'go', markersize=10, label='Start')
ax2.plot(f1_traj[-1], f2_traj[-1], 'r*', markersize=15, label='End (Pareto)')
ax2.scatter(f1_values, f2_values, c='gray', s=20, alpha=0.5, label='Pareto front')
ax2.set_xlabel('$f_1$')
ax2.set_ylabel('$f_2$')
ax2.set_title('MGDA Trajectory (Objective Space)')
ax2.legend()
ax2.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
# MGDA for more than 2 objectives (general case)
def mgda_direction_general(gradients):
"""
MGDA for m objectives using Frank-Wolfe algorithm.
Solves: min ||sum(alpha_i * g_i)||^2 s.t. alpha >= 0, sum(alpha) = 1
"""
m, n = gradients.shape # m objectives, n variables
# Initialize with uniform weights
alpha = jnp.ones(m) / m
# Frank-Wolfe iterations
for _ in range(50):
# Current direction
d = alpha @ gradients # shape (n,)
# Find gradient wrt alpha
grad_alpha = gradients @ d # shape (m,)
# Find the corner of simplex that minimizes linear approximation
s = jnp.zeros(m)
s = s.at[jnp.argmin(grad_alpha)].set(1.0)
# Line search (simple step size)
step_size = 2.0 / (_ + 2) # Decaying step size
alpha = (1 - step_size) * alpha + step_size * s
direction = alpha @ gradients
return direction, alpha
# Test with 3 objectives
def objective_3(x):
"""Minimize squared distance from (-1, 1)."""
return jnp.sum((x - jnp.array([-1, 1])) ** 2)
objectives_3 = [objective_1, objective_2, objective_3]
x = jnp.array([0.3, 0.7])
gradients = jnp.array([grad(obj)(x) for obj in objectives_3])
direction, alpha = mgda_direction_general(gradients)
print("MGDA with 3 objectives:")
print(f"Weights: {alpha}")
print(f"Common descent direction: {direction}")
print(f"Direction norm: {jnp.linalg.norm(direction):.4f}")
MGDA with 3 objectives:
Weights: [0.53568627 0.24156863 0.2227451 ]
Common descent direction: [ 0.07921569 -0.01176471]
Direction norm: 0.0801
4. Hypervolume Maximization#
Hypervolume indicator measures the quality of a Pareto front approximation. We can optimize it directly using gradients.
def hypervolume_2d(points, reference):
"""
Compute 2D hypervolume indicator.
points: (n_points, 2) array of objective values
reference: (2,) reference point (should dominate all points)
"""
n_points = points.shape[0]
# Sort by first objective
sorted_indices = jnp.argsort(points[:, 0])
sorted_points = points[sorted_indices]
# Compute hypervolume contribution of each point
hv = 0.0
prev_x = reference[0] # Start from reference
for i in range(n_points - 1, -1, -1):
x_i, y_i = sorted_points[i]
# Height is from point to reference
height = reference[1] - y_i
# Width is from previous x to current x
width = prev_x - x_i
hv += height * width
prev_x = x_i
return hv
# Smooth hypervolume for gradient computation
def smooth_hypervolume_2d(x_set, objectives, reference, temperature=0.1):
"""
Differentiable hypervolume approximation using soft sorting.
x_set: (n_points, n_vars) decision variables
"""
# Evaluate objectives for all points
f_values = vmap(lambda x: jnp.array([obj(x) for obj in objectives]))(x_set)
# Simple approximation: use weighted contribution
contributions = (reference[0] - f_values[:, 0]) * (reference[1] - f_values[:, 1])
# Use softmax weighting to handle dominance
# This is a simplification; true differentiable HV is more complex
return jnp.mean(jnp.maximum(contributions, 0))
# Demonstrate hypervolume computation
reference = jnp.array([10.0, 10.0])
# Some Pareto front points
pareto_sample = jnp.array([
[0.0, 8.0],
[2.0, 2.0],
[8.0, 0.0]
])
hv = hypervolume_2d(pareto_sample, reference)
print(f"Hypervolume of sample front: {hv:.2f}")
# Theoretical maximum (if we could achieve ideal point everywhere)
max_hv = reference[0] * reference[1]
print(f"Reference hypervolume: {max_hv:.2f}")
print(f"Ratio: {hv/max_hv:.2%}")
Hypervolume of sample front: 72.00
Reference hypervolume: 100.00
Ratio: 72.00%
5. Constraint Handling in MOO#
Real engineering problems have constraints. We can handle them with penalty methods or Lagrangian approaches.
def constraint_1(x):
"""Constraint: x1 + x2 <= 3."""
return x[0] + x[1] - 3 # <= 0
def constraint_2(x):
"""Constraint: x1 >= 0.2."""
return 0.2 - x[0] # <= 0
def penalty_scalarization(x, weights, penalty_coeff=100.0):
"""
Weighted sum with constraint penalties.
"""
f1 = objective_1(x)
f2 = objective_2(x)
# Constraint violations (max(g, 0)^2)
c1_violation = jnp.maximum(constraint_1(x), 0) ** 2
c2_violation = jnp.maximum(constraint_2(x), 0) ** 2
penalty = penalty_coeff * (c1_violation + c2_violation)
return weights[0] * f1 + weights[1] * f2 + penalty
# Optimize with constraints
def optimize_constrained(weights, n_steps=200):
x = jnp.array([1.0, 1.0])
learning_rate = 0.05
for _ in range(n_steps):
g = grad(penalty_scalarization)(x, weights)
x = x - learning_rate * g
return x, objective_1(x), objective_2(x)
# Trace constrained Pareto front
constrained_points = []
for w1 in weight_range:
weights = jnp.array([w1, 1 - w1])
x_opt, f1, f2 = optimize_constrained(weights)
is_feasible = (constraint_1(x_opt) <= 0.01) and (constraint_2(x_opt) <= 0.01)
if is_feasible:
constrained_points.append((f1, f2, x_opt))
if constrained_points:
f1_const = jnp.array([p[0] for p in constrained_points])
f2_const = jnp.array([p[1] for p in constrained_points])
print(f"Constrained Pareto front: {len(constrained_points)} points")
else:
print("No feasible points found")
Constrained Pareto front: 19 points
# Visualize constrained vs unconstrained
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))
# Decision space with constraints
xx, yy = jnp.meshgrid(jnp.linspace(-0.5, 3, 100), jnp.linspace(-0.5, 3, 100))
c1_values = xx + yy - 3
ax1.contour(xx, yy, c1_values, levels=[0], colors='red', linestyles='--')
ax1.axvline(0.2, color='blue', linestyle='--', label='$x_1 \geq 0.2$')
ax1.fill_between([0.2, 3], [-0.5, -0.5], [3-0.2, 0], alpha=0.2, color='green', label='Feasible')
# Unconstrained Pareto set
x_unc = jnp.array([p[2] for p in pareto_points])
ax1.scatter(x_unc[:, 0], x_unc[:, 1], c='gray', s=20, alpha=0.5, label='Unconstrained')
# Constrained Pareto set
if constrained_points:
x_const = jnp.array([p[2] for p in constrained_points])
ax1.scatter(x_const[:, 0], x_const[:, 1], c='green', s=40, label='Constrained')
ax1.set_xlabel('$x_1$')
ax1.set_ylabel('$x_2$')
ax1.set_title('Decision Space with Constraints')
ax1.legend()
ax1.set_xlim(-0.5, 3)
ax1.set_ylim(-0.5, 3)
# Objective space
ax2.scatter(f1_values, f2_values, c='gray', s=20, alpha=0.5, label='Unconstrained')
if constrained_points:
ax2.scatter(f1_const, f2_const, c='green', s=40, label='Constrained')
ax2.set_xlabel('$f_1$')
ax2.set_ylabel('$f_2$')
ax2.set_title('Objective Space')
ax2.legend()
plt.tight_layout()
plt.show()
6. Chemical Engineering Example: Process Optimization#
Optimize a CSTR with three objectives:
Maximize conversion (profit)
Minimize energy consumption (cost)
Minimize waste generation (environmental)
class MultiObjectiveCSTR:
"""
CSTR with multiple optimization objectives.
Decision variables: [T, tau, C_in] (temperature, residence time, inlet concentration)
"""
# Kinetic parameters
k0 = 1e6 # Pre-exponential factor
E_over_R = 5000.0 # Activation energy / R
delta_H = -50000.0 # Heat of reaction (J/mol)
@staticmethod
def conversion(x):
"""Calculate conversion (to maximize -> minimize negative)."""
T, tau, C_in = x
k = MultiObjectiveCSTR.k0 * jnp.exp(-MultiObjectiveCSTR.E_over_R / T)
conv = k * tau / (1 + k * tau)
return -conv # Negative because we minimize
@staticmethod
def energy_consumption(x):
"""Calculate energy consumption (heating + mixing)."""
T, tau, C_in = x
# Heating cost (relative to ambient T=300K)
heating = 0.1 * (T - 300) ** 2
# Mixing/pumping cost (proportional to throughput)
mixing = 10.0 / tau # Shorter tau = higher throughput = more energy
# Cooling to remove reaction heat
k = MultiObjectiveCSTR.k0 * jnp.exp(-MultiObjectiveCSTR.E_over_R / T)
conv = k * tau / (1 + k * tau)
C_out = C_in * (1 - conv)
rate = k * C_out
cooling = 0.001 * jnp.abs(MultiObjectiveCSTR.delta_H) * rate * tau
return heating + mixing + cooling
@staticmethod
def waste_generation(x):
"""Calculate waste/byproduct generation."""
T, tau, C_in = x
# Byproduct formation (increases with T and residence time)
k_byproduct = 1e4 * jnp.exp(-4000.0 / T) # Lower activation energy
k = MultiObjectiveCSTR.k0 * jnp.exp(-MultiObjectiveCSTR.E_over_R / T)
conv = k * tau / (1 + k * tau)
C_out = C_in * (1 - conv)
# Byproduct from side reactions
byproduct = k_byproduct * C_out * tau
# Unreacted feed as waste
unreacted = C_out
return byproduct + 0.5 * unreacted
@staticmethod
def constraints(x):
"""Physical constraints."""
T, tau, C_in = x
return jnp.array([
300 - T, # T >= 300 K
T - 450, # T <= 450 K
1 - tau, # tau >= 1 s
tau - 100, # tau <= 100 s
0.1 - C_in, # C_in >= 0.1 mol/L
C_in - 5.0 # C_in <= 5.0 mol/L
])
# Test the objectives
x_test = jnp.array([350.0, 20.0, 1.0]) # T, tau, C_in
print("CSTR Multi-Objective Optimization")
print("=" * 50)
print(f"Test point: T={x_test[0]:.0f}K, tau={x_test[1]:.0f}s, C_in={x_test[2]:.1f} mol/L")
print(f"Conversion: {-MultiObjectiveCSTR.conversion(x_test):.3f}")
print(f"Energy: {MultiObjectiveCSTR.energy_consumption(x_test):.1f}")
print(f"Waste: {MultiObjectiveCSTR.waste_generation(x_test):.3f}")
CSTR Multi-Objective Optimization
==================================================
Test point: T=350K, tau=20s, C_in=1.0 mol/L
Conversion: 0.926
Energy: 296.8
Waste: 0.198
# Multi-objective optimization using weighted sum
def cstr_scalarized(x, weights, penalty=1000.0):
"""Scalarized CSTR objective with constraints."""
# Normalize objectives to similar scales
f1 = MultiObjectiveCSTR.conversion(x) # ~ [-1, 0]
f2 = MultiObjectiveCSTR.energy_consumption(x) / 100 # Normalize
f3 = MultiObjectiveCSTR.waste_generation(x) # ~ [0, 1]
# Weighted sum
obj = weights[0] * f1 + weights[1] * f2 + weights[2] * f3
# Constraint penalties
violations = jnp.maximum(MultiObjectiveCSTR.constraints(x), 0)
penalty_term = penalty * jnp.sum(violations ** 2)
return obj + penalty_term
def optimize_cstr(weights, n_steps=500):
"""Optimize CSTR for given weight combination."""
# Start from middle of feasible region
x = jnp.array([375.0, 30.0, 1.5])
optimizer = optax.adam(0.5)
opt_state = optimizer.init(x)
@jit
def step(x, opt_state):
g = grad(cstr_scalarized)(x, weights)
updates, opt_state = optimizer.update(g, opt_state)
x = optax.apply_updates(x, updates)
return x, opt_state
for _ in range(n_steps):
x, opt_state = step(x, opt_state)
# Check feasibility
violations = jnp.max(MultiObjectiveCSTR.constraints(x))
is_feasible = violations <= 0.1
return x, is_feasible
# Generate Pareto front
from itertools import product
weight_values = [0.1, 0.3, 0.5, 0.7, 0.9]
pareto_cstr = []
print("Generating CSTR Pareto front...")
for w1 in weight_values:
for w2 in weight_values:
w3 = max(0.01, 1 - w1 - w2)
if w3 > 0:
weights = jnp.array([w1, w2, w3])
weights = weights / weights.sum() # Normalize
x_opt, feasible = optimize_cstr(weights)
if feasible:
conv = -MultiObjectiveCSTR.conversion(x_opt)
energy = MultiObjectiveCSTR.energy_consumption(x_opt)
waste = MultiObjectiveCSTR.waste_generation(x_opt)
pareto_cstr.append({
'x': x_opt,
'conversion': conv,
'energy': energy,
'waste': waste,
'weights': weights
})
print(f"Found {len(pareto_cstr)} Pareto-optimal solutions")
Generating CSTR Pareto front...
Found 25 Pareto-optimal solutions
# Visualize 3D Pareto front
from mpl_toolkits.mplot3d import Axes3D
conversions = jnp.array([p['conversion'] for p in pareto_cstr])
energies = jnp.array([p['energy'] for p in pareto_cstr])
wastes = jnp.array([p['waste'] for p in pareto_cstr])
fig = plt.figure(figsize=(14, 5))
# 3D plot
ax1 = fig.add_subplot(131, projection='3d')
sc = ax1.scatter(conversions, energies, wastes, c=conversions, cmap='viridis', s=40)
ax1.set_xlabel('Conversion')
ax1.set_ylabel('Energy')
ax1.set_zlabel('Waste')
ax1.set_title('3D Pareto Front')
# 2D projections
ax2 = fig.add_subplot(132)
ax2.scatter(conversions, energies, c=wastes, cmap='RdYlGn_r', s=40)
ax2.set_xlabel('Conversion')
ax2.set_ylabel('Energy')
ax2.set_title('Conversion vs Energy\n(color = Waste)')
plt.colorbar(ax2.collections[0], ax=ax2, label='Waste')
ax3 = fig.add_subplot(133)
ax3.scatter(conversions, wastes, c=energies, cmap='coolwarm', s=40)
ax3.set_xlabel('Conversion')
ax3.set_ylabel('Waste')
ax3.set_title('Conversion vs Waste\n(color = Energy)')
plt.colorbar(ax3.collections[0], ax=ax3, label='Energy')
plt.tight_layout()
plt.show()
# Decision analysis: find solutions for different priorities
def find_best_for_priority(pareto_solutions, priority):
"""
Find best solution for a given priority.
priority: 'conversion', 'energy', 'waste', or 'balanced'
"""
if priority == 'conversion':
idx = jnp.argmax(jnp.array([p['conversion'] for p in pareto_solutions]))
elif priority == 'energy':
idx = jnp.argmin(jnp.array([p['energy'] for p in pareto_solutions]))
elif priority == 'waste':
idx = jnp.argmin(jnp.array([p['waste'] for p in pareto_solutions]))
else: # balanced
# Normalize and find minimum sum
conv = jnp.array([p['conversion'] for p in pareto_solutions])
energy = jnp.array([p['energy'] for p in pareto_solutions])
waste = jnp.array([p['waste'] for p in pareto_solutions])
# Normalize to [0, 1]
conv_norm = (conv.max() - conv) / (conv.max() - conv.min() + 1e-10)
energy_norm = (energy - energy.min()) / (energy.max() - energy.min() + 1e-10)
waste_norm = (waste - waste.min()) / (waste.max() - waste.min() + 1e-10)
score = conv_norm + energy_norm + waste_norm
idx = jnp.argmin(score)
return pareto_solutions[int(idx)]
print("Recommended Solutions for Different Priorities:")
print("=" * 80)
print(f"{'Priority':<12} {'T (K)':<8} {'tau (s)':<8} {'C_in':<8} {'Conv.':<8} {'Energy':<8} {'Waste':<8}")
print("-" * 80)
for priority in ['conversion', 'energy', 'waste', 'balanced']:
sol = find_best_for_priority(pareto_cstr, priority)
x = sol['x']
print(f"{priority:<12} {x[0]:<8.1f} {x[1]:<8.1f} {x[2]:<8.2f} "
f"{sol['conversion']:<8.3f} {sol['energy']:<8.1f} {sol['waste']:<8.3f}")
Recommended Solutions for Different Priorities:
================================================================================
Priority T (K) tau (s) C_in Conv. Energy Waste
--------------------------------------------------------------------------------
conversion 314.9 94.1 1.64 0.923 97.9 0.425
energy 302.5 6.3 0.13 0.295 4.1 0.055
waste 309.4 94.0 0.09 0.900 13.3 0.026
balanced 304.8 93.9 0.11 0.876 7.4 0.034
# Sensitivity of Pareto solutions
def pareto_sensitivity(solution):
"""Compute sensitivity of all objectives to decision variables."""
x = solution['x']
objectives = [
lambda x: -MultiObjectiveCSTR.conversion(x), # Positive conversion
MultiObjectiveCSTR.energy_consumption,
MultiObjectiveCSTR.waste_generation
]
sensitivities = []
for obj in objectives:
g = grad(obj)(x)
# Normalized sensitivity
obj_val = obj(x)
norm_sens = (x / (obj_val + 1e-10)) * g
sensitivities.append(norm_sens)
return jnp.array(sensitivities)
# Analyze balanced solution
balanced_sol = find_best_for_priority(pareto_cstr, 'balanced')
sens = pareto_sensitivity(balanced_sol)
print("\nSensitivity Analysis for Balanced Solution:")
print("=" * 60)
print(f"{'Objective':<15} {'dObj/dT':<15} {'dObj/dtau':<15} {'dObj/dC_in':<15}")
print("-" * 60)
obj_names = ['Conversion', 'Energy', 'Waste']
var_names = ['T', 'tau', 'C_in']
for i, name in enumerate(obj_names):
row = " ".join(f"{sens[i, j]:>14.3f}" for j in range(3))
print(f"{name:<15} {row}")
Sensitivity Analysis for Balanced Solution:
============================================================
Objective dObj/dT dObj/dtau dObj/dC_in
------------------------------------------------------------
Conversion 2.041 0.124 0.000
Energy 40.602 0.070 0.680
Waste -4.006 -0.086 1.000
Summary#
This tutorial covered gradient-based multi-objective optimization:
Method |
Description |
Pros/Cons |
|---|---|---|
Weighted Sum |
Linear combination of objectives |
Simple, but misses non-convex fronts |
Chebyshev |
Min-max scalarization |
Finds all Pareto points |
MGDA |
Common descent direction |
Guaranteed Pareto descent |
Hypervolume |
Quality indicator |
Measures front coverage |
Key Takeaways#
Scalarization is simple but limited: Weighted sum is easy but may miss solutions
MGDA provides principled descent: Always improves all objectives until Pareto stationary
Constraints require careful handling: Penalty methods work but need tuning
Decision-making is separate from optimization: Generate Pareto front, then choose
Chemical Engineering Applications#
Process design: Balance capital cost, operating cost, and environmental impact
Reactor optimization: Maximize yield, minimize byproducts, minimize energy
Supply chain: Cost, delivery time, reliability trade-offs
Control tuning: Fast response vs. stability vs. energy efficiency
