Control and Trajectory Optimization#
Differentiable programming enables powerful approaches to control and trajectory optimization: computing optimal control inputs by differentiating through the system dynamics.
Topics covered:
Differentiating through dynamics
Open-loop trajectory optimization
PID tuning with gradients
Model Predictive Control (MPC) basics
Chemical engineering application: CSTR control
import jax
import jax.numpy as jnp
from jax import random, grad, jit, vmap
from jax import lax
import matplotlib.pyplot as plt
import numpy as np
from functools import partial
import optax
import diffrax
jax.config.update("jax_enable_x64", True)
print(f"JAX version: {jax.__version__}")
WARNING:2026-01-10 20:33:28,023:jax._src.xla_bridge:852: An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.
JAX version: 0.8.2
1. Differentiating Through Dynamics#
Consider a discrete-time dynamical system:
\[x_{t+1} = f(x_t, u_t)\]
Where:
\(x_t\): state at time \(t\)
\(u_t\): control input at time \(t\)
Given a cost function over a trajectory:
\[J = \sum_{t=0}^{T} c(x_t, u_t)\]
We can compute \(\frac{\partial J}{\partial u_{0:T}}\) using autodiff through the simulation!
# Simple example: 1D system
def dynamics(x, u):
"""Simple 1D dynamics: x_{t+1} = 0.9*x + u"""
return 0.9 * x + u
def simulate(x0, controls):
"""
Simulate trajectory given initial state and control sequence.
Returns: trajectory of states [x0, x1, ..., xT]
"""
def step(x, u):
x_next = dynamics(x, u)
return x_next, x_next
_, trajectory = lax.scan(step, x0, controls)
return jnp.concatenate([jnp.array([x0]), trajectory])
def trajectory_cost(controls, x0, x_target):
"""
Cost: sum of squared deviations from target + control effort.
"""
trajectory = simulate(x0, controls)
state_cost = jnp.sum((trajectory - x_target) ** 2)
control_cost = 0.1 * jnp.sum(controls ** 2)
return state_cost + control_cost
# Example
x0 = 0.0
x_target = 1.0
T = 20
controls = jnp.zeros(T) # Initial: no control
# Compute gradient of cost w.r.t. controls
cost = trajectory_cost(controls, x0, x_target)
gradients = grad(trajectory_cost)(controls, x0, x_target)
print(f"Initial cost (zero controls): {cost:.4f}")
print(f"Gradient shape: {gradients.shape}")
print(f"First few gradients: {gradients[:5]}")
print("\nNegative gradients early → need positive control to reach target!")
Initial cost (zero controls): 21.0000
Gradient shape: (20,)
First few gradients: [-17.56846691 -17.29829656 -16.99810729 -16.66456366 -16.29395962]
Negative gradients early → need positive control to reach target!
2. Open-Loop Trajectory Optimization#
Goal: Find the optimal control sequence \(u_{0:T}\) that minimizes the trajectory cost.
With gradients, we can use gradient descent (or better optimizers like L-BFGS).
def optimize_trajectory(x0, x_target, T, n_iter=200, lr=0.1):
"""
Optimize control sequence to drive system from x0 to x_target.
"""
controls = jnp.zeros(T)
optimizer = optax.adam(learning_rate=lr)
opt_state = optimizer.init(controls)
@jit
def update(controls, opt_state):
loss, grads = jax.value_and_grad(trajectory_cost)(controls, x0, x_target)
updates, opt_state = optimizer.update(grads, opt_state)
controls = optax.apply_updates(controls, updates)
return controls, opt_state, loss
losses = []
for i in range(n_iter):
controls, opt_state, loss = update(controls, opt_state)
losses.append(float(loss))
return controls, losses
# Optimize
x0 = 0.0
x_target = 1.0
T = 20
optimal_controls, losses = optimize_trajectory(x0, x_target, T)
optimal_trajectory = simulate(x0, optimal_controls)
print(f"Final cost: {losses[-1]:.6f}")
print(f"Final state: {optimal_trajectory[-1]:.4f} (target: {x_target})")
Final cost: 1.111823
Final state: 0.9908 (target: 1.0)

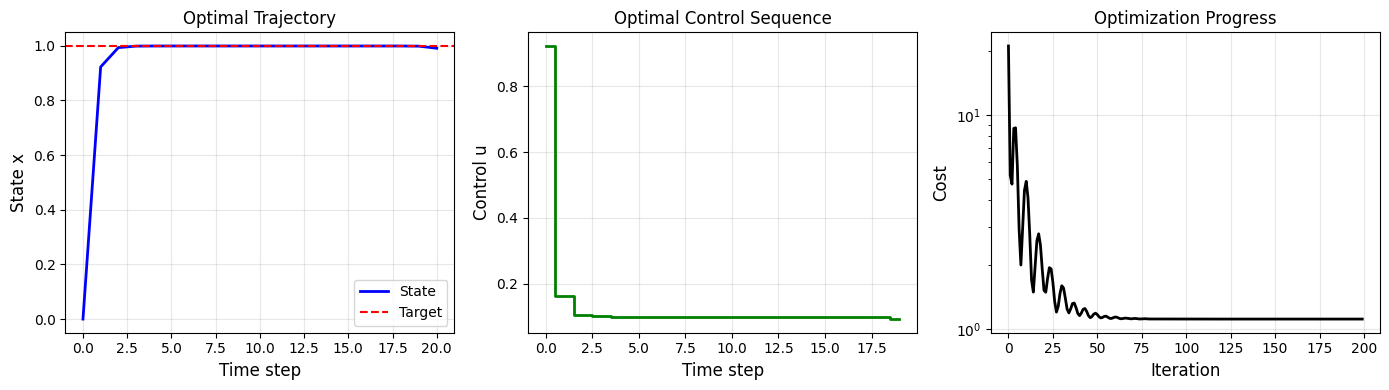

# Visualize results
fig, axes = plt.subplots(1, 3, figsize=(14, 4))
# Trajectory
t = jnp.arange(T + 1)
axes[0].plot(t, optimal_trajectory, 'b-', linewidth=2, label='State')
axes[0].axhline(x_target, color='r', linestyle='--', label='Target')
axes[0].set_xlabel('Time step', fontsize=12)
axes[0].set_ylabel('State x', fontsize=12)
axes[0].set_title('Optimal Trajectory', fontsize=12)
axes[0].legend()
axes[0].grid(True, alpha=0.3)
# Controls
axes[1].step(range(T), optimal_controls, 'g-', linewidth=2, where='mid')
axes[1].set_xlabel('Time step', fontsize=12)
axes[1].set_ylabel('Control u', fontsize=12)
axes[1].set_title('Optimal Control Sequence', fontsize=12)
axes[1].grid(True, alpha=0.3)
# Loss curve
axes[2].semilogy(losses, 'k-', linewidth=2)
axes[2].set_xlabel('Iteration', fontsize=12)
axes[2].set_ylabel('Cost', fontsize=12)
axes[2].set_title('Optimization Progress', fontsize=12)
axes[2].grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
3. CSTR Control Problem#
Consider a continuous stirred-tank reactor (CSTR) with first-order reaction A → B:
\[\frac{dC_A}{dt} = \frac{F}{V}(C_{A,in} - C_A) - k(T)C_A\]
\[\frac{dT}{dt} = \frac{F}{V}(T_{in} - T) + \frac{(-\Delta H)}{\rho C_p}k(T)C_A + \frac{UA}{V\rho C_p}(T_c - T)\]
Where \(T_c\) (coolant temperature) is the control input.
# CSTR parameters
cstr_params = {
'F': 1.0, # Flow rate (L/s)
'V': 100.0, # Volume (L)
'C_Ain': 1.0, # Inlet concentration (mol/L)
'T_in': 300.0, # Inlet temperature (K)
'k0': 7.2e10, # Pre-exponential factor (1/s)
'Ea': 72750.0, # Activation energy (J/mol)
'R': 8.314, # Gas constant (J/mol/K)
'dH': -50000.0, # Heat of reaction (J/mol)
'rho': 1000.0, # Density (kg/L)
'Cp': 4.0, # Heat capacity (J/kg/K)
'UA': 50.0, # Heat transfer coefficient (W/K)
}
def cstr_dynamics(state, Tc, params):
"""
CSTR dynamics.
state = [C_A, T]
Tc = coolant temperature (control)
"""
C_A, T = state
# Reaction rate
k = params['k0'] * jnp.exp(-params['Ea'] / (params['R'] * T))
# Mass balance
dC_A = (params['F'] / params['V']) * (params['C_Ain'] - C_A) - k * C_A
# Energy balance
heat_reaction = (-params['dH']) / (params['rho'] * params['Cp']) * k * C_A
heat_transfer = (params['UA'] / (params['V'] * params['rho'] * params['Cp'])) * (Tc - T)
dT = (params['F'] / params['V']) * (params['T_in'] - T) + heat_reaction + heat_transfer
return jnp.array([dC_A, dT])
# Test steady state
state0 = jnp.array([0.5, 350.0]) # Initial guess
Tc_ss = 300.0
print(f"Initial state: C_A = {state0[0]:.3f} mol/L, T = {state0[1]:.1f} K")
print(f"Dynamics at initial state: {cstr_dynamics(state0, Tc_ss, cstr_params)}")
Initial state: C_A = 0.500 mol/L, T = 350.0 K
Dynamics at initial state: [-0.49453662 5.73795781]
# Simulate CSTR with Euler integration
def simulate_cstr(state0, controls, dt, params):
"""
Simulate CSTR with given control sequence.
controls: array of coolant temperatures [Tc_0, Tc_1, ...]
dt: time step
Returns: trajectory of states
"""
def euler_step(state, Tc):
dstate = cstr_dynamics(state, Tc, params)
state_next = state + dt * dstate
return state_next, state_next
_, trajectory = lax.scan(euler_step, state0, controls)
return jnp.vstack([state0, trajectory])
# Test simulation
state0 = jnp.array([1.0, 300.0]) # Start at inlet conditions
dt = 1.0 # 1 second time step
T_sim = 500 # Total time (s)
n_steps = int(T_sim / dt)
# Constant coolant temperature
Tc_constant = 290.0 * jnp.ones(n_steps)
trajectory = simulate_cstr(state0, Tc_constant, dt, cstr_params)

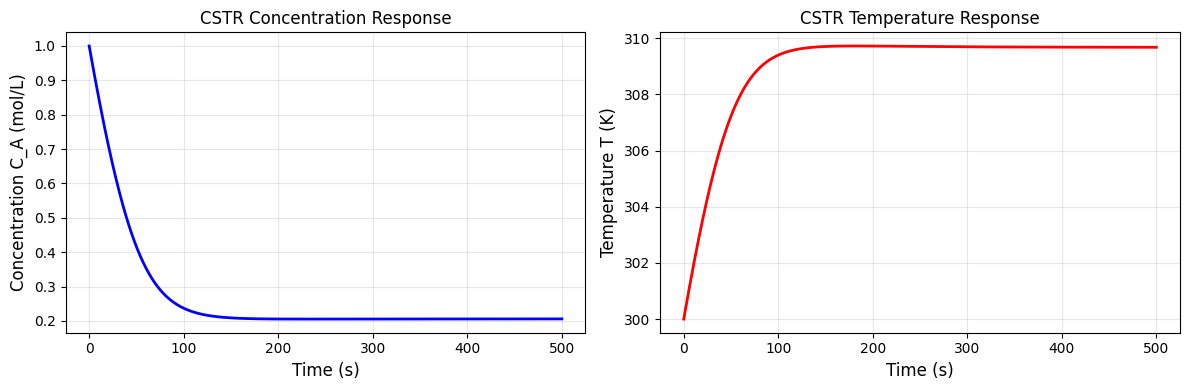

# Plot
t = jnp.arange(n_steps + 1) * dt
fig, axes = plt.subplots(1, 2, figsize=(12, 4))
axes[0].plot(t, trajectory[:, 0], 'b-', linewidth=2)
axes[0].set_xlabel('Time (s)', fontsize=12)
axes[0].set_ylabel('Concentration C_A (mol/L)', fontsize=12)
axes[0].set_title('CSTR Concentration Response', fontsize=12)
axes[0].grid(True, alpha=0.3)
axes[1].plot(t, trajectory[:, 1], 'r-', linewidth=2)
axes[1].set_xlabel('Time (s)', fontsize=12)
axes[1].set_ylabel('Temperature T (K)', fontsize=12)
axes[1].set_title('CSTR Temperature Response', fontsize=12)
axes[1].grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
print(f"Steady state: C_A = {trajectory[-1, 0]:.4f} mol/L, T = {trajectory[-1, 1]:.2f} K")
Steady state: C_A = 0.2060 mol/L, T = 309.68 K
4. CSTR Trajectory Optimization#
Goal: Find the coolant temperature sequence that drives the CSTR to a target steady state while minimizing overshoot and control effort.
def cstr_trajectory_cost(controls, state0, target_state, dt, params,
Q_state=None, R_control=0.001):
"""
Trajectory cost for CSTR control.
Q_state: weights for state deviation [weight_C_A, weight_T]
R_control: weight for control effort
"""
if Q_state is None:
Q_state = jnp.array([100.0, 1.0]) # Care more about concentration
trajectory = simulate_cstr(state0, controls, dt, params)
# State deviation cost
deviations = trajectory - target_state
state_cost = jnp.sum(Q_state * deviations ** 2)
# Control effort (penalize changes in Tc)
control_changes = jnp.diff(controls)
control_cost = R_control * jnp.sum(control_changes ** 2)
# Bound constraints (soft)
Tc_min, Tc_max = 260.0, 350.0
lb_violation = jnp.sum(jax.nn.relu(Tc_min - controls) ** 2)
ub_violation = jnp.sum(jax.nn.relu(controls - Tc_max) ** 2)
return state_cost + control_cost + 1000 * (lb_violation + ub_violation)
# Define control problem
state0 = jnp.array([0.8, 320.0]) # Start at this operating point
target_state = jnp.array([0.3, 350.0]) # Target: lower concentration, higher T
dt = 1.0
T_horizon = 200
n_steps = int(T_horizon / dt)
# Initial control: constant at some reasonable value
controls_init = 280.0 * jnp.ones(n_steps)
print(f"Control horizon: {T_horizon} s ({n_steps} steps)")
print(f"Initial state: C_A = {state0[0]:.2f}, T = {state0[1]:.1f} K")
print(f"Target state: C_A = {target_state[0]:.2f}, T = {target_state[1]:.1f} K")
print(f"Initial cost: {cstr_trajectory_cost(controls_init, state0, target_state, dt, cstr_params):.2f}")
Control horizon: 200 s (200 steps)
Initial state: C_A = 0.80, T = 320.0 K
Target state: C_A = 0.30, T = 350.0 K
Initial cost: 209301.18
# Optimize control trajectory
def optimize_cstr_control(state0, target_state, n_steps, dt, params, n_iter=300, lr=0.5):
"""
Optimize coolant temperature trajectory.
"""
controls = 300.0 * jnp.ones(n_steps) # Initial guess
optimizer = optax.adam(learning_rate=lr)
opt_state = optimizer.init(controls)
@jit
def update(controls, opt_state):
loss, grads = jax.value_and_grad(cstr_trajectory_cost)(
controls, state0, target_state, dt, params
)
updates, opt_state = optimizer.update(grads, opt_state)
controls = optax.apply_updates(controls, updates)
return controls, opt_state, loss
losses = []
for i in range(n_iter):
controls, opt_state, loss = update(controls, opt_state)
losses.append(float(loss))
if i % 50 == 0:
print(f"Iteration {i}: cost = {loss:.2f}")
return controls, losses
optimal_controls, losses = optimize_cstr_control(
state0, target_state, n_steps, dt, cstr_params
)
print(f"\nFinal cost: {losses[-1]:.2f}")
Iteration 0: cost = 207175.73
Iteration 50: cost = 204542.18
Iteration 100: cost = 201941.10
Iteration 150: cost = 202398.17
Iteration 200: cost = 202372.65
Iteration 250: cost = 202339.09
Final cost: 202302.29

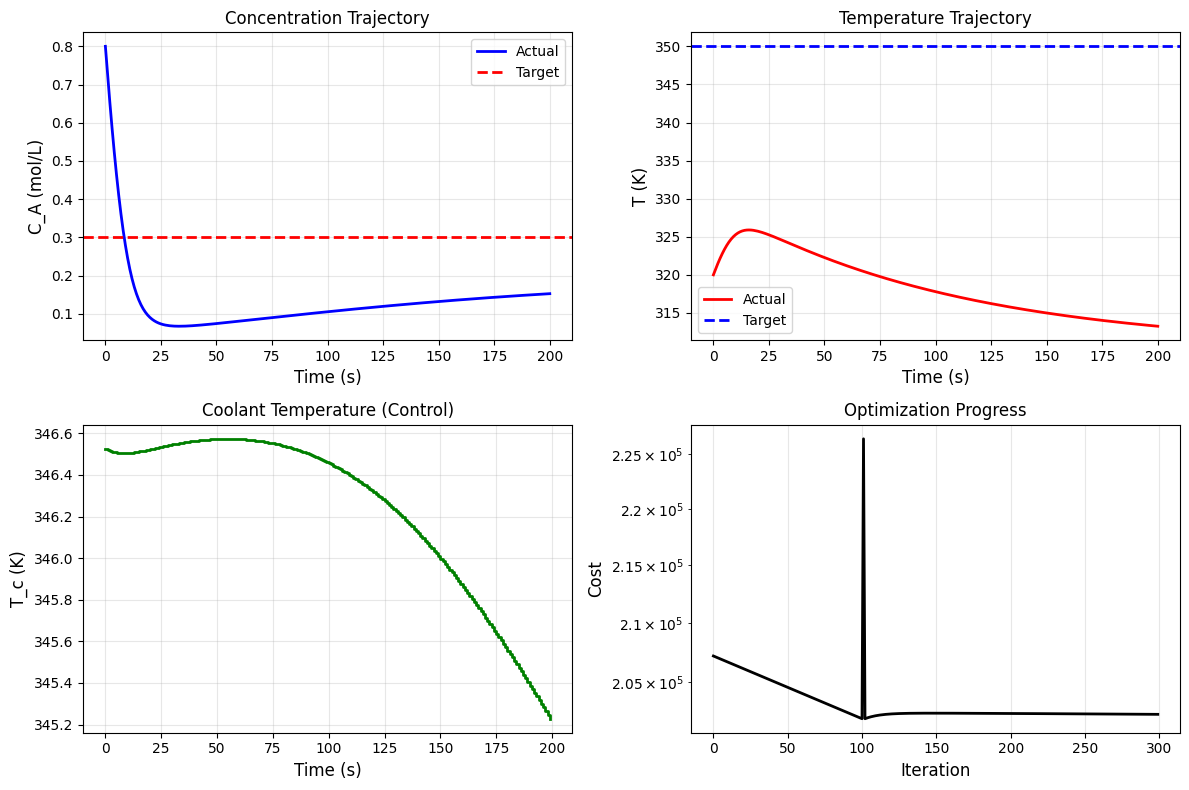

# Simulate with optimal controls
optimal_trajectory = simulate_cstr(state0, optimal_controls, dt, cstr_params)
t = jnp.arange(n_steps + 1) * dt
fig, axes = plt.subplots(2, 2, figsize=(12, 8))
# Concentration
axes[0, 0].plot(t, optimal_trajectory[:, 0], 'b-', linewidth=2, label='Actual')
axes[0, 0].axhline(target_state[0], color='r', linestyle='--', linewidth=2, label='Target')
axes[0, 0].set_xlabel('Time (s)', fontsize=12)
axes[0, 0].set_ylabel('C_A (mol/L)', fontsize=12)
axes[0, 0].set_title('Concentration Trajectory', fontsize=12)
axes[0, 0].legend()
axes[0, 0].grid(True, alpha=0.3)
# Temperature
axes[0, 1].plot(t, optimal_trajectory[:, 1], 'r-', linewidth=2, label='Actual')
axes[0, 1].axhline(target_state[1], color='b', linestyle='--', linewidth=2, label='Target')
axes[0, 1].set_xlabel('Time (s)', fontsize=12)
axes[0, 1].set_ylabel('T (K)', fontsize=12)
axes[0, 1].set_title('Temperature Trajectory', fontsize=12)
axes[0, 1].legend()
axes[0, 1].grid(True, alpha=0.3)
# Control input
axes[1, 0].step(t[:-1], optimal_controls, 'g-', linewidth=2, where='post')
axes[1, 0].set_xlabel('Time (s)', fontsize=12)
axes[1, 0].set_ylabel('T_c (K)', fontsize=12)
axes[1, 0].set_title('Coolant Temperature (Control)', fontsize=12)
axes[1, 0].grid(True, alpha=0.3)
# Loss curve
axes[1, 1].semilogy(losses, 'k-', linewidth=2)
axes[1, 1].set_xlabel('Iteration', fontsize=12)
axes[1, 1].set_ylabel('Cost', fontsize=12)
axes[1, 1].set_title('Optimization Progress', fontsize=12)
axes[1, 1].grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
print(f"Final state: C_A = {optimal_trajectory[-1, 0]:.4f}, T = {optimal_trajectory[-1, 1]:.2f} K")
print(f"Target: C_A = {target_state[0]:.4f}, T = {target_state[1]:.2f} K")
Final state: C_A = 0.1527, T = 313.25 K
Target: C_A = 0.3000, T = 350.00 K
5. PID Tuning with Gradients#
Traditional PID tuning uses heuristics (Ziegler-Nichols, etc.). With differentiable simulation, we can directly optimize PID gains!
def pid_controller(error_integral, error_prev, error, Kp, Ki, Kd, dt):
"""
PID controller.
Returns: control output, new integral, current error (for next step)
"""
# Update integral
integral_new = error_integral + error * dt
# Derivative
derivative = (error - error_prev) / dt
# PID output
u = Kp * error + Ki * integral_new + Kd * derivative
return u, integral_new, error
def simulate_cstr_pid(state0, target_T, pid_gains, dt, n_steps, params):
"""
Simulate CSTR with PID temperature control.
pid_gains: [Kp, Ki, Kd]
target_T: temperature setpoint
"""
Kp, Ki, Kd = pid_gains
def step(carry, _):
state, error_integral, error_prev = carry
# Current error
error = target_T - state[1] # T error
# PID output
Tc_adjustment, error_integral_new, _ = pid_controller(
error_integral, error_prev, error, Kp, Ki, Kd, dt
)
# Control with bounds
Tc_base = 290.0 # Nominal coolant temperature
Tc = jnp.clip(Tc_base + Tc_adjustment, 260.0, 350.0)
# Dynamics step
dstate = cstr_dynamics(state, Tc, params)
state_new = state + dt * dstate
return (state_new, error_integral_new, error), (state_new, Tc)
initial_carry = (state0, 0.0, 0.0) # state, integral, prev_error
_, (trajectory, controls) = lax.scan(step, initial_carry, None, length=n_steps)
trajectory = jnp.vstack([state0, trajectory])
return trajectory, controls
# Test with initial PID gains
state0 = jnp.array([0.5, 320.0])
target_T = 350.0
pid_gains_init = jnp.array([1.0, 0.01, 0.0]) # Kp, Ki, Kd
dt = 1.0
n_steps = 300
trajectory, controls = simulate_cstr_pid(state0, target_T, pid_gains_init, dt, n_steps, cstr_params)
print(f"Initial PID gains: Kp={pid_gains_init[0]}, Ki={pid_gains_init[1]}, Kd={pid_gains_init[2]}")
print(f"Final T: {trajectory[-1, 1]:.2f} K (target: {target_T} K)")
Initial PID gains: Kp=1.0, Ki=0.01, Kd=0.0
Final T: 311.35 K (target: 350.0 K)
def pid_cost(pid_gains, state0, target_T, dt, n_steps, params):
"""
Cost function for PID tuning.
Penalizes:
- Steady-state error
- Overshoot
- Settling time (deviation from target)
- Control effort
"""
trajectory, controls = simulate_cstr_pid(state0, target_T, pid_gains, dt, n_steps, params)
# Temperature error
T_trajectory = trajectory[:, 1]
T_error = T_trajectory - target_T
# Integrated squared error
ise = jnp.sum(T_error ** 2) * dt
# Overshoot penalty
overshoot = jnp.maximum(0, T_trajectory - target_T - 5.0) # Allow 5K overshoot
overshoot_penalty = 10.0 * jnp.sum(overshoot ** 2)
# Control effort
control_effort = 0.01 * jnp.sum(jnp.diff(controls) ** 2)
return ise + overshoot_penalty + control_effort
# Optimize PID gains
def optimize_pid(state0, target_T, dt, n_steps, params, n_iter=200, lr=0.01):
"""
Optimize PID gains using gradient descent.
"""
pid_gains = jnp.array([0.5, 0.001, 0.1]) # Initial guess
optimizer = optax.adam(learning_rate=lr)
opt_state = optimizer.init(pid_gains)
@jit
def update(pid_gains, opt_state):
loss, grads = jax.value_and_grad(pid_cost)(
pid_gains, state0, target_T, dt, n_steps, params
)
updates, opt_state = optimizer.update(grads, opt_state)
pid_gains = optax.apply_updates(pid_gains, updates)
# Keep gains positive
pid_gains = jnp.maximum(pid_gains, 0.0)
return pid_gains, opt_state, loss
losses = []
for i in range(n_iter):
pid_gains, opt_state, loss = update(pid_gains, opt_state)
losses.append(float(loss))
if i % 50 == 0:
print(f"Iteration {i}: cost = {loss:.2f}, Kp={pid_gains[0]:.4f}, Ki={pid_gains[1]:.6f}, Kd={pid_gains[2]:.4f}")
return pid_gains, losses
optimal_pid, pid_losses = optimize_pid(state0, target_T, dt, n_steps, cstr_params)
print(f"\nOptimal PID: Kp={optimal_pid[0]:.4f}, Ki={optimal_pid[1]:.6f}, Kd={optimal_pid[2]:.4f}")
Iteration 0: cost = 374602.21, Kp=0.5100, Ki=0.011000, Kd=0.1100
Iteration 50: cost = 366536.12, Kp=0.7231, Ki=0.094622, Kd=0.5670
Iteration 100: cost = 366454.46, Kp=0.8791, Ki=0.107200, Kd=0.9237
Iteration 150: cost = 366403.82, Kp=1.0307, Ki=0.116946, Kd=0.9823
Optimal PID: Kp=1.1668, Ki=0.124401, Kd=0.9027
# Compare initial vs optimized PID
trajectory_init, controls_init = simulate_cstr_pid(state0, target_T, pid_gains_init, dt, n_steps, cstr_params)
trajectory_opt, controls_opt = simulate_cstr_pid(state0, target_T, optimal_pid, dt, n_steps, cstr_params)
t = jnp.arange(n_steps + 1) * dt

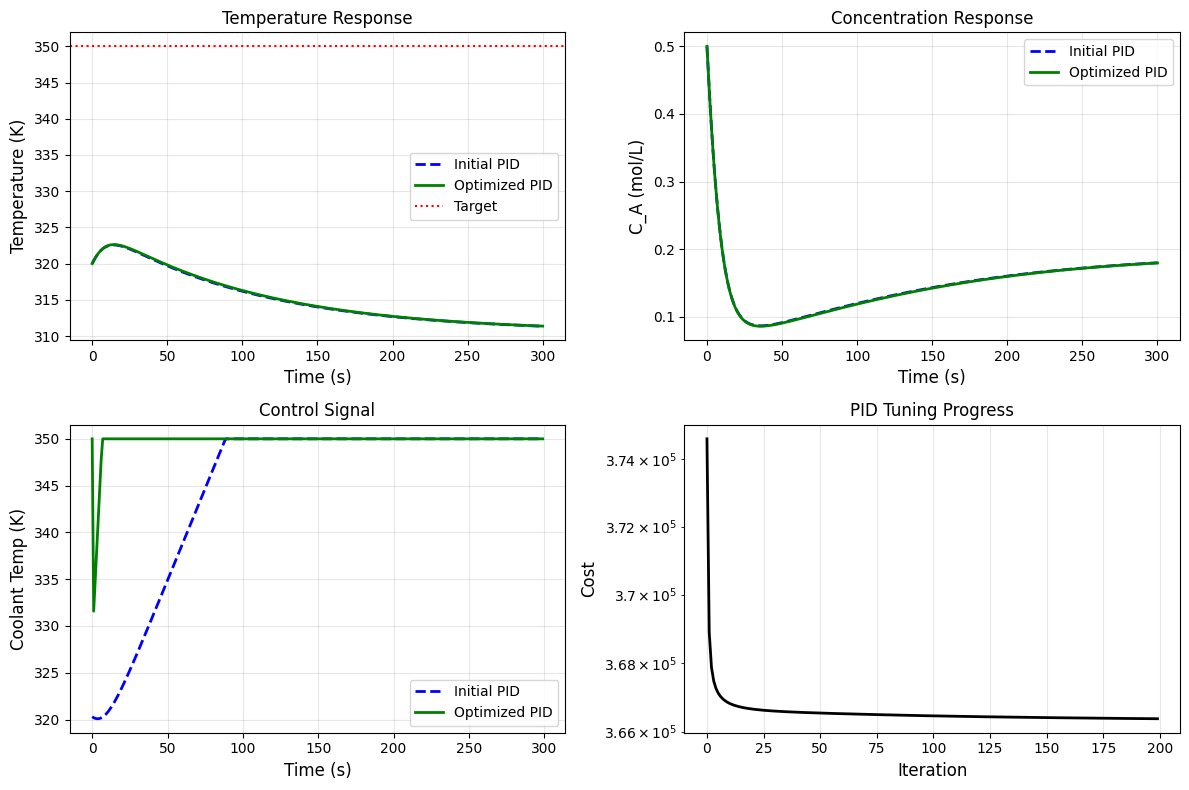

fig, axes = plt.subplots(2, 2, figsize=(12, 8))
# Temperature response
axes[0, 0].plot(t, trajectory_init[:, 1], 'b--', linewidth=2, label='Initial PID')
axes[0, 0].plot(t, trajectory_opt[:, 1], 'g-', linewidth=2, label='Optimized PID')
axes[0, 0].axhline(target_T, color='r', linestyle=':', label='Target')
axes[0, 0].set_xlabel('Time (s)', fontsize=12)
axes[0, 0].set_ylabel('Temperature (K)', fontsize=12)
axes[0, 0].set_title('Temperature Response', fontsize=12)
axes[0, 0].legend()
axes[0, 0].grid(True, alpha=0.3)
# Concentration response
axes[0, 1].plot(t, trajectory_init[:, 0], 'b--', linewidth=2, label='Initial PID')
axes[0, 1].plot(t, trajectory_opt[:, 0], 'g-', linewidth=2, label='Optimized PID')
axes[0, 1].set_xlabel('Time (s)', fontsize=12)
axes[0, 1].set_ylabel('C_A (mol/L)', fontsize=12)
axes[0, 1].set_title('Concentration Response', fontsize=12)
axes[0, 1].legend()
axes[0, 1].grid(True, alpha=0.3)
# Control signals
axes[1, 0].plot(t[:-1], controls_init, 'b--', linewidth=2, label='Initial PID')
axes[1, 0].plot(t[:-1], controls_opt, 'g-', linewidth=2, label='Optimized PID')
axes[1, 0].set_xlabel('Time (s)', fontsize=12)
axes[1, 0].set_ylabel('Coolant Temp (K)', fontsize=12)
axes[1, 0].set_title('Control Signal', fontsize=12)
axes[1, 0].legend()
axes[1, 0].grid(True, alpha=0.3)
# PID tuning progress
axes[1, 1].semilogy(pid_losses, 'k-', linewidth=2)
axes[1, 1].set_xlabel('Iteration', fontsize=12)
axes[1, 1].set_ylabel('Cost', fontsize=12)
axes[1, 1].set_title('PID Tuning Progress', fontsize=12)
axes[1, 1].grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
print(f"\nComparison:")
print(f" Initial PID: Kp={pid_gains_init[0]:.2f}, Ki={pid_gains_init[1]:.4f}, Kd={pid_gains_init[2]:.2f}")
print(f" Optimal PID: Kp={optimal_pid[0]:.2f}, Ki={optimal_pid[1]:.4f}, Kd={optimal_pid[2]:.2f}")
Comparison:
Initial PID: Kp=1.00, Ki=0.0100, Kd=0.00
Optimal PID: Kp=1.17, Ki=0.1244, Kd=0.90
6. Model Predictive Control (MPC) Basics#
MPC solves an optimization problem at each time step:
Predict future trajectory over horizon \(N\)
Optimize control sequence \(u_0, u_1, ..., u_{N-1}\)
Apply only \(u_0\)
Repeat at next step
With differentiable dynamics, we can use gradient descent for the inner optimization.
def mpc_step(state, target, horizon, dt, params, n_opt_iter=50):
"""
Single MPC optimization step.
Returns: optimal first control action
"""
# Initialize control sequence (warm start from previous could improve this)
controls = 290.0 * jnp.ones(horizon)
def mpc_cost(controls):
return cstr_trajectory_cost(controls, state, target, dt, params,
Q_state=jnp.array([100.0, 1.0]), R_control=0.01)
# Quick optimization
optimizer = optax.adam(learning_rate=1.0)
opt_state = optimizer.init(controls)
for _ in range(n_opt_iter):
loss, grads = jax.value_and_grad(mpc_cost)(controls)
updates, opt_state = optimizer.update(grads, opt_state)
controls = optax.apply_updates(controls, updates)
# Clip to bounds
controls = jnp.clip(controls, 260.0, 350.0)
return controls[0], loss
def simulate_mpc(state0, target, dt, n_steps, horizon, params):
"""
Run MPC simulation.
"""
states = [state0]
controls = []
state = state0
for i in range(n_steps):
# Solve MPC
u_opt, _ = mpc_step(state, target, horizon, dt, params)
# Apply control
controls.append(float(u_opt))
# Simulate one step
dstate = cstr_dynamics(state, u_opt, params)
state = state + dt * dstate
states.append(state)
if i % 20 == 0:
print(f"Step {i}: T = {state[1]:.1f} K, Tc = {u_opt:.1f} K")
return jnp.array(states), jnp.array(controls)
# Run MPC
print("Running MPC (this may take a moment)...")
state0 = jnp.array([0.5, 320.0])
target = jnp.array([0.3, 350.0])
dt = 2.0 # Larger time step for MPC
n_mpc_steps = 100
horizon = 20 # Look-ahead horizon
mpc_states, mpc_controls = simulate_mpc(state0, target, dt, n_mpc_steps, horizon, cstr_params)
Running MPC (this may take a moment)...
Step 0: T = 320.8 K, Tc = 340.0 K
Step 20: T = 320.5 K, Tc = 340.0 K
Step 40: T = 317.3 K, Tc = 340.0 K
Step 60: T = 315.1 K, Tc = 340.0 K
Step 80: T = 313.6 K, Tc = 340.0 K
# Plot MPC results
t_mpc = jnp.arange(n_mpc_steps + 1) * dt

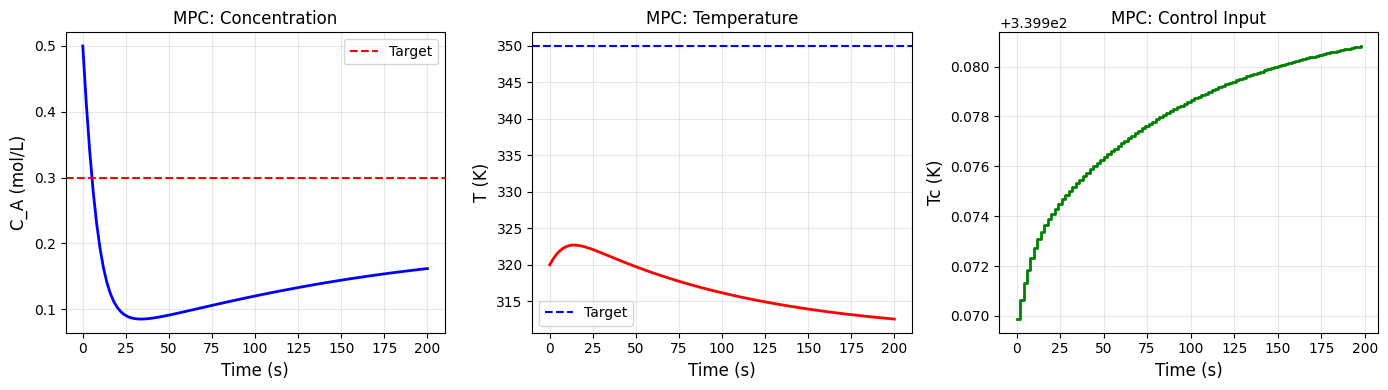

fig, axes = plt.subplots(1, 3, figsize=(14, 4))
axes[0].plot(t_mpc, mpc_states[:, 0], 'b-', linewidth=2)
axes[0].axhline(target[0], color='r', linestyle='--', label='Target')
axes[0].set_xlabel('Time (s)', fontsize=12)
axes[0].set_ylabel('C_A (mol/L)', fontsize=12)
axes[0].set_title('MPC: Concentration', fontsize=12)
axes[0].legend()
axes[0].grid(True, alpha=0.3)
axes[1].plot(t_mpc, mpc_states[:, 1], 'r-', linewidth=2)
axes[1].axhline(target[1], color='b', linestyle='--', label='Target')
axes[1].set_xlabel('Time (s)', fontsize=12)
axes[1].set_ylabel('T (K)', fontsize=12)
axes[1].set_title('MPC: Temperature', fontsize=12)
axes[1].legend()
axes[1].grid(True, alpha=0.3)
axes[2].step(t_mpc[:-1], mpc_controls, 'g-', linewidth=2, where='post')
axes[2].set_xlabel('Time (s)', fontsize=12)
axes[2].set_ylabel('Tc (K)', fontsize=12)
axes[2].set_title('MPC: Control Input', fontsize=12)
axes[2].grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
print(f"\nFinal state: C_A = {mpc_states[-1, 0]:.4f}, T = {mpc_states[-1, 1]:.2f} K")
print(f"Target: C_A = {target[0]:.4f}, T = {target[1]:.2f} K")
Final state: C_A = 0.1617, T = 312.57 K
Target: C_A = 0.3000, T = 350.00 K
Summary#
Key concepts:
Differentiating through dynamics:
Compute gradients of trajectory cost w.r.t. controls
Enable gradient-based trajectory optimization
Open-loop trajectory optimization:
Optimize entire control sequence at once
Works for known initial state and deterministic dynamics
PID tuning with gradients:
Directly optimize PID gains
Consider custom cost functions (ISE, overshoot, settling time)
Model Predictive Control:
Rolling horizon optimization
Handles constraints naturally
Robust to model mismatch (re-optimizes each step)
Chemical engineering applications:
Reactor temperature control
Distillation column control
Batch process optimization
Startup/shutdown trajectories
Grade transitions
Advantages of differentiable approach:
No need for derivative-free optimization
Scales to high-dimensional control spaces
Can incorporate complex models (neural ODEs, etc.)
Enables end-to-end learning (learn model + controller together)
