Single Unit: The PFR (Plug Flow Reactor)#
Prerequisites: 00d_single_unit_cstr, 00e_energy_balances
Learning Objectives:
Derive the PFR design equation (an ODE, not algebraic!)
Understand the key difference between CSTR and PFR
Implement PFR integration from scratch
Compare CSTR vs PFR performance
What is a PFR?#
A Plug Flow Reactor (PFR) is a tubular reactor where:
Reactants flow through in “plugs” with no mixing in the flow direction
Perfect radial mixing (uniform composition across the tube cross-section)
Composition changes continuously along the length
Inlet Outlet
──────╦══════════════════════════════════════════╦──────►
║ → → → → → → → → → → → → → ║
║ Concentration decreases along length ║
║ → → → → → → → → → → → → → ║
──────╩══════════════════════════════════════════╩──────
x=0 x=L
Key difference from CSTR: In a PFR, concentration varies with position. In a CSTR, concentration is uniform everywhere.
Deriving the PFR Design Equation#
Consider a differential volume element \(dV\) in the reactor:
\[\text{(Moles of } i \text{ in)} - \text{(Moles of } i \text{ out)} + \text{(Generation)} = 0\]
\[F_i - (F_i + dF_i) + r_i \cdot dV = 0\]
\[dF_i = r_i \cdot dV\]
\[\boxed{\frac{dF_i}{dV} = r_i}\]
This is an ordinary differential equation (ODE), not an algebraic equation like the CSTR.
For First-Order Reaction A → B#
\[\frac{dF_A}{dV} = -k C_A = -k \frac{F_A}{Q}\]
This is a separable ODE:
\[\int_{F_{A,in}}^{F_{A,out}} \frac{dF_A}{F_A} = -\frac{k}{Q} \int_0^V dV\]
\[\ln\frac{F_{A,out}}{F_{A,in}} = -\frac{kV}{Q} = -k\tau\]
\[\boxed{F_{A,out} = F_{A,in} \cdot e^{-k\tau}}\]
\[\boxed{X = 1 - e^{-k\tau}}\]
# Setup
import jax.numpy as jnp
import jax
from jax import lax
jax.config.update("jax_enable_x64", True)
import matplotlib.pyplot as plt
import numpy as np
from difflow import PFR, PFRParams, CSTR, CSTRParams, make_stream, get_flows, IdealThermo, SpeciesData
WARNING:2026-01-10 21:08:40,107:jax._src.xla_bridge:852: An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.
# Problem setup: First-order reaction A -> B
k = 0.5 # Rate constant, 1/s
F_A_in = 10.0 # Inlet flow of A, mol/s
V = 2.0 # Reactor volume, m³
Q = 0.2 # Volumetric flow rate, m³/s
tau = V / Q # Residence time, s
print("PFR Problem Setup")
print("=" * 40)
print(f"Reaction: A → B (first-order, k = {k} /s)")
print(f"Feed: F_A = {F_A_in} mol/s")
print(f"Volume: V = {V} m³")
print(f"Flow rate: Q = {Q} m³/s")
print(f"Residence time: τ = {tau} s")
print(f"Damköhler number: Da = kτ = {k*tau}")
PFR Problem Setup
========================================
Reaction: A → B (first-order, k = 0.5 /s)
Feed: F_A = 10.0 mol/s
Volume: V = 2.0 m³
Flow rate: Q = 0.2 m³/s
Residence time: τ = 10.0 s
Damköhler number: Da = kτ = 5.0
# Analytical solution for first-order PFR
F_A_out_analytical = F_A_in * np.exp(-k * tau)
X_analytical = 1 - np.exp(-k * tau)
print("Analytical Solution (First-Order PFR)")
print("=" * 40)
print(f"F_A_out = F_A_in × exp(-kτ) = {F_A_in} × exp(-{k*tau}) = {F_A_out_analytical:.4f} mol/s")
print(f"Conversion X = 1 - exp(-kτ) = 1 - exp(-{k*tau}) = {X_analytical*100:.2f}%")
Analytical Solution (First-Order PFR)
========================================
F_A_out = F_A_in × exp(-kτ) = 10.0 × exp(-5.0) = 0.0674 mol/s
Conversion X = 1 - exp(-kτ) = 1 - exp(-5.0) = 99.33%
Numerical Solution: Using scipy’s ODE Solver#
For more complex kinetics, we need to integrate the ODE numerically. Python’s scipy.integrate.solve_ivp provides robust, well-tested ODE solvers:
from scipy.integrate import solve_ivp
solution = solve_ivp(
fun, # dy/dt = fun(t, y)
t_span, # (t_start, t_end)
y0, # Initial conditions
method='RK45', # Runge-Kutta 4(5) adaptive step size
dense_output=True,
)
For PFR integration, we integrate over volume (not time): \(\frac{dF}{dV} = r\)
# Numerical solution using scipy's solve_ivp
from scipy.integrate import solve_ivp
def pfr_rhs(V, F, Q, k):
"""
Right-hand side of PFR design equation.
dF/dV = [r_A, r_B] where r_A = -k*C_A, r_B = k*C_A
Note: scipy uses (t, y) convention, so V is first argument
"""
F_A, F_B = F
C_A = F_A / Q
r_A = -k * C_A # Rate of consumption
r_B = k * C_A # Rate of production
return [r_A, r_B]
# Integrate from V=0 to V=V_total
F_in = [F_A_in, 0.0] # [F_A, F_B]
V_span = (0, V)
n_points = 100
V_eval = np.linspace(0, V, n_points + 1)
solution = solve_ivp(
pfr_rhs,
V_span,
F_in,
args=(Q, k),
method='RK45',
t_eval=V_eval, # Points where we want solution
dense_output=True,
)
# Extract results
V_traj = solution.t
F_traj = solution.y.T # Transpose to get (n_points, n_species)
F_A_out_numerical = F_traj[-1, 0]
X_numerical = (F_A_in - F_A_out_numerical) / F_A_in
print("Numerical Solution (scipy solve_ivp with RK45)")
print("=" * 50)
print(f"F_A_out = {F_A_out_numerical:.4f} mol/s")
print(f"Conversion X = {X_numerical*100:.2f}%")
print(f"")
print(f"Comparison with analytical:")
print(f" Analytical: X = {X_analytical*100:.4f}%")
print(f" Numerical: X = {X_numerical*100:.4f}%")
print(f" Difference: {abs(X_analytical - X_numerical)*100:.6f}%")
Numerical Solution (scipy solve_ivp with RK45)
==================================================
F_A_out = 0.0676 mol/s
Conversion X = 99.32%
Comparison with analytical:
Analytical: X = 99.3262%
Numerical: X = 99.3244%
Difference: 0.001763%

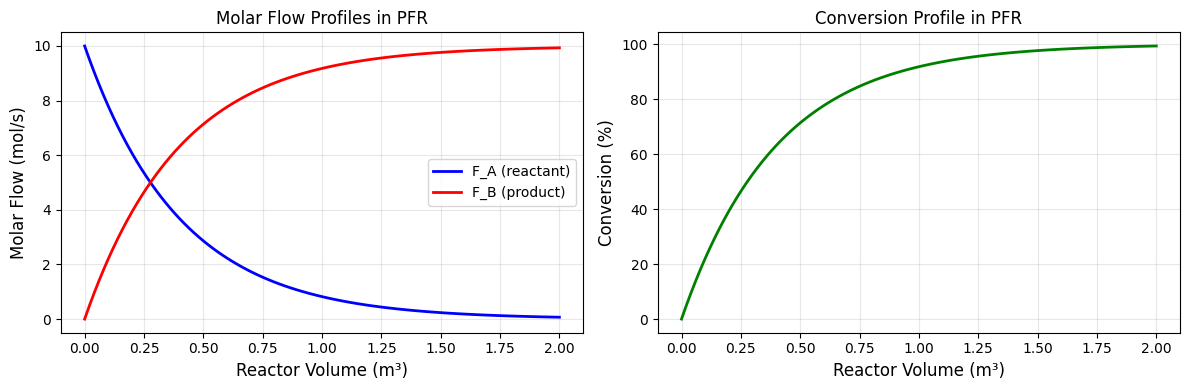

# Visualize concentration profile along the reactor
fig, axes = plt.subplots(1, 2, figsize=(12, 4))
# Left: Molar flows
ax = axes[0]
ax.plot(V_traj, F_traj[:, 0], 'b-', linewidth=2, label='F_A (reactant)')
ax.plot(V_traj, F_traj[:, 1], 'r-', linewidth=2, label='F_B (product)')
ax.set_xlabel('Reactor Volume (m³)', fontsize=12)
ax.set_ylabel('Molar Flow (mol/s)', fontsize=12)
ax.set_title('Molar Flow Profiles in PFR', fontsize=12)
ax.legend()
ax.grid(True, alpha=0.3)
# Right: Conversion
ax = axes[1]
X_profile = (F_A_in - F_traj[:, 0]) / F_A_in
ax.plot(V_traj, X_profile * 100, 'g-', linewidth=2)
ax.set_xlabel('Reactor Volume (m³)', fontsize=12)
ax.set_ylabel('Conversion (%)', fontsize=12)
ax.set_title('Conversion Profile in PFR', fontsize=12)
ax.grid(True, alpha=0.3)
plt.tight_layout()
Using difflow’s PFR#
# Define species and thermodynamics
species_data = {
'A': SpeciesData(name='A', MW=50.0, Cp_coeffs=(50.0, 0, 0, 0),
Hvap_coeffs=(30000.0, 0.38, 400.0),
antoine_coeffs=(10.0, 2000.0, -40.0)),
'B': SpeciesData(name='B', MW=50.0, Cp_coeffs=(50.0, 0, 0, 0),
Hvap_coeffs=(30000.0, 0.38, 400.0),
antoine_coeffs=(10.0, 1800.0, -40.0)),
}
thermo = IdealThermo(species_data)
species_order = ['A', 'B']
# Rate function
def rate_fn(C, T, params):
return jnp.array([params['k'] * C['A']])
# Stoichiometry: A -> B
stoich = jnp.array([[-1.0], [1.0]])
# Create PFR
pfr_params = PFRParams(
V=jnp.array(V),
rate_fn=rate_fn,
stoich=stoich,
rate_params={'k': jnp.array(k)},
species_order=species_order,
n_save_points=101,
)
pfr = PFR(pfr_params, thermo=thermo, mode='isothermal')
# Create inlet stream and solve
inlet = make_stream({'A': F_A_in, 'B': 0.0}, T=300.0, P=101325.0)
outlet, info = pfr(inlet, T_spec=300.0, volumetric_flow=Q)
print("difflow PFR Solution")
print("=" * 40)
print(f"F_A_out = {float(get_flows(outlet)['A']):.4f} mol/s")
print(f"F_B_out = {float(get_flows(outlet)['B']):.4f} mol/s")
print(f"Conversion X = {float(info['conversion']['A'])*100:.2f}%")
difflow PFR Solution
========================================
F_A_out = 0.0674 mol/s
F_B_out = 9.9326 mol/s
Conversion X = 99.33%
CSTR vs PFR Comparison#
For positive-order kinetics, PFR always gives higher conversion than CSTR at the same volume.
Why?
In CSTR: Reaction occurs at LOW outlet concentration (diluted by mixing)
In PFR: Reaction starts at HIGH inlet concentration, decreasing along the tube
Higher concentration → faster rate → more conversion
# Compare CSTR and PFR at same conditions
cstr_params = CSTRParams(
V=jnp.array(V),
rate_fn=rate_fn,
stoich=stoich,
rate_params={'k': jnp.array(k)},
species_order=species_order,
)
cstr = CSTR(cstr_params, thermo=thermo, mode='isothermal')
outlet_cstr, info_cstr = cstr(inlet, T_spec=300.0, volumetric_flow=Q)
print("CSTR vs PFR Comparison")
print("=" * 50)
print(f"Same conditions: V = {V} m³, Q = {Q} m³/s, k = {k} /s")
print(f"Residence time: τ = {tau} s")
print(f"Damköhler number: Da = {k*tau}")
print(f"")
print(f"{'Reactor':<10} {'F_A_out (mol/s)':<20} {'Conversion (%)':<15}")
print("-" * 50)
print(f"{'CSTR':<10} {float(get_flows(outlet_cstr)['A']):<20.4f} {float(info_cstr['conversion']['A'])*100:<15.2f}")
print(f"{'PFR':<10} {float(get_flows(outlet)['A']):<20.4f} {float(info['conversion']['A'])*100:<15.2f}")
print(f"")
print(f"PFR advantage: {(float(info['conversion']['A']) - float(info_cstr['conversion']['A']))*100:.2f} percentage points")
CSTR vs PFR Comparison
==================================================
Same conditions: V = 2.0 m³, Q = 0.2 m³/s, k = 0.5 /s
Residence time: τ = 10.0 s
Damköhler number: Da = 5.0
Reactor F_A_out (mol/s) Conversion (%)
--------------------------------------------------
CSTR 1.6667 83.33
PFR 0.0674 99.33
PFR advantage: 15.99 percentage points

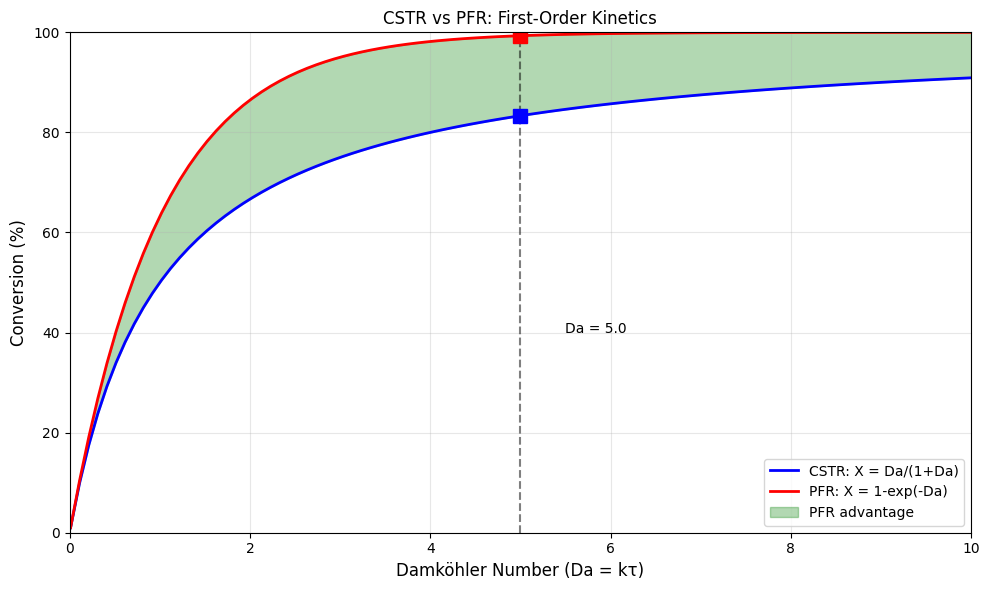

# Plot conversion vs Da for both reactors
Da_range = np.linspace(0.01, 10, 100)
X_cstr = Da_range / (1 + Da_range)
X_pfr = 1 - np.exp(-Da_range)
fig, ax = plt.subplots(figsize=(10, 6))
ax.plot(Da_range, X_cstr * 100, 'b-', linewidth=2, label='CSTR: X = Da/(1+Da)')
ax.plot(Da_range, X_pfr * 100, 'r-', linewidth=2, label='PFR: X = 1-exp(-Da)')
# Shade the PFR advantage region
ax.fill_between(Da_range, X_cstr*100, X_pfr*100, alpha=0.3, color='green', label='PFR advantage')
# Mark our operating point
ax.axvline(x=k*tau, color='k', linestyle='--', alpha=0.5)
ax.plot(k*tau, float(info_cstr['conversion']['A'])*100, 'bs', markersize=10)
ax.plot(k*tau, float(info['conversion']['A'])*100, 'rs', markersize=10)
ax.annotate(f'Da = {k*tau}', xy=(k*tau, 50), xytext=(k*tau+0.5, 40), fontsize=10)
ax.set_xlabel('Damköhler Number (Da = kτ)', fontsize=12)
ax.set_ylabel('Conversion (%)', fontsize=12)
ax.set_title('CSTR vs PFR: First-Order Kinetics', fontsize=12)
ax.legend(loc='lower right')
ax.grid(True, alpha=0.3)
ax.set_xlim(0, 10)
ax.set_ylim(0, 100)
plt.tight_layout()
When is the PFR Advantage Largest?#
The ratio of reactor volumes needed to achieve the same conversion:
\[\frac{V_{CSTR}}{V_{PFR}} = \frac{X/(1-X)}{-\ln(1-X)}\]
This ratio increases dramatically at high conversions!

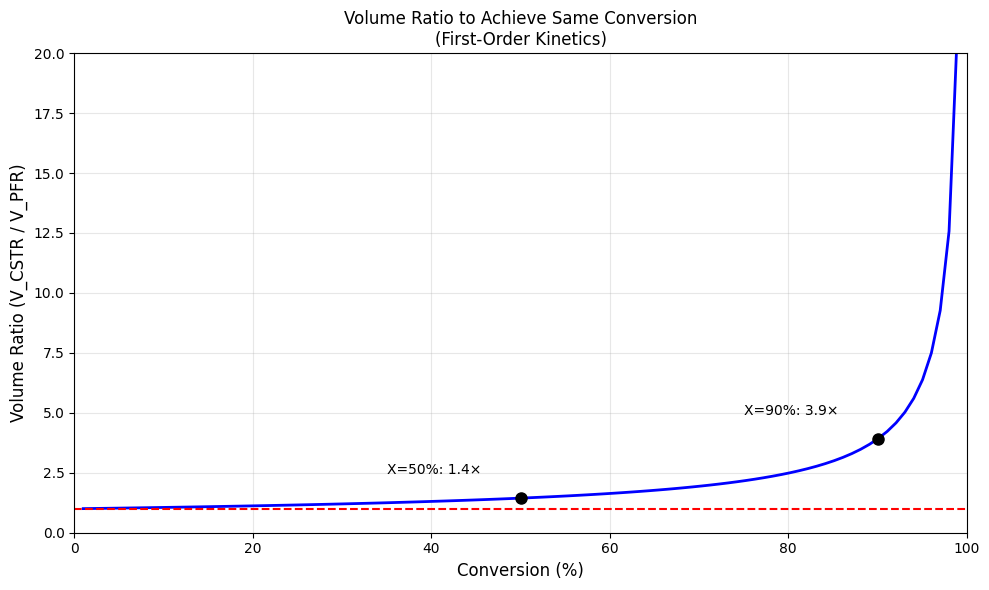

# Volume ratio: V_CSTR / V_PFR for same conversion
X = np.linspace(0.01, 0.99, 100)
# For first-order kinetics:
# CSTR: V/Q = X / (k(1-X))
# PFR: V/Q = -ln(1-X) / k
# Ratio = X/(1-X) / (-ln(1-X))
volume_ratio = (X / (1 - X)) / (-np.log(1 - X))
fig, ax = plt.subplots(figsize=(10, 6))
ax.plot(X * 100, volume_ratio, 'b-', linewidth=2)
ax.axhline(y=1, color='r', linestyle='--', label='Equal volume')
# Highlight key points
for X_point in [0.5, 0.9, 0.99]:
ratio = (X_point / (1 - X_point)) / (-np.log(1 - X_point))
ax.plot(X_point * 100, ratio, 'ko', markersize=8)
ax.annotate(f'X={X_point*100:.0f}%: {ratio:.1f}×',
xy=(X_point*100, ratio), xytext=(X_point*100-15, ratio+1),
fontsize=10)
ax.set_xlabel('Conversion (%)', fontsize=12)
ax.set_ylabel('Volume Ratio (V_CSTR / V_PFR)', fontsize=12)
ax.set_title('Volume Ratio to Achieve Same Conversion\n(First-Order Kinetics)', fontsize=12)
ax.grid(True, alpha=0.3)
ax.set_xlim(0, 100)
ax.set_ylim(0, 20)
plt.tight_layout()
print("Volume Ratio Interpretation:")
print(" At 50% conversion: CSTR needs 1.4× the volume of PFR")
print(" At 90% conversion: CSTR needs 3.9× the volume of PFR")
print(" At 99% conversion: CSTR needs 21.5× the volume of PFR!")
Volume Ratio Interpretation:
At 50% conversion: CSTR needs 1.4× the volume of PFR
At 90% conversion: CSTR needs 3.9× the volume of PFR
At 99% conversion: CSTR needs 21.5× the volume of PFR!
Try It Yourself!#
Exercise 1: Second-Order Kinetics#
Modify the rate function for second-order kinetics: r = k·C_A². Compare CSTR vs PFR. Is the PFR advantage larger or smaller than for first-order?
# Your solution here
Exercise 2: CSTRs in Series#
How many equal-volume CSTRs in series does it take to approach PFR performance? (Hint: N CSTRs in series with total volume V_total each have volume V_total/N)
# Your solution here
End-of-Tutorial Problems#
Problem 1: PFR Sizing#
For 95% conversion of A in the reaction A → B with k = 0.1 /s and Q = 1 m³/s, what PFR volume is needed?
Problem 2: CSTR-PFR Combination#
You have a CSTR of 2 m³ and a PFR of 3 m³. Should you put CSTR first or PFR first to maximize conversion? (Assume first-order kinetics)
Problem 3: Selectivity#
For parallel reactions A → B (desired, r₁ = k₁C_A) and A → C (undesired, r₂ = k₂C_A²), which reactor type (CSTR or PFR) gives better selectivity to B? Why?
Key Takeaways#
PFR design equation: \(\frac{dF_i}{dV} = r_i\) (an ODE)
No back-mixing: Concentration varies along the tube
Higher conversion: PFR beats CSTR for positive-order kinetics
Volume advantage grows: PFR advantage increases at high conversions
Integration required: Use RK4 or similar for numerical solution
Next Steps#
In the next notebook (00g: Single Unit - Separators), we’ll explore:
Flash drums and vapor-liquid equilibrium
The Rachford-Rice equation
K-values and phase behavior
