Monoclonal Antibody (mAb) Process Optimization#
This notebook demonstrates an end-to-end mAb manufacturing process using difflow_bio unit operations, with gradient-based optimization of key process parameters.
Process Overview#
Fed-Batch Disc-Stack Protein A UF/DF
Bioreactor -> Centrifuge -> Capture -> Formulation
(Upstream) (Harvest) (Capture) (Final)
We will optimize:
Bioreactor feeding strategy
Chromatography load volume
Final formulation concentration
import jax
import jax.numpy as jnp
from jax import grad, value_and_grad
import matplotlib.pyplot as plt
import optax # JAX optimization library
jax.config.update("jax_enable_x64", True)
from difflow_bio import (
# Upstream
FedBatchBioreactor, FedBatchParams, monod_kinetics,
# Downstream
DiscStackCentrifuge, DiscStackParams,
ProteinAChromatography, ProteinAParams,
TFF,
)
from difflow import make_stream, get_flows
1. Define Process Units#
Set up each unit operation with realistic parameters for mAb production.
# ============================================================
# BIOREACTOR - Fed-batch CHO cell culture
# ============================================================
bioreactor_params = FedBatchParams(
V0=1000.0, # 1000 L initial volume
Y_xs=0.4, # Cell yield on glucose
kinetic_fn=monod_kinetics,
kinetic_params={
"mu_max": jnp.array(0.03), # CHO cells: ~0.03 h^-1
"K_s": jnp.array(0.1),
},
k_d=0.002, # Low death rate
alpha=0.05, # mAb is secreted during growth (q_p = alpha*mu)
beta=0.002, # Some constitutive secretion
)
bioreactor = FedBatchBioreactor(bioreactor_params)
# ============================================================
# CENTRIFUGE - Disc-stack for cell removal
# ============================================================
centrifuge_params = DiscStackParams(
n_discs=100,
r_outer=0.15,
r_inner=0.05,
rpm=7000,
efficiency=0.80,
cell_species="cells",
)
centrifuge = DiscStackCentrifuge(centrifuge_params)
# ============================================================
# PROTEIN A CHROMATOGRAPHY - Capture step
# ============================================================
# Fed-batch grows from 1000L to ~30,000L, producing ~50 kg mAb
# Column sized for 80% capacity utilization at max production:
# 50 kg / (40 g/L * 0.8) = 1562 L → use 1600 L column
proa_params = ProteinAParams(
column_volume=1600.0, # 1600 L column for fed-batch production
q_max=40.0, # 40 g/L binding capacity
K_d=0.05,
target_species="product",
yield_factor=0.92,
impurity_clearance={
"cells": 4.0,
"HCP": 2.5, # Host cell proteins
},
)
proa = ProteinAChromatography(proa_params)
# ============================================================
# TFF - Final concentration and formulation
# ============================================================
tff = TFF(
membrane_area=10.0, # 10 m^2
MWCO=30.0,
rejection={"product": 0.999, "excipient": 0.0},
)
print("Process units initialized.")
Process units initialized.
2. Define the End-to-End Process#
Create a function that runs the entire process and returns the final product mass.
def run_mab_process(params):
"""
Run complete mAb manufacturing process.
Args:
params: dict with optimization parameters:
- feed_rate_scale: Scaling factor for feed rate
- culture_time: Duration of cell culture (hours)
- proa_load_cycles: Number of chromatography cycles
- final_CF: Final concentration factor
Returns:
product_mass: Final mAb mass (g)
info: Dictionary with intermediate results
"""
feed_rate_scale = params['feed_rate_scale']
culture_time = params['culture_time']
final_CF = params['final_CF']
# ========== UPSTREAM: Fed-Batch Bioreactor ==========
def feed_rate(t):
"""Exponential feed profile."""
F0 = 5.0 * feed_rate_scale # L/h base rate
mu_set = 0.02 # Target growth rate
return F0 * jnp.exp(mu_set * t)
outlet_bio, info_bio = bioreactor(
X0=0.5, # Initial viable cell density (g/L)
S0=5.0, # Initial glucose (g/L)
P0=0.0, # No initial product
t_final=culture_time,
feed_rate_fn=feed_rate,
S_feed=400.0, # Concentrated glucose feed
n_steps=100,
)
# Convert bioreactor output to harvest stream
# Product is in g, need to add impurities
total_product = outlet_bio['F_product']
total_cells = outlet_bio['F_cells']
# Estimate HCP based on cell mass (typical: 10% of cell mass)
HCP = total_cells * 0.1
harvest = make_stream(
{
"cells": total_cells,
"product": total_product,
"HCP": HCP,
"substrate": outlet_bio['F_substrate'],
},
T=310.0, P=101325.0
)
# ========== HARVEST: Centrifugation ==========
# Total volume from bioreactor
harvest_volume = info_bio['V_final']
# Flow rate based on processing 8 hours
Q_cent = harvest_volume / (8.0 * 3600.0) # m^3/s
concentrate, clarified, info_cent = centrifuge(
harvest,
Q=Q_cent,
concentrate_fraction=0.05,
)
# ========== CAPTURE: Protein A ==========
# Load volume = clarified harvest volume
clarified_volume = harvest_volume * 0.95 # 95% goes to clarified
(proa_product, proa_waste), info_proa = proa(
clarified,
load_volume=clarified_volume,
feed_volume=clarified_volume,
)
# ========== FORMULATION: TFF ==========
# Concentrate to final formulation
(final_product, _), info_tff = tff.concentrate(
proa_product,
concentration_factor=final_CF,
)
# ========== Calculate Metrics ==========
final_product_mass = final_product['F_product']
info = {
'bioreactor': info_bio,
'centrifuge': info_cent,
'protein_a': info_proa,
'tff': info_tff,
'harvest_volume': harvest_volume,
'harvest_titer': total_product / harvest_volume, # g/L
'overall_yield': final_product_mass / total_product,
}
return final_product_mass, info
print("Process function defined.")
Process function defined.
3. Run Baseline Process#
# Baseline parameters
baseline_params = {
'feed_rate_scale': jnp.array(1.0),
'culture_time': jnp.array(240.0), # 10 days
'final_CF': jnp.array(10.0),
}
product_mass, info = run_mab_process(baseline_params)
print("Baseline Process Results:")
print("="*50)
print(f"\nUpstream (Bioreactor):")
print(f" Final volume: {float(info['harvest_volume']):.0f} L")
print(f" Harvest titer: {float(info['harvest_titer'])*1000:.2f} mg/L")
print(f" Cell concentration: {float(info['bioreactor']['X_final']):.2f} g/L")
print(f"\nDownstream:")
print(f" Centrifuge cell recovery: {float(info['centrifuge']['cell_recovery'])*100:.1f}%")
print(f" Protein A yield: {float(info['protein_a']['yield'])*100:.1f}%")
print(f" Protein A purity: {float(info['protein_a']['purity'])*100:.1f}%")
print(f"\nOverall:")
print(f" Final product mass: {float(product_mass):.1f} g")
print(f" Overall yield: {float(info['overall_yield'])*100:.1f}%")
Baseline Process Results:
==================================================
Upstream (Bioreactor):
Final volume: 31128 L
Harvest titer: 1651.53 mg/L
Cell concentration: 13.23 g/L
Downstream:
Centrifuge cell recovery: 4.5%
Protein A yield: 92.0%
Protein A purity: 0.4%
Overall:
Final product mass: 44827.3 g
Overall yield: 87.2%
4. Gradient-Based Optimization#
Since the entire process is differentiable, we can use gradient descent to optimize process parameters!
def objective(params):
"""Objective: maximize product mass (minimize negative)."""
product_mass, _ = run_mab_process(params)
return -product_mass # Negative for minimization
# Compute gradients
grad_fn = jax.grad(objective)
# Initial parameters
params = {
'feed_rate_scale': jnp.array(0.8),
'culture_time': jnp.array(200.0),
'final_CF': jnp.array(8.0),
}
# Compute gradient at initial point
grads = grad_fn(params)
print("Gradients at initial point:")
for key, g in grads.items():
print(f" d(product)/d({key}): {float(g):.6f}")
Gradients at initial point:
d(product)/d(culture_time): -409.785257
d(product)/d(feed_rate_scale): -72.982951
d(product)/d(final_CF): 1.823253
# Optimization using optax.adam for better convergence
def optimize_process(initial_params, n_iters=50, learning_rate=0.1):
"""Optimize process parameters using Adam optimizer from optax."""
params = {k: v.copy() for k, v in initial_params.items()}
# Define parameter bounds
bounds = {
'feed_rate_scale': (0.5, 2.0),
'culture_time': (168.0, 336.0), # 7-14 days
'final_CF': (5.0, 20.0),
}
# Scale factors for different parameters (helps optimizer treat them equally)
scale_factors = {
'feed_rate_scale': 0.1,
'culture_time': 10.0,
'final_CF': 0.5,
}
# Create optimizer with gradient clipping for stability
optimizer = optax.chain(
optax.clip_by_global_norm(10.0), # Prevent gradient explosions
optax.adam(learning_rate=learning_rate),
)
opt_state = optimizer.init(params)
history = {
'product_mass': [],
'feed_rate_scale': [],
'culture_time': [],
'final_CF': [],
}
for i in range(n_iters):
# Compute value and gradient
loss, grads = value_and_grad(objective)(params)
# Scale gradients for better optimization dynamics
scaled_grads = {k: g * scale_factors[k] for k, g in grads.items()}
# Get updates from optimizer
updates, opt_state = optimizer.update(scaled_grads, opt_state, params)
# Apply updates
params = optax.apply_updates(params, updates)
# Clip parameters to bounds
params = {k: jnp.clip(v, bounds[k][0], bounds[k][1])
for k, v in params.items()}
# Record history
history['product_mass'].append(-float(loss))
history['feed_rate_scale'].append(float(params['feed_rate_scale']))
history['culture_time'].append(float(params['culture_time']))
history['final_CF'].append(float(params['final_CF']))
if i % 10 == 0:
print(f"Iter {i:3d}: product = {-loss:.2f} g")
return params, history
# Run optimization
initial_params = {
'feed_rate_scale': jnp.array(0.8),
'culture_time': jnp.array(200.0),
'final_CF': jnp.array(8.0),
}
print("Optimizing process with optax.adam...\n")
optimized_params, history = optimize_process(initial_params, n_iters=50)
Optimizing process with optax.adam...
Iter 0: product = 14586.03 g
Iter 10: product = 15039.62 g
Iter 20: product = 15475.74 g
Iter 30: product = 15919.42 g
Iter 40: product = 16372.87 g

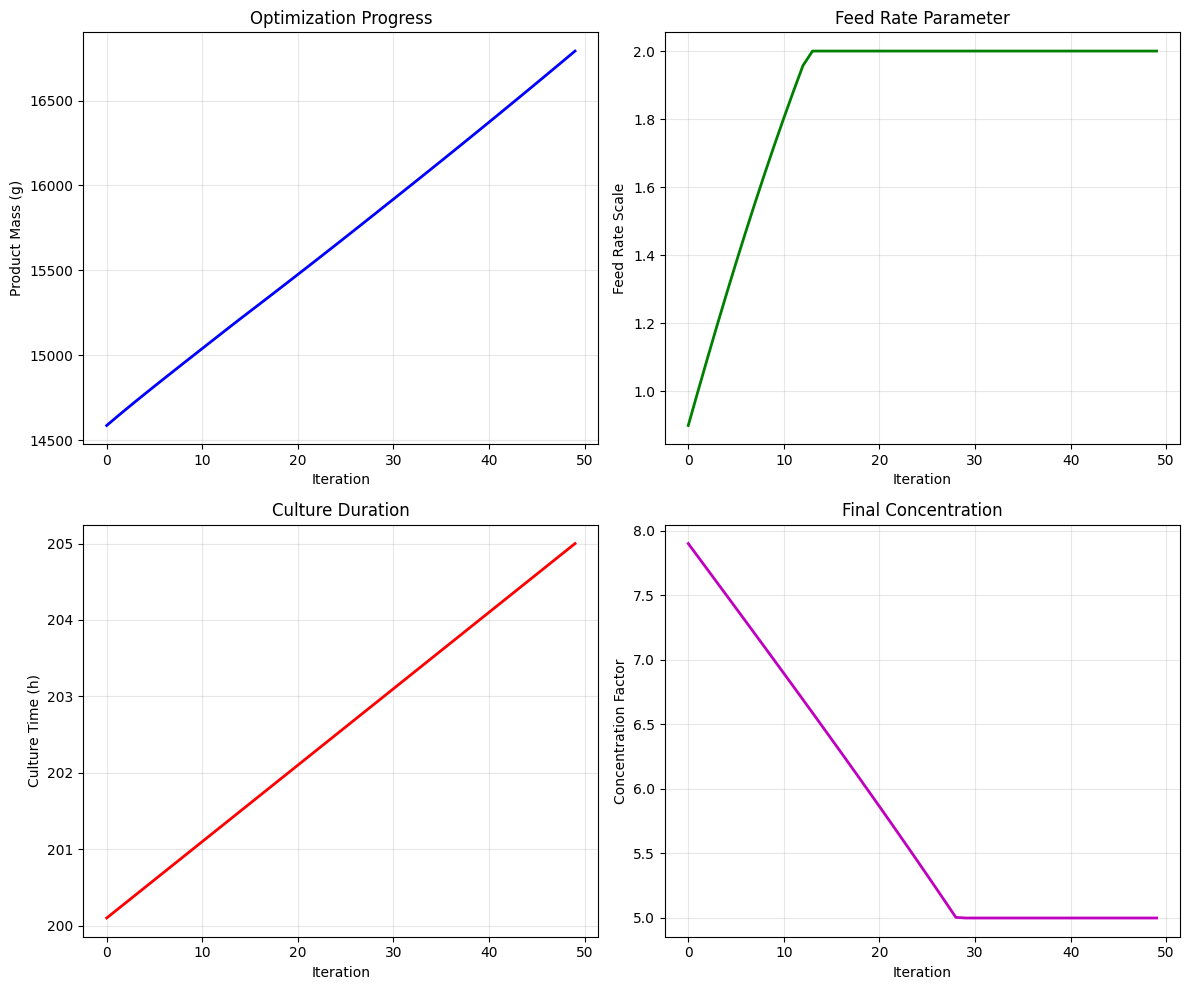

# Plot optimization progress
fig, axes = plt.subplots(2, 2, figsize=(12, 10))
axes[0, 0].plot(history['product_mass'], 'b-', linewidth=2)
axes[0, 0].set_xlabel('Iteration')
axes[0, 0].set_ylabel('Product Mass (g)')
axes[0, 0].set_title('Optimization Progress')
axes[0, 0].grid(True, alpha=0.3)
axes[0, 1].plot(history['feed_rate_scale'], 'g-', linewidth=2)
axes[0, 1].set_xlabel('Iteration')
axes[0, 1].set_ylabel('Feed Rate Scale')
axes[0, 1].set_title('Feed Rate Parameter')
axes[0, 1].grid(True, alpha=0.3)
axes[1, 0].plot(history['culture_time'], 'r-', linewidth=2)
axes[1, 0].set_xlabel('Iteration')
axes[1, 0].set_ylabel('Culture Time (h)')
axes[1, 0].set_title('Culture Duration')
axes[1, 0].grid(True, alpha=0.3)
axes[1, 1].plot(history['final_CF'], 'm-', linewidth=2)
axes[1, 1].set_xlabel('Iteration')
axes[1, 1].set_ylabel('Concentration Factor')
axes[1, 1].set_title('Final Concentration')
axes[1, 1].grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
# Compare initial vs optimized
print("\n" + "="*60)
print("OPTIMIZATION RESULTS")
print("="*60)
initial_product, _ = run_mab_process(initial_params)
optimized_product, opt_info = run_mab_process(optimized_params)
print(f"\nInitial parameters:")
print(f" Feed rate scale: {float(initial_params['feed_rate_scale']):.2f}")
print(f" Culture time: {float(initial_params['culture_time']):.1f} h ({float(initial_params['culture_time'])/24:.1f} days)")
print(f" Final CF: {float(initial_params['final_CF']):.1f}")
print(f" -> Product: {float(initial_product):.1f} g")
print(f"\nOptimized parameters:")
print(f" Feed rate scale: {float(optimized_params['feed_rate_scale']):.2f}")
print(f" Culture time: {float(optimized_params['culture_time']):.1f} h ({float(optimized_params['culture_time'])/24:.1f} days)")
print(f" Final CF: {float(optimized_params['final_CF']):.1f}")
print(f" -> Product: {float(optimized_product):.1f} g")
improvement = (float(optimized_product) - float(initial_product)) / float(initial_product) * 100
print(f"\nImprovement: {improvement:.1f}%")
============================================================
OPTIMIZATION RESULTS
============================================================
Initial parameters:
Feed rate scale: 0.80
Culture time: 200.0 h (8.3 days)
Final CF: 8.0
-> Product: 14586.0 g
Optimized parameters:
Feed rate scale: 2.00
Culture time: 205.0 h (8.5 days)
Final CF: 5.0
-> Product: 16839.2 g
Improvement: 15.4%
5. Sensitivity Analysis#
Use gradients to understand which parameters most affect product output.
# Compute sensitivities at optimized point
grads_opt = grad_fn(optimized_params)
# Normalize by parameter scale for comparison
sensitivities = {
'feed_rate_scale': -float(grads_opt['feed_rate_scale']) * float(optimized_params['feed_rate_scale']),
'culture_time': -float(grads_opt['culture_time']) * float(optimized_params['culture_time']),
'final_CF': -float(grads_opt['final_CF']) * float(optimized_params['final_CF']),
}

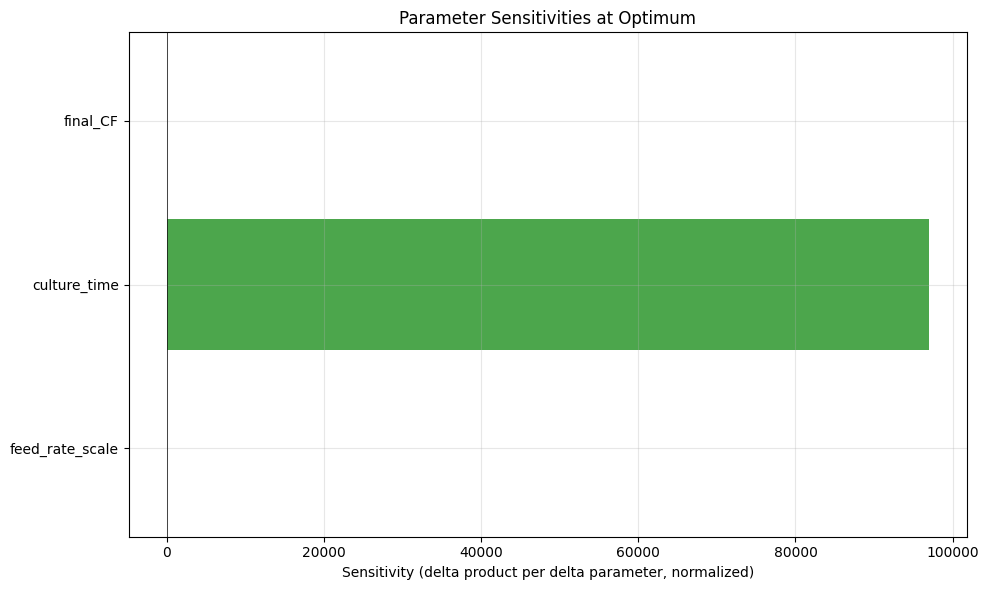

# Plot sensitivities
plt.figure(figsize=(10, 6))
params_list = list(sensitivities.keys())
values = [sensitivities[p] for p in params_list]
colors = ['green' if v > 0 else 'red' for v in values]
plt.barh(params_list, values, color=colors, alpha=0.7)
plt.xlabel('Sensitivity (delta product per delta parameter, normalized)')
plt.title('Parameter Sensitivities at Optimum')
plt.axvline(x=0, color='k', linestyle='-', linewidth=0.5)
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
print("\nInterpretation:")
print(" Positive sensitivity -> increasing parameter increases product")
print(" At optimum, most sensitivities should be near zero (at bounds) or balanced")
Interpretation:
Positive sensitivity -> increasing parameter increases product
At optimum, most sensitivities should be near zero (at bounds) or balanced
6. Summary#
This example demonstrated:
End-to-end process modeling using difflow_bio unit operations
Automatic differentiation through the entire manufacturing process
Gradient-based optimization of process parameters
Sensitivity analysis using computed gradients
Key advantages of differentiable process models:
Fast optimization without finite differences
Exact gradients for sensitivity analysis
Integration with ML/optimization frameworks (JAX, Optax, etc.)
Foundation for process control and digital twins
