Centrifugal Pump: Curves, Operating Point, Affinity Laws and NPSH#
CentrifugalPump and operating_point answer what flow will this pump deliver into this system? This notebook
fits a head curve to (illustrative) vendor data and finds the operating point of a tank-to-tank transfer,
applies the affinity laws (VFD speed, impeller trim) and shows when flow does and does not scale with speed,
combines pumps in series and parallel,
checks NPSH margin for cold and hot water, and
picks the pipe diameter for a fixed duty by gradient-based optimisation of piping, pump capital and electricity cost.
Data caveat. The vendor points below are illustrative, not a published datasheet; the pipe cost in section 5 is a placeholder, not a cited correlation. The operating-point solver is verified against an independent scipy calculation in tests/test_pump.py.
import jax, jax.numpy as jnp, numpy as np
import matplotlib.pyplot as plt
from difflow.units.pump import PumpCurve
from difflow import (CentrifugalPump, CentrifugalPumpParams, Pipe, PipeParams, make_stream,
fit_pump_curve, operating_point, system_curve, pumps_in_series, pumps_in_parallel)
RHO, MU, MW = 998.2, 1.002e-3, 18.015 # water, 20 C
D4 = 4.026 * 0.0254 # 4-in Sch 40 inside diameter, m
Q_data = np.array([0, 5, 10, 15, 20, 25]) * 1e-3 # m^3/s (illustrative vendor data)
H_data = np.array([40.0, 39.6, 37.9, 35.6, 31.8, 27.7]) # m at 1750 rpm
h = fit_pump_curve(Q_data, H_data, order=2)
print('head coefficients h0, h1, h2 =', np.asarray(h))
pump = CentrifugalPump(CentrifugalPumpParams(
head_coeffs=h, rho=RHO, eta_max=0.72, Q_bep=20e-3, npshr_coeffs=[1.5, 0.0, 2.5e3],
N_ref=1750.0, D_ref=0.25, MW=MW))
def line(D=D4, L=400.0, **kw):
return Pipe(PipeParams(L=L, D=D, rho=RHO, mu=MU, MW=MW, fittings=5.3, **kw)) # K = 5.3 total fittings
head coefficients h0, h1, h2 = [ 4.00607143e+01 -1.79285714e+01 -1.92142857e+04]

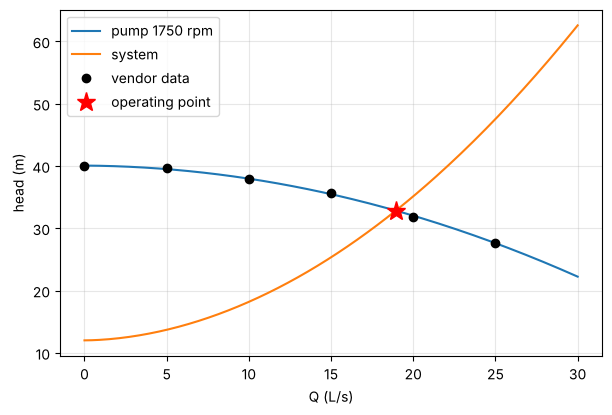

1. Operating point of a transfer pump#
12 m static lift through 400 m of 4-in Sch 40 steel pipe with fittings (total K = 5.3). operating_point solves \(H_\mathrm{pump}(Q)=H_\mathrm{sys}(Q)\).
sysc = system_curve(12.0, line())
Q_star, op = operating_point(pump, sysc, return_info=True)
print(f"Q* = {float(Q_star)*1e3:.2f} L/s, H = {float(op['head']):.2f} m, eta = {float(op['efficiency']):.3f}, shaft = {float(op['shaft_power'])/1e3:.2f} kW")
Q = jnp.linspace(0.0, 0.03, 200)
fig, ax = plt.subplots(figsize=(7, 4.5))
ax.plot(Q*1e3, pump.curve.head(Q), label='pump 1750 rpm')
ax.plot(Q*1e3, jax.vmap(sysc.head)(Q), label='system')
ax.plot(Q_data*1e3, H_data, 'ko', label='vendor data')
ax.plot(float(Q_star)*1e3, float(op['head']), 'r*', ms=14, label='operating point')
ax.set_xlabel('Q (L/s)'); ax.set_ylabel('head (m)'); ax.legend(); ax.grid(alpha=.3)
plt.show()
Q* = 18.94 L/s, H = 32.83 m, eta = 0.718, shaft = 8.48 kW
The unit itself, run at that flow, gives the same head and a discharge pressure:
inlet = make_stream({'W': float(Q_star) * RHO / (MW * 1e-3)}, 293.15, 1.0e5)
outlet, info = pump(inlet)
print('P_out =', float(outlet['P'])/1e5, 'bar')
print({k: round(float(v), 4) for k, v in info.items()})
P_out = 4.213607096961 bar
{'Q': 0.0189, 'head': 32.8288, 'dP': 321360.7097, 'efficiency': 0.718, 'hydraulic_power': 6086.4706, 'shaft_power': 8477.2582, 'electric_power': 8477.2582}

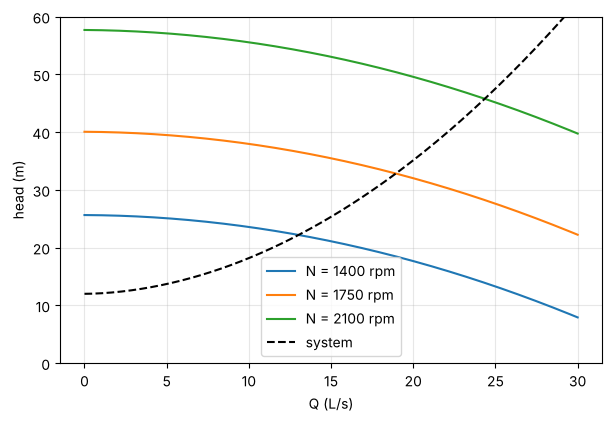

2. Affinity laws#
Doubling the speed doubles the flow only for a pure-friction system. With a static lift the system curve does not scale and the flow does not follow the speed.
def ratio(system, s=1.2):
return float(operating_point(PumpCurve(h, speed_ratio=s), system) / operating_point(PumpCurve(h), system))
fully_rough = system_curve(0.0, line(roughness=0.05 * D4))
print('no static head, fully rough pipe : Q2/Q1 =', round(ratio(fully_rough), 4), ' (N ratio 1.2)')
print('no static head, smooth-ish pipe : Q2/Q1 =', round(ratio(system_curve(0.0, line())), 4))
print('12 m static head : Q2/Q1 =', round(ratio(sysc), 4))
fig, ax = plt.subplots(figsize=(7, 4.5))
for s in (0.8, 1.0, 1.2):
ax.plot(Q*1e3, PumpCurve(h, speed_ratio=s).head(Q), label=f'N = {s*1750:.0f} rpm')
ax.plot(Q*1e3, jax.vmap(sysc.head)(Q), 'k--', label='system')
ax.set_ylim(0, 60); ax.set_xlabel('Q (L/s)'); ax.set_ylabel('head (m)'); ax.legend(); ax.grid(alpha=.3); plt.show()
no static head, fully rough pipe : Q2/Q1 = 1.2002 (N ratio 1.2)
no static head, smooth-ish pipe : Q2/Q1 = 1.2058
12 m static head : Q2/Q1 = 1.2856
3. Series and parallel#
Series adds heads at equal flow, parallel adds flows at equal head. Neither doubles the flow into a system with friction and a static lift.
a = PumpCurve(h)
Q1 = float(operating_point(a, sysc))
Qs = float(operating_point(pumps_in_series(a, a), sysc))
Qp = float(operating_point(pumps_in_parallel(a, a), sysc))
print(f'single {Q1*1e3:.2f} L/s | series {Qs*1e3:.2f} L/s | parallel {Qp*1e3:.2f} L/s')
fig, ax = plt.subplots(figsize=(7, 4.5))
ax.plot(Q*1e3, a.head(Q), label='one pump')
ax.plot(Q*1e3, jax.vmap(pumps_in_series(a, a).head)(Q), label='two in series')
ax.plot(Q*1e3, jax.vmap(pumps_in_parallel(a, a).head)(Q), label='two in parallel')
ax.plot(Q*1e3, jax.vmap(sysc.head)(Q), 'k--', label='system')
ax.set_ylim(0, 90); ax.set_xlabel('Q (L/s)'); ax.set_ylabel('head (m)'); ax.legend(); ax.grid(alpha=.3); plt.show()
single 18.94 L/s | series 26.58 L/s | parallel 21.14 L/s
4. NPSH margin#
Cold water has ample margin; 95 C water drawn from an open tank is close to its bubble point (steam-table \(P_\mathrm{sat}\) = 84.55 kPa, \(\rho\) = 961.9 kg/m3) and NPSHa falls below NPSHr.
def margin(Psat, rho, T, q=0.02):
p = CentrifugalPump(CentrifugalPumpParams(head_coeffs=h, rho=rho, eta_max=0.72, Q_bep=20e-3,
npshr_coeffs=[1.5, 0.0, 2.5e3], N_ref=1750.0, D_ref=0.25, MW=MW, Psat=Psat))
s = make_stream({'W': q * rho / (MW * 1e-3)}, T, 101325.0)
return {k: round(float(v), 2) for k, v in p(s)[1].items() if k.startswith('NPSH') or k == 'npsh_margin'}
print('20 C:', margin(2339.0, 998.2, 293.15))
print('95 C:', margin(84550.0, 961.9, 368.15))
20 C: {'NPSHa': 10.11, 'NPSHr': 2.5, 'npsh_margin': 7.61}
95 C: {'NPSHa': 1.78, 'NPSHr': 2.5, 'npsh_margin': -0.72}
5. Economic pipe diameter with a VFD-speed constraint#
Fixed duty 15 L/s. For each pipe diameter the pump speed is set (VFD) so that the operating point is the duty; the annualised cost is piping + pump capital (pump_cost, 20 %/yr charge) + electricity (pump_electricity_cost, 8000 h/yr). A small pipe is cheap but needs a fast, power-hungry pump; a large one is the reverse. Because operating_point and the speed solve are differentiable, Newton on \(\ln D\) uses exact derivatives.
Cost data. The $/m piping cost 12 (D/in)^1.1 L per year is an illustrative placeholder. Pump capital and electricity use the library’s correlations (pump_cost is intended for the library’s stated kW range; electricity uses its default utility prices).
import optimistix as optx
from difflow.economics import pump_cost, pump_electricity_cost
Q_DUTY, ETA_C, L = 0.015, [0, 90.0, -2e3], 400.0 # efficiency curve of the pump (illustrative)
def speed_for_duty(D):
sy = system_curve(12.0, line(D=D))
f = lambda s, _: PumpCurve(h, speed_ratio=s).head(Q_DUTY) - sy.head(Q_DUTY)
return optx.root_find(f, optx.Newton(rtol=1e-12, atol=1e-10), jnp.asarray(1.0)).value
def annual_cost(logD):
D = jnp.exp(logD)
cv = PumpCurve(h, ETA_C, speed_ratio=speed_for_duty(D))
H, eta = cv.head(Q_DUTY), cv.efficiency(Q_DUTY)
kW = cv.shaft_power(Q_DUTY, RHO) / 1e3
piping = 12.0 * (D / 0.0254) ** 1.1 * L
return piping + 0.2 * pump_cost(kW) + 8000 * 3600 * pump_electricity_cost(Q_DUTY, H, eta)
g = jax.jit(jax.grad(annual_cost)); hh = jax.jit(jax.grad(jax.grad(annual_cost)))
x = jnp.log(0.12)
for _ in range(12):
x = x - g(x) / hh(x)
D_opt = float(jnp.exp(x))
print(f'optimal D = {D_opt*1000:.1f} mm, speed = {float(speed_for_duty(D_opt))*1750:.0f} rpm, '
f'cost = {float(annual_cost(x)):.0f} $/yr, |grad| = {abs(float(g(x))):.2e}')
Ds = np.linspace(0.06, 0.25, 40)
plt.plot(Ds*1000, [float(annual_cost(jnp.log(d))) for d in Ds]); plt.axvline(D_opt*1000, color='r', ls='--')
plt.xlabel('pipe diameter (mm)'); plt.ylabel('annualised cost ($/yr)'); plt.grid(alpha=.3); plt.show()
optimal D = 85.7 mm, speed = 1930 rpm, cost = 23757 $/yr, |grad| = 3.06e-13
# Sensitivity of the operating point to the design variables (implicit-function-theorem gradients)
def Qstar(x):
sD, sN, sP = x
return operating_point(PumpCurve(h, speed_ratio=sN, diameter_ratio=sD), system_curve(12.0, line(D=D4 * sP)))
print('dQ*/d[D_imp, N, D_pipe] (m^3/s per unit relative change):', np.asarray(jax.grad(Qstar)(jnp.ones(3))))
dQ*/d[D_imp, N, D_pipe] (m^3/s per unit relative change): [0.02794766 0.02794766 0.03630189]
