A model fitted to data is often used inside an optimization problem: find the operating conditions that maximize a predicted yield, the composition that minimizes a predicted cost, or the next experiment to run. If the model is a black box, you are left with local optimizers and multiple restarts, with no guarantee you found the best answer.

Many models in pycse.sklearn are piecewise linear once they are trained: networks built from affine maps and ReLUs, KANs with linear splines, and regression trees with linear leaves. A piecewise-linear function can be written exactly as a set of mixed-integer linear constraints, so the trained model becomes part of a mixed-integer program (MIP). A MIP solver then finds the global optimum of the model, with a certificate, and the model can be combined with any other constraints you have.

to_pyomo() does this for you. It builds a Pyomo block with variables x (the model inputs) and y (the predictions), and, for models with uncertainty, the predictive variance. This notebook walks through every model that supports it:

Model	Requirement	Export	Exports std
`DPOSE`	`activation=nn.relu` (default)	exact MILP	yes
`LLPRRegressor`	`activation="relu"`	exact MILP	yes
`NNBR`	`MLPRegressor(activation="relu")`	exact MILP	yes
`KfoldNN`	`activation="relu"`	exact MILP	yes
`JAXICNNRegressor`	`activation="relu"`, `strong_convexity_mu=0`	exact MILP, or LP	no
`JAXMonotonicRegressor`	`activation="relu"`	exact MILP (LP if convex)	yes
`KAN`	`spline_order=1, base_activation="linear"`	exact MILP	with `n_ensemble > 1`
`KANLLPR`	`spline_order=1, base_activation="linear"`	exact MILP	yes
`LeafModelRegressor`	a linear `leaf_model`	exact MILP	no
`LinearRegressionUQ`	none	exact LP	yes
`JAXPeriodicRegressor`	`activation="relu"`	approximate MILP (error bound)	yes
`SISSO`, `SISSOEnsemble`	none	exact nonlinear (MINLP)	yes

You need pip install "pycse[mip]", which installs Pyomo and the open-source HiGHS MILP solver. The sections on uncertainty and on SISSO also use Gurobi; pip install gurobipy includes a free license for small models like these.

import contextlib
import io
import time
import warnings

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pyomo.environ as pyo

warnings.filterwarnings("ignore")

HIGHS = pyo.SolverFactory("highs")
GUROBI = pyo.SolverFactory("gurobi_direct")
HAVE_GUROBI = GUROBI.available(exception_flag=False)
HAVE_GUROBI_MINLP = pyo.SolverFactory("gurobi_direct_minlp").available(exception_flag=False)
QUIET = contextlib.redirect_stdout  # some models print progress while fitting
print("HiGHS:", HIGHS.available(exception_flag=False), " Gurobi:", HAVE_GUROBI)

HiGHS: True  Gurobi: True

A test problem with many local minima#

We use a two-dimensional function with several local minima on the box \([-2, 2]^2\), and fit models to 150 noisy samples of it. For every model we compare the MIP optimum with a brute-force search on a fine grid. The grid search is only possible because the problem is two-dimensional; the MIP approach does not need it.

def f(X):
    X = np.atleast_2d(X)
    return 0.25 * (X[:, 0] ** 2 + X[:, 1] ** 2) + np.sin(3 * X[:, 0]) + np.cos(2 * X[:, 1])


BOUNDS = [(-2.0, 2.0), (-2.0, 2.0)]
rng = np.random.default_rng(42)
X = rng.uniform(-2, 2, size=(150, 2))
y = f(X) + 0.05 * rng.normal(size=len(X))

g = np.linspace(-2, 2, 301)
G1, G2 = np.meshgrid(g, g)
GRID = np.column_stack([G1.ravel(), G2.ravel()])


def grid_min(predict):
    # Brute-force minimum of a model on the 301 x 301 grid.
    values = predict(GRID)
    k = np.argmin(values)
    return values[k], GRID[k]


def show(predict, title, points=None, ax=None):
    # Contour plot of a model with optional marked points {label: x}.
    ax = ax or plt.gca()
    cs = ax.contourf(G1, G2, predict(GRID).reshape(G1.shape), levels=30, cmap="viridis")
    for (label, p), marker in zip((points or {}).items(), ["*", "o", "s", "^", "D"]):
        ax.plot(*p, marker, ms=14, mec="w", mfc="r", label=label)
    if points:
        ax.legend(loc="lower right", fontsize=8)
    ax.set_title(title)
    ax.set_aspect("equal")
    return cs


plt.figure(figsize=(5, 4.2))
plt.colorbar(show(f, "f(x)"))
plt.plot(X[:, 0], X[:, 1], "k.", ms=3)
plt.tight_layout()

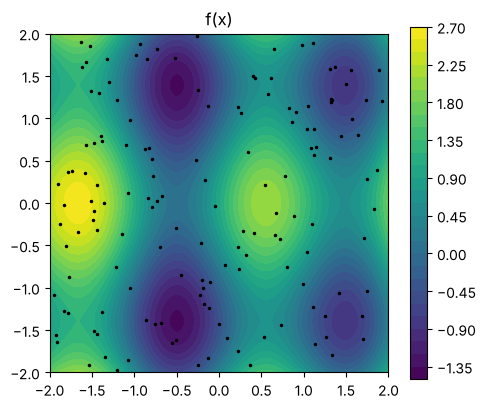

../_images/76edcc74bad8d8d5606cbfa85328edd19e0a33074eae40e51a85b8fdcf558696.png

The basic workflow, with DPOSE#

DPOSE is a shallow ensemble network: one hidden network with an output layer of ensemble members. Its default activation is ReLU, so it can be exported as is.

to_pyomo(input_bounds=...) returns a Pyomo model. The input bounds are required: the MIP encoding of each ReLU needs a finite range for its input (the big-M constants), and pycse propagates the input bounds through the network to compute them. Tighter bounds give smaller constants and faster solves.

from pycse.sklearn import DPOSE

dpose = DPOSE(layers=(2, 32, 16)).fit(X, y, maxiter=1000)

m = dpose.to_pyomo(input_bounds=BOUNDS)
n_binary = sum(1 for v in m.component_data_objects(pyo.Var) if v.is_binary())
print(f"{n_binary} binary variables, {m.nconstraints()} constraints")

m.obj = pyo.Objective(expr=m.y[0], sense=pyo.minimize)
result = HIGHS.solve(m)
x_mip = np.array([pyo.value(m.x[i]) for i in range(2)])
print(result.solver.termination_condition, "at x =", x_mip.round(4), "y =", round(pyo.value(m.y[0]), 4))

y_grid, x_grid = grid_min(dpose.predict)
print("grid search:          x =", x_grid.round(4), "y =", round(y_grid, 4))
print("model at the MIP x:   y =", round(float(dpose.predict(x_mip[None, :])[0]), 4))

30 binary variables, 157 constraints

optimal at x = [-0.5129  1.2494] y = -1.7826

grid search:          x = [-0.52    1.2533] y = -1.78

model at the MIP x:   y = -1.7826

The MIP optimum is at least as good as the best grid point, and evaluating the model at the MIP solution gives the same value: the MIP is an exact copy of the trained network. Fewer binaries are needed than there are hidden units, because the bound propagation finds units that are always on or always off over the box.

The block holds:

m.x[i]: the inputs, with the bounds you gave;
m.y[j]: the predictions;
m.z0, m.z1, …: the outputs of each layer, and *_on binaries for the ReLUs;
m.variance[j]: the predictive variance, for models with uncertainty (see below).

model.mip_network() returns the same network as numpy arrays (a pycse.sklearn.mip.MIPNetwork) if you want to inspect it or use another modeling tool.

net = dpose.mip_network()
for layer in net.layers:
    shape = f" W {layer.W.shape}" if hasattr(layer, "W") else ""
    print(f"{type(layer).__name__}{shape}")

plt.figure(figsize=(5, 4.2))
plt.colorbar(show(dpose.predict, "DPOSE prediction", {"MIP optimum": x_mip}))
plt.tight_layout()

Affine W (2, 32)
ReLU
Affine W (32, 16)
Affine W (16, 1)

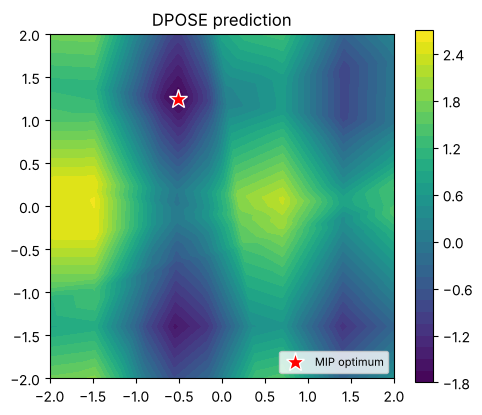

../_images/7f5f2cb52490037b589bb005c7702d05cf6998bcc134ab41e72eaaf7b6d94dc0.png

Embedding the model in your own optimization problem#

The real value is combining the model with other constraints and objectives. Pass block= to build into a block of your own model and inputs= to use your own decision variables as the model inputs; their bounds are used if you do not give input_bounds.

Here the inputs must satisfy a linear constraint, and the objective adds a cost on \(x_1\):

model = pyo.ConcreteModel()
model.a = pyo.Var(bounds=(-2, 2))
model.b = pyo.Var(bounds=(-2, 2))
model.budget = pyo.Constraint(expr=model.a + model.b >= 1.0)

model.surrogate = pyo.Block()
dpose.to_pyomo(block=model.surrogate, inputs=[model.a, model.b])

model.obj = pyo.Objective(expr=model.surrogate.y[0] + 0.3 * model.a)
HIGHS.solve(model)
print(f"a = {model.a.value:.4f}, b = {model.b.value:.4f}, objective = {pyo.value(model.obj):.4f}")

feasible = GRID[:, 0] + GRID[:, 1] >= 1.0
obj = dpose.predict(GRID) + 0.3 * GRID[:, 0]
print(f"grid search over the feasible points: {obj[feasible].min():.4f}")

a = -0.4940, b = 1.4940, objective = -1.6779

grid search over the feasible points: -1.6779

Optimizing with uncertainty#

Models with uncertainty export their predictive variance as block.variance[j]. For all of them the std has the form \(\sigma(x) = \sqrt{\lVert A z(x) + c \rVert^2 + d}\), where \(z\) is a layer of the network (the ensemble members for DPOSE and KfoldNN, the last-layer features for the LLPR models). This is a second-order cone, which modern MIP solvers handle. to_pyomo(include_std=...) adds a variable block.std[j]:

include_std=True (or "cone") adds the convex constraint \(\text{std} \ge \sigma(x)\). It is exact whenever the objective penalizes the std, as in robust design: minimize \(\mu(x) + k\,\sigma(x)\).
include_std="exact" adds \(\text{std}^2 = \sigma(x)^2\), a nonconvex quadratic. Use it when the objective rewards the std, as in exploration for active learning: minimize \(\mu(x) - k\,\sigma(x)\) (a lower confidence bound).

HiGHS does not handle quadratic constraints, so these use Gurobi.

def solve_with_std(model, k, mode):
    m = model.to_pyomo(input_bounds=BOUNDS, include_std=mode)
    m.obj = pyo.Objective(expr=m.y[0] + k * m.std[0])
    t = time.time()
    GUROBI.solve(m)
    x = np.array([pyo.value(m.x[i]) for i in range(2)])
    return x, pyo.value(m.obj), time.time() - t


if HAVE_GUROBI:
    rows, points = [], {}
    for label, k, mode in [("mean", 0.0, "cone"), ("robust: mean + 2 std", 2.0, "cone"),
                           ("explore: mean - 2 std", -2.0, "exact")]:
        x_opt, value, seconds = solve_with_std(dpose, k, mode)
        mu, sd = dpose.predict(GRID, return_std=True)
        grid_value = (mu + k * sd).min()
        mu_x, sd_x = dpose.predict(x_opt[None, :], return_std=True)
        rows.append([label, *x_opt, mu_x[0], sd_x[0], value, grid_value, seconds])
        points[label] = x_opt
    table = pd.DataFrame(rows, columns=["objective", "x1", "x2", "mean at x", "std at x",
                                        "MIP objective", "grid objective", "seconds"])
    formats = {col: "{:.4f}" for col in table.columns[1:-1]}
    display(table.style.format({**formats, "seconds": "{:.2f}"}))

    fig, axs = plt.subplots(1, 2, figsize=(10, 4.2))
    mu, sd = dpose.predict(GRID, return_std=True)
    show(dpose.predict, "DPOSE mean", points, ax=axs[0])
    plt.colorbar(show(lambda Z: dpose.predict(Z, return_std=True)[1], "DPOSE std", ax=axs[1]))
    axs[1].plot(X[:, 0], X[:, 1], "w.", ms=3)
    plt.tight_layout()
else:
    print("Gurobi is not installed: pip install gurobipy")

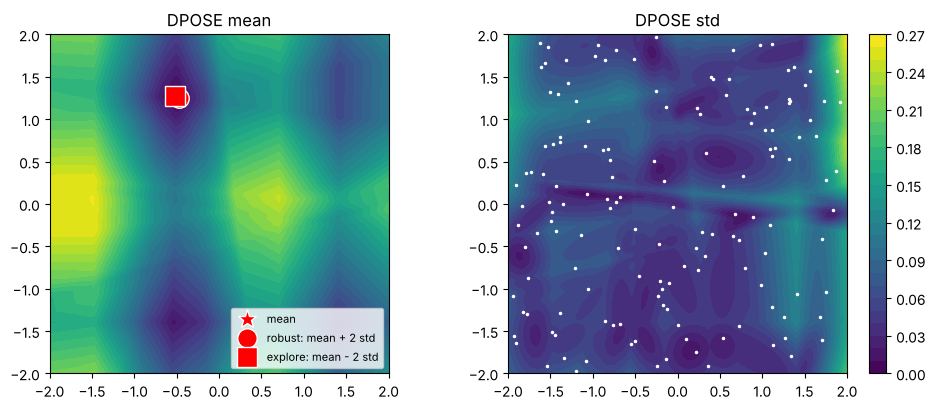

	objective	x1	x2	mean at x	std at x	MIP objective	grid objective	seconds
0	mean	-0.5129	1.2494	-1.7826	0.1024	-1.7826	-1.7800	0.36
1	robust: mean + 2 std	-0.4783	1.2453	-1.7693	0.0932	-1.5830	-1.5792	0.21
2	explore: mean - 2 std	-0.5193	1.2766	-1.7769	0.1076	-1.9923	-1.9900	4.21

../_images/0eaecda0c2e40611d61f6e695b792227d3c09769bc066b65c9eb5d23755a01a8.png

In each row the MIP objective is at or below the best grid point. Penalizing the std (robust) trades a little of the mean for a smaller std, and rewarding it (explore) trades a little of the mean for a larger one; compare the mean at x and std at x columns. How far the optimum moves depends on how much the std varies near the minimum of the mean, which the right-hand plot shows.

A tour of the exportable models#

Every model in the table at the top exports the same way. Here we fit each one to the same data, export it, and find its global minimum with HiGHS. The table reports the size of each MIP and checks the optimum against the grid search on the same model.

from flax import linen as nn
from sklearn.linear_model import BayesianRidge, LinearRegression
from sklearn.neural_network import MLPRegressor
from sklearn.pipeline import make_pipeline
from sklearn.preprocessing import StandardScaler

from pycse.sklearn import (
    KAN, KANLLPR, NNBR, KfoldNN, LeafModelRegressor, LLPRRegressor,
)

with QUIET(io.StringIO()):
    models = {
        "DPOSE": dpose,
        "LLPRRegressor": LLPRRegressor(hidden_dims=(32, 32), activation="relu", n_epochs=300).fit(X, y),
        "NNBR": NNBR(MLPRegressor(hidden_layer_sizes=(32, 32), activation="relu", max_iter=3000, random_state=0),
                     BayesianRidge()).fit(X, y),
        "KfoldNN": KfoldNN((32, 16), xtrain=0.5, activation="relu").fit(X, y, maxiter=1000),
        "KAN": KAN(layers=(2, 4, 1), grid_size=10, spline_order=1,
                   base_activation="linear").fit(X, y, maxiter=1000),
        "KANLLPR": KANLLPR(layers=(2, 4, 1), grid_size=10, spline_order=1,
                           base_activation="linear").fit(X, y, maxiter=1000),
        "LeafModelRegressor": LeafModelRegressor(
            make_pipeline(StandardScaler(), LinearRegression()), min_samples_leaf=6).fit(X, y),
    }
# Points exactly on a tree split are ambiguous in a MIP; split_gap resolves it (see below).
OPTIONS = {"LeafModelRegressor": {"split_gap": 1e-4}}


def benchmark(name, model, **options):
    t = time.time()
    m = model.to_pyomo(input_bounds=BOUNDS, **options)
    build = time.time() - t
    m.obj = pyo.Objective(expr=m.y[0])
    t = time.time()
    HIGHS.solve(m)
    solve = time.time() - t
    x = np.array([[pyo.value(m.x[i]) for i in range(2)]])
    y_mip = pyo.value(m.y[0])
    return {
        "model": name,
        "binaries": sum(1 for v in m.component_data_objects(pyo.Var) if v.is_binary()),
        "constraints": m.nconstraints(),
        "build s": build,
        "solve s": solve,
        "MIP min": y_mip,
        "grid min": float(grid_min(model.predict)[0]),
        "|MIP - predict(x*)|": float(abs(y_mip - np.ravel(model.predict(x))[0])),
        "test RMSE": float(np.sqrt(np.mean((model.predict(GRID) - f(GRID)) ** 2))),
    }


tour = pd.DataFrame(
    [benchmark(name, model, **OPTIONS.get(name, {})) for name, model in models.items()]
)
tour.style.format({"build s": "{:.2f}", "solve s": "{:.2f}", "MIP min": "{:.4f}",
                   "grid min": "{:.4f}", "|MIP - predict(x*)|": "{:.1e}", "test RMSE": "{:.3f}"})

	model	binaries	constraints	build s	solve s	MIP min	grid min	\|MIP - predict(x*)\|	test RMSE
0	DPOSE	30	157	0.01	0.15	-1.7826	-1.7800	6.4e-15	0.137
1	LLPRRegressor	63	288	0.19	18.14	-1.5799	-1.5799	4.4e-16	0.424
2	NNBR	61	283	0.02	6.32	-1.4487	-1.4469	0.0e+00	0.294
3	KfoldNN	31	159	0.01	0.32	-1.7040	-1.6993	0.0e+00	0.434
4	KAN	65	94	0.75	0.86	-1.6489	-1.6341	6.2e-15	0.139
5	KANLLPR	68	101	0.02	1.66	-1.6776	-1.6699	1.6e-15	0.135
6	LeafModelRegressor	20	146	0.02	0.03	-1.3605	-1.3599	4.4e-16	0.452

In every row the MIP minimum is at or below the grid minimum, and the model evaluated at the MIP solution agrees with the MIP value to solver precision: the exports are exact. (The tree is exported with split_gap, explained in the section on trees below.) The models differ in accuracy (the RMSE against the true function on the grid) and in MIP size. KANs need one set of segment binaries per input of each layer, shared by all the edges from that input. The tree needs one binary per leaf.

The minima of the different models are at different places, because each is a different approximation of \(f\):

fig, axs = plt.subplots(2, 4, figsize=(16, 8))
for ax, (name, model) in zip(axs.ravel(), models.items()):
    m = model.to_pyomo(input_bounds=BOUNDS, **OPTIONS.get(name, {}))
    m.obj = pyo.Objective(expr=m.y[0])
    HIGHS.solve(m)
    show(model.predict, name, {"MIP optimum": [pyo.value(m.x[0]), pyo.value(m.x[1])]}, ax=ax)
show(f, "true f(x)", {"true optimum": grid_min(f)[1]}, ax=axs[-1, -1])
plt.tight_layout()

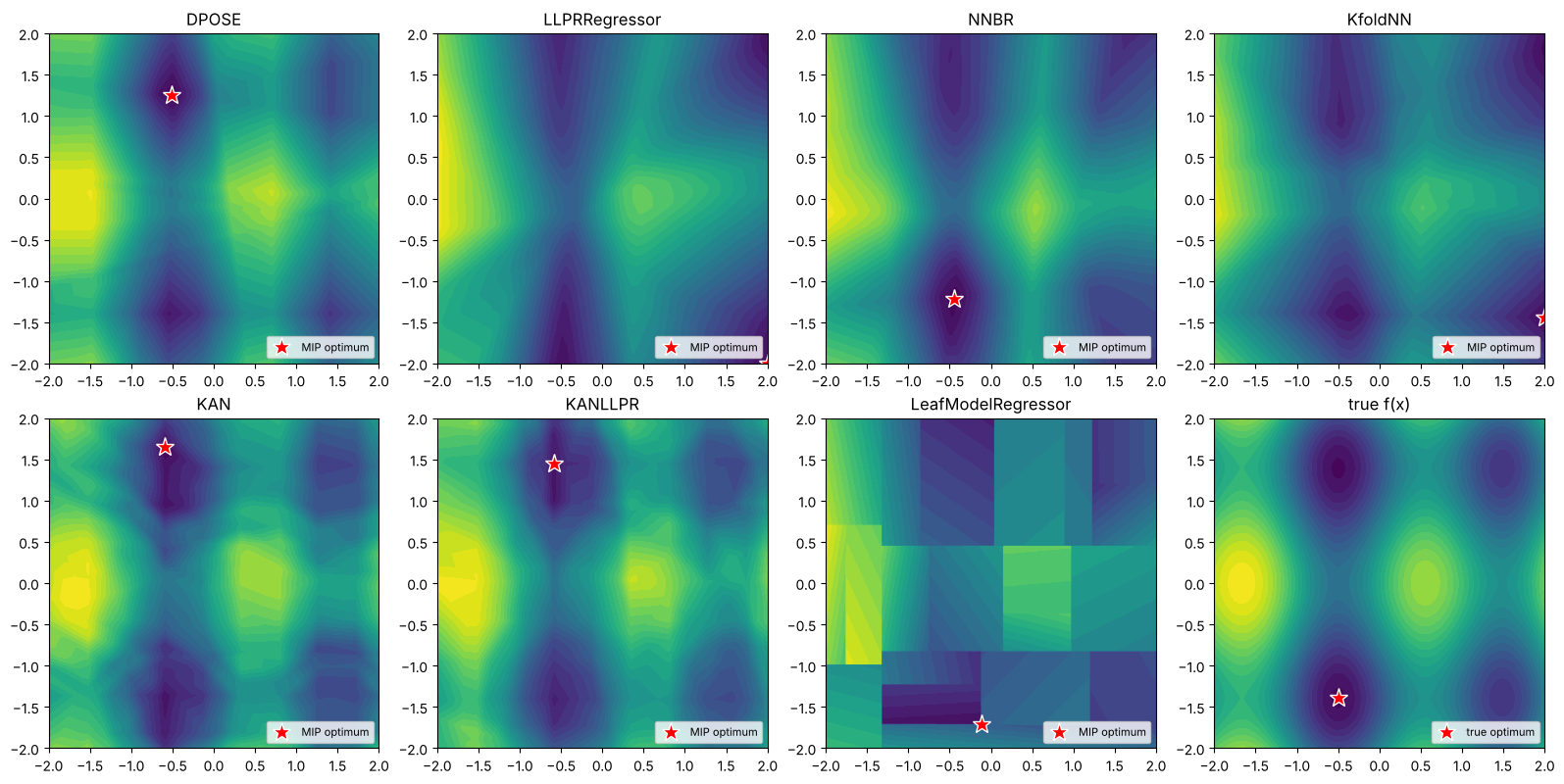

../_images/9fe68f7ffe5bdb9d73f349dc3108decd635a203e796bc3c4cc28bb2b40dc3066.png

A global optimizer is unforgiving about where a model is wrong. An optimum can sit on the boundary of the box, where there are few training points and the model extrapolates; a local optimizer started in the middle might never find it, but the MIP will. If that happens, penalize the std (the robust objective above), tighten the bounds, or add constraints that keep the inputs near the data.

Linear models#

LinearRegressionUQ is linear in its inputs, so it exports with no binaries at all; its std is a second-order cone in the inputs. It fits y = X @ coefs, so an intercept is a column of ones in X, which we fix with the bounds (1, 1):

from pycse.sklearn import LinearRegressionUQ

Xa = np.column_stack([np.ones(len(X)), X])
lin = LinearRegressionUQ().fit(Xa, y)
m = lin.to_pyomo(input_bounds=[(1, 1), *BOUNDS])
print("binaries:", sum(1 for v in m.component_data_objects(pyo.Var) if v.is_binary()))
print("prediction at x = (0.5, -1):", lin.predict(np.array([[1, 0.5, -1]]), return_std=True))

binaries: 0
prediction at x = (0.5, -1): (array([0.22552606]), array([0.90157599]))

Input-convex networks: an LP instead of a MIP#

JAXICNNRegressor is constrained to be convex in its inputs (an input-convex neural network, ICNN). With ReLU activations its output is convex and piecewise linear, and every hidden unit enters the output with a nonnegative weight. When the output is minimized (or bounded above), the ReLU constraints \(z \ge 0\), \(z \ge a\) alone are enough: the solver pushes each \(z\) down to \(\max(0, a)\) by itself. to_pyomo(formulation="convex") uses this to export the network as a linear program with no binaries, which solves fast even for large networks. It checks that the network really is input-convex.

JAXMonotonicRegressor(convexity="convex") is input-convex too, so it can also use the LP formulation; with the default convexity=None it mixes convex and concave units and needs the MILP.

from pycse.sklearn import JAXICNNRegressor, JAXMonotonicRegressor


def h(X):
    # A convex function, increasing in x1.
    X = np.atleast_2d(X)
    return np.exp(0.5 * X[:, 0]) + 0.5 * (X[:, 1] - 0.5) ** 2 + 0.3 * np.abs(X[:, 0] + X[:, 1])


yh = h(X) + 0.02 * rng.normal(size=len(X))
convex_models = {
    "JAXICNNRegressor": JAXICNNRegressor(hidden_dims=(64, 64), activation="relu",
                                         epochs=300).fit(X, yh),
    "JAXMonotonicRegressor": JAXMonotonicRegressor(
        hidden_dims=(64, 64), monotonicity=[1, 0], convexity="convex", activation="relu",
        epochs=300).fit(X, yh),
}

rows = []
for name, model in convex_models.items():
    for formulation in ["bigm", "convex"]:
        row = benchmark(name, model, formulation=formulation)
        row["formulation"] = formulation
        rows.append(row)
cols = ["model", "formulation", "binaries", "constraints", "solve s", "MIP min", "grid min"]
pd.DataFrame(rows)[cols].style.format({"solve s": "{:.2f}", "MIP min": "{:.4f}", "grid min": "{:.4f}"})

	model	formulation	binaries	constraints	solve s	MIP min	grid min
0	JAXICNNRegressor	bigm	122	501	0.47	0.4869	0.4870
1	JAXICNNRegressor	convex	0	257	0.06	0.4869	0.4870
2	JAXMonotonicRegressor	bigm	128	577	0.30	0.4286	0.4287
3	JAXMonotonicRegressor	convex	0	257	0.09	0.4286	0.4287

Both formulations give the same minimum; the LP needs no binaries. The LP is only valid for minimizing the output (or keeping it below a bound). To maximize an ICNN, use the default formulation="bigm".

KANs: splines, clipping and ensembles#

A KAN layer applies a learned 1D function to each edge. With spline_order=1 these are piecewise linear, and with base_activation="linear" the residual term is linear too, so the whole network is piecewise linear. The splines are defined on grid_range (in standardized units) and are constant outside it; the export represents this clipping exactly, so the MIP is exact for any input bounds.

All edges leaving one input share that input’s breakpoints, so the MIP needs one set of segment binaries per input of each layer, not per edge. Without input_bounds, a KAN uses the input range its spline grid covers.

With n_ensemble > 1, the prediction is the mean of the ensemble and the std is exported as for DPOSE:

kan_ens = KAN(layers=(2, 4, 1), grid_size=10, spline_order=1, base_activation="linear",
              n_ensemble=4, loss_type="crps").fit(X, y, maxiter=1000)
m = kan_ens.to_pyomo()
print("default input bounds:", [tuple(round(float(b), 3) for b in m.x[i].bounds) for i in range(2)])

m = kan_ens.to_pyomo(input_bounds=BOUNDS)
x = np.array([0.3, -1.2])
for i in range(2):
    m.x[i].fix(x[i])
m.obj = pyo.Objective(expr=0)
HIGHS.solve(m)
mu, sd = kan_ens.predict(x[None, :], return_std=True)
print(f"MIP: y = {pyo.value(m.y[0]):.6f}, std = {np.sqrt(pyo.value(m.variance[0])):.6f}")
print(f"KAN: y = {mu[0]:.6f}, std = {sd[0]:.6f}")

default input bounds: [(-2.45, 2.188), (-2.283, 2.332)]

MIP: y = 0.430679, std = 0.009355
KAN: y = 0.430679, std = 0.009355

Trees with linear leaves#

LeafModelRegressor is a decision tree with a linear model in each leaf. In the MIP, each leaf is a box with one binary that selects it, and the prediction is that leaf’s linear model. Leaves that do not intersect the input bounds are dropped, so narrower bounds give a smaller MIP.

A tree sends \(x \le t\) to the left at each split, and strict inequalities cannot be written in a MIP: by default a point exactly on a split can take either neighboring leaf’s value. split_gap requires \(x \ge t + \text{gap}\) on the right instead, which rules this out at the cost of excluding the thin slab \((t, t + \text{gap})\). The gap has to be well above the solver’s tolerances (about \(10^{-6}\)).

tree = models["LeafModelRegressor"]
for bounds in [BOUNDS, [(0, 1), (0, 1)]]:
    m = tree.to_pyomo(input_bounds=bounds)
    print(f"bounds {bounds}: {len(m.leaf)} of {tree.get_n_leaves()} leaves in the MIP")

root_feature, t = tree.tree_.feature[0], tree.tree_.threshold[0]
x_split = np.zeros(2)
x_split[root_feature] = t
print(f"\nroot split: x{root_feature} <= {t:.4f}; predict at the split = {tree.predict(x_split[None, :])[0]:.4f}")
for gap in [0.0, 1e-4]:
    values = []
    for sense in [pyo.minimize, pyo.maximize]:
        m = tree.to_pyomo(input_bounds=BOUNDS, split_gap=gap)
        for i in range(2):
            m.x[i].fix(x_split[i])
        m.obj = pyo.Objective(expr=m.y[0], sense=sense)
        HIGHS.solve(m)
        values.append(round(pyo.value(m.y[0]), 4))
    print(f"split_gap={gap}: MIP values on the split range over {values}")

bounds [(-2.0, 2.0), (-2.0, 2.0)]: 20 of 20 leaves in the MIP
bounds [(0, 1), (0, 1)]: 6 of 20 leaves in the MIP

root split: x0 <= -1.3296; predict at the split = 2.2475

split_gap=0.0: MIP values on the split range over [1.9539, 2.2475]

split_gap=0.0001: MIP values on the split range over [2.2475, 2.2475]

Periodic models: an approximate export with an error bound#

JAXPeriodicRegressor expands periodic inputs into Fourier features \(\sin(2\pi h x / T)\) and \(\cos(2\pi h x / T)\) before a ReLU network. The network is piecewise linear but the features are not, so the export interpolates each feature linearly on a grid over the input bounds. The rest of the network is exact.

The interpolation error of a feature with \(|f''| \le \omega^2\) on a grid of spacing \(h\) is at most \(\omega^2 h^2 / 8\). With points_per_period grid points per period of the highest harmonic, this is \((2\pi/\text{points\_per\_period})^2/8\): about \(4.8\times 10^{-3}\) for the default 32. mip_network().max_feature_error(bounds) reports the bound, and mip_network().encoded(bounds) is the interpolated network the MIP represents exactly. More points cost more binaries.

from pycse.sklearn import JAXPeriodicRegressor


def p(X):
    # Periodic in x1 with period 2, smooth in x2.
    X = np.atleast_2d(X)
    return np.sin(np.pi * X[:, 0]) + 0.5 * np.cos(2 * np.pi * X[:, 0]) + 0.5 * X[:, 1] ** 2


Xp = np.column_stack([rng.uniform(0, 4, 200), rng.uniform(-1, 1, 200)])
yp = p(Xp) + 0.02 * rng.normal(size=len(Xp))
with QUIET(io.StringIO()):
    periodic = JAXPeriodicRegressor(hidden_dims=(16, 16), activation="relu", periodicity={0: 2.0},
                                    n_harmonics=2, epochs=500).fit(Xp, yp)

P_BOUNDS = [(0.0, 4.0), (-1.0, 1.0)]
Xt = np.column_stack([rng.uniform(0, 4, 2000), rng.uniform(-1, 1, 2000)])
rows = []
for ppp in [8, 16, 32, 64]:
    net = periodic.mip_network(points_per_period=ppp)
    m = periodic.to_pyomo(input_bounds=P_BOUNDS, points_per_period=ppp)
    m.obj = pyo.Objective(expr=m.y[0])
    t = time.time()
    HIGHS.solve(m)
    x_opt = np.array([[pyo.value(m.x[i]) for i in range(2)]])
    error = np.abs(net.encoded(P_BOUNDS).forward(Xt)[:, 0] - periodic.predict(Xt))
    rows.append({
        "points_per_period": ppp,
        "binaries": sum(1 for v in m.component_data_objects(pyo.Var) if v.is_binary()),
        "feature error bound": net.max_feature_error(P_BOUNDS)[0].max(),
        "max |MIP model - predict|": error.max(),
        "solve s": time.time() - t,
        "MIP min": pyo.value(m.y[0]),
        "predict at MIP x": float(periodic.predict(x_opt)[0]),
    })
P_GRID = np.column_stack([np.repeat(np.linspace(0, 4, 401), 201), np.tile(np.linspace(-1, 1, 201), 401)])
p_grid_min = periodic.predict(P_GRID).min()
for row in rows:
    row["predict at MIP x - grid min"] = row["predict at MIP x"] - p_grid_min
display(pd.DataFrame(rows).style.format({"feature error bound": "{:.1e}",
                                         "max |MIP model - predict|": "{:.1e}", "solve s": "{:.2f}",
                                         "MIP min": "{:.4f}", "predict at MIP x": "{:.4f}",
                                         "predict at MIP x - grid min": "{:.1e}"}))
print(f"grid search on the model: {p_grid_min:.4f}")

	points_per_period	binaries	feature error bound	max \|MIP model - predict\|	solve s	MIP min	predict at MIP x	predict at MIP x - grid min
0	8	64	7.7e-02	5.4e-02	1.74	-1.5224	-1.5224	2.4e-03
1	16	96	1.9e-02	1.4e-02	1.96	-1.5224	-1.5224	2.4e-03
2	32	160	4.8e-03	3.4e-03	2.57	-1.5224	-1.5224	2.4e-03
3	64	288	1.2e-03	9.7e-04	3.05	-1.5252	-1.5252	-4.5e-04

grid search on the model: -1.5248

The error of the exported model shrinks roughly by a factor of four each time the grid density doubles, as the bound predicts. The bound is on each feature; the error in the output also depends on the network’s weights, which is why the table measures it too.

The MIP finds the global optimum of the interpolated model, so the true model’s value at that point (predict at MIP x) can be above the model’s own minimum by up to about the error: the last column compares it with a fine grid search. It shrinks as the grid gets finer. Choose points_per_period so the error is well below the accuracy you need, or refine the solution locally from the MIP optimum.

SISSO: exact nonlinear export#

SISSO finds an explicit equation, such as \(y = c_1 x_1 x_2 + c_2 e^{x_2}/x_1 + c_0\). It is not piecewise linear, but it does not need to be approximated: to_pyomo() writes the equation itself into the Pyomo block, with Pyomo’s exp, log, division and so on. The result is an exact nonlinear program that a global MINLP solver (Gurobi, BARON, SCIP) solves to optimality; Ipopt finds local optima. The std from predict(return_std=True) is exported as an expression too. SISSO needs pip install TorchSisso.

try:
    from pycse.sklearn import SISSO

    Xs = rng.uniform(0.5, 2.0, size=(80, 2))
    ys = 2 * Xs[:, 0] * Xs[:, 1] + np.exp(Xs[:, 1]) / Xs[:, 0] + 0.01 * rng.normal(size=len(Xs))
    with QUIET(io.StringIO()):  # TorchSisso prints its progress
        sisso = SISSO(operators=["+", "-", "*", "/", "exp"], n_expansion=2, n_term=2).fit(Xs, ys)
    print("equation:", sisso.equation_)
    HAVE_SISSO = True
except ImportError as err:
    print(err)
    HAVE_SISSO = False

if HAVE_SISSO and HAVE_GUROBI_MINLP:
    S_BOUNDS = [(0.5, 2.0), (0.5, 2.0)]
    m = sisso.to_pyomo(input_bounds=S_BOUNDS, include_std=True)
    m.obj = pyo.Objective(expr=m.y[0] + 2 * m.std[0])
    pyo.SolverFactory("gurobi_direct_minlp").solve(m)
    print(f"min y + 2 std = {pyo.value(m.obj):.5f} at x = ({m.x[0].value:.4f}, {m.x[1].value:.4f})")
    gs = np.linspace(0.5, 2.0, 301)
    S_GRID = np.array(np.meshgrid(gs, gs)).reshape(2, -1).T
    mu, sd = sisso.predict(S_GRID, return_std=True)
    print(f"grid search:   {(mu + 2 * sd).min():.5f}")
elif HAVE_SISSO:
    print("A global MINLP solver is needed, e.g. pip install gurobipy")

equation:  + 3.3931917104*(x1/x0)   + 2.1516130961*(x0*x1)  -0.6118790242955567

min y + 2 std = 2.73623 at x = (1.2564, 0.5000)
grid search:   2.73623

What cannot be exported, and why#

to_pyomo() raises a ValueError that says what to change when a model is not piecewise linear, for example a smooth activation:

try:
    with QUIET(io.StringIO()):
        smooth = LLPRRegressor(hidden_dims=(8,), activation="silu", n_epochs=1).fit(X, y)
    smooth.to_pyomo(input_bounds=BOUNDS)
except ValueError as err:
    print("ValueError:", err)

ValueError: MIP export requires LLPRRegressor(activation='relu') (piecewise linear); got activation='silu'.

Smooth activations (SiLU, tanh, softplus) and cubic splines are not piecewise linear. Retrain with ReLU or spline_order=1; it usually costs little accuracy.
JAXICNNRegressor(strong_convexity_mu > 0) adds a quadratic term.
ZENNRegressor and ZENNClassifier combine their sub-networks through a log-sum-exp over configurations, which is neither piecewise linear nor a compact closed form.
NNGMM gets its uncertainty from a Gaussian mixture; its mean network could be exported, but it does not implement to_pyomo().

Practical tips#

Bounds matter. Every input needs finite bounds; the tighter they are, the fewer binaries (units that are always on or off need none) and the faster the solve.
Size. MIP solve time grows quickly with the number of binaries. Prefer small networks, KANs (binaries per input, not per unit), or the LP formulation for convex models. Training with max_iter/epochs large enough to converge also tends to give simpler, faster MIPs than a poorly trained network.
Scaling is handled. Models that standardize their inputs and outputs internally have the scaling folded into the exported weights, so x and y are in your units.
Solvers. HiGHS is free and handles the MILPs. Objectives with the std need a solver for quadratic constraints (Gurobi, CPLEX, SCIP), and SISSO a nonlinear one.
Your own tools. model.mip_network() returns the network as numpy arrays (or a TreeModel/SymbolicModel), and pycse.sklearn.mip.add_to_pyomo builds the block, so you can also write a network you trained elsewhere as a MIPNetwork.
