Module 13: Model Interpretability - Participation Exercises

Open In Colab

Module 13: Model Interpretability - Participation Exercises#

Exercise 13.1: Discussion - Explaining to Stakeholders#

Type: đź’¬ Discussion (5 min)

Your black-box model recommends changing a reactor setpoint. The operator asks: “Why?”

Discuss:

  1. What would be a satisfying answer?

  2. How might SHAP values help?

  3. When might “trust the model” be an acceptable answer? When is it not?

Discussion notes:

Exercise 13.2: Mini-Exercise - SHAP Interpretation#

Type: 🔧 Mini-Exercise (7 min)

Interpret a SHAP summary plot.

import numpy as np
import matplotlib.pyplot as plt
from sklearn.ensemble import RandomForestRegressor

# Create interpretable data
np.random.seed(42)
n = 200

temperature = np.random.uniform(300, 500, n)
pressure = np.random.uniform(1, 10, n)
catalyst = np.random.uniform(1, 5, n)

# yield increases with temp and pressure, decreases with too much catalyst
y = (0.1 * temperature +
     5 * pressure +
     10 * catalyst - catalyst**2 +  # Optimum catalyst loading
     np.random.randn(n) * 3)

X = np.column_stack([temperature, pressure, catalyst])
feature_names = ['temperature', 'pressure', 'catalyst_loading']

model = RandomForestRegressor(n_estimators=100, random_state=42)
model.fit(X, y)

# If SHAP is available:
try:
    import shap
    explainer = shap.TreeExplainer(model)
    shap_values = explainer.shap_values(X[:50])  # Sample for speed

    plt.figure(figsize=(10, 6))
    shap.summary_plot(shap_values, X[:50], feature_names=feature_names, show=False)
    plt.tight_layout()
    plt.show()
except ImportError:
    print("SHAP not available - interpret feature importance instead:")
    for name, imp in zip(feature_names, model.feature_importances_):
        print(f"  {name}: {imp:.3f}")

# TASK: Based on the plot (or importances):
# 1. Which feature has the largest impact?
# 2. Is the effect of temperature positive or negative?
# 3. What's unusual about catalyst_loading?

/Users/jkitchin/Dropbox/emacs/projects/s26-06642/.venv/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm
/var/folders/gq/k1kgbl7n539_4dl1md8x3jt80000gn/T/ipykernel_60877/3692351850.py:32: FutureWarning: The NumPy global RNG was seeded by calling `np.random.seed`. In a future version this function will no longer use the global RNG. Pass `rng` explicitly to opt-in to the new behaviour and silence this warning.
  shap.summary_plot(shap_values, X[:50], feature_names=feature_names, show=False)

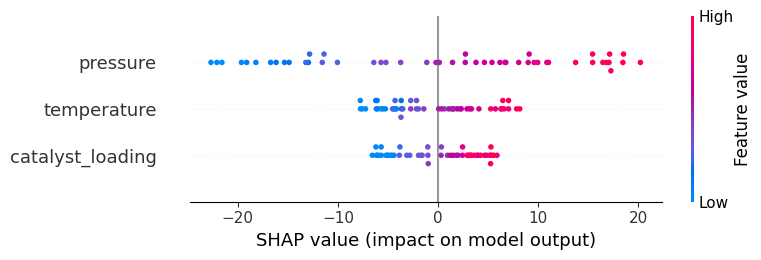

../_images/2a28180bd71ac8e97e615b97b43d90c399c6ed300d5bd14acad8fb24fd3c1c90.png

Your interpretation:

Exercise 13.3: Reflection - The Right to Explanation#

Type: 🤔 Reflection (3 min)

In many contexts (medical, legal, financial), there’s growing demand for “explainable AI.”

Reflect:

  1. In chemical engineering applications, when is model explainability critical?

  2. When might an unexplainable model be acceptable?

  3. How does interpretability relate to trust and safety?

Your reflection:
