Optional: Symbolic Regression

Discovering equations from data.

Learning Objectives

1. Understand symbolic regression vs standard ML

2. Use PySR for equation discovery

3. Balance accuracy and complexity

4. Interpret discovered equations

import numpy as np
import matplotlib.pyplot as plt

# Note: PySR must be installed separately
# pip install pysr
try:
    from pysr import PySRRegressor
    PYSR_AVAILABLE = True
except ImportError:
    print("PySR not installed. Run: pip install pysr")
    PYSR_AVAILABLE = False

PySR not installed. Run: pip install pysr

Symbolic Regression

Unlike black-box ML, symbolic regression finds interpretable equations:

• Black-box ML: \(y = f(x)\) (unknown function)

• Symbolic regression: \(y = 2x^2 + \sin(x)\) (explicit equation)

Uses genetic programming to evolve equations.

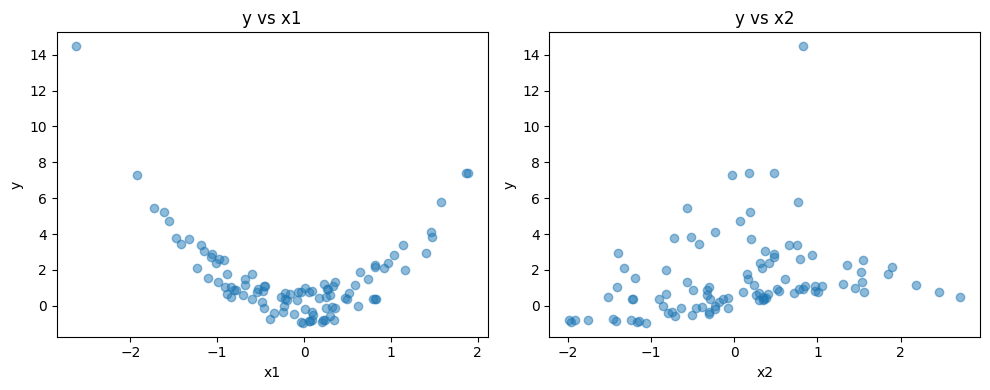

# Create data from a known equation
np.random.seed(42)

# True relationship: y = 2*x1^2 + sin(x2)
X = np.random.randn(100, 2)
y = 2*X[:, 0]**2 + np.sin(X[:, 1]) + np.random.normal(0, 0.1, 100)

plt.figure(figsize=(10, 4))
plt.subplot(1, 2, 1)
plt.scatter(X[:, 0], y, alpha=0.5)
plt.xlabel('x1')
plt.ylabel('y')
plt.title('y vs x1')

plt.subplot(1, 2, 2)
plt.scatter(X[:, 1], y, alpha=0.5)
plt.xlabel('x2')
plt.ylabel('y')
plt.title('y vs x2')

plt.tight_layout()
plt.show()

if PYSR_AVAILABLE:
    # Run symbolic regression
    model = PySRRegressor(
        niterations=100,
        binary_operators=["+", "-", "*", "/"],
        unary_operators=["sin", "cos", "exp", "log", "square"],
        maxsize=20,
        verbosity=0
    )

    model.fit(X, y)

    print("Discovered equations (Pareto front):")
    print(model)

if PYSR_AVAILABLE:
    # Get the best equation
    print(f"\nBest equation: {model.sympy()}")
    print(f"R² Score: {model.score(X, y):.4f}")

    # Visualize fit
    y_pred = model.predict(X)

    plt.figure(figsize=(8, 8))
    plt.scatter(y, y_pred, alpha=0.5)
    plt.plot([y.min(), y.max()], [y.min(), y.max()], 'r--')
    plt.xlabel('Actual')
    plt.ylabel('Predicted')
    plt.title(f'Symbolic Regression: {model.sympy()}')
    plt.grid(True, alpha=0.3)
    plt.show()

Knowledge Check

%pip install -q jupyterquiz
from jupyterquiz import display_quiz

display_quiz("https://raw.githubusercontent.com/jkitchin/s26-06642/main/dsmles/optional/quizzes/symbolic-regression-quiz.json")

Note: you may need to restart the kernel to use updated packages.

Applications in Chemical Engineering

• Kinetic models: Discover rate laws from data

• Thermodynamic correlations: Find equations of state

• Transport properties: Develop viscosity correlations

• Process optimization: Interpretable surrogate models

Comparison

Aspect	Neural Networks	Symbolic Regression
Accuracy	High	Moderate-High
Interpretability	Low	High
Extrapolation	Poor	Better
Training time	Fast	Slow
Physical insight	None	Yes
