Piecewise-Linear Functions

Piecewise-Linear Functions#

Many relationships in engineering models are known only as a table: a pump curve read off a manufacturer’s datasheet, a tiered electricity tariff, a property fit, a compressor map. Model.piecewise lets you declare such a relationship directly,

\[ y = f(x), \qquad f \text{ the piecewise-linear interpolant of } (b_0, v_0), \dots, (b_{n-1}, v_{n-1}), \]

and discopt lowers it to an exact mixed-integer linear representation. This is the classical separable programming device of special ordered sets [Beale and Tomlin, 1970] and of the convex-combination and incremental models [Dantzig, 1960, Markowitz and Manne, 1957]; the modern treatment of the encodings is Vielma et al. [2010] and the survey Vielma [2015].

This notebook covers:

  1. declaring a piecewise-linear function and using it in a model,

  2. why the result is exact (and therefore certifiable),

  3. the four encodings (method=) and how they compare,

  4. the domain rule: the input must live inside the breakpoint span,

  5. array and composite inputs,

  6. what piecewise is not: a PWL approximation of a nonlinear term.

import matplotlib.pyplot as plt
import numpy as np

import discopt.modeling as dm

1. A first example: a nonconvex tabulated cost#

Declare an input variable with bounds, pass breakpoints and values, and get back an output variable y that can be used anywhere an expression can.

b = [0.0, 1.0, 2.5, 3.0, 4.0, 6.0]
v = [1.0, 3.0, -0.5, 2.0, 2.0, -1.0]

m = dm.Model("first_pwl")
x = m.continuous("x", lb=0.0, ub=6.0)
y = m.piecewise(x, b, v, name="f")  # y == f(x), exactly
m.minimize(y + 0.4 * x)

r = m.solve()
print(r.status, "certified:", r.gap_certified)
print(f"x* = {r.value(x):.4f}   f(x*) = {r.value(y):.4f}   objective = {r.objective:.4f}")

optimal certified: True
x* = 2.5000   f(x*) = -0.5000   objective = 0.5000

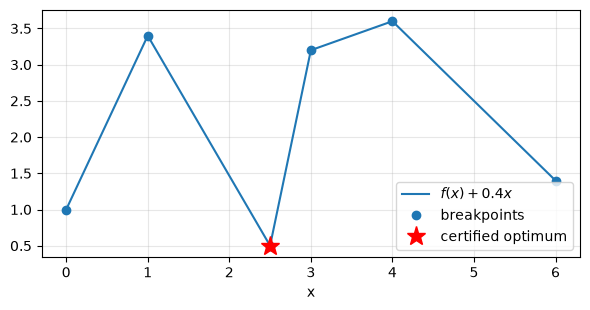

The objective \(f(x) + 0.4x\) is nonconvex with two local minima, \(x=0\) (value 1.0) and \(x=2.5\) (value 0.5). A local method started near \(x=0\) would stop there; the MILP formulation lets branch-and-bound prove which one is global.

xs = np.linspace(0, 6, 601)
fig, ax = plt.subplots(figsize=(6, 3.2))
ax.plot(xs, np.interp(xs, b, v) + 0.4 * xs, label=r"$f(x) + 0.4x$")
ax.plot(b, np.array(v) + 0.4 * np.array(b), "o", color="C0", label="breakpoints")
ax.plot([r.value(x)], [r.objective], "r*", ms=14, label="certified optimum")
ax.set_xlabel("x"); ax.legend(); ax.grid(alpha=0.3)
plt.tight_layout()
../_images/f5818f2fbd8f8b22ed2970cb0ec5ec50234c82050394520b1da6e6c38d236043.png

2. Exact, not approximate#

The table defines \(f\). Every encoding offered is an exact MILP representation of the graph \(\{(x, f(x)) : b_0 \le x \le b_{n-1}\}\), so at every feasible point y == f(x) — at the breakpoints and between them. The easiest way to see it is to fix \(x\) and ask the solver for the smallest and the largest \(y\) the rows allow: both must come back as \(f(x)\).

def y_range(t, method):
    out = []
    for sense in ("min", "max"):
        mm = dm.Model()
        xx = mm.continuous("x", lb=t, ub=t)
        yy = mm.piecewise(xx, b, v, method=method)
        (mm.minimize if sense == "min" else mm.maximize)(yy)
        out.append(float(mm.solve().value(yy)))
    return out


probes = [0.0, 0.5, 1.75, 2.5, 2.75, 3.6, 5.1, 6.0]
worst = 0.0
for method in ("disaggregated", "incremental", "log", "sos2"):
    for t in probes:
        lo, hi = y_range(t, method)
        worst = max(worst, abs(lo - np.interp(t, b, v)), abs(hi - np.interp(t, b, v)))
print(f"{4 * len(probes) * 2} solves; max |y - f(x)| over all of them = {worst:.2e}")

64 solves; max |y - f(x)| over all of them = 7.77e-16

Because the model solved is the model declared, a certificate on it (gap_certified=True) means exactly what it always means. That is the difference between declaring a piecewise-linear function and approximating a nonlinear one by a piecewise-linear surrogate — see §6.

3. The encodings#

All four method= values are exact; they differ in size and in the strength of the LP relaxation that branch-and-bound works with. For \(n\) breakpoints:

method (aliases)

binaries

continuous aux

LP strength

reference

"incremental" ("inc", "delta") — default

\(n-2\)

\(n-1\)

locally ideal

[Markowitz and Manne, 1957]

"disaggregated" ("dcc")

\(n-1\)

\(2(n-1)\)

locally ideal

[Croxton et al., 2003, Vielma et al., 2010]

"log" ("logarithmic", "ebd")

\(\lceil\log_2(n-1)\rceil\)

\(n\)

locally ideal

[Vielma and Nemhauser, 2011]

"sos2" ("lambda")

\(n\) after lowering

\(n\)

weaker (pairwise SOS2 rows)

[Beale and Tomlin, 1970, Dantzig, 1960]

  • "log" enforces the SOS2 adjacency with a Gray code: adjacent segments differ in one bit, so each bit splits the breakpoints into a left and right branch [Vielma and Nemhauser, 2011]. It reuses the same embedding discopt’s AMP solver uses for its convhull_ebd option; the partitioning idea is also central to Misener et al. [2011].

  • "sos2" declares an actual SOS2 set (Model.sos2) — the route for a user who wants the SOS2 relation itself. discopt lowers it at solve time with one binary per breakpoint and \(O(n^2)\) pairwise exclusion rows, so it is the slowest method for long tables. The .nl/LP/MPS/GAMS writers refuse SOS relations (they emit no SOS section), so for a model you intend to export pick another method: those lower to plain linear rows and export like any MILP.

  • A two-breakpoint table is a single segment and adds no binary under any method.

from discopt.modeling.core import VarType


def census(n, method):
    mm = dm.Model()
    xx = mm.continuous("x", lb=0, ub=1)
    mm.piecewise(xx, np.linspace(0, 1, n), np.sin(np.linspace(0, 6, n)), method=method)
    nb = sum(var.size for var in mm._variables if var.var_type == VarType.BINARY)
    nc = sum(var.size for var in mm._variables if var.var_type == VarType.CONTINUOUS) - 2
    return nb, nc, len(mm._constraints)


print(f"{'n':>4} {'method':>14} {'binaries':>9} {'cont. aux':>10} {'rows':>5}")
for n in (5, 17, 65):
    for method in ("disaggregated", "incremental", "log", "sos2"):
        nb, nc, nr = census(n, method)
        print(f"{n:4d} {method:>14} {nb:9d} {nc:10d} {nr:5d}")

   n         method  binaries  cont. aux  rows
   5  disaggregated         4          8     7
   5    incremental         3          4     8
   5            log         2          5     7
   5           sos2         0          5     4
  17  disaggregated        16         32    19
  17    incremental        15         16    32
  17            log         4         17    11
  17           sos2         0         17     4
  65  disaggregated        64        128    67
  65    incremental        63         64   128
  65            log         6         65    15
  65           sos2         0         65     4

(For "sos2" the binary count shows 0 because the SOS2 row is still a declaration at this point; the solver lowers it at solve time.)

Which method is fastest?#

Measured, not assumed. discopt_benchmarks/scripts/piecewise_method_panel.py builds seeded random nonconvex tables, runs the four methods interleaved on each instance, and cross-checks that every certified objective agrees (it aborts on any disagreement). Two classes — a separable PWL-cost MILP with a coupling row (8 functions, 9/17/33 breakpoints) and a MINLP with a quadratic penalty on the PWL outputs (4 functions, 9/17 breakpoints). Wall seconds; every run finished certified and the methods agreed on every objective.

Panel A — seeds 0–2, all four methods (60 runs):

method

median

mean

sd

shifted geo. mean

incremental

0.369

1.437

2.403

0.857

log

0.590

1.151

1.360

0.867

disaggregated

0.715

2.902

4.626

1.427

sos2

2.474

9.537

11.401

4.629

Panel B — fresh seeds 3–7, the three fastest (75 runs):

method

median

mean

sd

shifted geo. mean

incremental

0.250

0.708

1.090

0.509

log

0.329

1.022

1.648

0.671

disaggregated

0.337

1.518

3.240

0.786

"incremental" has the lowest median and shifted geometric mean on both panels, so it is the default; "log" is a close second. "sos2" is roughly 40× slower on the 33-breakpoint tables (e.g. 28.0 s vs 0.65 s) because of the quadratic number of exclusion rows in its lowering. The spreads are large — these are small instances where solve times are dominated by a few hard seeds — so treat the ranking, not the ratios, as the finding. (Measured on a 4-core container, load average < 2.)

4. The domain rule#

Every encoding forces \(b_0 \le x \le b_{n-1}\). If the input’s declared domain were wider than that span, the formulation would silently clamp it and the model solved would not be the model you wrote. discopt refuses instead:

m = dm.Model()
x = m.continuous("x", lb=-1.0, ub=6.0)  # the table starts at 0
try:
    m.piecewise(x, b, v)
except dm.PiecewiseDomainError as e:
    print(type(e).__name__, "-", str(e)[:230], "...")

PiecewiseDomainError - piecewise function: the input's domain is not inside the breakpoint span (input: declared bounds [-1, 6]: lower bound -1 < first breakpoint 0). The formulation would restrict the input to the span, silently changing the model. Tig ...

An unbounded input (the default bounds) is refused for the same reason. Bounds are mutable, so the check is recorded on the model and repeated by validate() — and therefore by every solve() — so widening a bound after declaring the function is caught too. The guard also survives dm.dumps/dm.loads.

m = dm.Model()
x = m.continuous("x", lb=0.0, ub=6.0)
y = m.piecewise(x, b, v)
m.minimize(y)
x.ub = np.float64(8.0)  # widened after the fact
try:
    m.solve()
except dm.PiecewiseDomainError as e:
    print("refused at solve time:", str(e)[:120], "...")

refused at solve time: piecewise _pwl1: the input's domain is not inside the breakpoint span (declared bounds [0, 8]: upper bound 8 > last brea ...

If you want to restrict the input to the span, say so by giving the input those bounds; if the function is meaningful beyond the table, extend the table.

5. Array and composite inputs#

Passing an array variable applies the same function elementwise and returns an array y of the same shape. The input can also be a scalar expression; its domain is then judged by a rigorous interval enclosure.

m = dm.Model()
load = m.continuous("load", shape=(3,), lb=0.0, ub=100.0)
tariff = m.piecewise(load, [0, 50, 80, 100], [0, 400, 760, 1100], name="cost")  # $/h
m.subject_to(dm.sum(load) == 170)
m.minimize(dm.sum(tariff))
r = m.solve()
print(r.status, r.gap_certified, "loads:", np.round(r.value(load), 3), "cost:", r.objective)

optimal True loads: [70. 50. 50.] cost: 1440.0

m = dm.Model()
a = m.continuous("a", lb=0.0, ub=2.0)
c = m.continuous("c", lb=0.0, ub=4.0)
g = m.piecewise(a + c, b, v, name="g")  # a + c in [0, 6] = the span
m.maximize(g - 0.1 * a)
r = m.solve()
print(r.status, "a + c =", r.value(a) + r.value(c), " g =", r.value(g))

optimal a + c = 1.0  g = 3.0

6. A worked model: pump scheduling#

Three pumps in parallel must deliver 95 m³/h. Each pump’s power draw is tabulated from its curve (nonconvex: efficiency peaks mid-range), a running pump must carry at least 10 m³/h and costs 2 kW of auxiliaries. This is example_piecewise_pumps in discopt.modeling.examples.

from discopt.modeling import examples
import contextlib, io

with contextlib.redirect_stdout(io.StringIO()):
    m = examples.example_piecewise_pumps()
r = m.solve()
q = next(var for var in m._variables if var.name == "q")
on = next(var for var in m._variables if var.name == "on")
print(r.status, "certified:", r.gap_certified, f"total power = {r.objective:.3f} kW")
print("flows:", np.round(r.value(q), 3), " running:", np.round(r.value(on)).astype(int))

optimal certified: True total power = 40.500 kW
flows: [ 0. 50. 45.]  running: [0 1 1]

7. A declared table is not an approximation#

piecewise declares a function given by its table. If the table was sampled from a nonlinear function \(g\), the model solved is the one with the interpolant of those samples — and the certificate is a certificate for that model, not for the one with \(g\):

bp = np.linspace(0.0, 4.0, 5)
m = dm.Model()
x = m.continuous("x", lb=0.0, ub=4.0)
s = m.piecewise(x, bp, np.sqrt, name="sqrt_pwl")  # samples sqrt at the breakpoints
m.maximize(s - 0.3 * x)
r = m.solve()
xs = r.value(x)
print(f"PWL model:  x* = {xs:.4f}, objective {r.objective:.4f} (certified={r.gap_certified})")
grid = np.linspace(0, 4, 400001)
k = np.argmax(np.sqrt(grid) - 0.3 * grid)
print(f"true sqrt:  x* = {grid[k]:.4f}, objective {np.sqrt(grid[k]) - 0.3 * grid[k]:.4f}")

PWL model:  x* = 3.0000, objective 0.8321 (certified=True)

true sqrt:  x* = 2.7778, objective 0.8333

The chord interpolant of the concave \(\sqrt{x}\) lies below it, so here the PWL optimum (0.8321) understates the true one (0.8333) and is not a valid upper bound for this maximization; for a convex function, or a minimization, the error flips direction. In general a piecewise approximation of a nonlinear term cuts off feasible points or admits infeasible ones depending on curvature, and its optimum is not a valid bound on the original problem.

That is why “declare a table” (piecewise, exact) and “approximate a nonlinear term” are separate tools in discopt. The second is §8.

8. Approximating nonlinear terms: nonlinear_to_pwl#

dm.nonlinear_to_pwl(model, mode=..., segments=...) finds every maximal univariate nonlinear subexpression \(g(x)\) of a bounded scalar input — exp(x), x**4 - 3*x**2 + x, abs(e*sin(f*(p0 - P))) — and replaces it by a piecewise-linear construct, working on a copy (the model you pass is never modified). Multivariate terms such as x*y, vector-valued nodes, terms containing a Parameter, and terms over unbounded inputs are left exactly as written and reported in .skipped. The certificate question gets two explicit answers.

mode="outer" (the default): a rigorous outer approximation#

Each term is replaced by a variable \(w\) tied to \(x\) by a disaggregated convex-combination MILP (one binary per segment) plus an error band: on segment \([a,b]\) with chord \(s\), the rows force \(w - s(x) \in [e_\ell, e_u]\) where \([e_\ell, e_u]\) provably contains \(g(x) - s(x)\) on the whole segment. The band is the intersection of a direct interval evaluation of \(g\) and two mean-value bounds,

\[ g(x) - s(x) \in e(a) + \bigl(g'([a,b]) - m\bigr)(x-a), \qquad g(x) - s(x) \in e(b) + \bigl(m - g'([a,b])\bigr)(b-x), \]

with \(g'([a,b])\) enclosed by interval automatic differentiation. These tapers are linear in \(x\), so the band pinches to rounding size at the breakpoints and shrinks like \(h^2\) in between. Every graph point \((x, g(x))\) satisfies the rows, so the transformed model is a relaxation: its certified bound is a valid bound on the original. The solution is then checked on the original model (and polished by a local NLP with the integers fixed); refinement adds breakpoints where \(w\) strayed from \(g\) and bisects the widest segments, as in adaptive partitioning [Misener et al., 2011, Nagarajan et al., 2019], until the verified incumbent meets the bound.

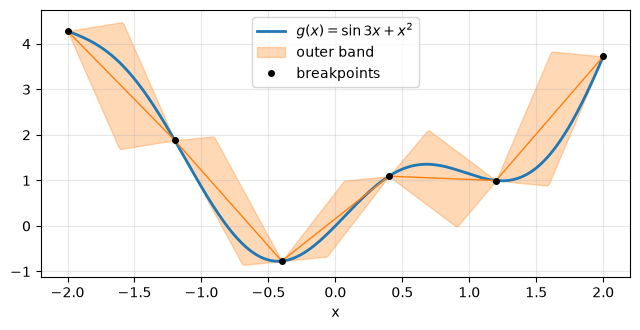

Here is what the band looks like for \(g(x) = \sin 3x + x^2\) on 5 segments:

from discopt.modeling._pwl_transform import _segment_band, _Univariate

mm = dm.Model()
xx = mm.continuous("x", lb=-2.0, ub=2.0)
u = _Univariate(dm.sin(3 * xx) + xx**2, xx, -2.0, 2.0)
bps = np.linspace(-2.0, 2.0, 6)
pts = [u.point(float(t)) for t in bps]
fig, ax = plt.subplots(figsize=(6.5, 3.4))
xs = np.linspace(-2, 2, 801)
ax.plot(xs, np.sin(3 * xs) + xs**2, color="C0", lw=2, label=r"$g(x)=\sin 3x + x^2$")
for i in range(5):
    a, b = float(bps[i]), float(bps[i + 1])
    bd = _segment_band(u, a, b, pts[i], pts[i + 1])
    seg = np.linspace(a, b, 60)
    r_ = (seg - a) / (b - a)
    chord = pts[i][0] + (pts[i + 1][0] - pts[i][0]) * r_
    ua, ka, ub_, kb, la, ja, lb_, jb = bd.taper
    upper = chord + np.minimum.reduce([np.full_like(r_, bd.hi), ua + ka * r_, ub_ + kb * (1 - r_)])
    lower = chord + np.maximum.reduce([np.full_like(r_, bd.lo), la + ja * r_, lb_ + jb * (1 - r_)])
    ax.fill_between(seg, lower, upper, color="C1", alpha=0.3, label="outer band" if i == 0 else None)
    ax.plot(seg, chord, color="C1", lw=1)
ax.plot(bps, [p[0] for p in pts], "ko", ms=4, label="breakpoints")
ax.set_xlabel("x"); ax.legend(loc="upper center"); ax.grid(alpha=0.3)
plt.tight_layout()
../_images/e5e6ab6b3d8755b3262df9eadb723cd072e1d90b4481a0c20bec898fbc7f531b.png

The band always contains the curve (that is the relaxation property, tested by dense sampling in python/tests/test_nonlinear_to_pwl.py), and it narrows as segments shrink.

First a smooth case. The objective below has two nonconvex univariate terms and a linear coupling row; the outer mode turns it into a MILP and refines until the verified incumbent meets the bound:

m = dm.Model("smooth")
x = m.continuous("x", lb=-2, ub=2)
y = m.continuous("y", lb=-1, ub=3)
m.minimize(x**4 - 3 * x**2 + x + dm.exp(0.5 * y) - y)
m.subject_to(x + y >= 0.5)

t = dm.nonlinear_to_pwl(m)
print(t)
r = t.solve(time_limit=120)
st = r.solver_stats["nonlinear_to_pwl"]
print(f"{r.status}  certified={r.gap_certified}  rounds={st['rounds']}")
print(f"objective = {r.objective:.6f}   bound = {r.bound:.6f}")
print(f"x = {r.value(x):.5f}, y = {r.value(y):.5f}")
r0 = m.solve()
print(f"discopt's own global solve: {r0.status}, objective {r0.objective:.6f}")

PWLTransformation(mode='outer', terms=2, skipped=0, fully_linear=True)

optimal  certified=True  rounds=9
objective = -2.855906   bound = -2.856142
x = -1.28514, y = 1.78514

discopt's own global solve: optimal, objective -2.855906

The bound comes from the MILP, the point is a verified point of the original model, and the two meet — so optimal here is a certificate for the declared problem, and it agrees with discopt’s native global solve.

A harder case: economic dispatch with valve-point loading, the classic 3-unit system of Walters and Sheble [1993]. Each unit’s cost is a quadratic plus a rectified sine ripple, nonconvex and non-smooth, and univariate in that unit’s output, so all three costs are replaced (example_valve_point_dispatch in discopt.modeling.examples). The |sin| kinks make the interval derivative enclosure span both signs, so near a kink the band shrinks only linearly with the segment width. With the default 20 refinement rounds (about 40 s here):

from discopt.modeling import examples
import contextlib, io

with contextlib.redirect_stdout(io.StringIO()):
    md_ = examples.example_valve_point_dispatch()
t = dm.nonlinear_to_pwl(md_, segments=8)
r = t.solve(time_limit=60)
P = next(v for v in md_._variables if v.name == "P")
st = r.solver_stats["nonlinear_to_pwl"]
print(f"{r.status}  certified={r.gap_certified}  rounds={st['rounds']}  "
      f"breakpoints per unit={[len(tt.breakpoints) for tt in t.terms]}")
print(f"cost = {r.objective:.3f}   bound = {r.bound:.3f}   gap = {100 * r.gap:.3f}%")
print(f"dispatch = {np.round(r.value(P), 3)}")
print(f"literature optimum 8234.07 lies inside [bound, cost]: {r.bound <= 8234.07 <= r.objective}")

feasible  certified=False  rounds=20  breakpoints per unit=[136, 119, 116]
cost = 8234.242   bound = 8154.074   gap = 0.974%
dispatch = [300.601 399.664 149.734]
literature optimum 8234.07 lies inside [bound, cost]: True

The rounds run out before the gap closes, and the result says exactly that: feasible, not optimal, with a verified dispatch and a valid bound below the known optimum. (Measured on this machine with max_breakpoints=1000: 41 rounds and 600 s reach a 0.19% gap with about 3000 breakpoints and 4.7 GB peak memory. The default cap of 256 breakpoints per term keeps memory bounded; an earlier refinement rule that bisected every wide segment doubled the table each round and was killed for running out of memory.)

mode="approximate": the chord interpolant, never certified#

This mode replaces each term by its interpolant through the breakpoint samples (via Model.piecewise). The optimum of that surrogate is not a bound on anything, so the result never carries one — whatever happens:

ra = dm.nonlinear_to_pwl(md_, mode="approximate", segments=8).solve(time_limit=120)
print(ra.status, "| bound:", ra.bound, "| certified:", ra.gap_certified)
print(f"verified cost of the approximate dispatch: {ra.objective:.4f}")
print(ra.algorithm_route)

feasible | bound: None | certified: False
verified cost of the approximate dispatch: 8343.9362
nonlinear_to_pwl(approximate): the model solved was a piecewise-linear APPROXIMATION of the one declared; no bound on the declared model is claimed

The status is feasible only if the approximate solution (or its local polish) passes an independent feasibility check on the original model; otherwise it is local_infeasible, which — as everywhere in discopt — is not an infeasibility proof.

What it is good for, measured#

discopt_benchmarks/scripts/nonlinear_to_pwl_corpus_panel.py runs the outer mode over every in-repo corpus instance that has a reference optimum and a transformable term, and checks the bound against that optimum:

21 corpus instances have at least one transformable term (60 s per instance, 4-core container):

outcome (outer mode)

instances

optimal, certified — objective equals the reference

10 (mathopt5_2, nvs03, nvs04, nvs07, nvs15, st_miqp1, st_miqp3, st_test1, st_testgr3, trig)

feasible — verified incumbent plus a valid bound, gap open

4 (ex8_1_1, nvs06, nvs09, nvs10)

time_limit — valid bound, no verified incumbent yet

7 (nvs11–nvs13, nvs16, nvs17, nvs19, nvs24)

bound above the reference optimum, or a wrong certified objective

0 (31 executed checks)

discopt.solve() on the same instances certified 19 of 21 within the same budget, nearly all in under a second. The approximate mode, over the same instances, never reported a bound or optimal, and no verified objective it reported beat the reference optimum (40 executed checks, 0 violations).

The soundness result is the point: across the corpus no bound ever passed a reference optimum and every certified objective matched it. The speed result is equally clear and is recorded, not hidden: on these instances discopt’s own spatial branch-and-bound is faster — it builds rigorous relaxations of the same terms without the partition binaries. nonlinear_to_pwl is the tool when you want a MILP (to hand to a MILP workflow, to exploit a separable structure, or to trade rigour knowingly with mode="approximate"), not a replacement for the default solver.

Models with indicator, disjunctive, SOS, logical or complementarity relations are refused (PWLTransformError): the incumbent check this transformation relies on cannot verify those relations at a point.

Summary#

  • m.piecewise(x, breakpoints, values, method=..., name=...) (or dm.piecewise) returns a variable equal to the declared piecewise-linear function of x.

  • The lowering is exact, so solves are certified like any other MILP/MINLP.

  • Four encodings; "incremental" is the measured default, "log" uses the fewest binaries, "sos2" keeps the SOS2 relation itself (slowest, and not exportable).

  • The input’s domain must lie inside the breakpoint span — refused loudly otherwise, at declaration and again at every solve.

  • Univariate only; discontinuous (repeated-breakpoint) tables are refused — model jumps with Model.either_or.

  • dm.nonlinear_to_pwl approximates univariate nonlinear terms: mode="outer" is a rigorous relaxation whose certificates are certificates of the original model; mode="approximate" never claims a bound.

Full citations are on the References page.
