Benchmark Dashboard#
Interactive exploration of per-category benchmark results for discopt.
This notebook loads JSON results produced by run_category_benchmarks.py
and visualizes solver performance across LP, QP, MILP, MIQP, MINLP, and
global optimization categories.
The benchmarking methodology follows the Dolan-Moré performance profile framework [Dolan and Moré, 2002] with shifted geometric mean timing as recommended by Mittelmann [2023].
import json
from pathlib import Path
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
%matplotlib inline
plt.rcParams["figure.figsize"] = (10, 6)
plt.rcParams["figure.dpi"] = 100
Load Results#
Load the most recent JSON results from the results/ directory.
Each JSON file contains a BenchmarkResults serialization with
per-solver, per-instance solve data.
# Find results directory
results_dir = Path("../../results")
if not results_dir.exists():
results_dir = Path("results")
# Load all category JSON files
categories = ["lp", "qp", "milp", "miqp", "minlp", "global_opt"]
all_data = {}
for cat in categories:
# Find most recent file for this category
pattern = f"{cat}_*_*.json"
files = sorted(results_dir.glob(pattern), reverse=True)
if files:
with open(files[0]) as f:
all_data[cat] = json.load(f)
print(f"Loaded {cat}: {files[0].name}")
else:
print(f"No results found for {cat}")
print(f"\nLoaded {len(all_data)} categories")
if not all_data:
# `results/` is gitignored, so a fresh clone has none. Every cell below is
# written to degrade to an empty figure/table rather than raise, so the
# notebook still executes; run `run_category_benchmarks.py` to populate it.
print(
f"\nNo benchmark results under {results_dir.resolve()}.\n"
"This is expected on a fresh clone (results/ is gitignored).\n"
"Generate them with: python discopt_benchmarks/run_category_benchmarks.py\n"
"The cells below will run and produce empty output."
)
Loaded lp: lp_smoke_2026-02-19T09-28-25.712557.json
Loaded qp: qp_smoke_2026-02-19T09-18-58.516978.json
Loaded milp: milp_smoke_2026-02-19T09-20-43.872368.json
Loaded miqp: miqp_full_2026-02-20T12-53-25.042834.json
Loaded minlp: minlp_smoke_2026-02-19T09-20-51.045831.json
No results found for global_opt
Loaded 5 categories
Build DataFrames#
Convert JSON results into pandas DataFrames for analysis.
# Build a flat DataFrame of all results
COLUMNS = [
"category",
"instance",
"solver",
"status",
"objective",
"wall_time",
"node_count",
"iterations",
"bound",
]
rows = []
for cat, data in all_data.items():
for solver, results in data.get("solver_results", {}).items():
for r in results:
rows.append(
{
"category": cat,
"instance": r["instance"],
"solver": solver,
"status": r["status"],
"objective": r.get("objective"),
"wall_time": r.get("wall_time", float("inf")),
"node_count": r.get("node_count", 0),
"iterations": r.get("iterations", 0),
"bound": r.get("bound"),
}
)
# Pass `columns` explicitly: with no results, pd.DataFrame([]) has no columns at
# all and the very next line raises KeyError("status"). Naming them yields an
# empty-but-typed frame that every guarded cell below handles.
df = pd.DataFrame(rows, columns=COLUMNS)
df["solved"] = df["status"] == "optimal"
print(f"Total results: {len(df)}")
print(f"Solvers: {df['solver'].unique().tolist()}")
print(f"Categories: {df['category'].unique().tolist()}")
df.head()
Total results: 107
Solvers: ['discopt_ipm', 'discopt_ripopt', 'discopt_ipopt', 'highs']
Categories: ['lp', 'qp', 'milp', 'miqp', 'minlp']
| category | instance | solver | status | objective | wall_time | node_count | iterations | bound | solved | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | lp | lp_2var | discopt_ipm | optimal | -4.0 | 0.338235 | 0 | 0 | -4.0 | True |
| 1 | lp | lp_transport_2x2 | discopt_ipm | optimal | 70.0 | 0.125551 | 0 | 0 | 70.0 | True |
| 2 | lp | lp_diet_3 | discopt_ipm | optimal | 6.0 | 0.120819 | 0 | 0 | 6.0 | True |
| 3 | lp | lp_infeasible | discopt_ipm | unknown | NaN | 0.110926 | 0 | 0 | NaN | False |
| 4 | lp | lp_unbounded | discopt_ipm | optimal | 0.0 | 0.112188 | 0 | 0 | 0.0 | True |
# Summary statistics per solver per category
summary = (
df.groupby(["category", "solver"])
.agg(
total=("instance", "count"),
solved=("solved", "sum"),
mean_time=("wall_time", lambda x: x[x < 1e6].mean()),
median_time=("wall_time", lambda x: x[x < 1e6].median()),
mean_iters=("iterations", lambda x: x[x > 0].mean()),
)
.reset_index()
)
summary["solve_rate"] = summary["solved"] / summary["total"]
summary
| category | solver | total | solved | mean_time | median_time | mean_iters | solve_rate | |
|---|---|---|---|---|---|---|---|---|
| 0 | lp | discopt_ipm | 5 | 4 | 0.161544 | 0.120819 | NaN | 0.80 |
| 1 | lp | discopt_ipopt | 5 | 4 | 0.000398 | 0.000383 | NaN | 0.80 |
| 2 | lp | discopt_ripopt | 5 | 4 | 0.000597 | 0.000586 | NaN | 0.80 |
| 3 | lp | highs | 5 | 3 | 0.000306 | 0.000296 | 2.5 | 0.60 |
| 4 | milp | discopt_ipm | 5 | 5 | 0.272203 | 0.311191 | NaN | 1.00 |
| 5 | milp | discopt_ipopt | 5 | 5 | 0.001006 | 0.001103 | NaN | 1.00 |
| 6 | milp | discopt_ripopt | 5 | 5 | 0.001279 | 0.001433 | NaN | 1.00 |
| 7 | minlp | discopt_ipm | 4 | 4 | 1.730718 | 2.029684 | NaN | 1.00 |
| 8 | minlp | discopt_ipopt | 4 | 4 | 0.467879 | 0.419679 | NaN | 1.00 |
| 9 | minlp | discopt_ripopt | 4 | 3 | 105.735942 | 0.785757 | NaN | 0.75 |
| 10 | miqp | discopt_ipm | 15 | 15 | 0.166928 | 0.141390 | NaN | 1.00 |
| 11 | miqp | discopt_ipopt | 15 | 15 | 0.002886 | 0.001382 | NaN | 1.00 |
| 12 | miqp | discopt_ripopt | 15 | 15 | 0.003102 | 0.001605 | NaN | 1.00 |
| 13 | qp | discopt_ipm | 5 | 5 | 0.197997 | 0.115638 | NaN | 1.00 |
| 14 | qp | discopt_ipopt | 5 | 5 | 0.007949 | 0.008198 | NaN | 1.00 |
| 15 | qp | discopt_ripopt | 5 | 5 | 0.008364 | 0.008173 | NaN | 1.00 |
Performance Profiles#
Dolan-Moré performance profiles [Dolan and Moré, 2002] show the fraction of problems solved within a factor \(\\tau\) of the best solver’s time.
def performance_profile(df_cat, tau_max=100, steps=200):
"""Compute Dolan-Moré performance profile from DataFrame."""
solvers = df_cat["solver"].unique()
instances = df_cat["instance"].unique()
# Build time dict: solver -> {instance: time}
times = {}
for s in solvers:
mask = (df_cat["solver"] == s) & df_cat["solved"]
times[s] = dict(
zip(
df_cat.loc[mask, "instance"],
df_cat.loc[mask, "wall_time"],
)
)
# Best time per instance
best = {}
for inst in instances:
inst_times = [times[s][inst] for s in solvers if inst in times[s]]
if inst_times:
best[inst] = max(min(inst_times), 1e-6)
tau_vals = np.logspace(0, np.log10(tau_max), steps)
profiles = {}
n = len(instances)
for s in solvers:
fracs = []
for tau in tau_vals:
count = sum(
1
for inst in instances
if inst in times[s] and inst in best and times[s][inst] / best[inst] <= tau
)
fracs.append(count / max(n, 1))
profiles[s] = (tau_vals, np.array(fracs))
return profiles

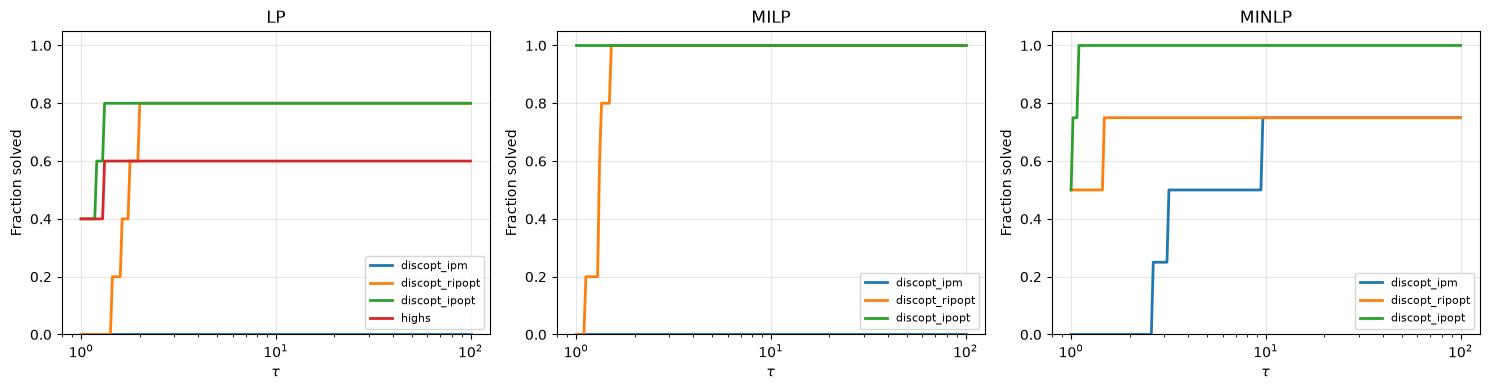

# Plot performance profiles for each category
n_cats = len(all_data)
if n_cats > 0:
fig, axes = plt.subplots(
1,
min(n_cats, 3),
figsize=(5 * min(n_cats, 3), 4),
squeeze=False,
)
for idx, cat in enumerate(sorted(all_data.keys())[:3]):
ax = axes[0, idx]
df_cat = df[df["category"] == cat]
if len(df_cat) == 0:
continue
profiles = performance_profile(df_cat)
for s, (tau, frac) in profiles.items():
ax.semilogx(tau, frac, label=s, linewidth=2)
ax.set_xlabel(r"$\tau$")
ax.set_ylabel("Fraction solved")
ax.set_title(f"{cat.upper()}")
ax.legend(fontsize=8)
ax.set_ylim(0, 1.05)
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
else:
print("No data to plot")

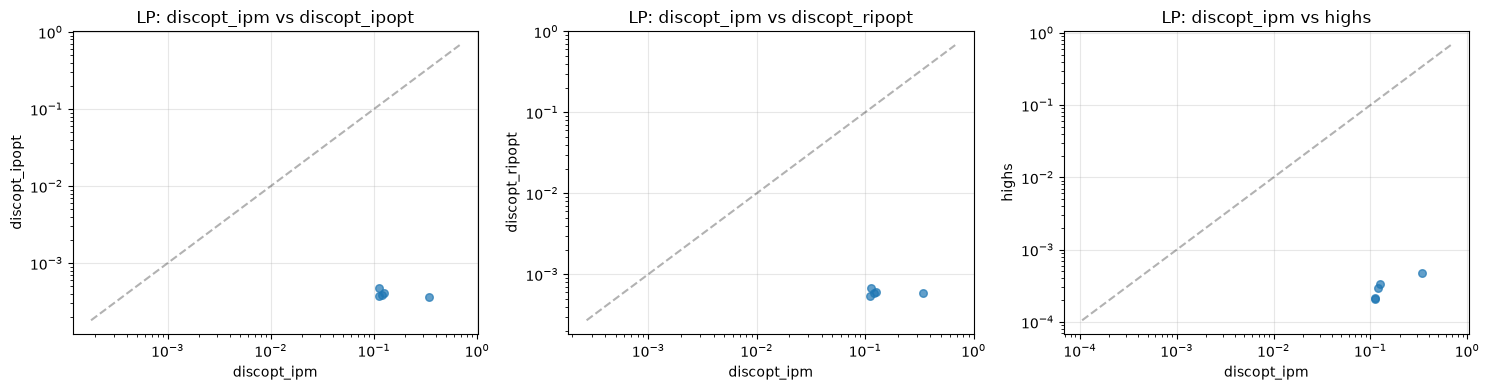

Wall-Time Scatter Plots#
Pairwise solver comparison: each point is an instance, axes are log-scale solve times. Points below the diagonal indicate the x-axis solver is faster.
# Pairwise scatter for first available category
if len(all_data) > 0:
cat = sorted(all_data.keys())[0]
df_cat = df[df["category"] == cat]
solvers = sorted(df_cat["solver"].unique())
n_pairs = len(solvers) * (len(solvers) - 1) // 2
if n_pairs > 0:
fig, axes = plt.subplots(
1,
min(n_pairs, 3),
figsize=(5 * min(n_pairs, 3), 4),
squeeze=False,
)
pair_idx = 0
for i, sa in enumerate(solvers):
for sb in solvers[i + 1 :]:
if pair_idx >= 3:
break
ax = axes[0, pair_idx]
ta = df_cat[df_cat["solver"] == sa].set_index("instance")["wall_time"]
tb = df_cat[df_cat["solver"] == sb].set_index("instance")["wall_time"]
common = ta.index.intersection(tb.index)
if len(common) > 0:
x = ta.loc[common].values
y = tb.loc[common].values
mask = (x < 1e6) & (y < 1e6) & (x > 0) & (y > 0)
if mask.any():
ax.scatter(x[mask], y[mask], alpha=0.7, s=30)
lims = [
min(x[mask].min(), y[mask].min()) * 0.5,
max(x[mask].max(), y[mask].max()) * 2,
]
ax.plot(lims, lims, "k--", alpha=0.3, label="y=x")
ax.set_xscale("log")
ax.set_yscale("log")
ax.set_xlabel(sa)
ax.set_ylabel(sb)
ax.set_title(f"{cat.upper()}: {sa} vs {sb}")
ax.grid(True, alpha=0.3)
pair_idx += 1
plt.tight_layout()
plt.show()
Iteration Count Comparison#
Bar chart comparing median iteration counts across solvers.
# Iteration comparison
iter_data = (
df[df["iterations"] > 0].groupby(["category", "solver"])["iterations"].median().reset_index()
)
if len(iter_data) > 0:
cats = iter_data["category"].unique()
fig, ax = plt.subplots(figsize=(10, 5))
solvers = sorted(iter_data["solver"].unique())
x = np.arange(len(cats))
width = 0.8 / max(len(solvers), 1)
for i, s in enumerate(solvers):
vals = []
for c in cats:
mask = (iter_data["category"] == c) & (iter_data["solver"] == s)
v = iter_data.loc[mask, "iterations"].values
vals.append(v[0] if len(v) > 0 else 0)
ax.bar(x + i * width, vals, width, label=s)
ax.set_xlabel("Category")
ax.set_ylabel("Median Iterations")
ax.set_title("Solver Iteration Counts by Category")
ax.set_xticks(x + width * (len(solvers) - 1) / 2)
ax.set_xticklabels([c.upper() for c in cats])
ax.legend()
ax.grid(True, alpha=0.3, axis="y")
plt.tight_layout()
plt.show()
else:
print("No iteration data available")
Gap Closure Analysis (Global Optimization)#
For global optimization instances, analyze the quality of bounds and the optimality gap at termination.
# Gap analysis for global_opt category
df_global = df[df["category"] == "global_opt"].copy()
if len(df_global) > 0:
# Compute relative gap
def rel_gap(row):
obj = row["objective"]
bnd = row["bound"]
if obj is None or bnd is None:
return None
if abs(obj) < 1e-10:
return abs(obj - bnd)
return abs(obj - bnd) / max(abs(obj), 1e-10)
df_global["gap"] = df_global.apply(rel_gap, axis=1)
gap_summary = (
df_global[df_global["gap"].notna()]
.groupby("solver")["gap"]
.agg(["mean", "median", "max", "count"])
)
print("Gap statistics by solver:")
print(gap_summary.to_string())
# Bar chart of proved optimal count
proved = df_global[df_global["status"] == "optimal"].groupby("solver").size()
total = df_global.groupby("solver").size()
fig, ax = plt.subplots(figsize=(8, 4))
proved.plot(kind="bar", ax=ax, color="steelblue")
ax.set_ylabel("Proved Optimal")
ax.set_title("Global Optimization: Proved Optimal Count")
ax.grid(True, alpha=0.3, axis="y")
plt.tight_layout()
plt.show()
else:
print("No global_opt data available")
No global_opt data available

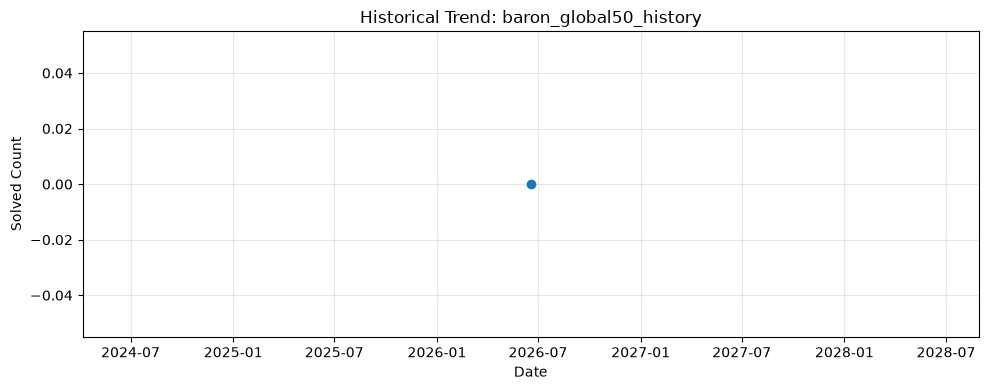

Historical Trends#
If JSONL history files are available, plot solved counts over time.
# Load history if available
history_dir = Path("../../reports/history")
if not history_dir.exists():
history_dir = Path("reports/history")
if history_dir.exists():
history_files = sorted(history_dir.glob("*.jsonl"))
if history_files:
print(f"Found {len(history_files)} history files")
for hf in history_files[:5]:
print(f" {hf.name}")
# Parse first history file as example
records = []
with open(history_files[0]) as f:
for line in f:
records.append(json.loads(line))
if records:
df_hist = pd.DataFrame(records)
if "timestamp" in df_hist.columns and "solved_count" in df_hist.columns:
df_hist["timestamp"] = pd.to_datetime(df_hist["timestamp"])
fig, ax = plt.subplots(figsize=(10, 4))
ax.plot(
df_hist["timestamp"],
df_hist["solved_count"],
"o-",
linewidth=2,
)
ax.set_xlabel("Date")
ax.set_ylabel("Solved Count")
ax.set_title(f"Historical Trend: {history_files[0].stem}")
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
else:
print("No history files found")
else:
print("No history directory found. Run benchmarks first.")
Found 29 history files
baron_global50_history.jsonl
baron_smoke3_history.jsonl
comparison_history.jsonl
convex_nlp_history.jsonl
global50_history.jsonl
