✅ What is Jupyter?

Jupyter is an open-source project that provides interactive computing environments across dozens of programming languages. At its core, Jupyter uses "kernels" - language-specific execution engines that run code and return results.

✅ What Jupyter Integration Provides

The Jupyter integration in Scimax VS Code brings the following capabilities:

• Multi-language support - Execute Python, Julia, R, and 20+ other languages

• Interactive sessions - Maintain kernel state across multiple code blocks

• Rich output - Display plots, images, HTML, LaTeX, and other media types

• Automatic image saving - Graphics automatically saved to .ob-jupyter/ directory

• ZeroMQ protocol - Native communication with Jupyter kernels via ZeroMQ

• Session management - Run multiple kernels simultaneously with named sessions

• Kernel lifecycle control - Start, stop, restart, and interrupt kernels

• VS Code integration - Kernel status in status bar, output channel logging

✅ Jupyter vs Native Executors

Scimax provides two ways to execute code blocks:

1. Native executors - Direct execution via system commands (python, node, etc.)

2. Jupyter executors - Execution via Jupyter kernels (jupyter-python, etc.)

✅ Prerequisites

Before using Jupyter kernels, you need:

1. Jupyter installed on your system

2. ZeroMQ native module (automatically included with Scimax)

3. Kernel specifications for your languages of interest

✅ Installing Jupyter

# Install Jupyter and IPython kernel
pip install jupyter ipykernel

# Or using conda
conda install jupyter

# Ubuntu/Debian
sudo apt install jupyter jupyter-core python3-ipykernel

# Fedora
sudo dnf install jupyter-core python3-ipykernel

# Arch Linux
sudo pacman -S jupyter jupyter-core python-ipykernel

brew install jupyter

✅ Installing Kernels

pip install ipykernel

using Pkg
Pkg.add("IJulia")

install.packages('IRkernel')
IRkernel::installspec()

✅ Verifying Installation

Check which kernels are installed:

jupyter kernelspec list

Available kernels:
  ir            /Users/jkitchin/Library/Jupyter/kernels/ir
  julia-1.12    /Users/jkitchin/Library/Jupyter/kernels/julia-1.12
  python3       /Users/jkitchin/Dropbox/uv/.venv/share/jupyter/kernels/python3

This will display all available kernels with their installation paths.

✅ Troubleshooting ZeroMQ

If you encounter ZeroMQ-related errors, the native module may need rebuilding for VS Code's Electron version. Scimax will display instructions if this is required.

The error message will look like:

Failed to load ZeroMQ native module. This usually means the module was
compiled for a different Node.js version.

Follow the on-screen instructions or consult the extension documentation.

✅ Basic Execution

import numpy as np
print(np.array([1, 2, 3, 4, 5]).mean())

3.0

✅ Session Management

import pandas as pd
data = pd.DataFrame({'x': [1, 2, 3], 'y': [4, 5, 6]})
print("Data loaded")

Data loaded

# The 'data' variable is still available from the previous block
print(data.describe())

x    y
count  3.0  3.0
mean   2.0  5.0
std    1.0  1.0
min    1.0  4.0
25%    1.5  4.5
50%    2.0  5.0
75%    2.5  5.5
max    3.0  6.0

#+BEGIN_SRC jupyter-python :session
# Uses the default "python-default" session
x = 42

# Same session, x is still available
print(x)

import time
print("Training model...")
time.sleep(5)  # Simulate training
model = "trained_model"
with open('data.csv', 'w') as f:
    f.write("id,value\n1,10\n2,20\n3,30\n")

Training model...

import pandas as pd
data = pd.read_csv('data.csv')
print(f"Loaded {len(data)} rows")
try:
   print(model)  # This will raise an error since 'model' is not defined here
except Exception as e:
    print(f"model is not defined in this session")

Loaded 3 rows
model is not defined in this session

✅ Rich Output and Visualization

import matplotlib.pyplot as plt
import numpy as np

x = np.linspace(0, 2 * np.pi, 100)
plt.plot(x, np.sin(x), label='sin(x)')
plt.plot(x, np.cos(x), label='cos(x)')
plt.xlabel('x')
plt.ylabel('y')
plt.title('Trigonometric Functions')
plt.legend()
plt.grid(True)

import Pkg; Pkg.add("Plots")

using Plots
x = 0:0.1:2π
plot(x, [sin.(x) cos.(x)], label=["sin" "cos"],
     xlabel="x", ylabel="y", title="Trigonometric Functions")

x <- seq(0, 2*pi, length.out=100)
plot(x, sin(x), type='l', col='blue', ylab='y', main='Sine Wave')
lines(x, cos(x), col='red')
legend('topright', c('sin(x)', 'cos(x)'), col=c('blue', 'red'), lty=1)

my-analysis.org
.ob-jupyter/
  ├── output-1705171200000-0.png
  ├── output-1705171200001-0.svg
  └── output-1705171200002-0.html

✅ Header Arguments

Jupyter blocks support all standard Babel header arguments plus Jupyter-specific options.

# Code runs in the "mysession" kernel

# Code runs in default session

# Code runs in a new temporary kernel (no session persistence)

print("Hello")
print("World")

Hello
World

2 + 2

4

import matplotlib.pyplot as plt
plt.plot([1, 2, 3], [1, 4, 9])
plt.show()

x = expensive_computation()

print("This will show code AND output in exports")

This will show code AND output in exports

This will show ONLY output in exports

print("This will show ONLY code in exports")

import os
print(os.getcwd())  # Prints: the working directory

/Users/jkitchin/Dropbox/projects/scimax_vscode/.github

ls

workflows

echo "Alice 30"
echo "Bob 25"
echo "Carol 35"

Alice 30
Bob 25
Carol 35

# The shell output is passed as a string
lines = data.strip().split('\n')
[line.split() for line in lines]

[['Alice', '30'], ['Bob', '25'], ['Carol', '35']]

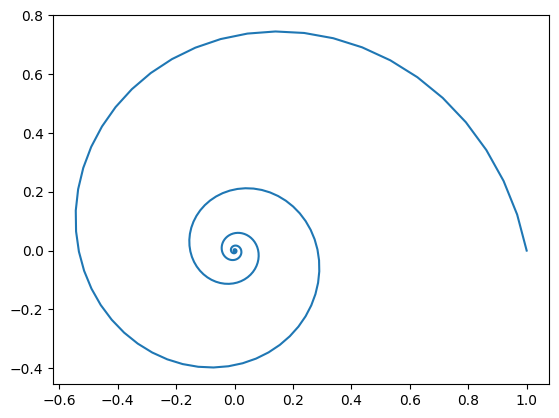

import matplotlib.pyplot as plt
import numpy as np

x = np.linspace(0, 20 * np.pi, 500)
y1 = np.cos(x) * np.exp(-.2 * x)
y2 = np.sin(x) * np.exp(-.2 * x)

plt.plot(y1, y2)

import time

def compute_expensive_value():
   time.sleep(10)  # Slow operation
   return 42

result = compute_expensive_value()
print(result)

43

import time
print("Starting...")
time.sleep(30)
print("Done!")

Starting...
Done!

# numpy is already imported due to prologue
x = np.array([1, 2, 3])
print(x.mean())
# "Done" will be printed due to epilogue

2.0
Done

✅ Starting Kernels

✅ Viewing Running Kernels

This displays all active kernels with:

• Session name

• Language

• Current state (idle, busy, starting)

• Kernel ID

From this menu you can:

• Restart a kernel

• Interrupt a kernel

• Shutdown a kernel

• View kernel information

✅ Kernel States

Kernels can be in one of several states:

The kernel state is shown in the VS Code status bar when a kernel is active.

✅ Restarting Kernels

Restarting a kernel:

• Terminates the current kernel process

• Starts a fresh kernel with the same spec

• Clears all session state (variables, imports, etc.)

• Maintains the same session name

Use restart when:

• The kernel becomes unresponsive

• You want to clear all state

• You need to reload modified modules

• Memory usage grows too large

✅ Interrupting Kernels

Interrupting sends a SIGINT (Ctrl+C) to the kernel:

• Stops currently executing code

• Preserves session state

• Allows you to regain control of a long-running computation

Use interrupt when:

• Code is taking longer than expected

• You notice an error in the running code

• You want to stop an infinite loop

✅ Stopping Kernels

Stopping a kernel:

• Gracefully terminates the kernel process

• Frees system resources

• Removes the session (state is lost)

Shuts down all running kernels simultaneously.

✅ Changing Kernels

This allows you to:

1. Select a new kernel spec

2. Choose which session to replace

3. Shutdown the old kernel

4. Start the new kernel in the same session

Use this to switch languages or kernel versions without changing session names.

✅ Mixing Languages

You can use multiple Jupyter kernels in a single document:

import json
data = {'values': [1, 2, 3, 4, 5]}
with open('/tmp/data.json', 'w') as f:
    json.dump(data, f)
print("Data saved to /tmp/data.json")

Data saved to /tmp/data.json

import Pkg; Pkg.add("JSON")
using JSON
data = JSON.parsefile("/tmp/data.json")
result = sum(data["values"])
println("Sum: $result")

Sum: 15

library(jsonlite)
data <- fromJSON("/tmp/data.json")
barplot(data$values, main="Values", col="steelblue")

Each language runs in its own kernel with isolated state. Use files or other IPC mechanisms to pass data between languages.

✅ IPython Magics

When using Python kernels, you have access to IPython magic commands:

%timeit sum(range(1000))

5.23 μs ± 31.3 ns per loop (mean ± std. dev. of 7 runs, 100,000 loops each)

%%timeit
total = 0
for i in range(1000):
    total += i

11.9 μs ± 85.7 ns per loop (mean ± std. dev. of 7 runs, 100,000 loops each)

%run my_script.py

! uv pip list | grep numpy

Using Python 3.12.11 environment at: /Users/jkitchin/Dropbox/uv/.venv
numpy                                    2.3.5
numpyro                                  0.19.0

Common magic commands:

• %timeit / %%timeit - Time execution

• %run - Run external Python file

• %load - Load code from file into cell

• %who / %whos - List variables

• %matplotlib - Set matplotlib backend

• %load_ext - Load IPython extensions

• !command - Run shell command

✅ Kernel Introspection

Jupyter kernels support code introspection (when exposed via VS Code APIs):

• Code completion - Auto-complete variable names, functions, methods

• Documentation - Hover to see docstrings and signatures

• Inspection - View source code and help text

The level of support depends on the specific kernel implementation.

✅ Custom Kernel Discovery

Jupyter looks for kernels in standard locations:

• ~/.local/share/jupyterkernels

• /usr/local/share/jupyterkernels

• /usr/share/jupyterkernels

• %APPDATA%\jupyter\kernels

• %PROGRAMDATA%\jupyter\kernels

• JUPYTER_DATADIR - Override default data directory

• JUPYTER_PATH - Additional search paths (colon-separated)

To make a custom kernel available, place its kernel.json in one of these directories.

✅ Performance Considerations

✅ Kernel Not Found

1. Verify the kernel is installed:

2. Install the kernel if missing (see Installation section)

3. Check that jupyter is in your PATH:

4. If using a virtual environment, ensure it's activated

✅ Kernel Dies Immediately

1. Check the Jupyter output channel for error messages:

2. Test the kernel outside VS Code:

3. Check kernel logs in Jupyter runtime directory:

4. Common issues:

✅ ZeroMQ Errors

1. The extension will display instructions to rebuild the module

2. This is typically only needed when VS Code's Electron version changes

3. Follow the on-screen instructions or rebuild manually:

4. Restart VS Code after rebuilding

✅ Connection Timeout

1. Increase timeout if using a slow kernel (Julia)

2. Check firewall settings (kernels use localhost ports)

3. Verify ports are available (not blocked by other processes)

4. Check system resources (CPU, memory)

✅ Output Not Appearing

1. :results silent header argument

2. :exports none or :exports code

3. Code doesn't produce output (no print/return)

4. Error occurred but was suppressed

1. Remove :results silent

2. Check :exports setting

3. Add explicit print() statements

4. Check stderr in output channel

✅ Images Not Saving

1. Ensure :results file is set (or omitted, file is default for graphics)

2. Check .ob-jupyter/ directory exists and is writable

3. Verify the plotting library is properly configured:

4. Check that your code actually generates graphics:

✅ Kernel State Confusion

1. Verify you're using the same :session name

2. Check execution order (blocks may be out of sequence)

3. Restart the kernel to clear state

4. Use explicit session names to avoid confusion

✅ Multiple Kernel Versions

1. List all kernel specs:

2. Use specific kernel names in kernel.json (e.g., julia-1.9)

3. Remove unwanted kernel specs:

✅ Session Conflicts

This is by design! Blocks with the same :session name share state.

1. Use different session names for independent computations

2. Use no :session for isolated executions

3. Restart the kernel to clear shared state

✅ Session Naming

• Use descriptive session names: :session data-preprocessing

• Group related blocks in the same session

• Use separate sessions for independent analyses

• Omit :session for quick one-off computations

✅ Image Management

• Add .ob-jupyter/ to .gitignore if outputs are generated

• Use :file custom-name.png for important plots you want to keep

• Periodically clean up .ob-jupyter/ to save disk space

• Use SVG format for publication-quality vector graphics

✅ Performance Optimization

• Keep kernels running during active development

• Shutdown unused kernels to free memory

• Use :cache yes for expensive computations

• Consider :results silent for intermediate steps

• Break large computations into smaller blocks

✅ Reproducibility

• Document kernel versions and dependencies

• Use :session to ensure execution order

• Include setup blocks with :exports none

• Consider :prologue for common imports

• Test the full document with a fresh kernel

✅ Error Handling

• Check the "Jupyter Kernels" output channel for detailed errors

• Use explicit print() statements for debugging

• Interrupt kernels rather than restarting when possible

• Add try/except blocks for robust error handling

✅ Literate Programming

• Explain code intent before each block

• Use :exports code for implementation details

• Use :exports results to show only output

• Group related blocks under headings

• Use :tangle to extract code to files

✅ Mixed Language Workflows

• Use JSON/CSV files to pass data between languages

• Keep each language in its own session

• Document data formats and conventions

• Consider temporary files for large data transfers

• Use each language for its strengths

✅ Complete Data Analysis Example

Here's a complete example showing a data analysis workflow:

,* Data Analysis: Sales Trends

This analysis examines monthly sales data to identify trends and seasonality.

,** Data Loading

First, load and clean the data:

,#+BEGIN_SRC jupyter-python :session analysis :exports both
import pandas as pd
import numpy as np

# Generate sample sales data
np.random.seed(42)
dates = pd.date_range('2023-01-01', '2023-12-31', freq='D')
sales = 1000 + np.random.normal(0, 100, len(dates)) + np.sin(np.arange(len(dates)) * 2 * np.pi / 365) * 200

df = pd.DataFrame({'date': dates, 'sales': sales})
df['month'] = df['date'].dt.to_period('M')

print(f"Loaded {len(df)} days of sales data")
print(f"Date range: {df['date'].min()} to {df['date'].max()}")
,#+END_SRC

,** Summary Statistics

,#+BEGIN_SRC jupyter-python :session analysis :exports results
print(df['sales'].describe())
,#+END_SRC

,** Visualization

,#+BEGIN_SRC jupyter-python :session analysis :results file :exports results
import matplotlib.pyplot as plt

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(12, 8))

# Daily sales
ax1.plot(df['date'], df['sales'], alpha=0.6)
ax1.set_title('Daily Sales')
ax1.set_xlabel('Date')
ax1.set_ylabel('Sales ($)')
ax1.grid(True, alpha=0.3)

# Monthly average
monthly = df.groupby('month')['sales'].mean()
ax2.bar(range(len(monthly)), monthly.values)
ax2.set_title('Average Monthly Sales')
ax2.set_xlabel('Month')
ax2.set_ylabel('Average Sales ($)')
ax2.set_xticks(range(len(monthly)))
ax2.set_xticklabels([str(m) for m in monthly.index], rotation=45)
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()
,#+END_SRC

,** Findings

The analysis reveals clear seasonal patterns in sales data with peak performance
during summer months.

✅ Julia Scientific Computing Example

Numerical Methods: Newton's Method

# Define function and derivative
f(x) = x^2 - 2
fp(x) = 2x

# Newton's method implementation
function newton(f, df, x0; tol=1e-6, maxiter=100)
    x = x0
    for i in 1:maxiter
        fx = f(x)
        if abs(fx) < tol
            return x, i
        end
        x = x - fx / df(x)
    end
    return x, maxiter
end

# Find sqrt(2)
root, iters = newton(f, fp, 1.0)
println("Root: $root")
println("Iterations: $iters")
println("Error: $(abs(root - sqrt(2)))")

Root: 1.4142135623746899
Iterations: 5
Error: 1.5947243525715749e-12

✅ R Statistical Analysis Example

Statistical Analysis: t-test

# Generate two samples
set.seed(123)
group_a <- rnorm(50, mean=100, sd=15)
group_b <- rnorm(50, mean=105, sd=15)

# Perform t-test
result <- t.test(group_a, group_b)
print(result)

Welch Two Sample t-test

data:  group_a and group_b
t = -2.4316, df = 97.951, p-value = 0.01685
alternative hypothesis: true difference in means is not equal to 0
95 percent confidence interval:
 -12.131728  -1.228414
sample estimates:
mean of x mean of y
 100.5161  107.1961

✅ Official Documentation

• Jupyter Project Website

• Jupyter Client Documentation

• IPython Documentation

• List of Jupyter Kernels

✅ Org-Mode and Babel

• Org Manual: Working with Source Code

• Babel Introduction

• Scimax Source Blocks Documentation

✅ Language-Specific Resources

• IPython Magic Commands

• IJulia Documentation

• IRkernel Documentation

✅ Connection Files

Kernels are started with connection files containing:

{
  "ip": "127.0.0.1",
  "transport": "tcp",
  "shell_port": 12345,
  "iopub_port": 12346,
  "stdin_port": 12347,
  "control_port": 12348,
  "hb_port": 12349,
  "key": "secret-key-for-hmac",
  "signature_scheme": "hmac-sha256"
}

These files are stored in the Jupyter runtime directory and cleaned up when kernels stop.
