linear algebra and mass balances

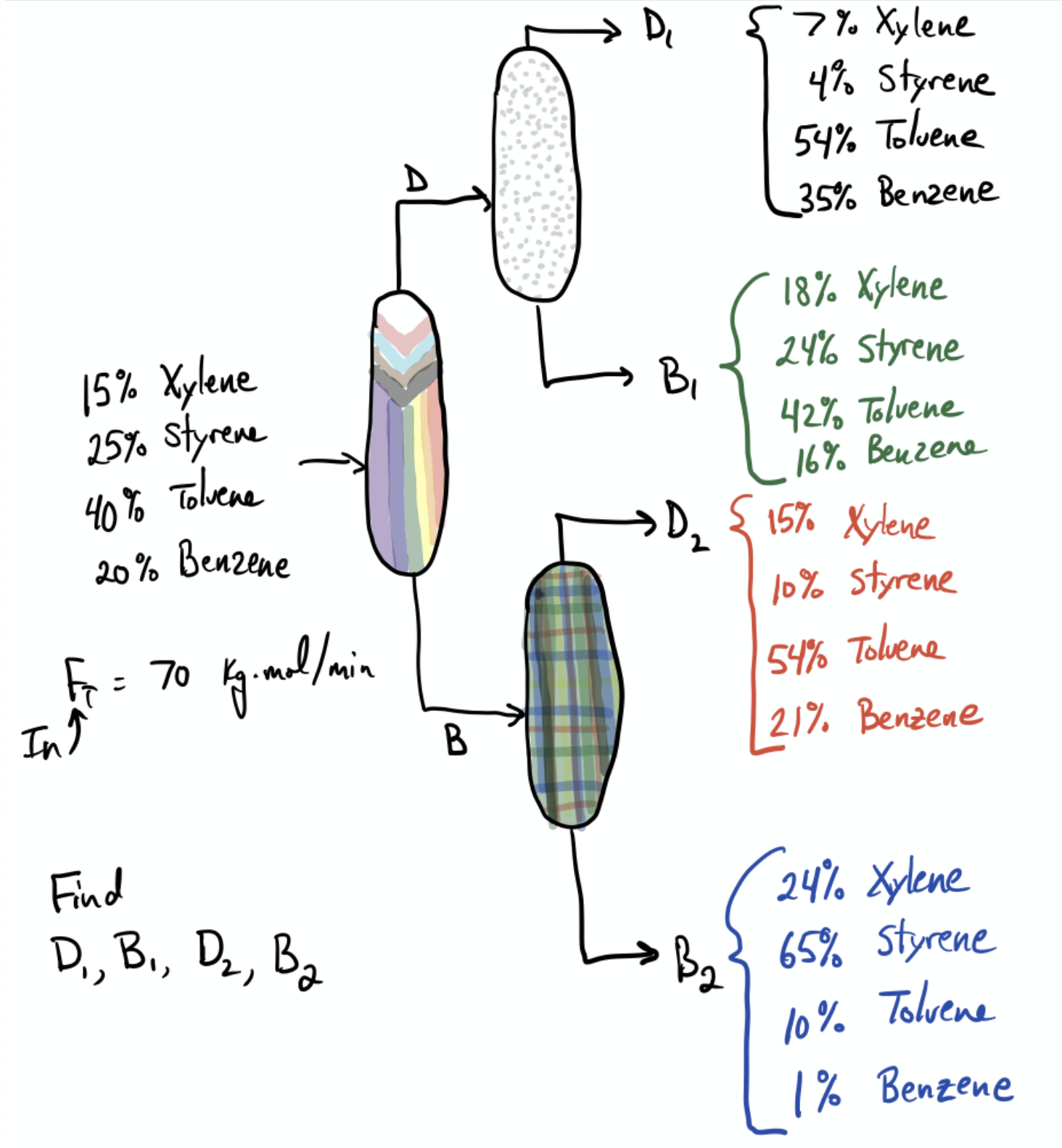

Xylene, styrene, toluene and benzene are separated in the following array of distillation columns. The total molar flow in to the first column is 70 kg-mol/min. The fractions provided are in mole%.

Your goal is to determine the molar flow rates labeled \(D_1, B_1, D_2\) and \(B_2\). You can do this by developing a mole balance on each species, which should lead to 4 linear equations. Use np.linalg.solve to find these molar flow rates.

Show using linear algebra that your solution is valid.
