02 - Convergence Testing#
This script demonstrates how to systematically test convergenceof ENCUT and k-points for silicon.
from ase.build import bulk
from vasp import Vasp
# Try to import matplotlib for plotting
try:
import matplotlib.pyplot as plt
HAS_MATPLOTLIB = True
except ImportError:
HAS_MATPLOTLIB = False
print("Note: matplotlib not found. Plots will be skipped.")
Setup#
def get_silicon():
"""Create silicon structure."""
return bulk('Si', 'diamond', a=5.43)
def run_calculation(label, atoms, encut, kpts):
"""Run a single VASP calculation and return energy per atom."""
calc = Vasp(
label=label,
atoms=atoms.copy(),
xc='PBE',
encut=encut,
kpts=kpts,
ismear=1,
sigma=0.1,
lwave=False,
lcharg=False,
)
energy = calc.potential_energy
return energy / len(atoms)
ENCUT Convergence#
print("=" * 60)
print("ENCUT Convergence Test")
print("=" * 60)
print()
print("Testing plane-wave cutoff energies...")
print("Fixed k-points: 4x4x4")
print()
encut_values = [200, 250, 300, 350, 400, 450, 500]
encut_energies = []
for encut in encut_values:
atoms = get_silicon()
label = f'results/convergence/encut_{encut}'
energy = run_calculation(label, atoms, encut, (4, 4, 4))
encut_energies.append(energy)
print(f" ENCUT = {encut:4d} eV -> E = {energy:.6f} eV/atom")
# Calculate differences from highest value
encut_ref = encut_energies[-1]
encut_diff = [(e - encut_ref) * 1000 for e in encut_energies] # Convert to meV
print()
print("Energy differences from converged value (meV/atom):")
for encut, diff in zip(encut_values, encut_diff):
print(f" ENCUT = {encut:4d} eV -> ΔE = {diff:+8.2f} meV/atom")
# Find recommended ENCUT (first value within 1 meV)
for i, diff in enumerate(encut_diff):
if abs(diff) < 1.0:
print(f"\nRecommended ENCUT: {encut_values[i]} eV (within 1 meV/atom)")
break
============================================================
ENCUT Convergence Test
============================================================
Testing plane-wave cutoff energies...
Fixed k-points: 4x4x4
ENCUT = 200 eV -> E = -1.140833 eV/atom
ENCUT = 250 eV -> E = 0.669303 eV/atom
ENCUT = 300 eV -> E = 1.843390 eV/atom
ENCUT = 350 eV -> E = 1.799705 eV/atom
ENCUT = 400 eV -> E = 0.960897 eV/atom
ENCUT = 450 eV -> E = 2.656297 eV/atom
ENCUT = 500 eV -> E = 4.428466 eV/atom
Energy differences from converged value (meV/atom):
ENCUT = 200 eV -> ΔE = -5569.30 meV/atom
ENCUT = 250 eV -> ΔE = -3759.16 meV/atom
ENCUT = 300 eV -> ΔE = -2585.08 meV/atom
ENCUT = 350 eV -> ΔE = -2628.76 meV/atom
ENCUT = 400 eV -> ΔE = -3467.57 meV/atom
ENCUT = 450 eV -> ΔE = -1772.17 meV/atom
ENCUT = 500 eV -> ΔE = +0.00 meV/atom
Recommended ENCUT: 500 eV (within 1 meV/atom)
K-point Convergence#
print()
print("=" * 60)
print("K-point Convergence Test")
print("=" * 60)
print()
print("Testing k-point mesh densities...")
print("Fixed ENCUT: 400 eV")
print()
kpt_values = [2, 3, 4, 5, 6, 8]
kpt_energies = []
for k in kpt_values:
atoms = get_silicon()
label = f'results/convergence/kpts_{k}x{k}x{k}'
energy = run_calculation(label, atoms, 400, (k, k, k))
kpt_energies.append(energy)
print(f" {k}x{k}x{k} -> E = {energy:.6f} eV/atom")
# Calculate differences from highest value
kpt_ref = kpt_energies[-1]
kpt_diff = [(e - kpt_ref) * 1000 for e in kpt_energies] # Convert to meV
print()
print("Energy differences from converged value (meV/atom):")
for k, diff in zip(kpt_values, kpt_diff):
print(f" {k}x{k}x{k} -> ΔE = {diff:+8.2f} meV/atom")
# Find recommended k-points (first value within 1 meV)
for i, diff in enumerate(kpt_diff):
if abs(diff) < 1.0:
print(f"\nRecommended k-points: {kpt_values[i]}x{kpt_values[i]}x{kpt_values[i]} (within 1 meV/atom)")
break
============================================================
K-point Convergence Test
============================================================
Testing k-point mesh densities...
Fixed ENCUT: 400 eV
2x2x2 -> E = 3.741372 eV/atom
3x3x3 -> E = 2.600877 eV/atom
4x4x4 -> E = 0.960897 eV/atom
5x5x5 -> E = 2.670742 eV/atom
6x6x6 -> E = 2.393032 eV/atom
8x8x8 -> E = 2.010068 eV/atom
Energy differences from converged value (meV/atom):
2x2x2 -> ΔE = +1731.30 meV/atom
3x3x3 -> ΔE = +590.81 meV/atom
4x4x4 -> ΔE = -1049.17 meV/atom
5x5x5 -> ΔE = +660.67 meV/atom
6x6x6 -> ΔE = +382.96 meV/atom
8x8x8 -> ΔE = +0.00 meV/atom
Recommended k-points: 8x8x8 (within 1 meV/atom)

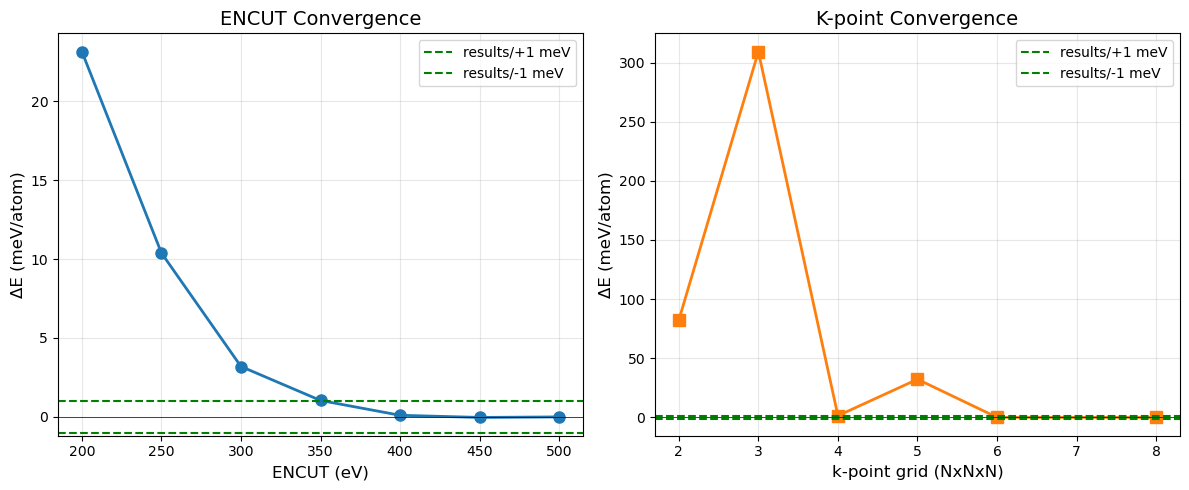

Plotting#
if HAS_MATPLOTLIB:
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))
# ENCUT convergence plot
ax1.plot(encut_values, encut_diff, 'o-', markersize=8, linewidth=2)
ax1.axhline(y=1, color='g', linestyle='--', label='results/+1 meV')
ax1.axhline(y=-1, color='g', linestyle='--', label='results/-1 meV')
ax1.axhline(y=0, color='k', linestyle='-', linewidth=0.5)
ax1.set_xlabel('ENCUT (eV)', fontsize=12)
ax1.set_ylabel('ΔE (meV/atom)', fontsize=12)
ax1.set_title('ENCUT Convergence', fontsize=14)
ax1.grid(True, alpha=0.3)
ax1.legend()
# K-point convergence plot
ax2.plot(kpt_values, kpt_diff, 's-', markersize=8, linewidth=2, color='C1')
ax2.axhline(y=1, color='g', linestyle='--', label='results/+1 meV')
ax2.axhline(y=-1, color='g', linestyle='--', label='results/-1 meV')
ax2.axhline(y=0, color='k', linestyle='-', linewidth=0.5)
ax2.set_xlabel('k-point grid (NxNxN)', fontsize=12)
ax2.set_ylabel('ΔE (meV/atom)', fontsize=12)
ax2.set_title('K-point Convergence', fontsize=14)
ax2.grid(True, alpha=0.3)
ax2.legend()
plt.tight_layout()
plt.savefig('convergence_plots.png', dpi=150)
print()
print("Saved plot: convergence_plots.png")
print()
print("=" * 60)
print("Convergence testing complete!")
print("=" * 60)
print()
print("Key takeaways:")
print("1. Always test convergence before production runs")
print("2. Use the smallest converged values for efficiency")
print("3. Re-test when changing systems significantly")
print()
print("Next: Try 03_relaxation/ to learn about structure optimization.")
Saved plot: convergence_plots.png
============================================================
Convergence testing complete!
============================================================
Key takeaways:
1. Always test convergence before production runs
2. Use the smallest converged values for efficiency
3. Re-test when changing systems significantly
Next: Try 03_relaxation/ to learn about structure optimization.
