We should come up with a plan for reading the data into arrays. Why? Because there are a lot of arrays and we want to make sure we get them in the right shape. If you open the file, you will see that it is not structured as only rows of data. There is a section at the top that looks like:

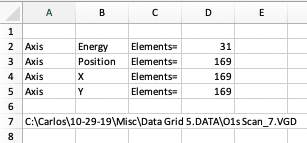

Which tells us we have 31 elements in the Binding energy column, and 169 positions.

Next, we look at where the position data is. The x-data starts in row 11, and y in row 12. The binding energy, in contrast is in column A starting in row 15, and the counts start in column C.

So, we need arrays for x, y, BE, counts, and from these we can visualize the data.

We will use openpyxl to read this data in from the first sheet. If this next cell doesn't work, you may need to install it like this:

!pip install openpyxl

Requirement already satisfied: openpyxl in /Users/jkitchin/opt/anaconda3/lib/python3.7/site-packages (3.0.3) Requirement already satisfied: jdcal in /Users/jkitchin/opt/anaconda3/lib/python3.7/site-packages (from openpyxl) (1.4.1) Requirement already satisfied: et-xmlfile in /Users/jkitchin/opt/anaconda3/lib/python3.7/site-packages (from openpyxl) (1.0.1)

Here we open the worksheet and load it.

import numpy as np
from openpyxl import load_workbook
wb = load_workbook(filename='XPS_Data.xlsx')
ws = wb.worksheets[0]  # get the first sheet

We can pretty easily get the number of energy and position values because they are single values in a cell.

nenergy = ws['D2'].value
npos = ws['D3'].value

(nenergy, npos)  # we show these to make sure they are right.

(31, 169)

Note I am working this out iteratively, one piece at a time. This is easier to debug.

Next we work out how to get the arrays of data. There is a lot packed into the next cell. To get a range of cells, we use the iter_rows function which lets us define a range by numeric rows and columns. This is convenient since we know how many points to get. This function returns a generator, so we convert it to a list, and then to an array. Note that this returns a column vector because we are iterating down a column, so we apply the squeeze function to reduce it to a 1D array.

v = np.array([[1],[2],[3],[4]])
v, v.shape

(array([[1],
        [2],
        [3],
        [4]]),
 (4, 1))

?np.squeeze

These are the same:

np.squeeze(v), v[:, 0]

(array([1, 2, 3, 4]), array([1, 2, 3, 4]))

So, back to getting the BEs. This makes a generator, which is a lazy iterator that doesn't do anything until you ask for it.

print(ws.iter_rows(min_row=15, max_row=15 + nenergy - 1,
                   min_col=1, max_col=1,
                   values_only=True))

<generator object Worksheet._cells_by_row at 0x1314221d0>

We get the data by casting it as a list, which is like asking for all the data at once. Note this is a list of tuples, which is not that helpful.

list(ws.iter_rows(min_row=15, max_row=15 + nenergy - 1,
                  min_col=1, max_col=1,
                  values_only=True))

[(538,),
 (537.6,),
 (537.2,),
 (536.8,),
 (536.4,),
 (536,),
 (535.6,),
 (535.2,),
 (534.8,),
 (534.4,),
 (534,),
 (533.6,),
 (533.2,),
 (532.8,),
 (532.4,),
 (532,),
 (531.6,),
 (531.2,),
 (530.8,),
 (530.4,),
 (530,),
 (529.6,),
 (529.2,),
 (528.8,),
 (528.4,),
 (528,),
 (527.6,),
 (527.2,),
 (526.8,),
 (526.4,),
 (526,)]

So, finally, we turn it into an array, and squeeze off the last dimension to get a 1D array. Note it is common to iteratively write this cell like I did above, because there are a lot of operations happening in one variable assignment.

BE = np.array(list(ws.iter_rows(min_row=15, max_row=15 + nenergy - 1,
                                min_col=1, max_col=1,
                                values_only=True))).squeeze()
BE.shape, BE

((31,),
 array([538. , 537.6, 537.2, 536.8, 536.4, 536. , 535.6, 535.2, 534.8,
        534.4, 534. , 533.6, 533.2, 532.8, 532.4, 532. , 531.6, 531.2,
        530.8, 530.4, 530. , 529.6, 529.2, 528.8, 528.4, 528. , 527.6,
        527.2, 526.8, 526.4, 526. ]))

We apply a similar method to get the x, y points. This produces a 2D row array, which we also squeeze down to a 1D array.

x = np.array(list(ws.iter_rows(min_row=11, max_row=11,
                               min_col=3, max_col=3 + npos - 1,
                               values_only=True))).squeeze()

y = np.array(list(ws.iter_rows(min_row=12, max_row=12,
                               min_col=3, max_col=3 + npos - 1,
                               values_only=True))).squeeze()
x.shape, y.shape

((169,), (169,))

Finally, we need the counts. This will be a 2D array that should have 31 rows, and 169 columns. A column in this array corresponds to the XPS spectrum of the (x, y) point in the same column of the x, and y arrays.

counts = np.array(list(ws.iter_rows(min_row=15, max_row=15 + nenergy - 1,
                                    min_col=3, max_col=3 + npos - 1,
                                    values_only=True)))
counts.shape

(31, 169)

That concludes reading the data from the first sheet in. You can see that it is a lot more work than reading a simple csv or json file!

First, we plot the x,y points. These should look like concentric circles of points.

%matplotlib notebook
import matplotlib.pyplot as plt

plt.plot(x, y, 'b.')
plt.axis('equal');

Next we plot all the XPS plots. Since the counts are all in columns, we can plot all 169 of them at once. Each one of these curves corresponds to one point in the previous figure. It is convention to show the x-axis reversed, which we do by changing the x-limits. There are so many curves it is not helpful to put a legend on this.

plt.plot(BE, counts)
plt.xlabel('Binding energy (eV)')
plt.ylabel('Counts')
plt.xlim([BE.max(), BE.min()])  # this reverses the x-limits

(538.0, 526.0)

A MouseEvent is triggered when a mouse button is pressed on a matplotlib figure. The event is an object that has several attributes:

event.dblclick

True if the event is a double-click

event.button

tells you which button was pressed

event.key

tells you if a key was also pressed, e.g. shift

event.xdata

The x-point you clicked on

event.ydata

The y-point you clicked on

Our first interactive figure will allow us to click on a figure and change the title of the plot with information about your click.

To do this, we need to change how we make plots. We will use subplots to generate a Figure and an Axes, which we store in variables. Then, we can use these variables inside our callback functions to modify the plot properties.

First, we define the callback function.

def onclick(event):
    ax.set_title(f'''{'double' if event.dblclick else 'single'}
    event.button {event.button} key={event.key}
    click: button={event.button}, x={event.x}, y={event.y},
    xdata={event.xdata}, ydata={event.ydata}''')
    print(event)  # in Jupyter, you may not see any output depending on the backend you use.
    fig.canvas.draw() # Make sure you redraw the canvas to see the change

It is somewhat tricky to debug the callback functions in a jupyter notebook. The issue is that once the figure is made, it is controlled in a gui loop that is separate from the notebook, and it tends to ignore errors, and it also tends to suppress output.

One way we can try testing the callback function is to create a fake event that we can all here to see what is happening. This should work without any errors.

Let's see what a MouseEvent looks like.

import matplotlib
?matplotlib.backend_bases.MouseEvent

fig = matplotlib.figure.Figure()
fake_event = matplotlib.backend_bases.MouseEvent('test', fig.canvas, 0, 0)
fake_event

onclick(fake_event)

test: xy=(0, 0) xydata=(None, None) button=None dblclick=False inaxes=None

Now, to use the callback function, we have to connect it to the canvas of the figure. Then, we just show the figure. Now, when you click on the figure you should see the title update indicating the properties of the click event.

fig, ax = plt.subplots()

ax.scatter(x, y)
ax.axis('equal')

cid = fig.canvas.mpl_connect('button_press_event', onclick)
fig.show()

Try this out, and click in a few places, press some keys and click, and try double-clicking. Each one should update the figure. Note, however, in the notebook nothing gets printed. If you were running this in a script in a shell, you would see some output.

Congratulations, you have successfully made your first interactive graphic!

Next, we add a way to add points to a plot. This might be to mark the point you clicked on, for example.

We still use a button_press_event. The goal is to add a blue square on a regular mouse click, and a red circle if you are pressing "r" when you click. We achieve this by using some logic in the event callback function to check if "r" is pressed. You can have as many of these if/else statements as you want.

We use the event.key attribute to see what key is pressed.

fig, ax = plt.subplots()
ax.plot(x, y, 'g.')
ax.axis('equal')

def onclick(event):
    if event.key == 'r':
        style = 'ro'
    else:
        style = 'bs'

    ax.plot([event.xdata], [event.ydata], style)
    fig.canvas.draw() # Make sure you redraw the canvas to see the change


cid = fig.canvas.mpl_connect('button_press_event', onclick)
fig.show()

One of the most useful events is called picking, which is an event that occurs when you click on a point or line in a plot. To enable picking, you have to add a picker=N argument to your plot, where N is a pixel radius, i.e. it will pick points within N pixels of where you click.

In a PickEvent you get all the regular attributes of an Event, and the following:

event.mouseevent

The mouse event that generated the pick

event.artist

The artist you picked

• This attribute also records what axis it is in.

event.ind

The index of the points that fall in the picked region. This will be a list, and it can have more than one point if they are close together.

Let's explore how this works. We will create two subplots, and use a callback function. There is only one callback function for the pick_event, so we have to be able tell what was picked. We use the artist attached to the event to tell which axes were clicked on so we can update the correct title.

fig, (ax0, ax1) = plt.subplots(1, 2)

x = np.linspace(0, 10, 10)

ax0.plot(x, 0.5 * x, 'bo-', x, x**2, 'rs-', picker=5)
ax1.scatter(x, x**2, picker=5)

def onpick(event):
    if event.artist.axes == ax0:
        ax0.set_title(f'index {event.ind} in {event.artist}')
    elif event.artist.axes == ax1:
        ax1.set_title(f'index {event.ind}')
    fig.canvas.draw() # Make sure you redraw the canvas to see the change


fig.canvas.mpl_connect('pick_event', onpick)

fig.show()

It is helpful to be able to "mark" the point you clicked. We will do that by creating a transparent marker that we will move around. This marker will be another plot that starts out invisible. We will make it visible in the callback function and set its position to the point you picked.

We will use the same subplots as we did above. This results in quite a few additional challenges.

1. We still have to know which subplot we clicked in.
2. In the first subplot, we have to know which data corresponds to which line.

An added complexity here is that there is not a consistent way to get the data for each plot. The line plot and scatter plot are different artists. For the line plot, we can use get_xdata and get_ydata, but for the scatter plot, we have to use get_offsets. There are only a few ways you could know this:

1. You exhaustively read and remember all the matplotlib documentation (that is not practical, although you should do some reading)
2. You worked out an example on a plot, perhaps by modifying another example you found, and then you got an error when you tried using it on scatter. Then you starting digging into the scatter and discovered it doesn't work the same, and found the function that gives you want you need. That is what I did.

import matplotlib
import matplotlib.pyplot as plt
import numpy as np

fig, (ax0, ax1) = plt.subplots(1, 2)

x = np.linspace(0, 10, 10)

ax0.plot(x, 0.5 * x, 'bo-', x, x**2, 'rs-', picker=5)
ax1.scatter(x, x**2, picker=5)

# Store the markers we want in variables so we can use them in our callback function
marker0, = ax0.plot(0, 0, 'yo', visible=False, alpha=0.8, ms=10)
marker1, = ax1.plot(1, 1, 'yo', visible=False, alpha=0.8, ms=10)


def onpick(event):
    # we assume you want the first point in the list
    ind = event.ind[0]

    # Get the relevant data
    if isinstance(event.artist, matplotlib.lines.Line2D):
        x = event.artist.get_xdata()
        y = event.artist.get_ydata()

    elif isinstance(event.artist, matplotlib.collections.PathCollection):
        data = event.artist.get_offsets()
        x, y = data.T

    # get the relevant axes marker
    if event.artist.axes == ax0:
        marker = marker0
        ax0.set_title(f'({x[ind]:1.1f}, {y[ind]:1.1f})')
    else:
        marker = marker1
        ax1.set_title(f'({x[ind]:1.1f}, {y[ind]:1.1f})')

    marker.set_visible(True)
    marker.set_xdata(x[ind])
    marker.set_ydata(y[ind])
    fig.canvas.draw() # Make sure you redraw the canvas to see the change

fig.canvas.mpl_connect('pick_event', onpick)
plt.show()
