Roadmap

1. Two facts that break a batch pipeline
2. Batch, streaming, and the log
3. Windows, event time, watermarks
4. Validation: checks as a gate
5. Where this pushes back
6. Live demo: a gate that fails loudly

Two facts that break a batch pipeline

Lecture 5 built a batch pipeline: a clean sequence of stages over a fixed, finished dataset.

The right picture most of the time.

Two facts about real sensor data sit just outside it.

Two facts that break a batch pipeline, unbounded and out of order

Readings also arrive jumbled in time. In the Intel Lab feed, watched as it lands:

• 79.5% of readings are out of event-time order
• normal behavior over a lossy network, not corruption

Intel Lab Data, 2.3 M readings, 54 motes

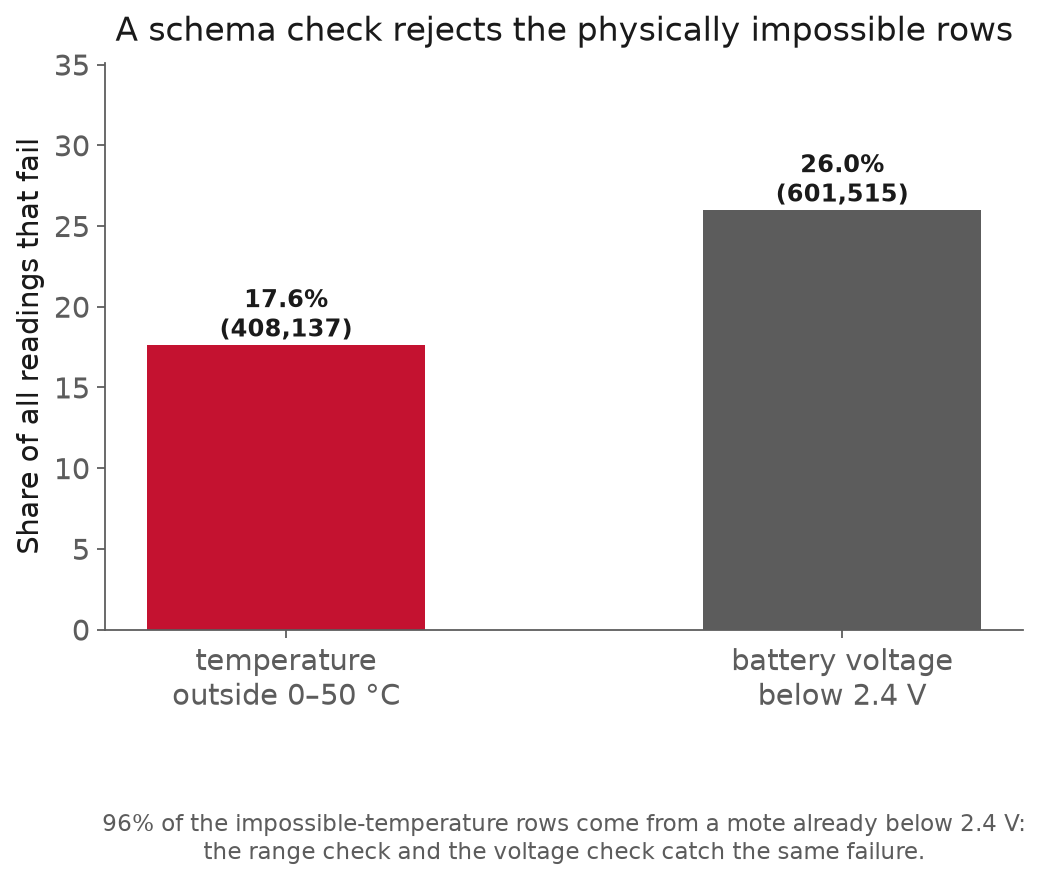

Two facts that break a batch pipeline, dirty data

The same feed carries physically impossible values.

• ~18% of temperatures outside 0 to 50 °C
• ~26% from motes below a trustworthy battery voltage
• 96% of the impossible temperatures come from a mote already under 2.4 V

Hundreds of thousands of rows. Nothing announces them, and the two checks are
mostly finding one failure.

Two facts that break a batch pipeline, two disciplines

• Data validation: stop bad data before it enters, with executable checks that run as a gate and fail loudly.

Batch, streaming, and the log

• Micro-batch: run a batch job every few seconds over whatever has accumulated.

Batch, streaming, and the log, a broker

• producers write records to a named topic: a mote, a plant historian
• consumers subscribe to the topic: a dashboard, an archive, an alarm
• producers and consumers never talk to each other, only to the broker
• Apache Kafka is the common broker for large streams; MQTT is the light one for devices, and A3's plant stream uses it

Kafka: introduction

Batch, streaming, and the log, the log

• a topic is split into partitions, each one a log
• producers append to the end; nothing in the middle changes
• each consumer keeps an offset: the number of the next record it will read
• order is guaranteed per partition, not per topic

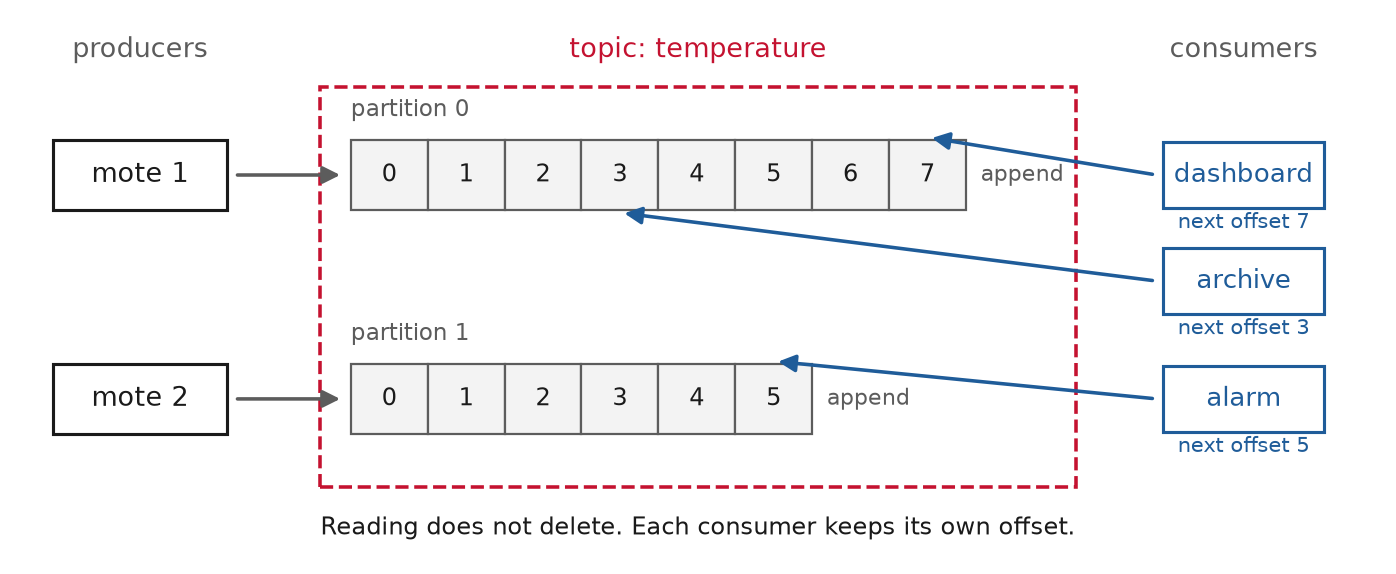

Batch, streaming, and the log, the log

Three consumers, three offsets. The archive is behind the dashboard, and neither slows the other.

Batch, streaming, and the log, why a log

• a queue deletes a message once consumed; a log keeps it and lets many readers replay from any offset
• push, not poll: each record is handed to the consumer as it lands
• reset the offset to reprocess history through new code, no separate backfill
• a consumer group splits the partitions; throughput scales with partition count

Batch, streaming, and the log, delivery semantics

Kafka is at-least-once by default. Exactly-once is opt-in: an idempotent producer plus transactions, or Kafka Streams exactly_once_v2. Assume at-least-once and tolerate a duplicate.

Kafka: semantics

Batch, streaming, and the log, a question

Batch, streaming, and the log, on devices and under load

MQTT is a "lightweight publish/subscribe messaging transport" for microcontrollers and lossy networks. MQTT

• Backpressure: when a consumer cannot keep up, signal upstream to slow down rather than dropping data or exhausting memory.

State is the hard part: a running average, an open window, or a dedup set must survive restarts, the real reason a stream is heavier than a batch job. Reactive Streams

Windows, event time, watermarks

You cannot average an infinite sequence.

Akidau's frame for any streaming computation:

• What result (a sum, an average)
• Where in event time (windows)
• When to emit (watermarks, triggers)
• How refinements relate (accumulation)

Akidau et al., The Dataflow Model (VLDB 2015)

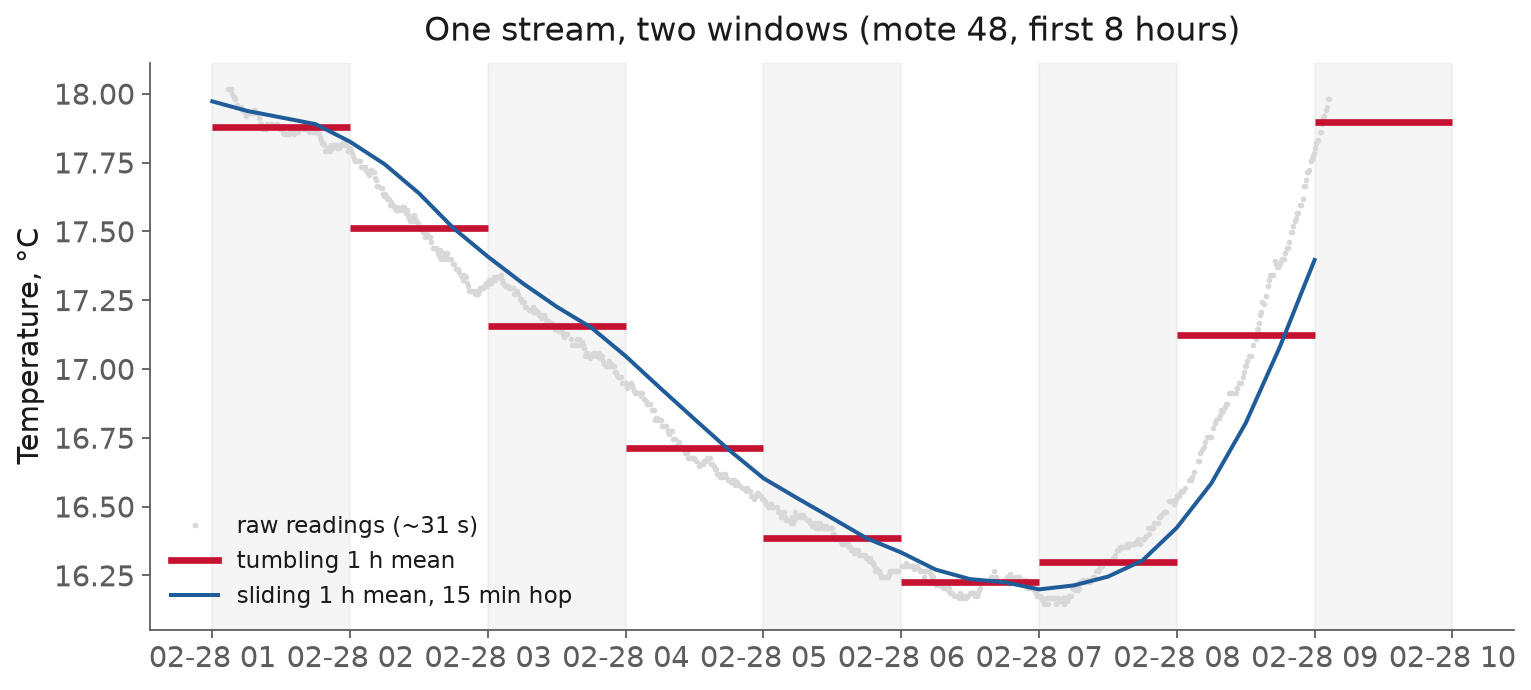

Windows, event time, watermarks, three shapes

• Tumbling (fixed): static size, no overlap, one mean per clock hour.
• Sliding (hopping): a size and a shorter step, so windows overlap.
• Session: groups activity separated by gaps of inactivity.

Fixed is the special case of sliding where size = step.

Windows, event time, watermarks, tumbling in code

(readings
 .set_index("ts")        # event time
 .resample("1h")         # tumbling: fixed, no overlap
 .agg(mean_temp=("temperature", "mean")))

One hour in, one row out. This produces the red steps in the figure.

Windows, event time, watermarks, event and processing time

• Event time: "the time at which the event itself actually occurred," stamped by the sensor.
• Processing time: "the time at which an event is observed at any given point during processing."

Measured at 3:10, arrives at 4:20: event time 3:10, processing time 4:20.

For a live stream they diverge constantly. A processing-time window mixes events from wildly different real times, and with 79.5% out of order it is meaningless. Group readings by when they were measured.

Windows, event time, watermarks, a question

Windows, event time, watermarks, watermarks and triggers

When it passes a window's end, the window closes.

A trigger decides when to emit: at the watermark once, early on a timer, or late on each straggler.

Windows, event time, watermarks, late data

• Late data: a reading that arrives after its window has already closed.

The watermark is a guess and can be wrong. You need a policy: drop it, hold windows open, or re-emit a corrected result.

Wait longer: fewer late readings, but every result comes out later.

Accumulation decides what a correction means: discard the old value and replace it, or accumulate the straggler onto it. "The hourly mean is 24.1 °C. Correction: 24.3 °C." Downstream must expect updates.

Streaming 102

Windows, event time, watermarks, a question

Validation: checks as a gate

• Gate: a stage the data must pass before the pipeline will act on it.

Every pipeline, batch or streaming, has data entering it that some upstream process swears is fine.

Validation: checks as a gate, three kinds of check

• Schema check: asserts structure (column exists, is a timestamp, is or is not nullable).
• Statistical check: asserts distributions (null rate, uniqueness, drift).
• Physical-plausibility check: asserts what the domain knows (temperature in range, time not backwards).

The physical checks earn their keep: the impossible temperatures from Lecture 3 come from motes whose batteries drained, and a range check and a voltage check reject the same rows.

Validation: checks as a gate, pandera

import pandera.pandas as pa

schema = pa.DataFrameSchema({
    "moteid":      pa.Column(int, pa.Check.isin(range(1, 55))),
    "temperature": pa.Column(float, pa.Check.in_range(0, 50), nullable=True),
    "voltage":     pa.Column(float, pa.Check.ge(2.4), nullable=True),
})
schema.validate(df, lazy=True)   # collect every failure

pandera: checks

Validation: checks as a gate, how it fails

• each check tests one row at a time, with no memory of earlier rows
• schema.validate(df) raises SchemaError on the first break
• lazy=True raises SchemaErrors with every failing row

Fail fast to stop a pipeline; fail lazy to clean a dirty dump.

pandera: lazy validation

Validation: checks as a gate, a failure report

column       check                          failure_case
temperature  in_range(0, 50)                122.15
voltage      greater_than_or_equal_to(2.4)  1.91

lazy=True hands you which row, which check, which value.

Validation: checks as a gate, a question

Validation: checks as a gate, Great Expectations

• Expectation: a verifiable assertion about data
• Suite: a collection of them
• Checkpoint: runs a suite in production
• Data Docs: human-readable reports

GX overview

Validation: checks as a gate, pandera or Great Expectations

Prefer pandera for a single script; use Great Expectations when a team needs an audit trail.

Validation: checks as a gate, drift and contract

Statistical checks ask whether the distribution moved:

• a null rate creeping up
• a sensor's mean sliding month to month

The seam into monitoring: the same checks, run forever.

A written schema is a data contract, the shape a consumer is entitled to assume, and documentation that fails the build when it goes stale.

Validation: checks as a gate, what a failure does

Inject bad data on purpose and prove the gate halts, because an untested check gives false confidence.

Where this pushes back, streaming is a cost to defer

A batch job is a function you rerun. A stream is a long-lived stateful service.

Exactly-once is hard, watermarks are heuristics, late data forces a policy.

Start batch or micro-batch. Adopt streaming only when latency demands it.

Where this pushes back, event-time windows trust your clocks

Everything rested on the event-time stamp.

A wrong or drifting sensor clock makes event-time windows group by a lie.

The monotonic-timestamp check lets you trust them.

Where this pushes back, validation confirms plausibility

A value that passes every check can still be wrong.

24 °C is plausible whether or not it is what happened.

Validation catches impossible and malformed values. It misses a sensor that is miscalibrated but reading plausibly. It gives the same false comfort as a passing test or a reproducible result.

Where this pushes back, a schema is a brittle burden

• too tight: cries wolf, until the team ignores it
• too loose: passes the data it should catch
• only tests the expectations you thought to write

Validation improves the baseline of data quality, and problems it did not anticipate still pass through.

What to watch

With the gate: the pipeline halts with a precise complaint.

Without it: the pipeline runs to completion and produces a confident, wrong number.

The gate turns silent corruption into a loud failure.

Recap

• Real sensor data is unbounded, out of order, and dirty
• Streaming: windows in event time, closed by watermarks
• 79.5% out of order is why event time and watermarks exist
• Validation: schema, statistical, and physical checks, as a gate
• pandera for code, Great Expectations for team-readable reports
• Block, warn, or quarantine, and prove the gate halts

Standings

Nicknames only. Everyone who skipped one still counted in every bar you saw.

Next

Assignment 3 is released today: collect ten minutes of a live plant stream, then make it trustworthy
Reading Akidau, "The Dataflow Model"; pandera docs

Full notes, with all sources: lectures/l06/notes.md
