Roadmap

1. Why columns
2. Row stores and column stores
3. Parquet
4. DuckDB
5. The wider landscape
6. Where columns stop helping
7. Live demo: the same data, columnar

Why columns

Lecture 3 left the Intel Lab readings in PostgreSQL, indexed on (sensor_id, ts).

• one sensor, one hour → a few hundredths of a ms
• that is the dashboard query, and the row store is superb at it

Why columns, the analyst's question

• average temperature of every mote, all month
• daily energy across the floor, all year
• distribution of one channel over all history

Nothing to narrow. The index has nothing to prune, so the database reads the whole table.

Why columns, the row store reads everything

In a row store, reading every row means reading every column.

• readings has six columns; to average one, it drags all six off disk
• for all 2.3M rows, then throws almost all of it away
• cost grows with the width and height of the table

The answer, an average of one column, depends on neither.

Why columns, the fix is the layout

Store each column together instead of each row.

Then avg(temperature) reads only the temperature values, in one run, already compressed.

Same data, different bytes. Measured today: ~80× faster, ~5× smaller.

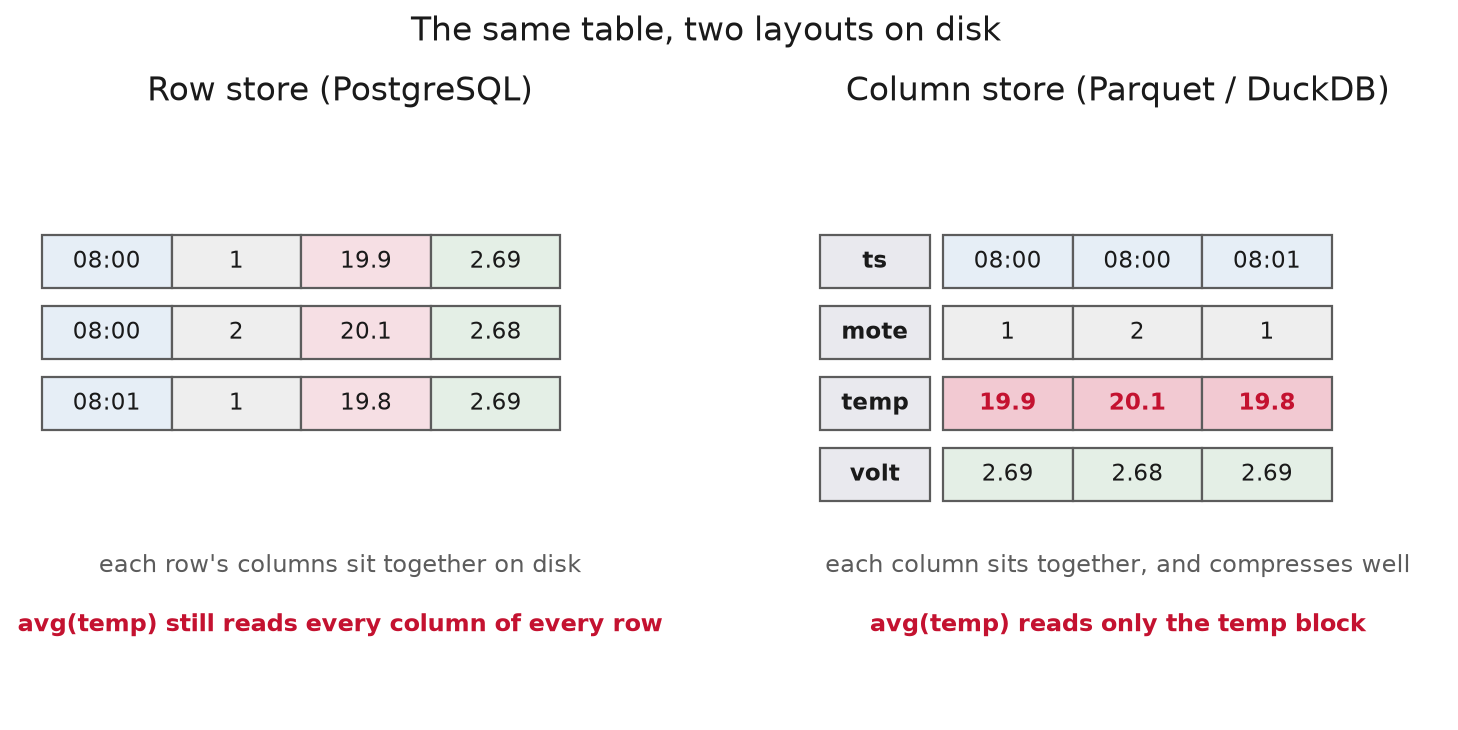

Row stores and column stores

• Row store: keeps the values of each row together on disk, one whole row after another.

Same logical table. Different values sit next to each other.

Row stores and column stores, OLTP and OLAP

• OLTP: online transaction processing, many small operations that insert, update, or fetch whole rows by key.

The question is which workload this is. A serious platform runs both.

Row stores and column stores, OLTP vs OLAP

Row stores and column stores, the query

SELECT mote_id, avg(temperature)
FROM readings
GROUP BY mote_id;

One column, aggregated over every row. The whole session is about making this cheap.

Row stores and column stores, the wins

• Compression: a column holds one type of similar values (a temperature near the last, a mote id repeated thousands of times), which shrinks far harder than a row's mixed bytes.

Row stores and column stores, predicate pushdown

• Predicate pushdown: each block carries its min and max, so a block whose range cannot match your WHERE is skipped without being read.

The three wins compound. Smaller data is also less to read.

Row stores and column stores, when to use which

Columns win the wide analytical scan:

• aggregate one channel across all history
• scan a few columns of a very wide table
• compress cold data you rarely rewrite

Rows win the point write and lookup: one whole row, or one update, touches every column block.

A column store complements the Lecture 3 row store; each handles the workload the other is slow at.

Parquet, inside the file

• Row group: a horizontal slice of the rows, a few hundred thousand at a time.
• Column chunk: one column's values within a row group, encoded and compressed on its own.

A footer written last carries the schema and per-column min/max, so the file needs no external definition and a reader can skip row groups that cannot match a filter.

Parquet, compression and encoding

Measured on the Intel Lab readings:

101 MB CSV → 18 MB Parquet. About 5× smaller, which is also less data to read from disk.

Per column, Parquet applies dictionary encoding for repeated values and run-length encoding for runs, then compresses on top. A mote id repeated thousands of times nearly vanishes.

Apache Parquet, file format

Parquet, partitioning

• Partition pruning: a directory tree encodes a column's value in folder names, so a filtered query opens only the matching folders.

readings/date=2004-03-01/part.parquet
readings/date=2004-03-02/part.parquet

Partition on what you filter by; keep partitions from getting tiny.

Parquet, writing it

df.to_parquet("readings.parquet", compression="snappy")

From pandas or PyArrow. Read it back the same way.

Parquet, a file not a database

• no indexes you build
• no transactions
• no in-place update: rewrite the file, or write new files

Great for batch analytics. Point-updated data belongs in the row store.

DuckDB, queries Parquet directly

SELECT mote_id, avg(temperature)
FROM 'readings/*.parquet'
GROUP BY mote_id;

No CREATE TABLE, no load. It reads the files where they sit, with projection and row-group skipping.

DuckDB: reading Parquet

DuckDB, prunes partitions

FROM read_parquet('readings/**/*.parquet', hive_partitioning = true)
WHERE date = '2004-03-01'

The folder name becomes a column; the filter opens one folder.

DuckDB, write results back

COPY (SELECT mote_id, avg(temperature) AS avg_temp
      FROM 'readings/*.parquet' GROUP BY mote_id)
TO 'mote_avg.parquet' (FORMAT parquet);

Query in, Parquet out. DuckDB can also read a pandas dataframe in place and hand results back as one.

DuckDB, read the figure

• row store: cost climbs with the table (reads everything)
• columnar: nearly flat (reads 2 columns of 6, vectorized)
• and the file is several times smaller

≈80× on the whole-table aggregate at 2.3M rows.

DuckDB, which tool

They interoperate. The choice is rarely exclusive.

The wider landscape, the other stores

Recognize these; you will not build them here. Each drops a relational guarantee (the schema, the joins, or the transactions) for a fit to one access pattern.

• Document store (MongoDB): flexible, JSON-like records, fields vary per record. For irregular experiment metadata, not uniform readings.
• Key-value store (Redis): a value under a key, often in memory. For caches and hot lookups, not queries.
• Time-series database (InfluxDB): high-rate timestamped writes, bucketing built in.

Reach for one because your access pattern demands it, not to dodge a schema.

MongoDB · Redis · InfluxDB

Where columns stop helping, writes and lookups

Parquet is effectively immutable: add data = write new files, change a row = rewrite its file.

Columns are fast for "average this one column" and slow for "give me this whole row," which gathers from every column block.

Constantly-corrected data and point lookups are the row store's home turf.

Where columns stop helping, DuckDB is an engine

One process. Superb for one analyst, one pipeline.

It is not a shared backend that many clients write to concurrently with transactions. That is still PostgreSQL's job; DuckDB complements it rather than replacing it.

Where columns stop helping, size and composition

• the 80× shows at millions of rows; at in-memory sizes, a pandas groupby is simpler and fast enough
• real platforms run both: Postgres takes live writes, Parquet + DuckDB scan history, and you move data across the seam
• reach for a document, key-value, or time-series store because your access pattern demands it, not to dodge designing a schema

What to watch

1. The analytical scan: the row store climbs, DuckDB over Parquet stays flat.

2. DuckDB answering a query over Parquet it never loaded.

Recap

• Layout should match the access pattern
• Row store / OLTP for writes and point reads (Lecture 3)
• Column store / OLAP for wide scans: Parquet + DuckDB
• Measured: ≈80× faster, ≈5× smaller on the scan
• DuckDB queries files and databases with zero import
• Document, key-value, time-series: each fits one pattern

Next

Assignment 2 released today: PostgreSQL (Lecture 3) + Parquet/DuckDB (today)
