Roadmap

1. Why a database, not a spreadsheet
2. The relational model: long beats wide
3. Types that carry physical meaning
4. SQL that answers engineering questions
5. Loading, indexes, and EXPLAIN ANALYZE
6. Live demo: a month of sensor data

Why a database

• Which sensor ran hottest last Tuesday?
• How many readings did node 12 drop overnight?
• What was the hourly average across the floor?

The arithmetic is trivial.
The shape of the data is the hard part.

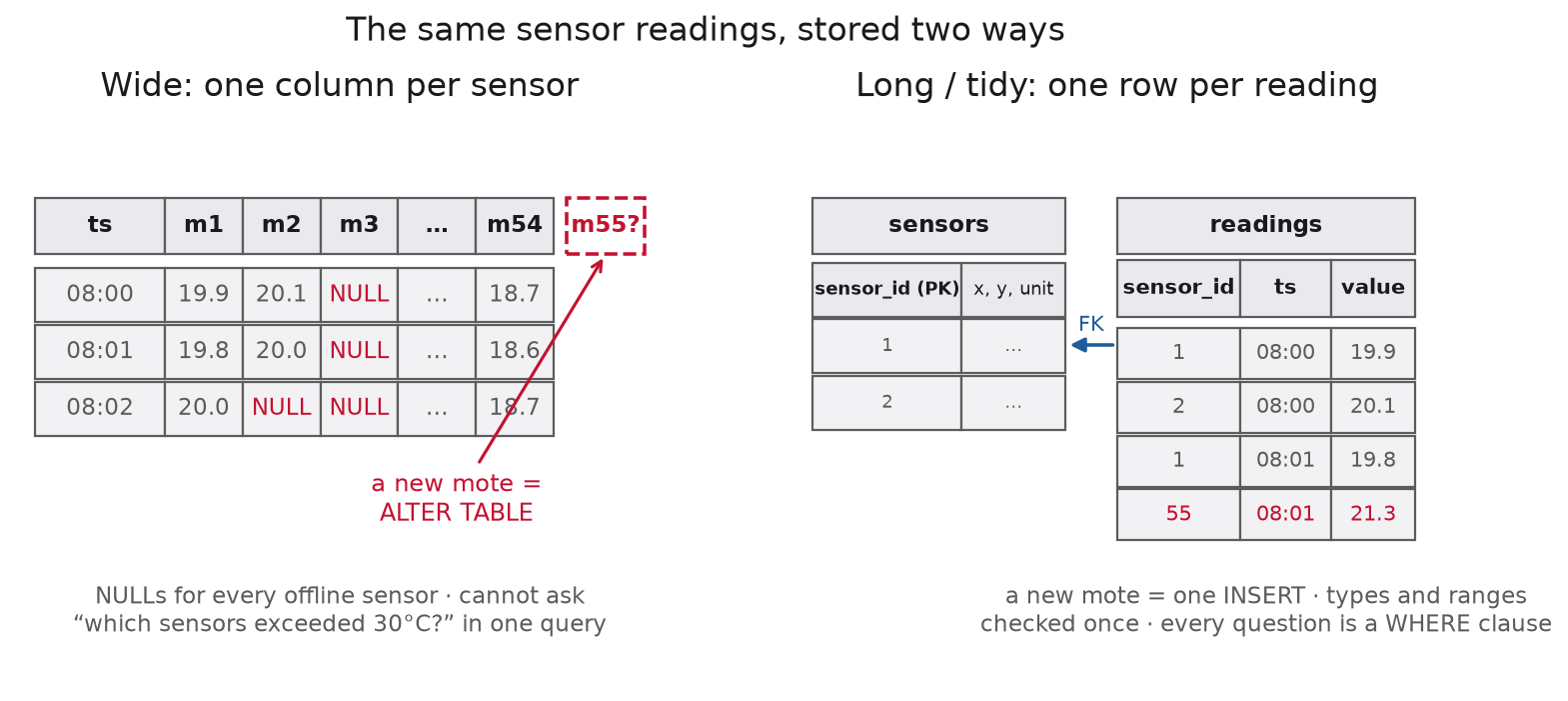

Why a database, the obvious shape: one column per sensor

Looks tidy with four sensors.
Falls apart on a real deployment.

Why a database, why wide falls apart

• New node → add a column → every query breaks
• Node offline → column of blanks (offline? or zero?)
• "Which sensors exceeded 30°C?" → no answer

You cannot put a WHERE clause on a column name.

Why a database, the quieter failure

A CSV has no opinion about what belongs in a cell.

This week's data: 2.3M readings, 54 motes,
Intel Berkeley Lab, February to April 2004.

Hiding in it: temperatures of 122°C and 386°C,
in the same column as the honest 19°C ones.

Nothing marks them impossible.

Intel Lab Data

Why a database, a schema is a contract

A database lets you state, once and enforceably:

• this column is a timestamp with a time zone
• this one is a number
• this sensor_id must refer to a sensor that exists

A contract you can query turns a pile of numbers
into something you can answer questions from and defend.

Why a database, a question

The relational model

Keys

• Primary key: uniquely identifies a row (sensor_id, ts, …)
• Foreign key: must match a key elsewhere

A reading for sensor 5 cannot exist unless sensor 5 does.
Enforced on every insert.

The relational model, integrity, enforced for you

INSERT INTO readings VALUES (999, now(), 'temperature', 21.0);
-- ERROR: violates foreign key constraint "readings_sensor_id_fkey"

A mote that isn't in sensors is rejected, not silently stored.
And (sensor_id, ts, variable) as the primary key means
the same reading twice is a duplicate the database refuses.

The relational model, normalization

• Location & unit don't change per reading → sensors table
• Readings carry only a sensor_id pointer

Fix a calibration in one row, not two million.

The relational model, the long form, in SQL

CREATE TABLE sensors (             -- static per-mote metadata
    sensor_id int PRIMARY KEY,
    x_m double precision, y_m double precision
);
CREATE TABLE readings (            -- one row per (mote, time, quantity)
    sensor_id int NOT NULL REFERENCES sensors (sensor_id),
    ts        timestamptz NOT NULL,
    variable  text NOT NULL,       -- 'temperature', 'voltage', …
    value     double precision,
    PRIMARY KEY (sensor_id, ts, variable)
);

Units and plausible ranges live in a small variables table.

The relational model, tidy vs typed

Both beat wide. Pick deliberately; justify it in Assignment 2.

The relational model, the pitfall to resist

Column names should never be entities
(sensor ids, machine ids, run numbers).

A column is a kind of thing you measure,
never a particular thing you measured it from.

Entities go in rows.

The relational model, a question

Types that carry meaning

timestamp = wall clock, no zone → ambiguous
timestamptz = an instant, stored UTC → well defined

2004-03-14 02:30:00 on a clock-change night
happened twice, or never.

Store instants in UTC. Always.

PostgreSQL: date/time types

Types that carry meaning, the leap second of 2012

Case: the leap second of 30 June 2012

• Last minute of the day ran to 23:59:60
• A Linux kernel bug → servers spun at 100% CPU

Types that carry meaning, who fell over and who didn't

Reddit, LinkedIn, Mozilla, Yelp, Foursquare, StumbleUpon

Amadeus Altea reservation system offline ~1 hour
→ Qantas & Virgin Australia checked in passengers by hand

The Register, 2 Jul 2012

Google saw it coming: spread the extra second across
many tiny clock adjustments. A "leap smear."

Lesson at every scale:

Calendar arithmetic is full of edge cases.
Don't be the one reimplementing it.

Store UTC, use timestamptz, let tested code do the math.

Types that carry meaning, numeric vs double precision

Measurement uncertainty ≫ float error.
double precision is the right default for physical data.

PostgreSQL: numeric types

Types that carry meaning, interval: a real duration

ts - lag(ts) yields an interval, not a bare number.

Compare it straight to '1 hour' or '31 seconds'.
No juggling epoch seconds by hand.

Types that carry meaning, a typed column is not a validated one

double precision accepts 386°C as happily as 19.

386 is a perfectly good float.

You need a CHECK constraint or a range filter,
and a threshold that knows the instrument.

Types that carry meaning, push the check into the schema

ALTER TABLE readings ADD CONSTRAINT plausible_value
  CHECK (value BETWEEN -50 AND 500);

A CHECK makes the database refuse the bad row on write.
Set the bound from the instrument, not from hope.

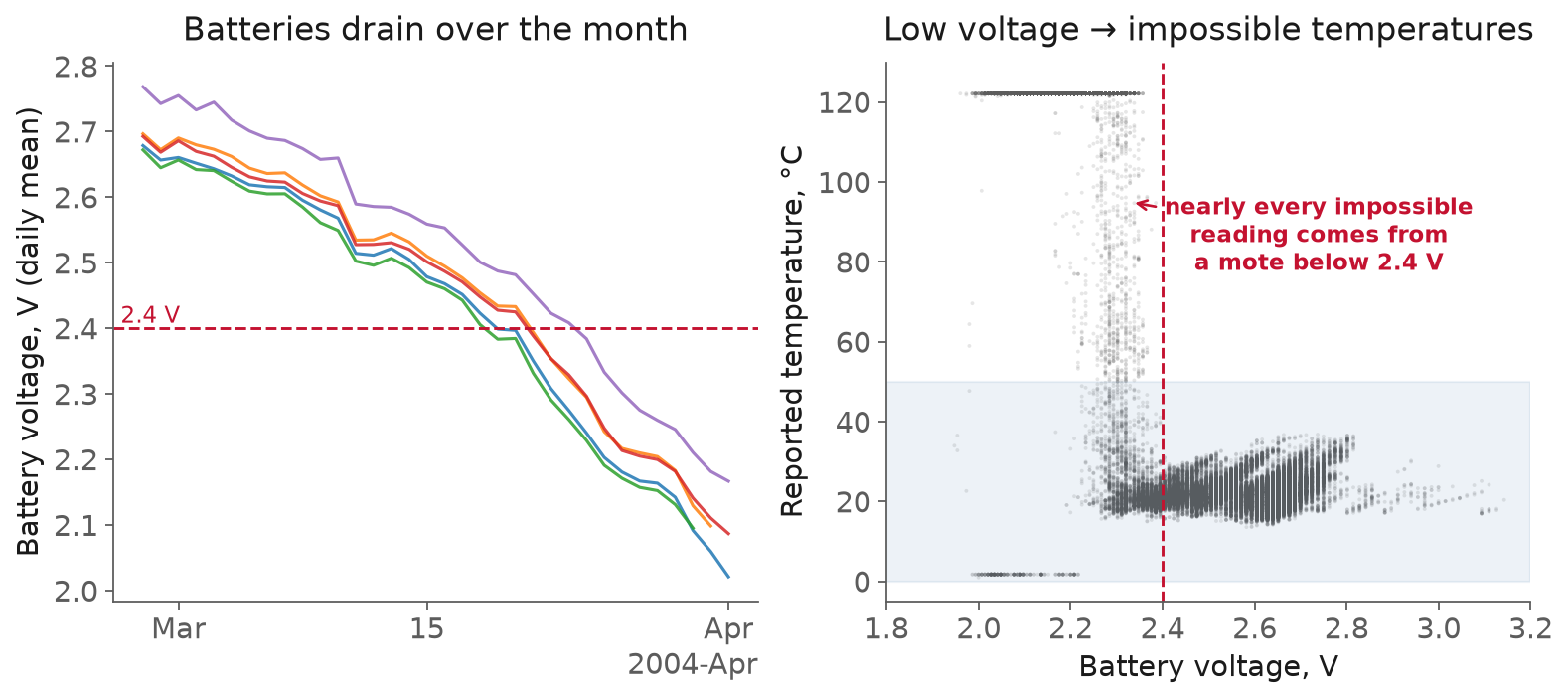

Types that carry meaning, voltage is a data-quality signal

• Batteries drain past ~2.4 V over the month
• Below that, the temperature channel lies
• ~18% of temps are impossible (outside 0 to 50°C)
• Essentially all of them: motes already below 2.4 V

The cleaning rule isn't a guess. It's in the data.

Types that carry meaning, so store the context

Units and calibration live in the sensors table,
beside the values they explain.

A number without its provenance
cannot be validated, only believed.

Types that carry meaning, a question

SQL for engineering questions

You describe the result you want.
The database decides how to compute it.

Same query, different plan as the data grows,
with no rewrite from you. (That's what an index changes.)

SQL for engineering questions, the vocabulary

• SELECT the columns
• FROM the table, JOIN another by key
• WHERE keeps rows
• GROUP BY combines rows, HAVING keeps groups

Almost every sensor question is a short combination of these.

SQL for engineering questions, time bucketing with date_trunc

Hourly average temperature per sensor:

SELECT sensor_id,
       date_trunc('hour', ts) AS hour,
       avg(value)             AS avg_temp
FROM   readings
WHERE  variable = 'temperature'
GROUP  BY sensor_id, hour;

date_trunc collapses irregular readings into regular buckets.

PostgreSQL: date/time functions

SQL for engineering questions, HAVING: filter the groups

Dropped motes = motes with too few readings.

SELECT sensor_id, count(*) AS n
FROM   readings
WHERE  variable = 'temperature'
GROUP  BY sensor_id
HAVING count(*) < 30000
ORDER  BY n;

WHERE filters rows; HAVING filters aggregates.

SQL for engineering questions, window functions

Each reading keeps its identity and sees its neighbors.

lag, avg(...) OVER (...), rank, …

The part of SQL that makes time-series tractable.

PostgreSQL: window functions

SQL for engineering questions, lag: turn gaps into a column

SELECT sensor_id, ts,
       ts - lag(ts) OVER (
         PARTITION BY sensor_id ORDER BY ts
       ) AS gap
FROM   readings
WHERE  variable = 'temperature';

Motes report ~every 31 s.
Any gap ≫ 31 s is a dropout, located in time.

SQL for engineering questions, rolling average, by time not rows

avg(value) OVER (
    PARTITION BY sensor_id ORDER BY ts
    RANGE BETWEEN INTERVAL '1 hour' PRECEDING
              AND CURRENT ROW
)

Sampling is irregular → a time frame is the honest one.
PostgreSQL writes it almost as you'd say it.

SQL for engineering questions, a question

SQL for engineering questions, WHERE + CASE: flag, don't just drop

WHERE r.value < 0 OR r.value > 50   -- impossible indoors

CASE WHEN value BETWEEN 0 AND 50
     THEN 'ok' ELSE 'suspect' END

Label rather than discard, when that's what you want.

SQL for engineering questions, JOIN: attach the context

SELECT r.sensor_id, s.x_m, s.y_m, avg(r.value)
FROM   readings r
JOIN   sensors  s USING (sensor_id)
WHERE  r.variable = 'temperature'
GROUP  BY r.sensor_id, s.x_m, s.y_m;

The reading's value, placed where it was measured.

SQL for engineering questions, aggregates summarize a sensor

SELECT sensor_id,
       count(*), min(value), max(value),
       avg(value), stddev(value)
FROM   readings
WHERE  variable = 'temperature'
GROUP  BY sensor_id;

DISTINCT when you want the set, not the count:
SELECT DISTINCT sensor_id FROM readings;

Loading, indexes, query cost

2M single-row INSERTs = 2M round trips = an afternoon.

COPY streams a whole file in one operation:

COPY readings (sensor_id, ts, variable, value)
FROM '/data/readings.csv'
WITH (FORMAT csv, HEADER true);

Orders of magnitude faster.

PostgreSQL: COPY

Loading, indexes, query cost, the paths from Python

• psql: interactive client, \copy from the client side
• psycopg: direct driver, cursor.copy()
• SQLAlchemy: portable layer, pairs with pandas

Loading, indexes, query cost, real data resists the loader

This file has:

• truncated rows (a few fields only)
• sub-second timestamps
• mote ids outside 1 to 54 (corrupt id field)

Staging table pattern: COPY raw → clean with SQL → insert.
Cleaning rules become queries, and the FK catches the rest.

Loading, indexes, query cost, the dominant query: a range scan

One sensor, one window of time.

Naively: read every row, discard misses.
A sequential scan costs the whole table
even for a 100-row answer.

Loading, indexes, query cost, the B-tree index

For per-sensor time ranges:

CREATE INDEX ON readings (sensor_id, ts);

Composite, in that order: cluster by sensor, sort by time.

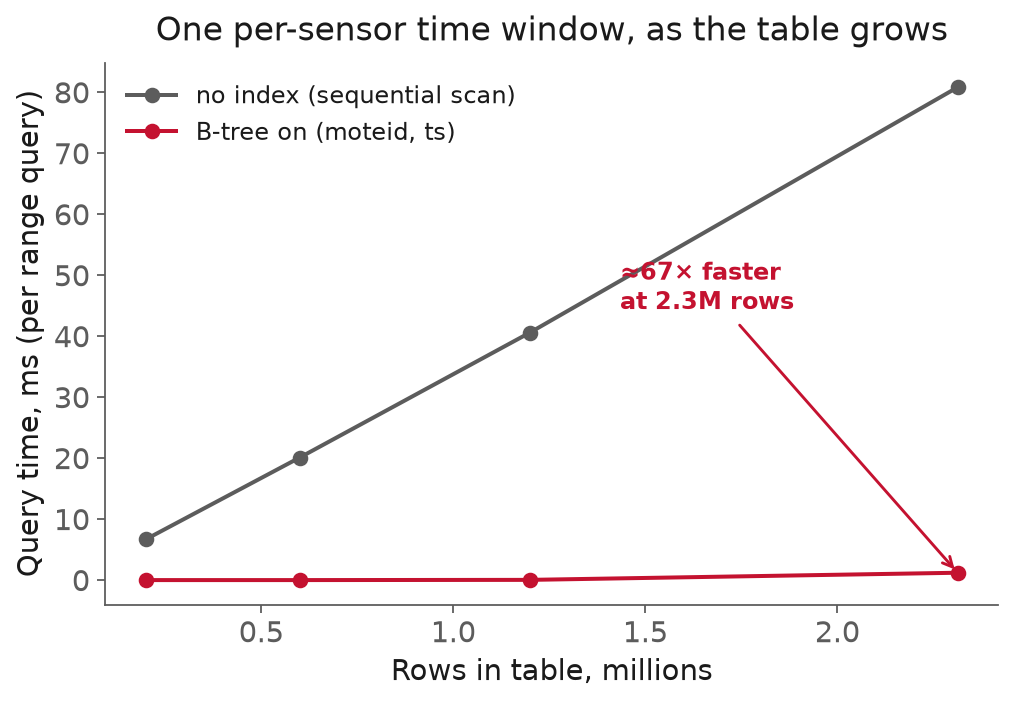

One sensor, one-hour window, as the table grows to 2.3M rows. ~67× at full size. Measured in SQLite (B-trees, like Postgres).

Loading, indexes, query cost, a question

Loading, indexes, query cost, EXPLAIN ANALYZE: read two things

Run the query; print the real plan and timings.

1. The scan at the base, the strategy
   (Seq Scan vs Index Only Scan)
2. The total execution time at the bottom

EXPLAIN ANALYZE
SELECT count(*) FROM readings
WHERE sensor_id = 1
  AND ts BETWEEN '2004-03-15' AND '2004-03-16';

PostgreSQL: using EXPLAIN

Loading, indexes, query cost, reading the plan

Before the index (9.1M rows):

Aggregate
  -> Gather  (Workers Planned: 2)
       -> Parallel Seq Scan on readings
            Filter: (sensor_id = 1 AND ts BETWEEN ...)
Execution Time: ~190 ms

After CREATE INDEX ... (sensor_id, ts):

Aggregate
  -> Index Only Scan using readings_sensor_ts
Execution Time: ~0.04 ms

Loading, indexes, query cost, indexes are not free

• Each one costs space
• Each one slows every write (maintained on insert)
• An index the planner never uses is pure overhead

Index the access patterns you have;
confirm with EXPLAIN ANALYZE.

PostgreSQL: indexes

Loading, indexes, query cost, when time-access dominates: hypertables

TimescaleDB auto-partitions a table into
time chunks.

• Query last week → touch only last week's chunks
• Compress or drop old data a chunk at a time

Same SQL, same relational model, tuned for time-series.

Loading, indexes, query cost, today's database is OLTP

Optimized for many correct writes and point/range reads:
transactions, joins, constraints, one row at a time.

Scanning three columns across ten years is a different job.

That's OLAP, and it wants a different store.

Loading, indexes, query cost, a question

What to watch

• date_trunc hourly averages
• windowed lag for dropouts, rolling voltage
• the impossible temps low voltage predicts
• EXPLAIN ANALYZE before vs after the index

Watch the top node flip: Seq Scan → Index Only Scan.

Recap

• Long form: new sensor = INSERT, every question = WHERE
• Types with meaning: timestamptz UTC, double precision
• A type is not a validation (386°C)
• date_trunc + window functions answer time-series
• B-tree on (sensor_id, ts); confirm with EXPLAIN ANALYZE

Standings

Nicknames only. Everyone who skipped one still counted in every bar you saw.
